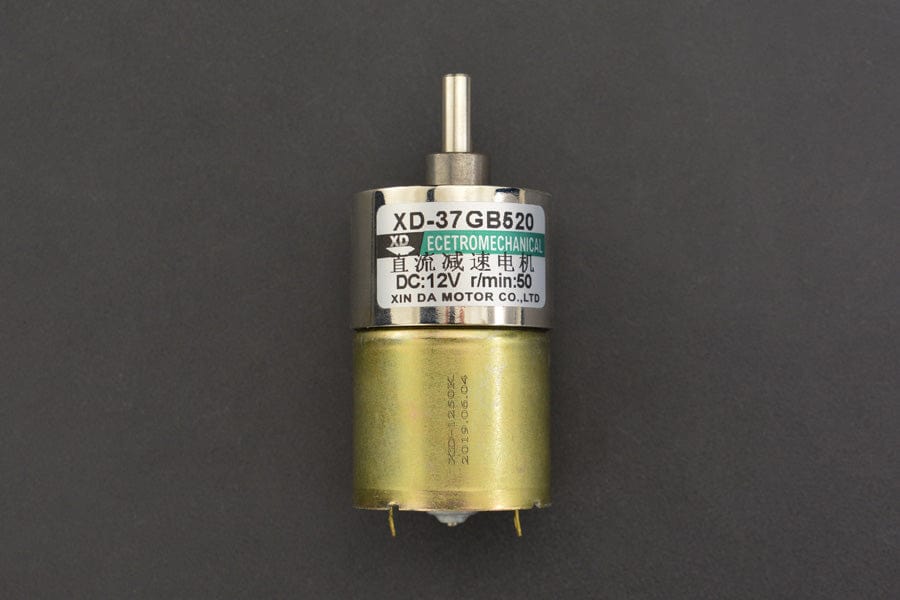

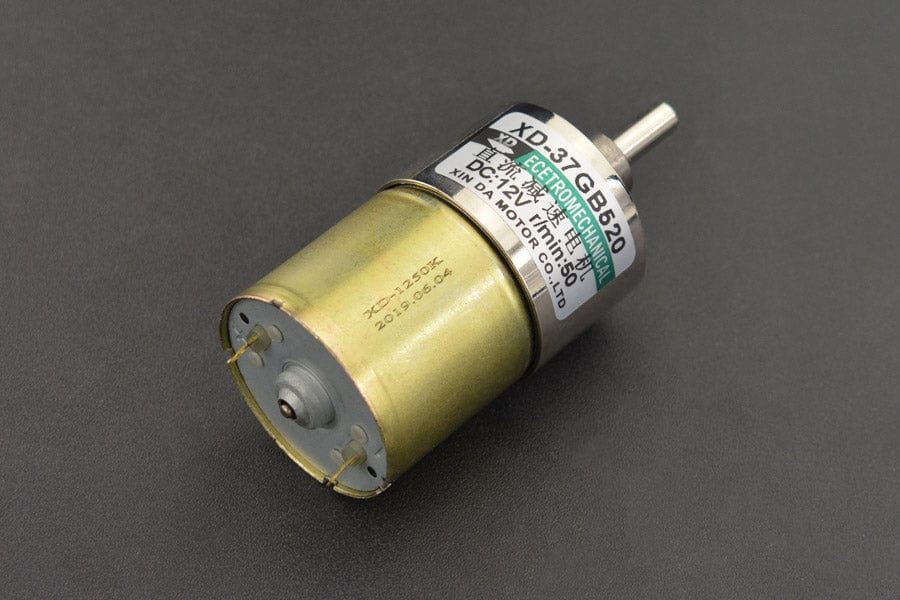

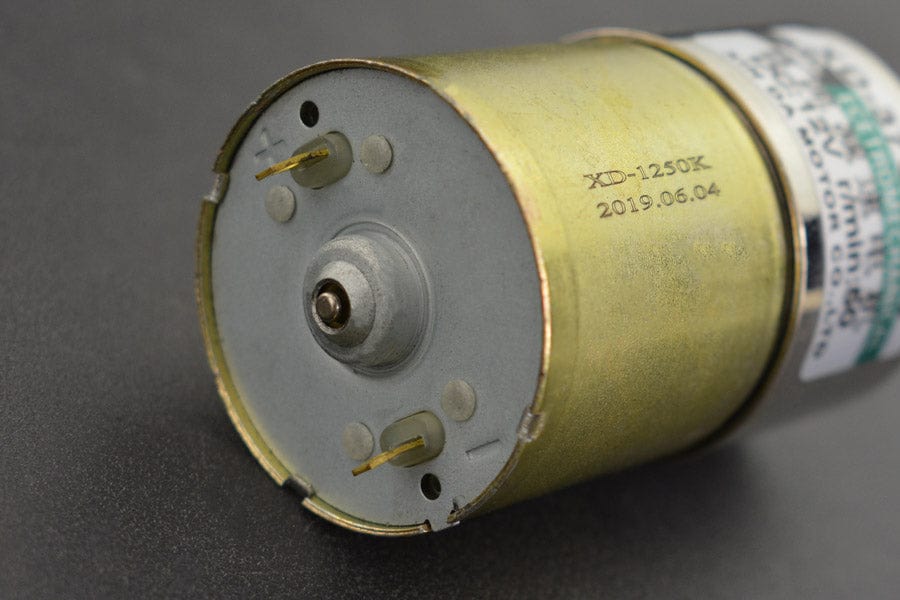

Metal DC Geared Motor - 12V 50RPM 26kg.cm

The Pi HutSKU: FIT0492-A
£11.40
incl. VAT
excl. VAT
Sold out
Notify me
This is a metal DC geared motor, 100% pure copper coils, high-density molecular layer, 100:1 metal reducer, small size, large torque. The maximum torque could arrive 26 kg.cm, stable and durable!

Specification

  • Rated voltage: 12 V
  • Gear reduction ratio: 100:1
  • D output shaft diameter: 6 mm
  • No-load speed: 50 RPM @ 12 v
  • No-load current: 0.17 A
  • Rated speed: 45 RPM @ 12 v
  • Current rating: 0.68 A
  • Rated torque: 9 kg.cm
  • Locked-rotor torque: 26 kg.cm
  • Locked-rotor current: 2.19 A
  • Power: 5W
  • Weight: 210 g

Shipping List

  • Metal DC Geared Motor - 12V 50RPM 26kg.cm x1
