Metal DC Geared Motor - 12V 100RPM 12kg.cm

The Pi HutSKU: FIT0492-B
Price:
Sale price £11.40
incl. VAT
excl. VAT
Stock:
Only 14 units left
Quantity:

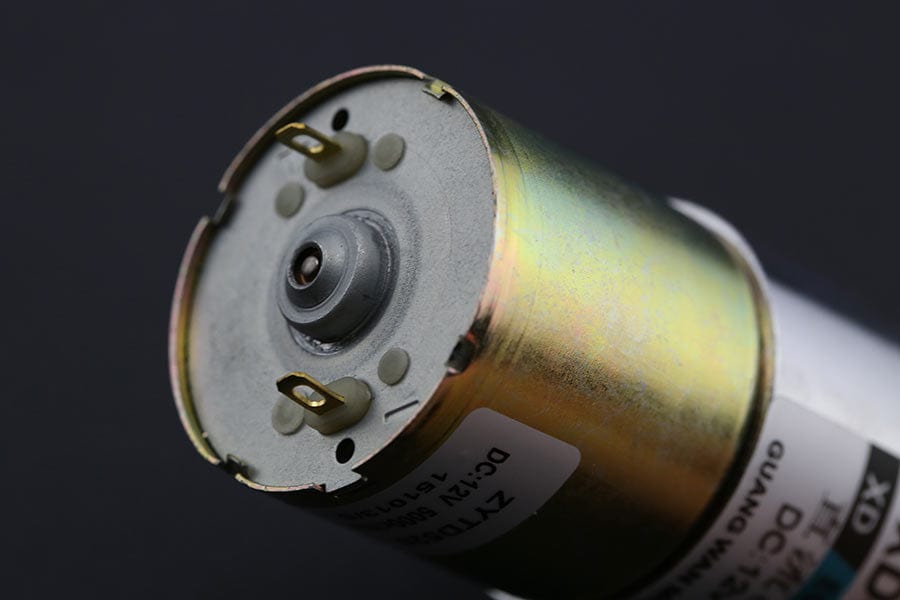

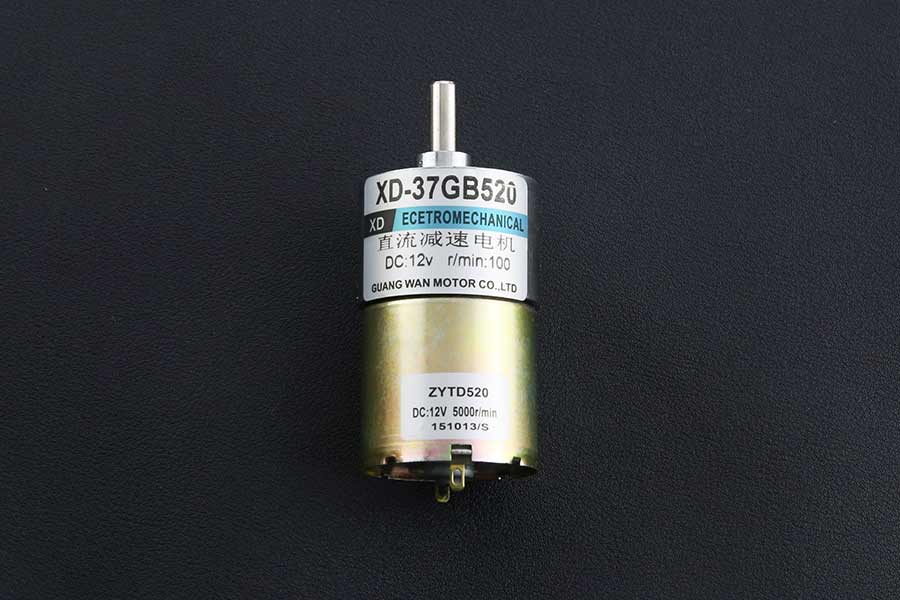

This is a metal DC geared motor, 100% pure copper coils, high-density molecular layer, 50:1 metal reducer, small size, large torque. The maximum torque could arrive 12 kg.cm, stable and durable!

Specification

  • Rated voltage: 12 V
  • Gear reduction ratio: 50:1
  • D output shaft diameter: 6 mm
  • No-load speed: 100 RPM @ 12 v
  • No-load current: 0.17 A
  • Rated speed: 93 RPM @ 12 v
  • Current rating: 0.68 A
  • Rated torque: 7 kg.cm
  • Stall torque: 12 kg.cm
  • Stall current: 2.19 A
  • Power: 5W
  • Weight: 210 g
  • Shipping List

  • Metal DC Geared Motor - 12V 100RPM 12kg.cm x1
