Membrane 3x4 Matrix Keypad + extras (3x4)

Price:
Sale price £3.90
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

Adafruit TCA8418 Keypad Matrix and GPIO Expander Breakout - STEMMA QT / Qwiic - The Pi HutAdafruit TCA8418 Keypad Matrix and GPIO Expander Breakout - STEMMA QT / Qwiic - The Pi Hut

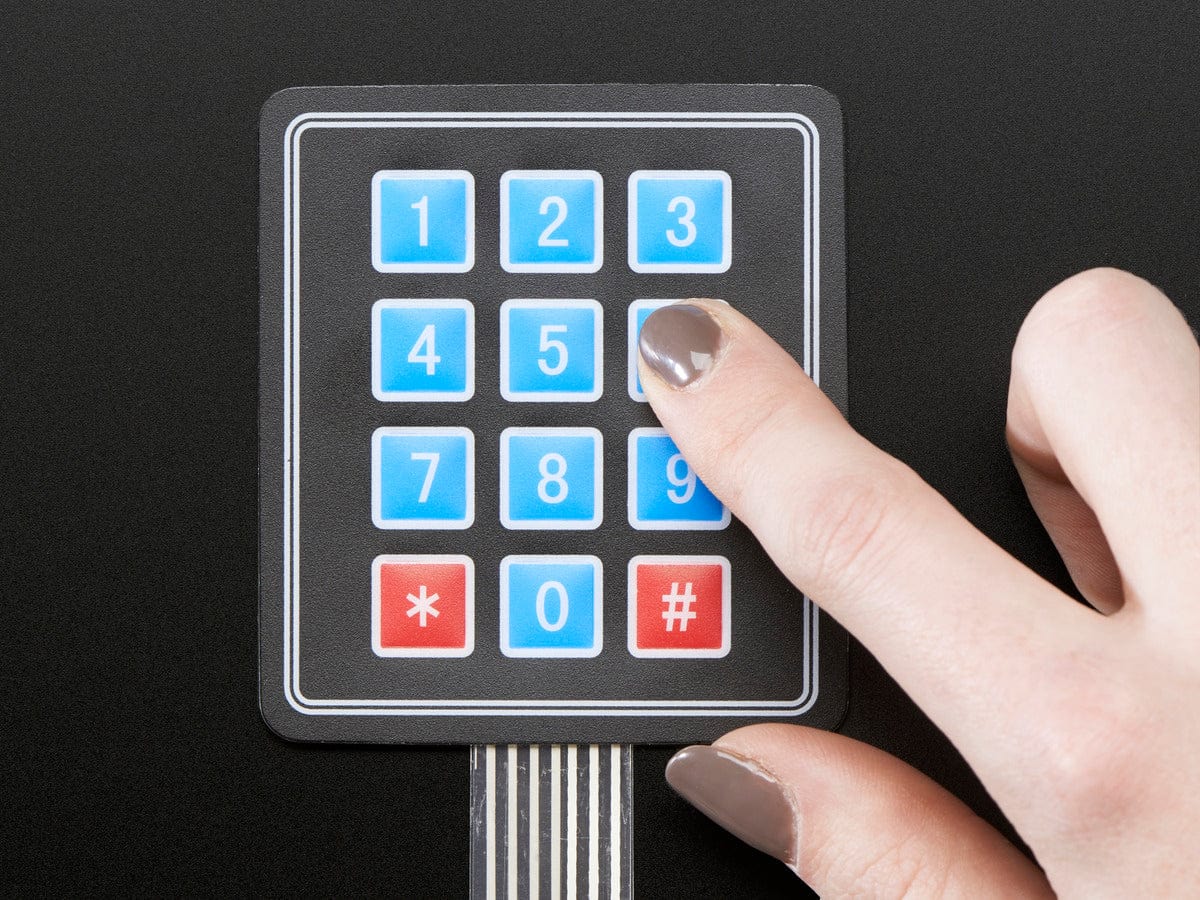

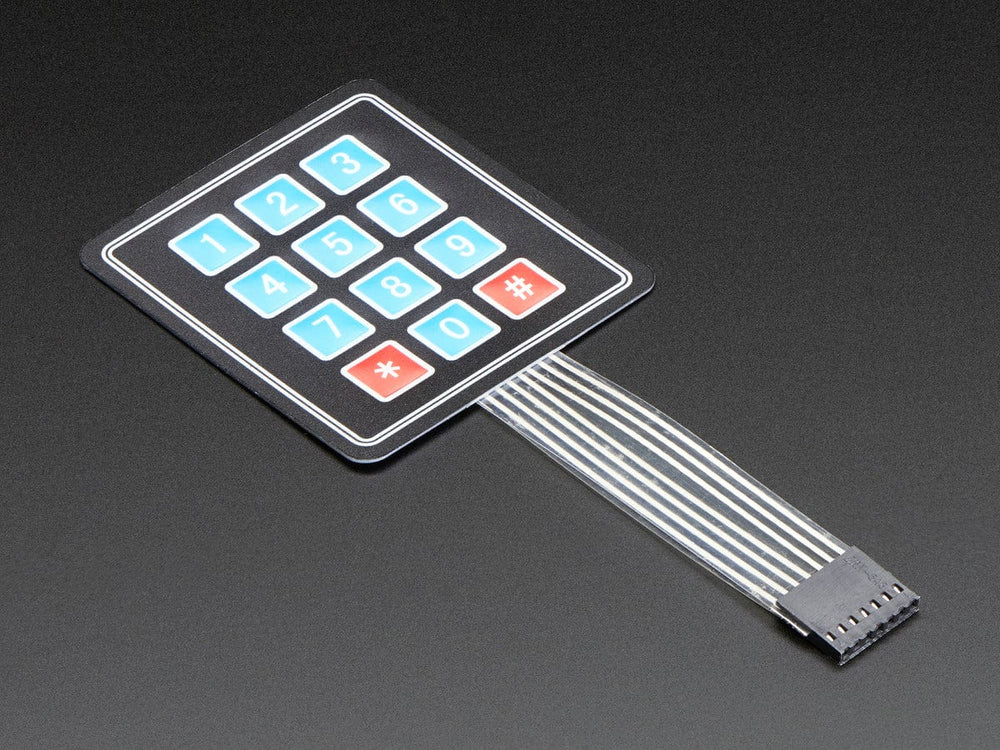

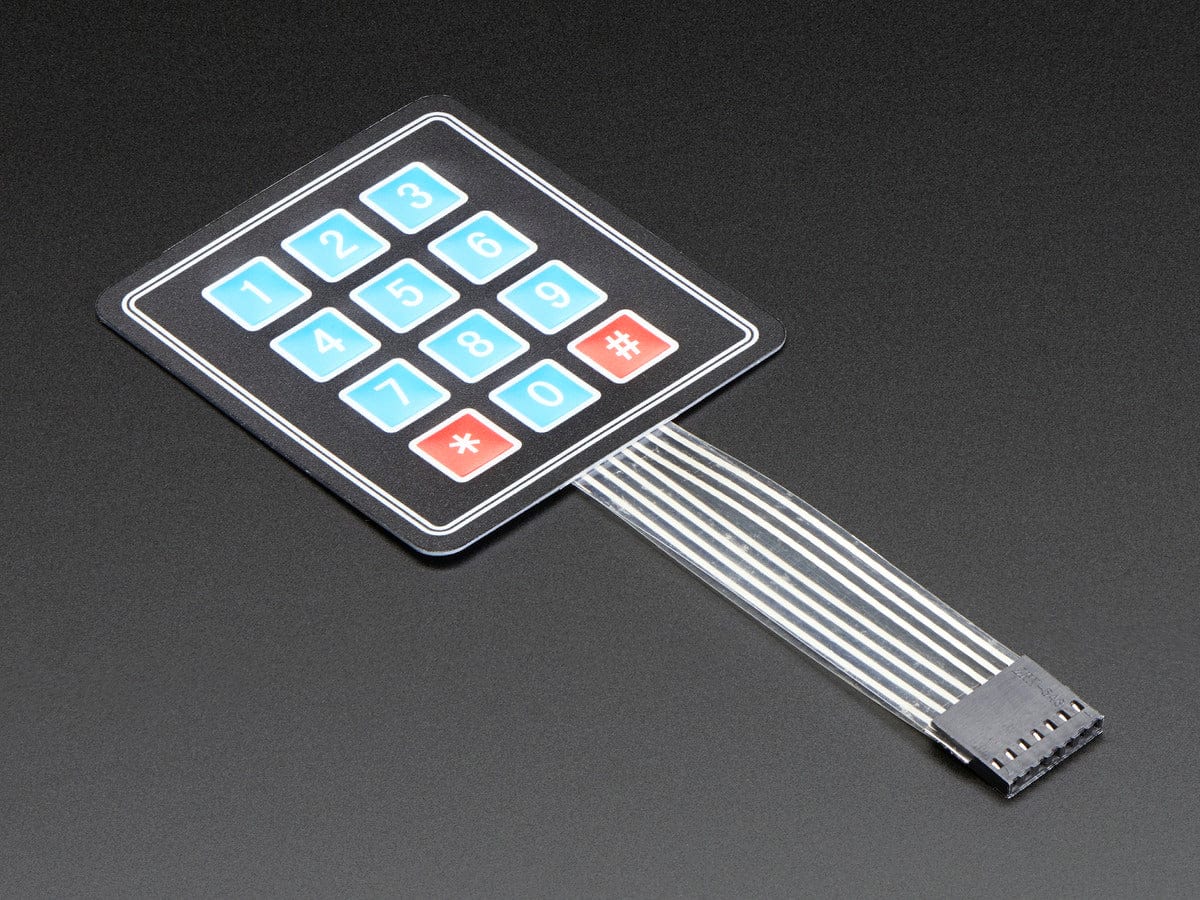

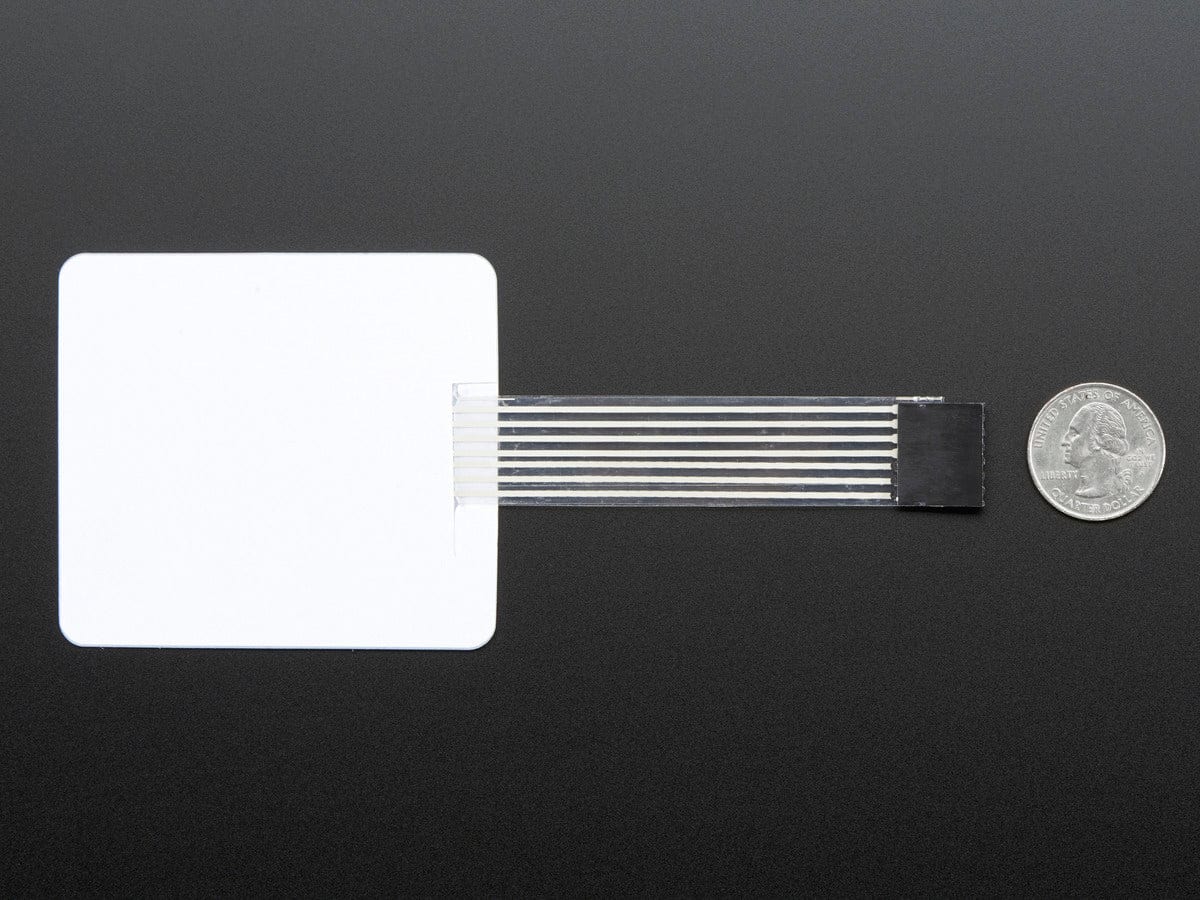

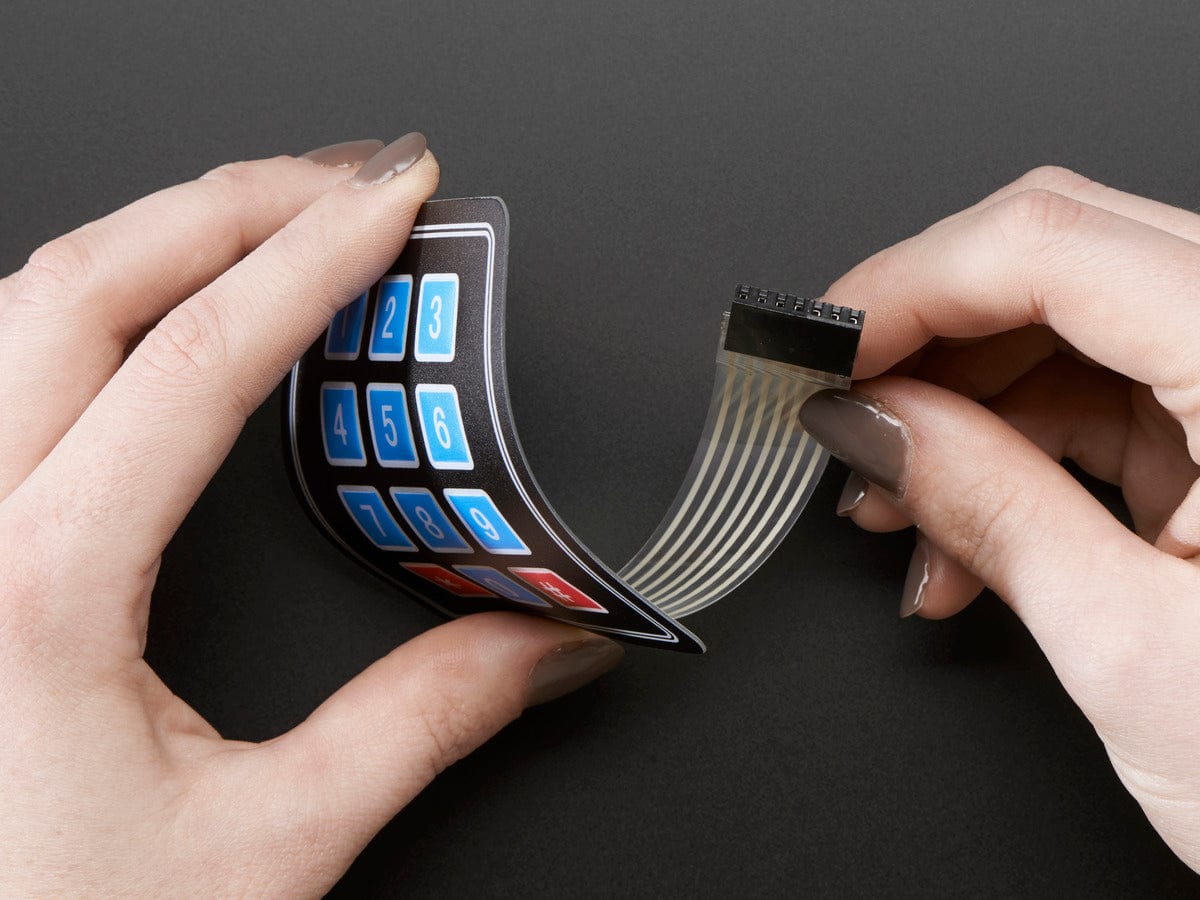

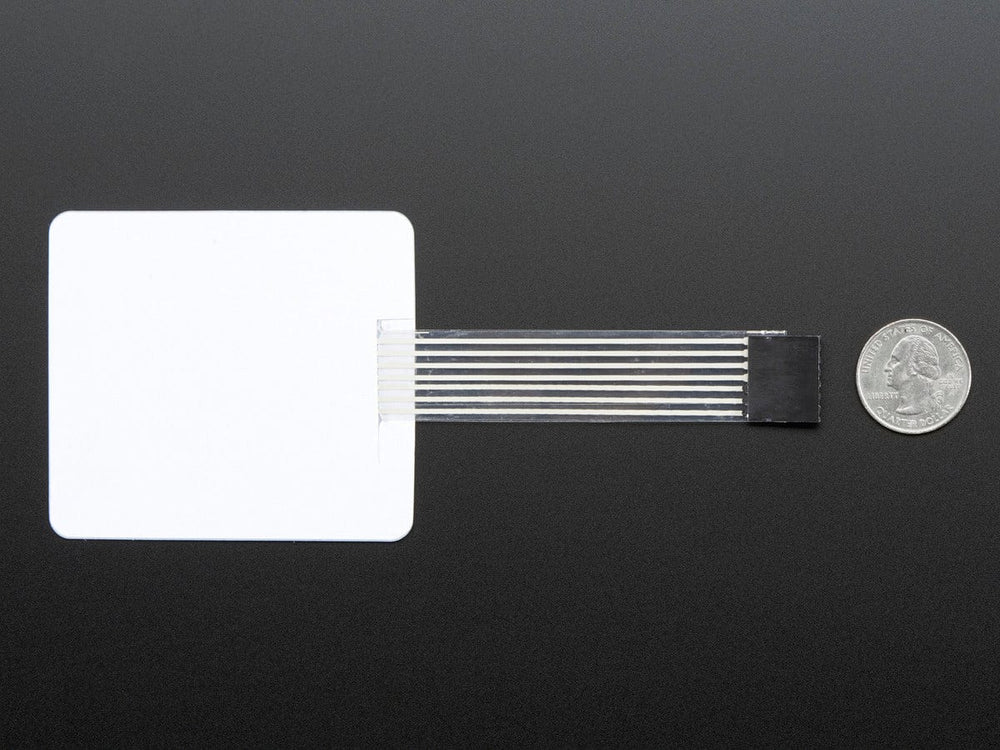

Punch in your secret key into this numeric matrix keypad. This keypad has 12 buttons, arranged in a telephone-line 3x4 grid. It's made of a thin, flexible membrane material with an adhesive backing (just remove the paper) so you can attach it to nearly anything. The keys are connected into a matrix, so you only need 7 microcontroller pins (3-columns and 4-rows) to scan through the pad. Check the tutorials tab for links to an Arduino library and example code.

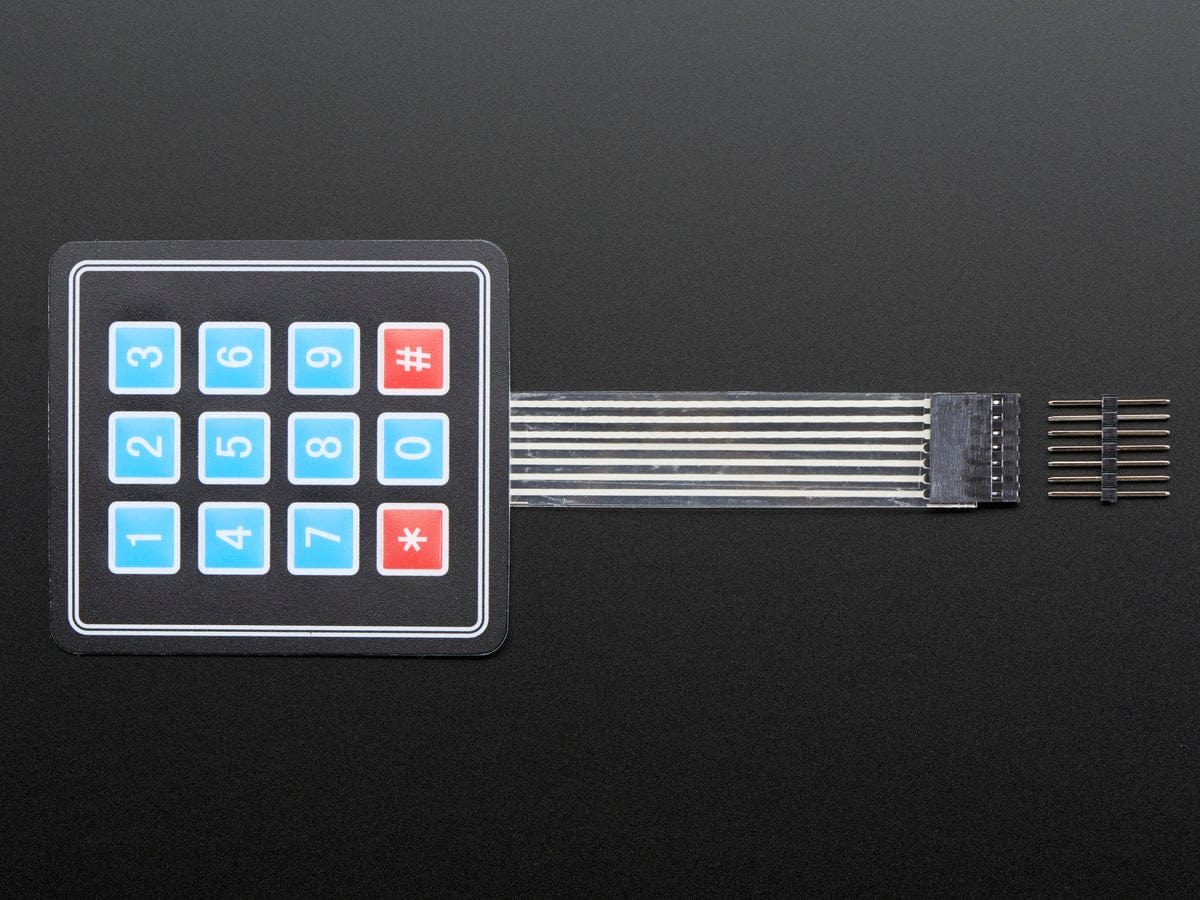

We include a 7-pin extra-long header strip so you can plug this into a breadboard with ease.

Check out our detailed guide with wiring diagrams, libraries and example sketches for all sorts of matrix keypads.

Technical Details

  • Weight: 7.5 grams
  • Keypad dimensions: 70mm x 77mm x 1mm (2.75" x 3" x 0.035")
  • Length of cable + connector: 85mm

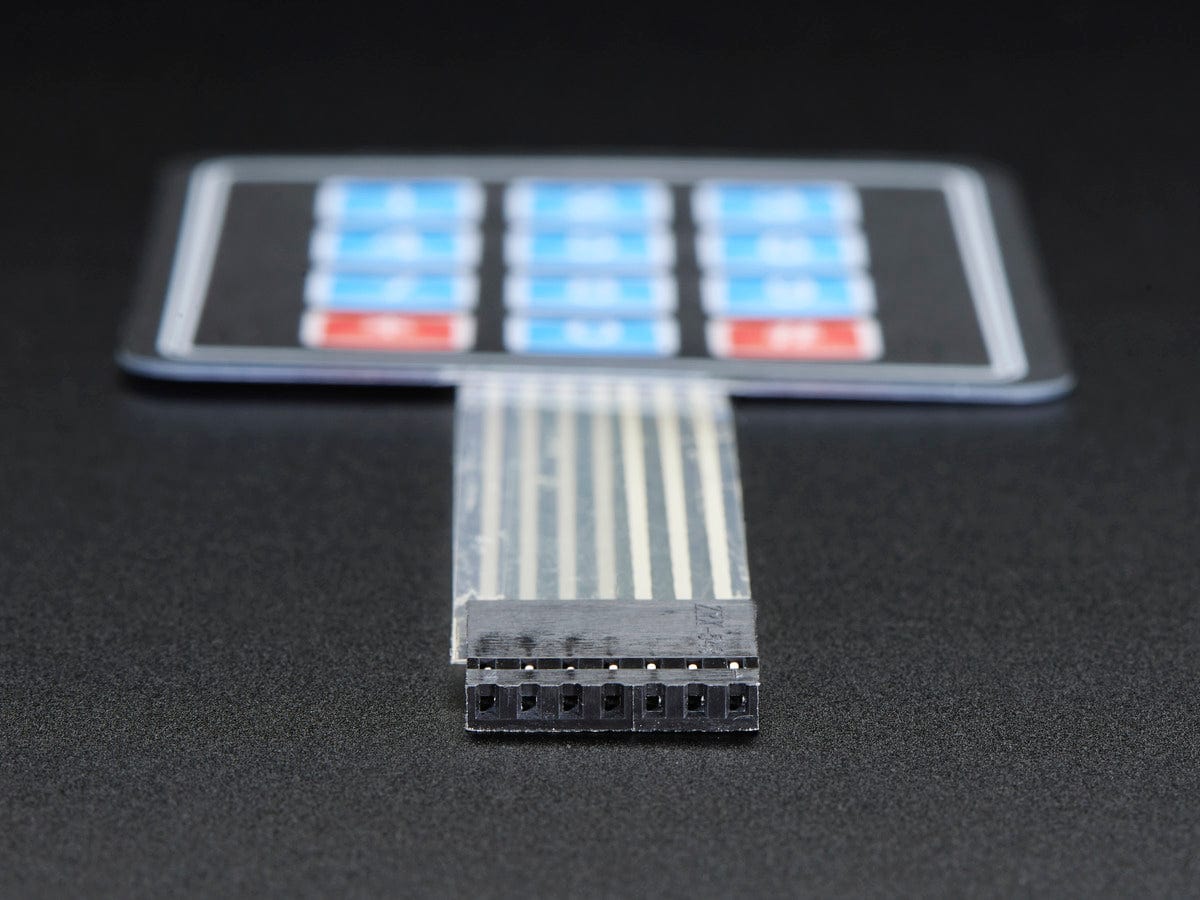

  • 7-pin 0.1" pitch connector

Check out our detailed guide with wiring diagrams, libraries and example sketches for all sorts of matrix keypads.
