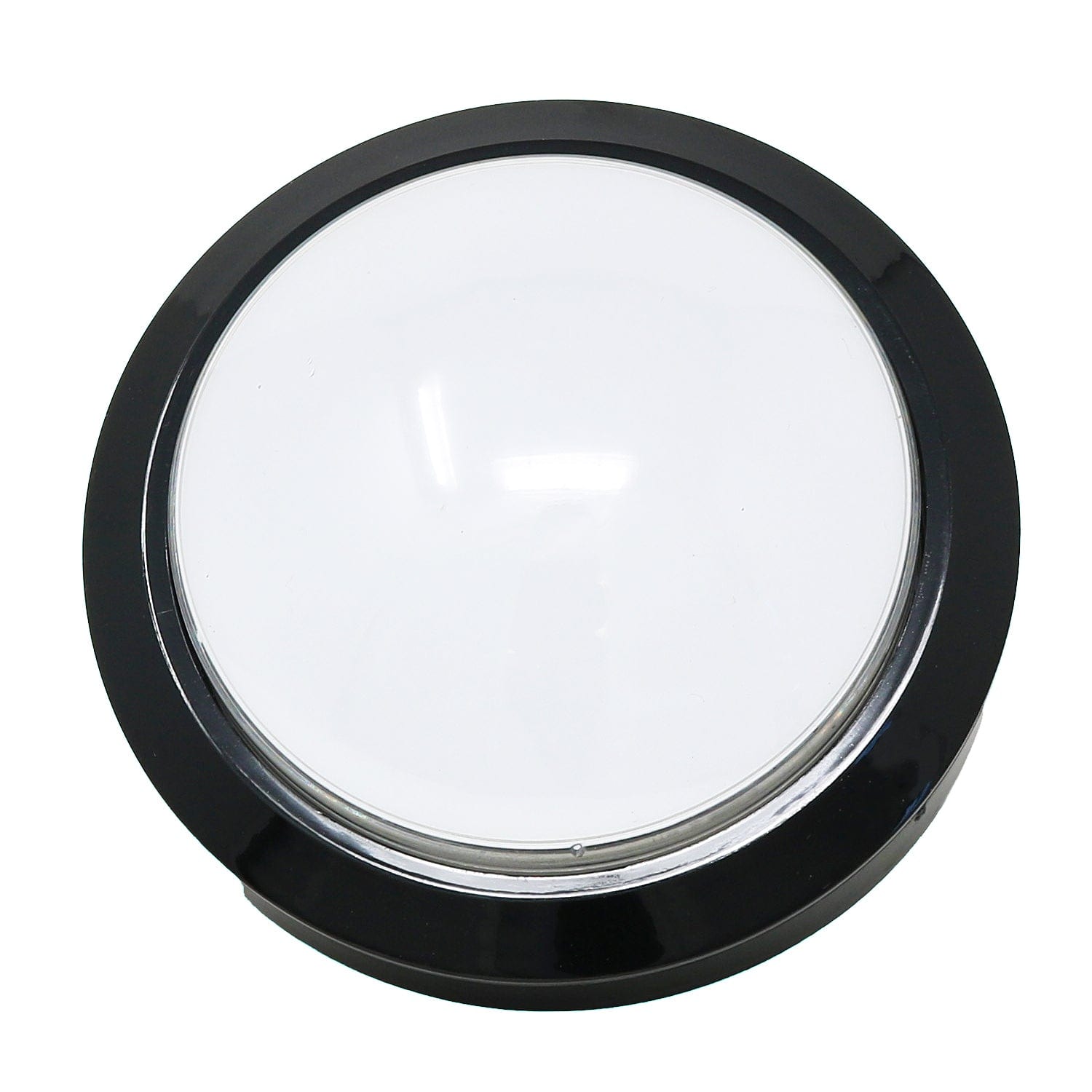

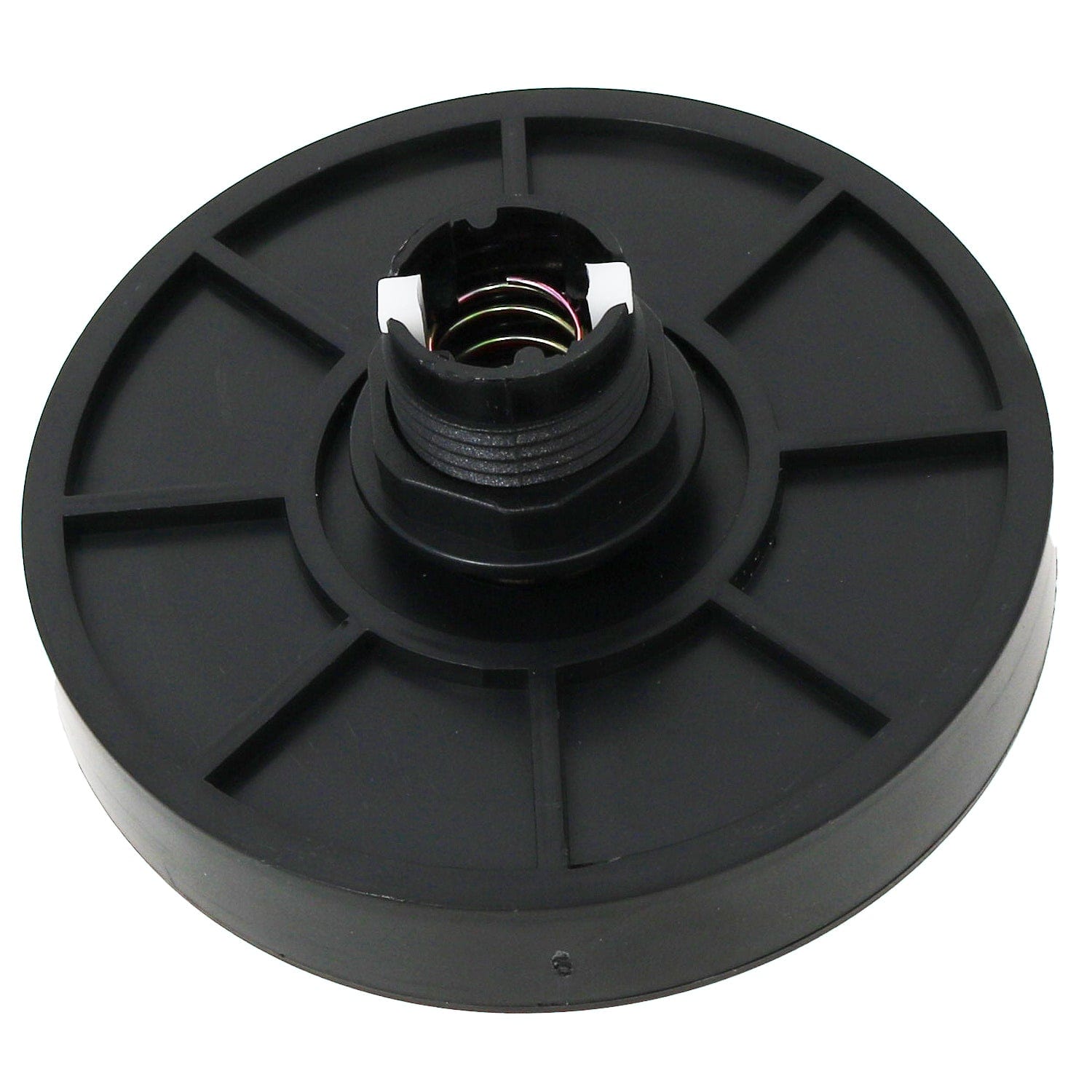

HERE IT COMES! This White 100mm diameter arcade button with a 10mm deep plastic base is a ginormous beast of a button that threatens to consume all other buttons once pushed. It's shiny surface is something that tempts even the most stubborn person to push. You've seen these before on some arcade machines, they're easy to mount on nearly any kind of enclosure. They're not waterproof or weatherproof, so use them inside.
There's an optional LED included that will light up the button. The LED has a built in resistor so you can run it up to 12V but given the massive size and shallow depth of the button, it doesn't illuminate the entire button face evenly. The button activates a common arcade microswitch (included), the switch contacts are normally open. When the button is pressed, the contacts close.
There are a great variety of fantastic colours to choose from (5 in total) They can be found here
These buttons work perfectly with our 0.25" Switch Quick-Connect Wires which press on firmly for a solid connection.
- Micro switch terminals: 0.187" wide,
- LED connection terminals: 0.25" wide
