M5stick T-Lite Thermal Camera Dev Kit (MLX90640)

M5StackSKU: K126
£78.60
incl. VAT
excl. VAT
Only 14 units left

Awesome Extras

M5Stack Thermal Camera 2 Unit (MLX90640) -110 Degree FoV - The Pi HutM5Stack Thermal Camera 2 Unit (MLX90640) -110 Degree FoV - The Pi Hut
M5StackM5Stack Thermal Camera 2 Unit (MLX90640) -110 Degree FoV
£72.70 incl. VAT excl. VAT
M5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - The Pi HutM5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0) - The Pi Hut
M5StackM5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)
£8.70 incl. VAT excl. VAT

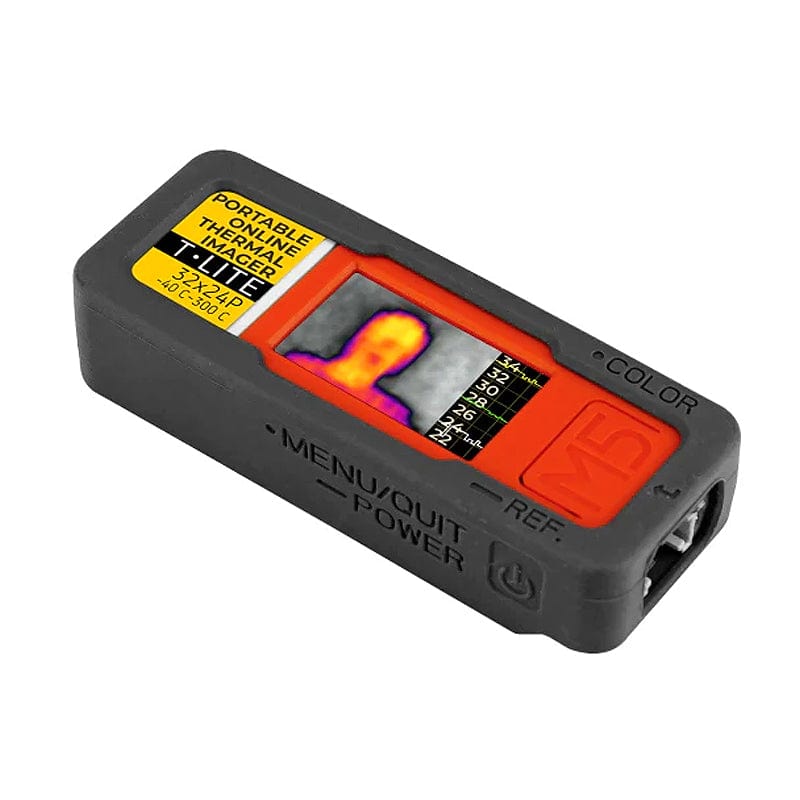

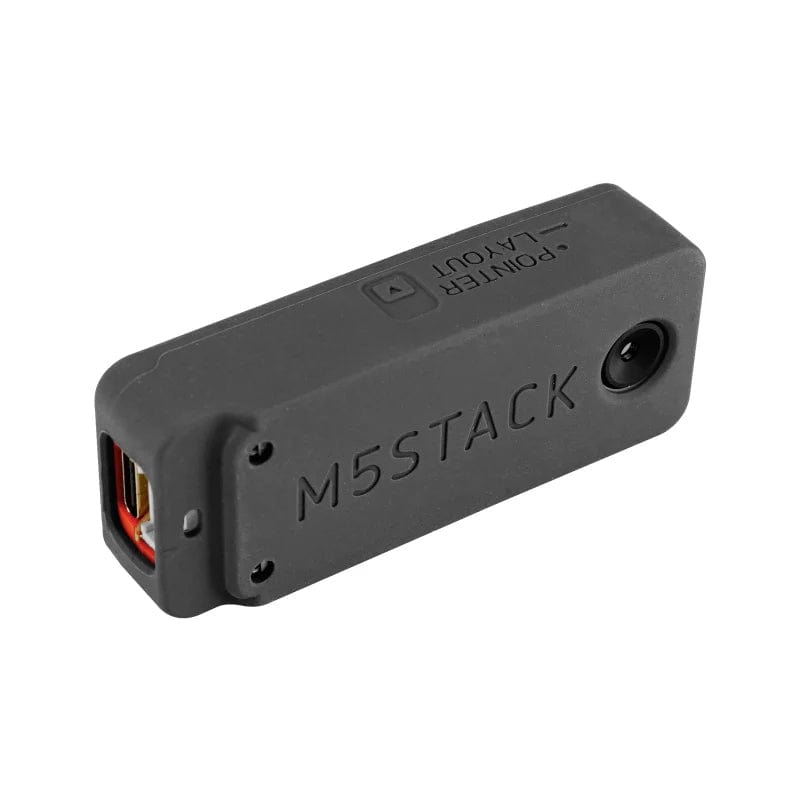

The T-Lite is an integrated thermal imaging acquisition device with an online detection function. The product is mainly composed of the M5StickC-PLUS and UNIT THERMAL, using an MLX90640-BAA infrared imaging sensor. The main control uses an ESP32-PICO-D4 chip, with a WIFI function, 135 x 240 resolution TFT screen, and a built-in 160mAh battery. Users can set the high-temperature warning function, and view temperature images and data in real time, through the cloud and LAN.

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

Features

  • ESP32-PICO based, WIFI
  • Buttons, LCD(1.14 inch)
  • Built-in Lithium Polymer Battery
  • Built-in Passive Buzzer
  • Field of View: 110°×75°
  • Measurement Range: -40°C ~ 300°C

Specifications

Resources Parameters
MCU ESP32-PICO,240MHz dual core, 600 DMIPS, 520KB SRAM
Sensor MLX90640
Field of View 110°×75°
Resolution 32×24
Flash Memory 4MB Flash
Power Input 5V @ 500mA
Port TypeC
LCD screen 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
MIC SPM1423
Buzzer Passive buzzer
PMU AXP192
Battery 160 mAh @ 3.7V
Product Size 69mm × 26.6mm × 6.35mm
Package Size 110mm × 87mm × 25mm
Product Weight 30.1g
Package Weight 62.9g

Resources

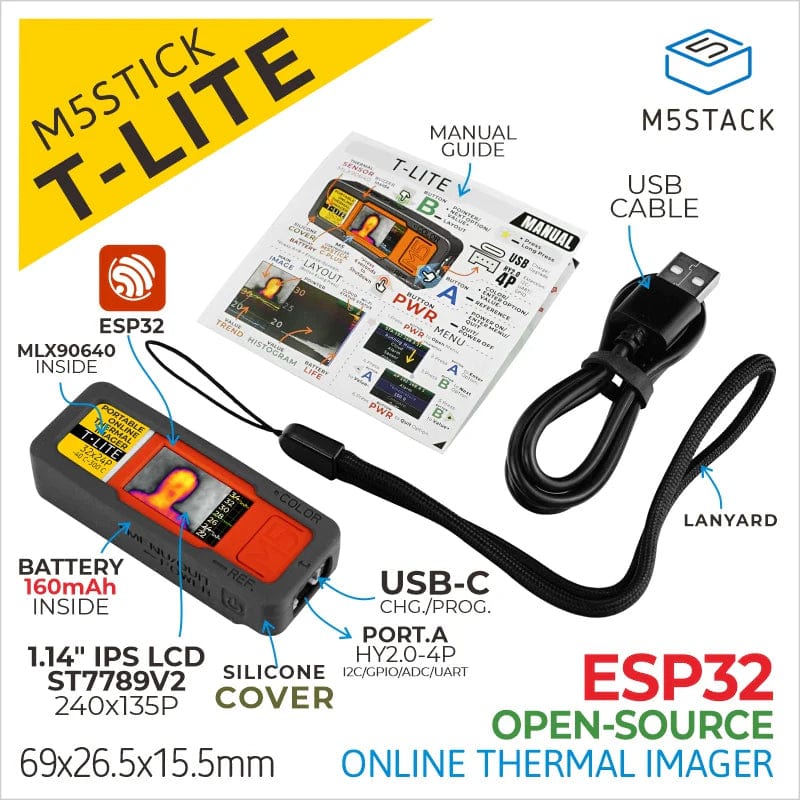

Package Contents

  • 1x T-Lite
  • 1x Hanging wire
  • 1x Type-C USB (20cm)
  • 1x User manual
