M5Stack Station ESP32 IoT Development Kit (Battery Version)

M5StackSKU: K124-B
Price:
Sale price £68.50
incl. VAT
excl. VAT
Stock:
Only 12 units left
Quantity:

Awesome Extras

(3 Reviews)
M5StackM5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm
Sale priceFrom £2 incl. VAT excl. VAT
M5StackM5Stack I/O Hub 1 to 6 Expansion Unit (STM32F0)
Sale price £8.70 incl. VAT excl. VAT
M5StackM5Stack Tough ESP32 IoT Development Board Kit
Sale price £50.50 incl. VAT excl. VAT

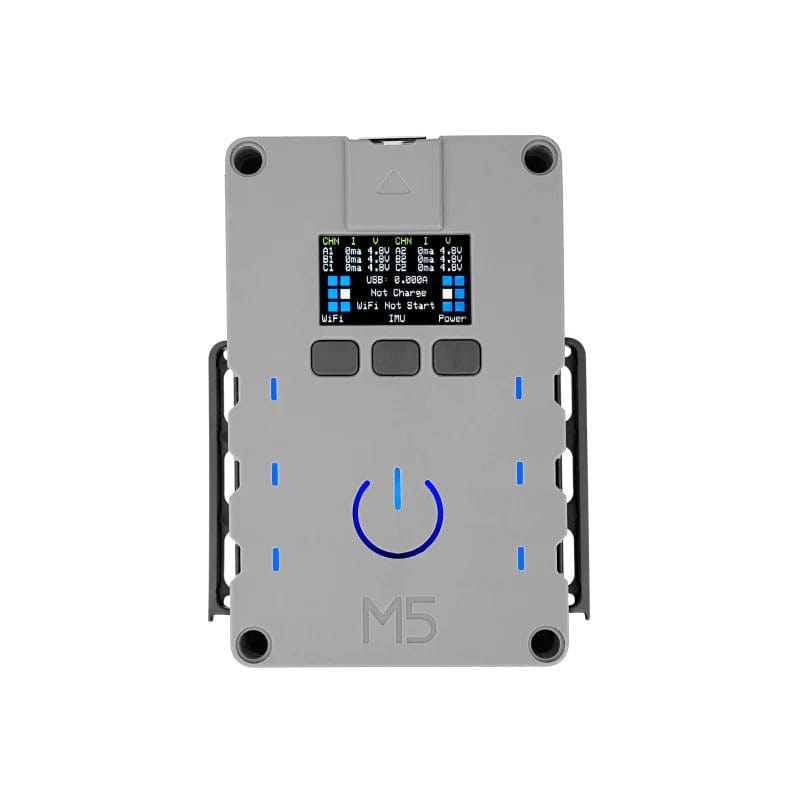

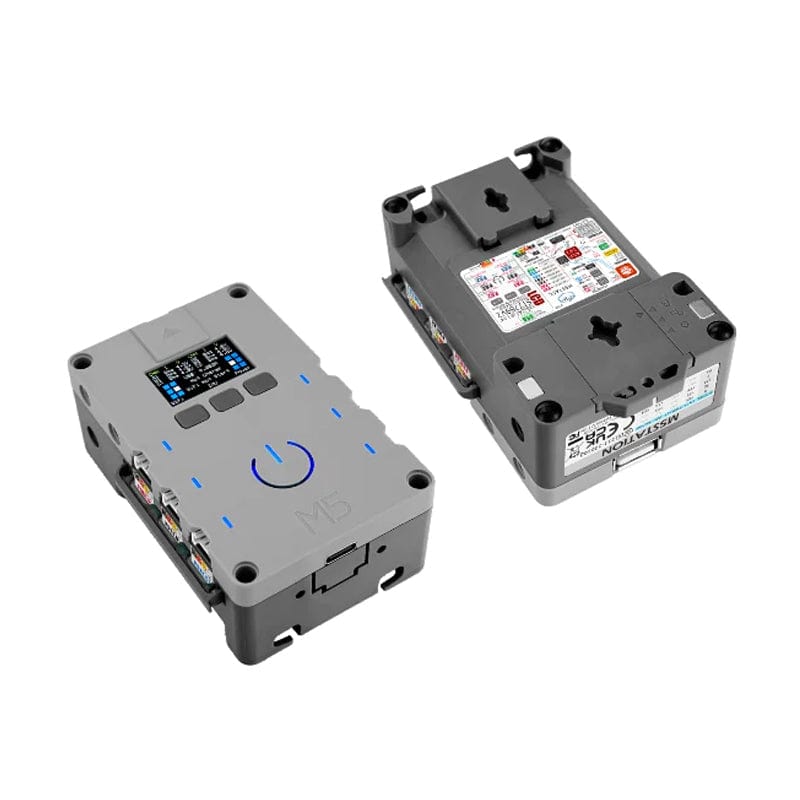

The M5Stack M5Stack Station ESP32 IoT Development Kit Battery Version ('M5Station-BAT') is a multi-purpose industrial-level programmable embedded controller with an Espressif ESP32 SOC, integrated Wi-Fi solution and a dual-core low-power Xtensa® 32-bit LX6 microprocessor with a main frequency up to 240MHz.

The controller has 16M FLASH onboard alongside an integrated 240x135 1.14" full-colour HD IPS display + physical keypad + rich peripherals, two sets of six expansion ports + low-power sleep/wakeup function + Integrated IMU MPU6886.

This controller supports two types of power supply USB Type-C and internal rechargeable 18650 batteries (2x 18650 batteries are included). The integrated high power density boost DC/DC converter SCT12A0DHKR on board ensures the stability of the electrical equipment even in complex applications.

This device is suitable for industrial control, intelligent buildings, multi-channel data acquisition nodes and prototyping applications.

We also stock the RS485 version of the M5Station.


Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

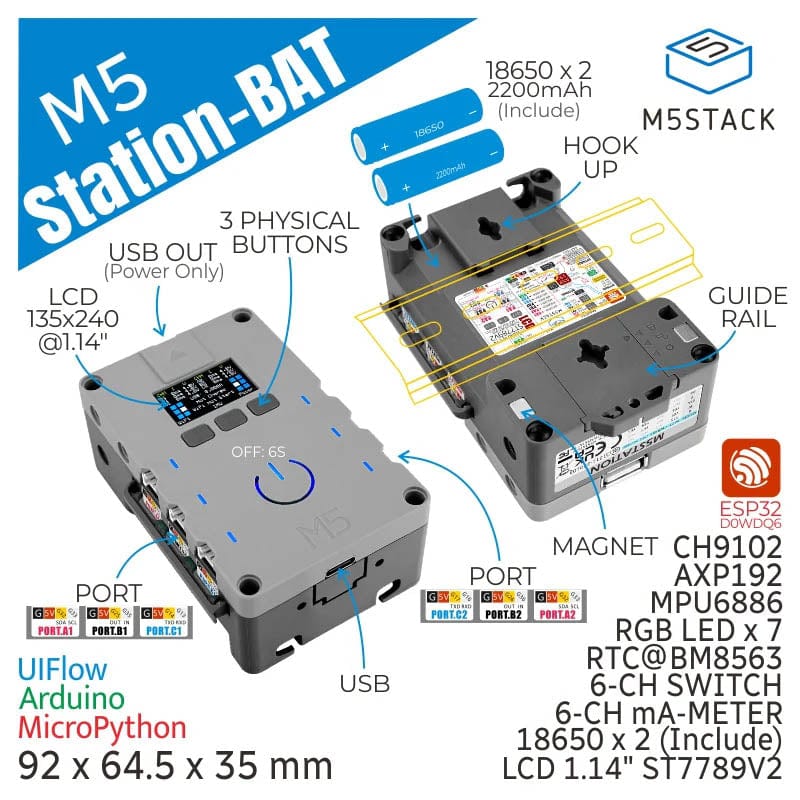

Interfaces

  • 1.14" IPS display panel
  • 6-axis IMU MPU6886
  • 3 physical programmable keys
  • 1 ON/OFF button
  • 7 programmable RGB LEDs

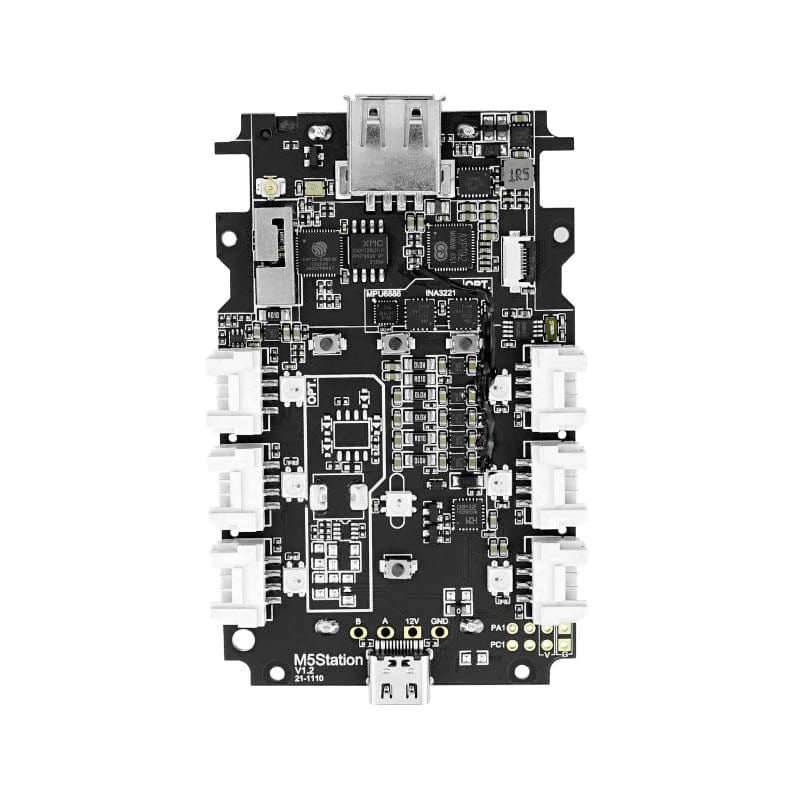

Power supply design

  • Input
    • Integrated 9~24V->5V DC/DC SY8303 Buck circuit
    • AXP192 power management chip
  • Output:
    • Each interface (6 Grove, 1 USB-A) is electronically switched on/off by SGM2553D.
    • INA3221 for voltage/current acquisition for Grove interfaces, and INA199 for current acquisition for the USB-A
    • Integrated high power density fully integrated boost DC/DC converter SCT12A0DHKR
  • Low power consumption:
    • Integrated RTC BM8563 to achieve low power sleep/wakeup function

Port design

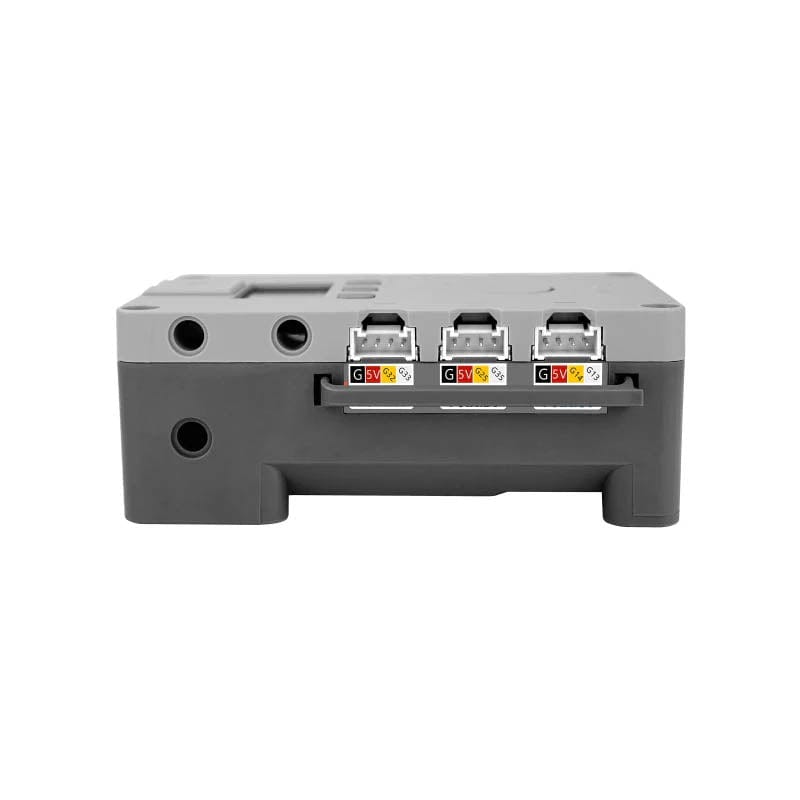

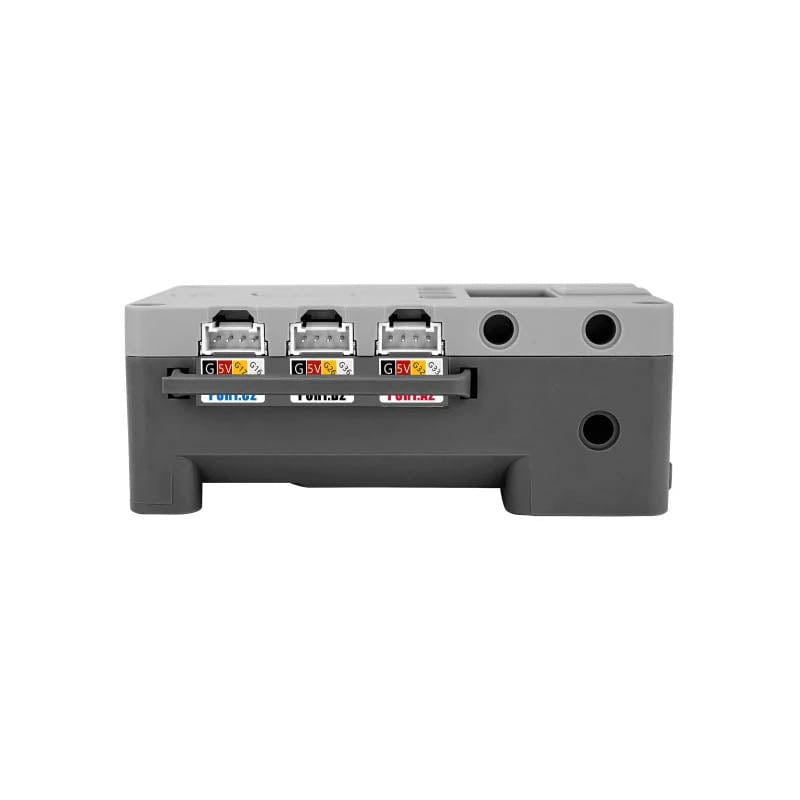

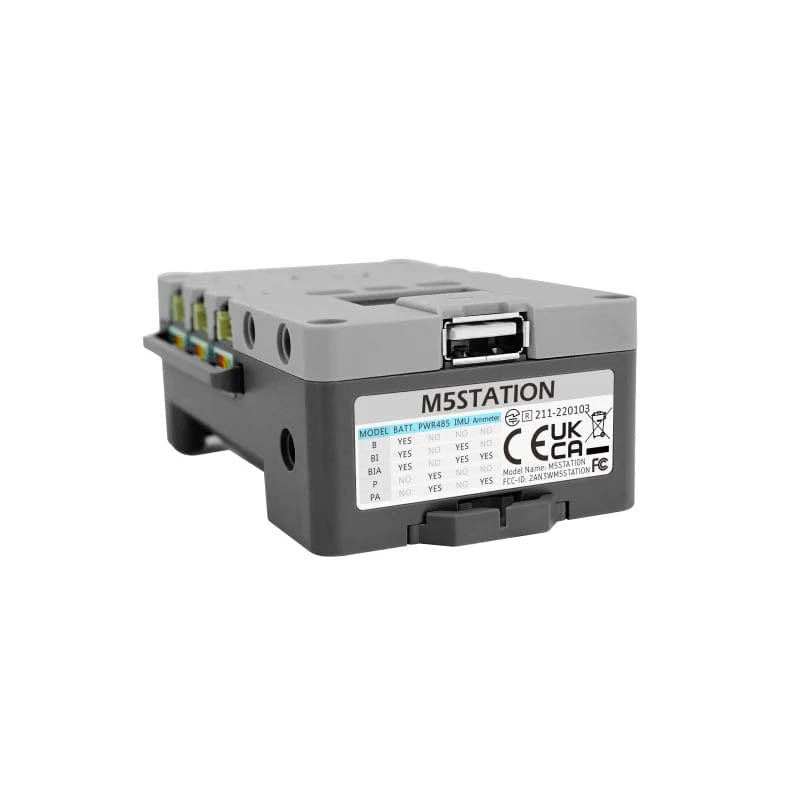

  • 6-way Grove expansion interface
    • Port A1/A2 shared the same power and signal pins
    • Port B1/B2/C1/C2 have separate power and signal pins

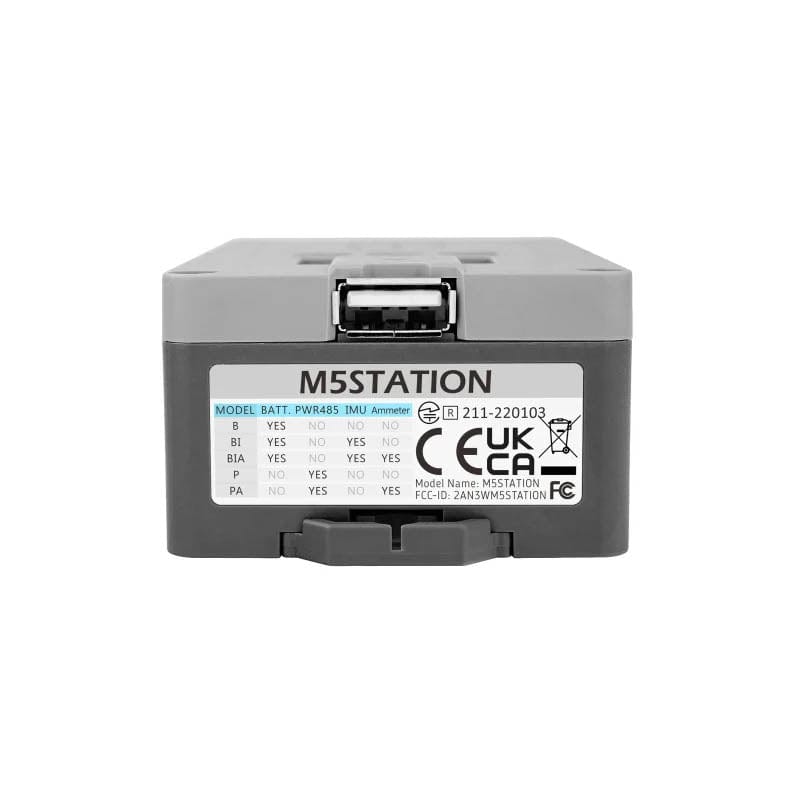

  • USB Type-A power supply output only, no signal pins

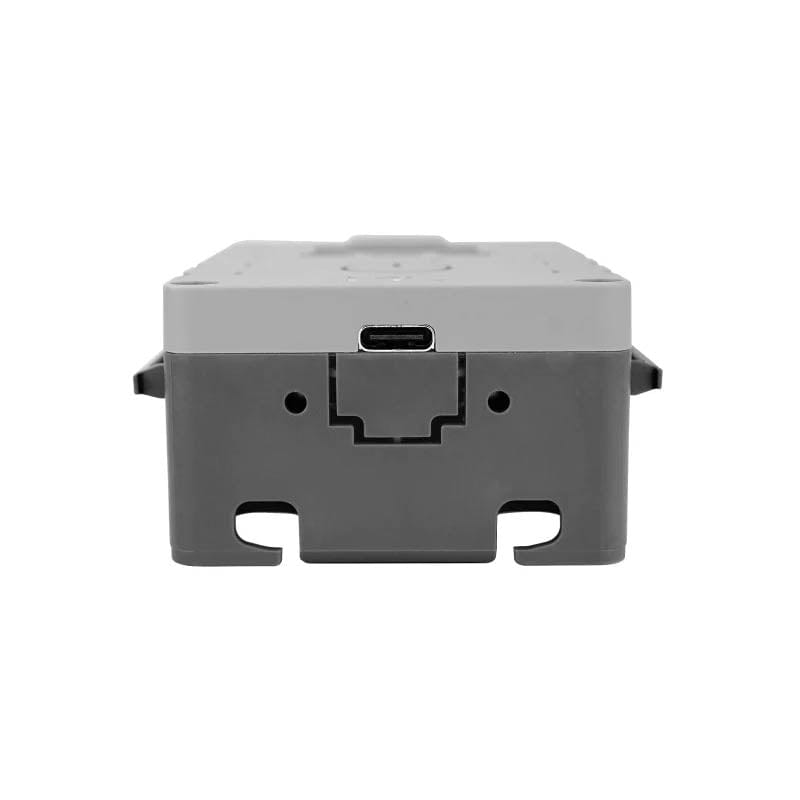

Mechanical Design

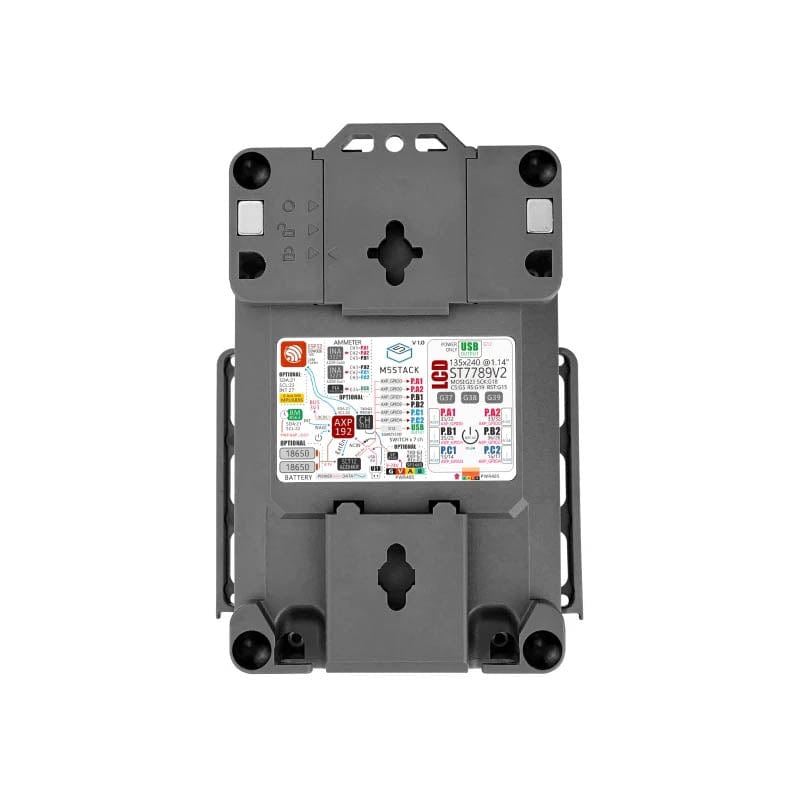

  • Din rail
  • Magnetic suction
  • Wall Mount
  • Screws
  • Ribbon

Programming development

  • Supports UIFlow graphical programming platform, scripting, compile-free, cloud push
  • Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
  • Support FreeRTOS, with the help of dual-core and multitasking mechanisms, an efficient organization of task logic, optimize the execution efficiency of the program.

Power Management

  • Power on: Click the central power button
  • Power off: Press and hold the central power button for 4 seconds

Package Contents

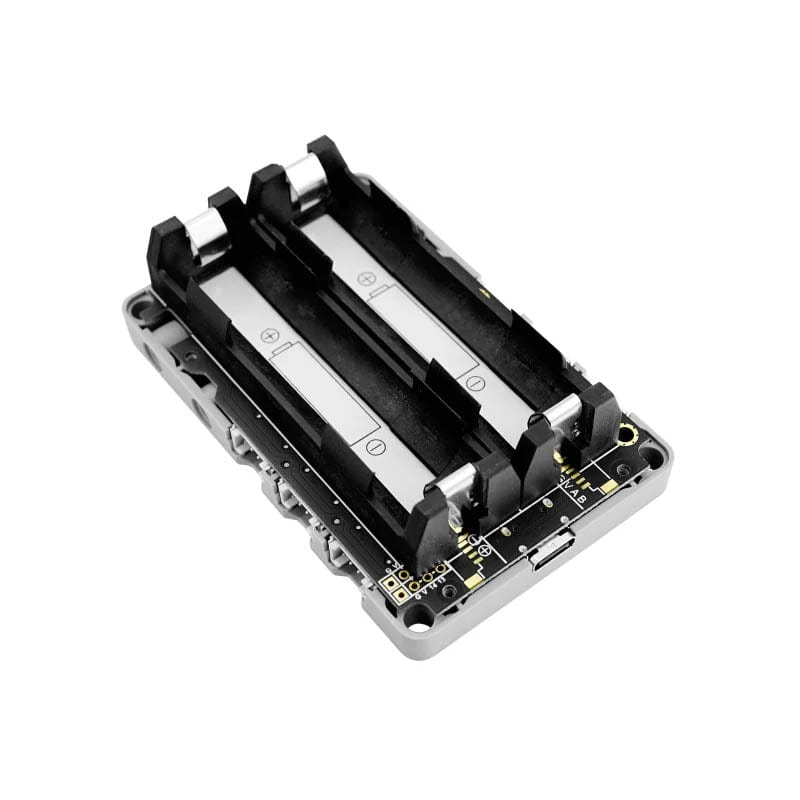

  • 1x M5Station-BAT (includes 2x 18650 batteries)

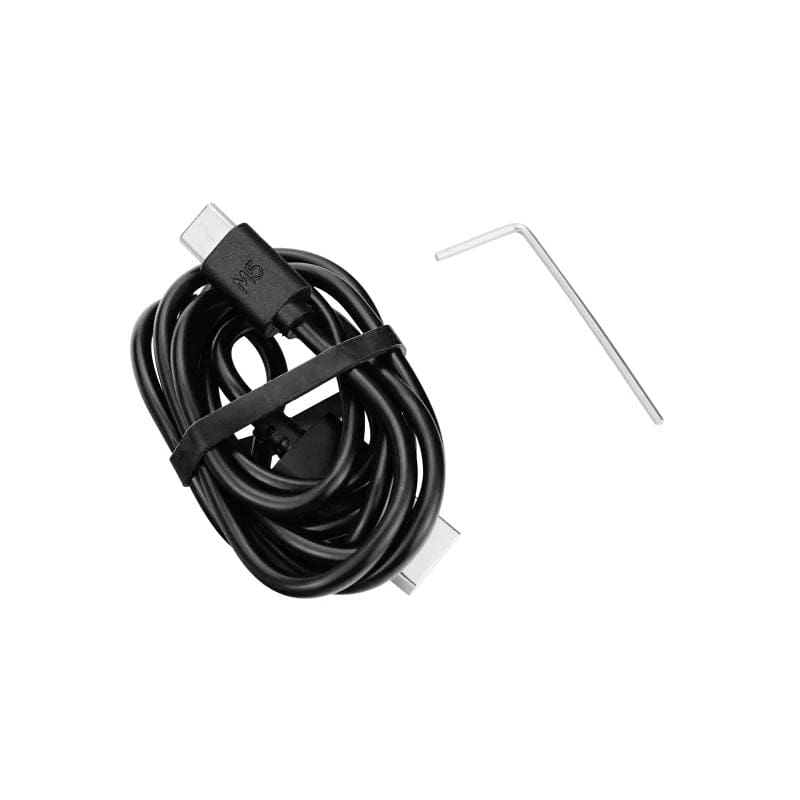

  • 1x Type-C USB Cable (100cm)
  • 1x Allen Wrench

Specifications

Spec Parameters
ESP32-D0WDQ6-V3 240MHz dual-core
600 DMIPS
520KB SRAM
Wi-Fi
Flash 16MB
USB powered 5V@1A
Battery Specification 18650 x 2 (parallel)
Interface Type-C * 1
GROVE (I2C+I/0+UART) * 6
Full-Size USB Type-A (OUTPUT)
LEDs SK6812 * 7
Pushbuttons Power Button, Physical Button \ 3
IPS LCD Screen 1.14"@240*135 ST7789V2
IMU MPU6686
RTC BM8563
PMU AXP192
Voltage/Current Collector INA3221 + INA199
USB Chips CH9102F
DC/DC Boost SCT12A0DHKR
Power Distribution Switch SGM2553D
Antenna 2.4G 3D Antenna
Operating Temperature 0°C to 60°C
Base Screw Hexagon socket cup head M2*8 screw
Net Weight 79.5g
Gross Weight 126.6g
Product Dimensions 92 x 64.5 x 35 mm
Package Size 104.5 x 70.5 x 50mm
Case Material ABS+PC
