RP-SMA Long Range Indoor Antenna Kit - 860-930MHz
Price:
Sale price
£15.20
Stock:
Quantity:
Awesome Extras
This Seeed 860–930 MHz –3 dBi omnidirectional antenna supports long-range LoRaWAN, LongFi and ISM applications, suitable for indoor or outdoor use and compatible with SenseCAP M2 Data-Only and Light Hotspots.
The Seeed 860–930 MHz dual-band –3 dBi omnidirectional antenna is designed for long-range LoRaWAN, LongFi and other ISM-band applications.
It can be used indoors or outdoors and works well with devices such as the SenseCAP M2 Data-Only Hotspot and Light Hotspot units.
Features
- High gain 3dBi dual-band for 868MHz and 915MHz
- High efficiency vertical polarized monopole
- Robust hermetic construction for outdoor usage and small compact size for indoor usage
- Includes easy-to-use magnetic support
Specifications
| Frequency Range | 860-930MHz |
| impedance | 50Ω |
| VSWR | 1.5 @ 868MHz typical 1.5 @ 915MHz typical <2.2 max |
| Gain | 3dBi |
| Efficiency Maximum | 75% |
| Polarization | Linear Vertical |
| Radiation pattern | 360° Omni directional |
| Physical length | 295 mm |
| Radiator Material | Nickel Steel |
| Covering Material | ABS Black |
| Cable Connector | RP-SMA Male |
| Cable Type | RG-58 |
| Cable Length | 1000 mm |
| Temperature operation | -20℃ to +65℃ / -4℉ to +150℉ |
| Waterproof | IP65 |
| Supplier Code | 110991765 |

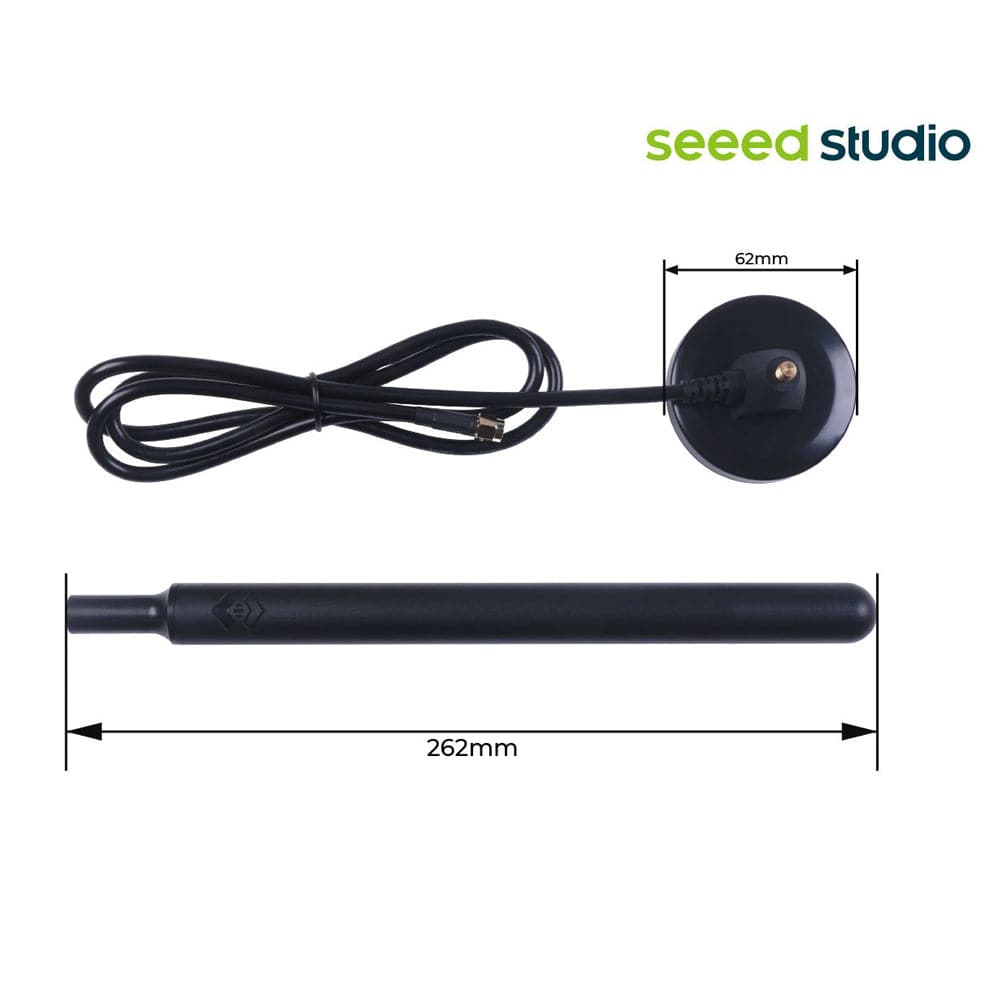

Dimensions
Resources
Package Contents
- 1x Long Range Indoor Antenna Kit
