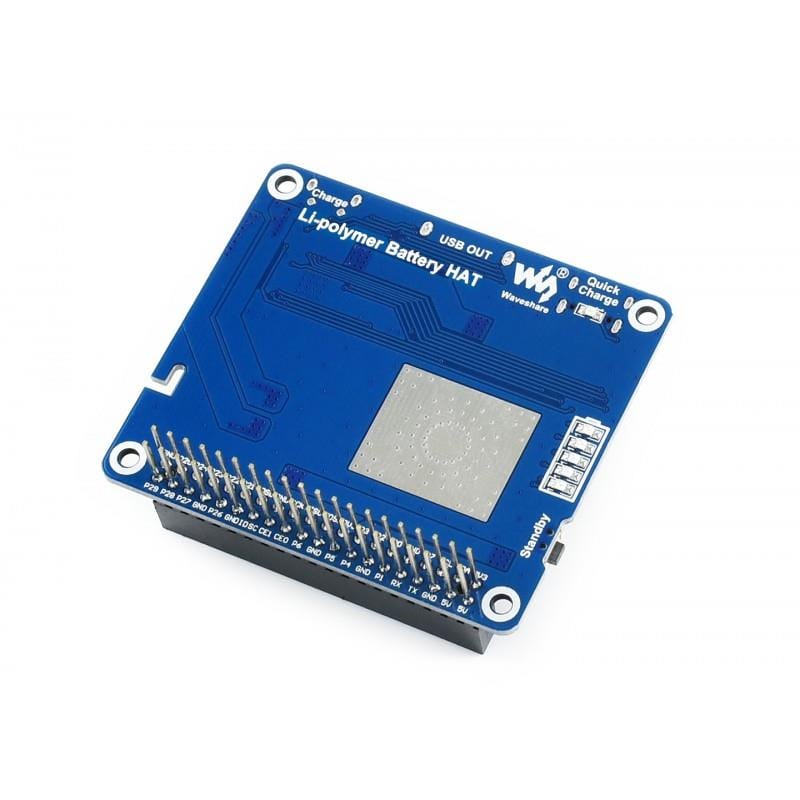

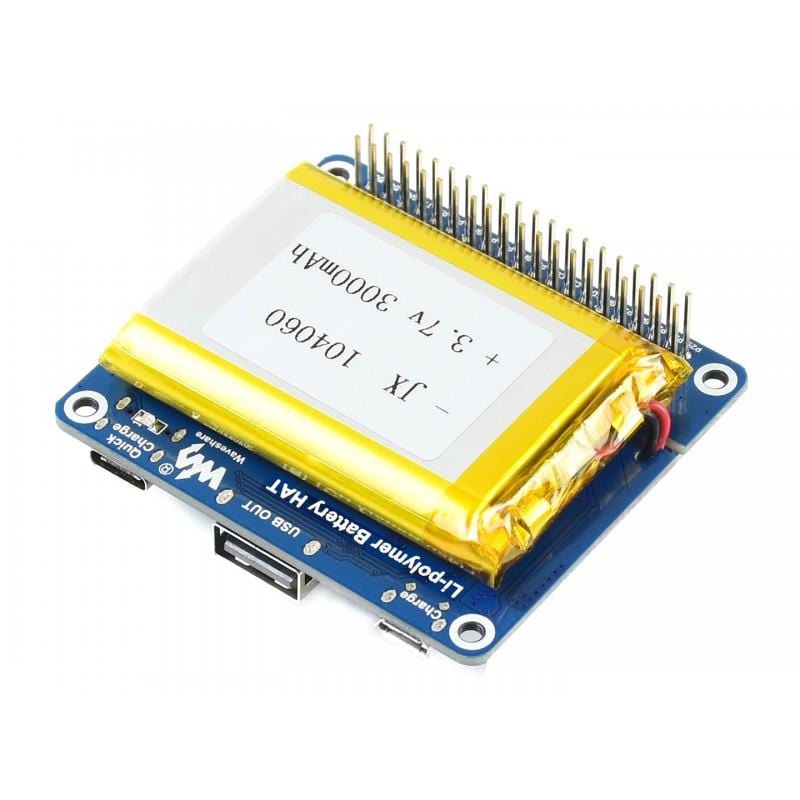

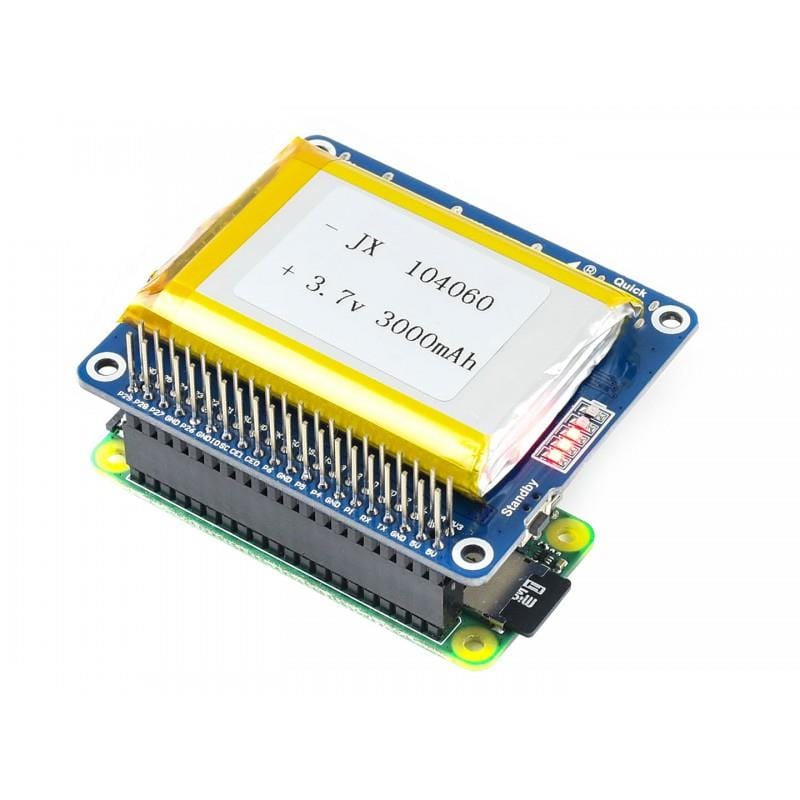

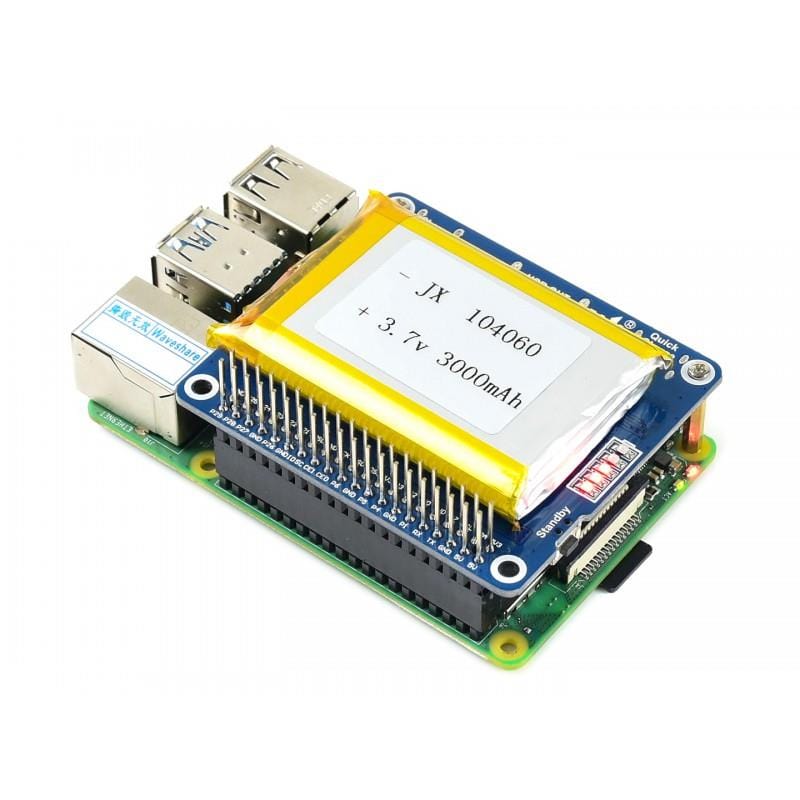

The LiPo Battery HAT for the Raspberry Pi integrates an SW6106 power bank management chip, providing a 5V regulated power supply to your Raspberry Pi from a high capacity 3000mAh LiPo battery (included). The HAT will also charge the battery and supports bi-directional quick charge.

Compared with the Li-ion Battery HAT, this HAT utilises a Li-polymer battery with higher capacity, meaning longer battery life and enabling higher loads.

Note: This is not a UPS! The Raspberry Pi will restart when you connect/disconnect power.

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?


  • Onboard SW6106 chip, supports bi-directional quick charge. Supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
  • Lithium battery protection circuitry, provides reverse protection, overcharge protection and short circuit protection
  • Onboard indicators: Quick charge and power capacity
  • PH 2.0 battery connector for connecting the 3.7V 3000mA high capacity Li-polymer battery (MSDS certified)


  • Output voltage: 5V
  • Charge voltage: 5V
  • Applicable battery: 3.7V Li-polymer battery (4.2V when fully charged)
  • Dimension: 65.0mm × 56.5mm
  • Mounting hole size: 3.0mm

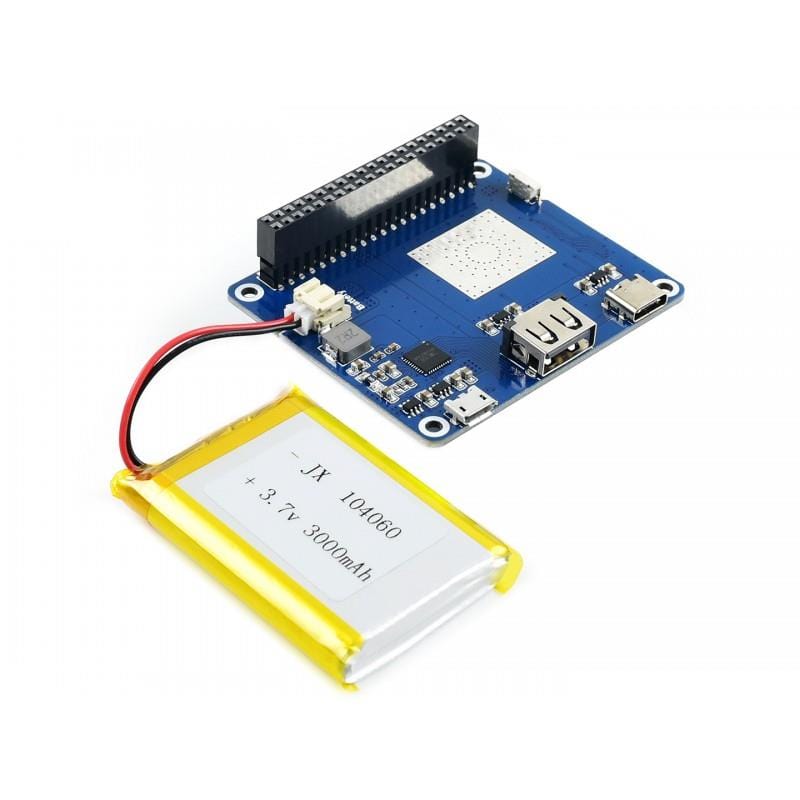

Package Contents

  • 1x Li-polymer Battery HAT
  • 1x 3.7V 3000mAh Li-polymer battery
  • 1x RPi screws pack (2pcs)

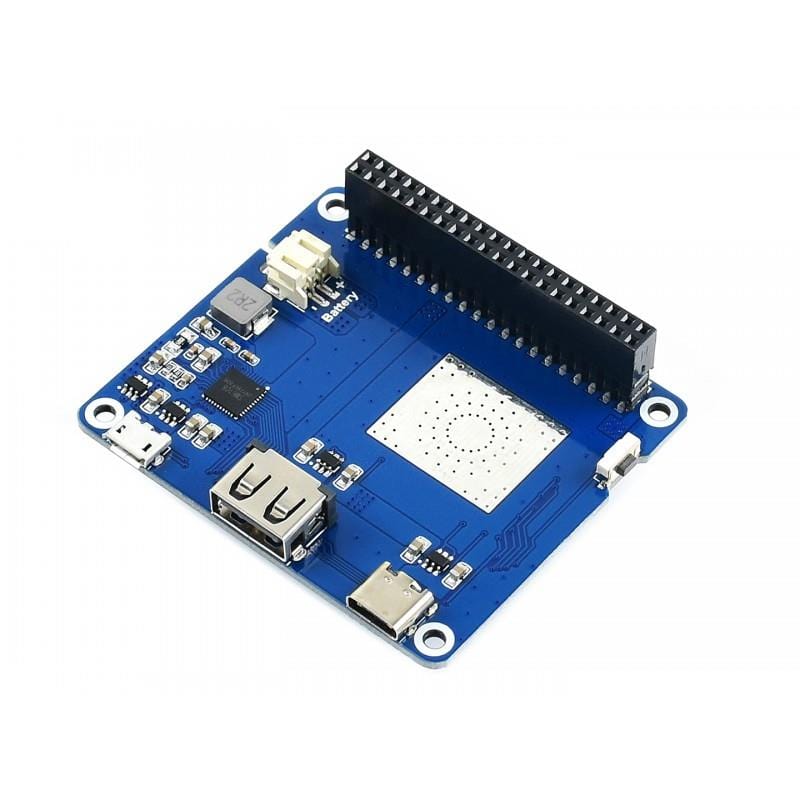

What's on Board

1) Raspberry Pi GPIO connector
2) PH 2.0 battery connector: for 3.7V Li-polymer battery
3) USB Type-C connector: 5V battery charge/power output, supports quick charge
4) USB Type-A connector: 5V power output
5) Micro USB connector: 5V battery charge
6) SW6106 power management chip
7) Power output control switch (Click: operating mode, provides 5V output. Double click: standby mode, no output)
8) Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
9) Quick charge indicator: on when quick charging
10) Li-polymer battery: 3.7V 3000mAh, MSDS certified
