LED Filament - 3V 26mm long - Warm White (3-Pack) - The Pi Hut

LED Filament - 3V 26mm long - Warm White (3-Pack)

Name: LED Filament - 3V 26mm long - Warm White (3-Pack)
Brand: The Pi Hut
SKU: ADA5505
Price: 4.50 GBP
Availability: InStock

The Pi HutSKU: ADA5505

£4.50

incl. VAT

excl. VAT

Only 6 units left

Awesome Extras

Alligator Clip to Male Jumper Wire - 6 Piece Set - The Pi Hut

The Pi Hut Small Alligator Clip to Male Jumper Wire Bundle - 6 Pieces

£3.40 incl. VAT excl. VAT

Small Alligator Clip to Female Jumper Wire Bundle - 6 Pieces - The Pi Hut

The Pi Hut Small Alligator Clip to Female Jumper Wire Bundle - 6 Pieces

£3.90 incl. VAT excl. VAT

Adafruit AW9523 GPIO Expander and LED Driver Breakout - The Pi Hut

Adafruit Adafruit AW9523 GPIO Expander and LED Driver Breakout (STEMMA QT / Qwiic)

£4.80 incl. VAT excl. VAT

Notify me

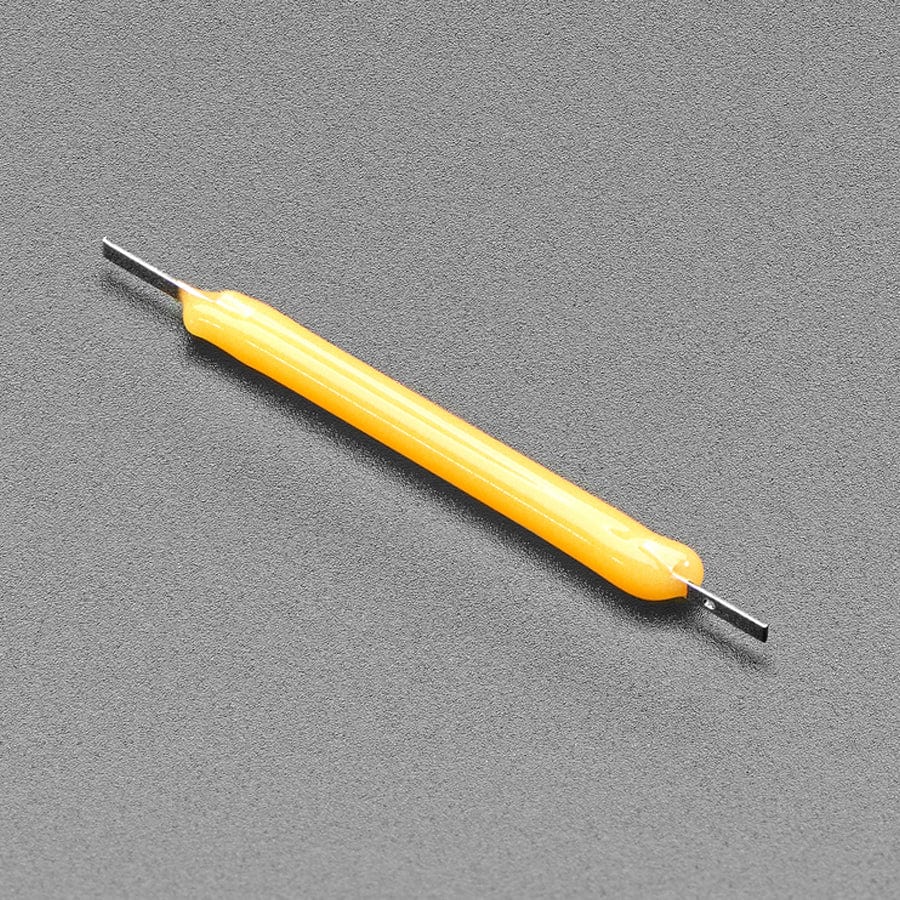

These non-flexible LED filaments are often seen in 'Edison-like' LED bulbs, arranged in different patterns to give a bright warm lighting effect. They're made of dozens of micro LED diodes that are bonded together on a stiff metal backing, then coated in silicone for protection. Since the LEDs are in parallel, you only need 3V to light 'em up - we recommend current limiting with a resistor to let max 50mA through.

Please note, these are NOT flexible! However, they have a nice uniform glow all the way around and really do an excellent job of mimicking a tungsten-like filament.

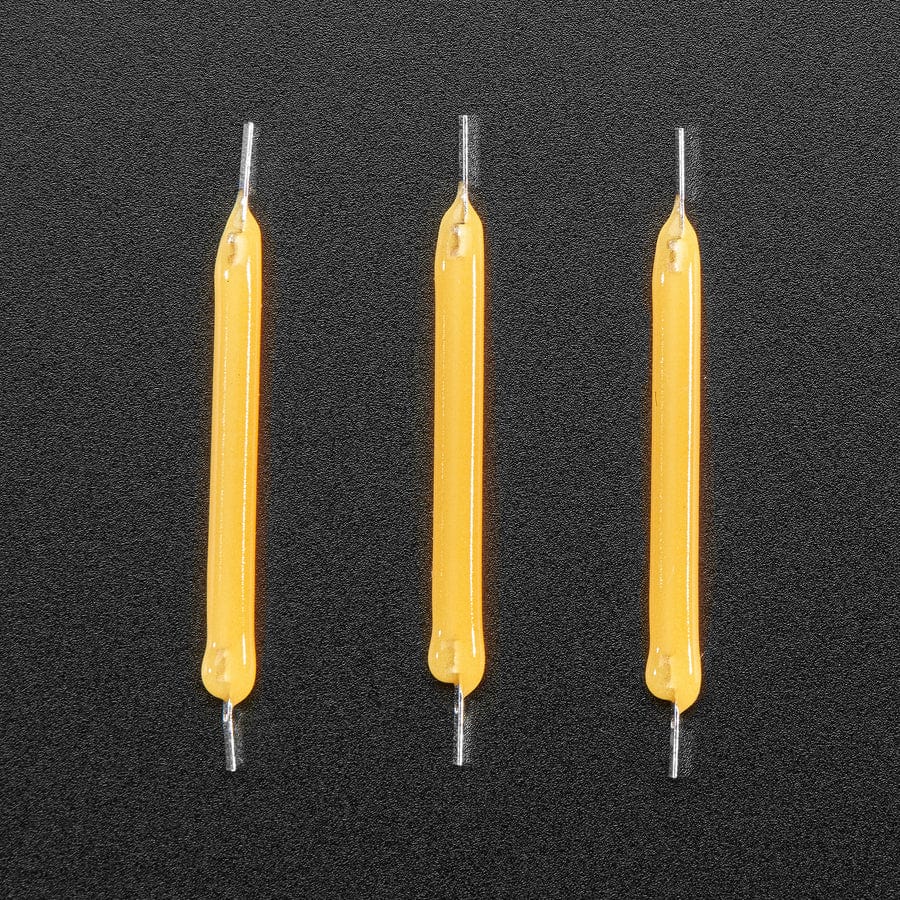

Comes with three per pack. Add some mini neon bling to your miniature sets, dioramas, dollhouses, mini-verses, what have you! Because they're just a 'big long LED' you can PWM dim them easily.

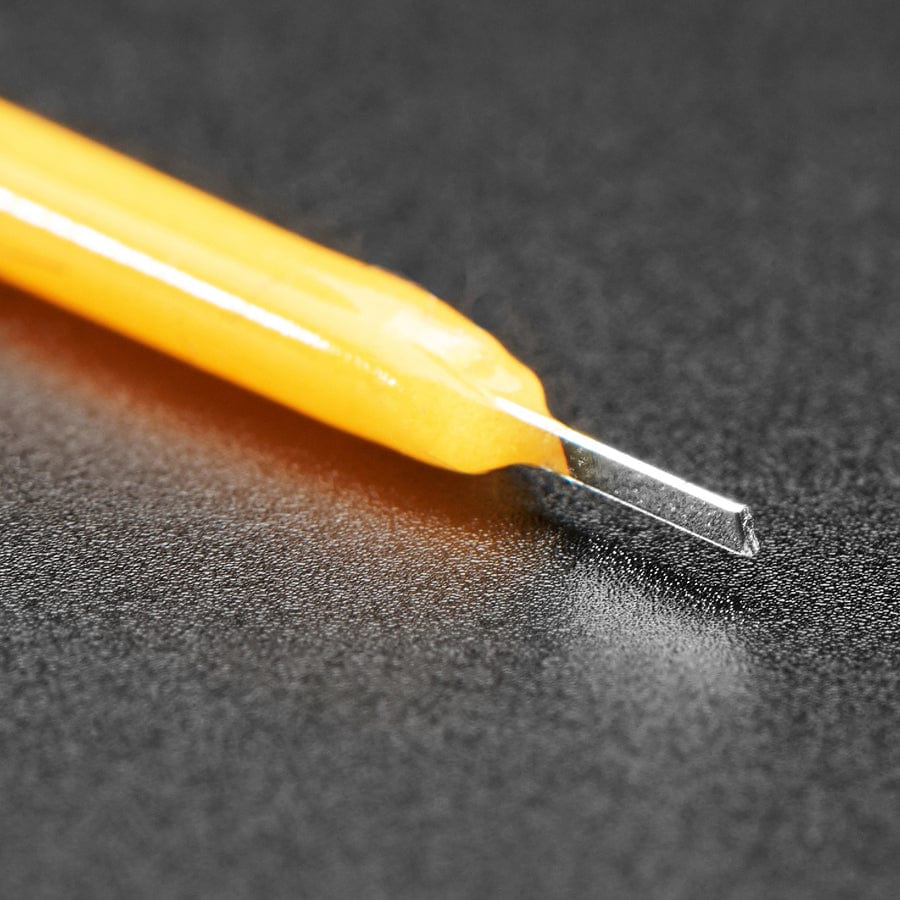

Simply power up with 3V by connect to both ends - the anode should be the metal end with a little hole in it. If it doesn't immediately light up, try connecting the other way around, no biggie.

If you'd prefer something flexible, check out our flexible LED section.
