I2C 16x2 LCD Module
Price:
Sale price
£7.70
Stock:
Quantity:
Awesome Extras
LCD displays are a fun way to learn how to code with a Raspberry Pi, Arduino and most development boards, however, they usually come with a lot of pin connections.

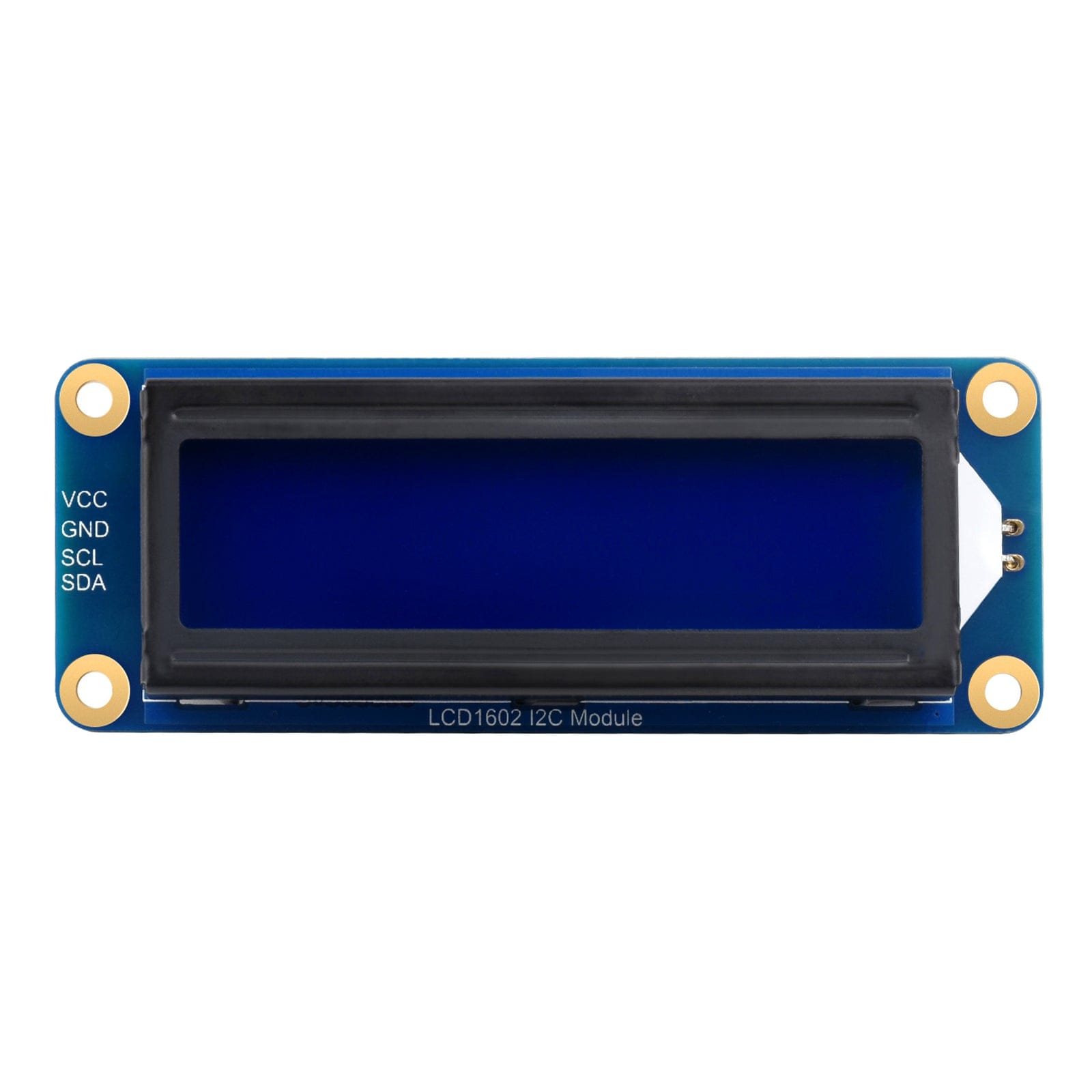

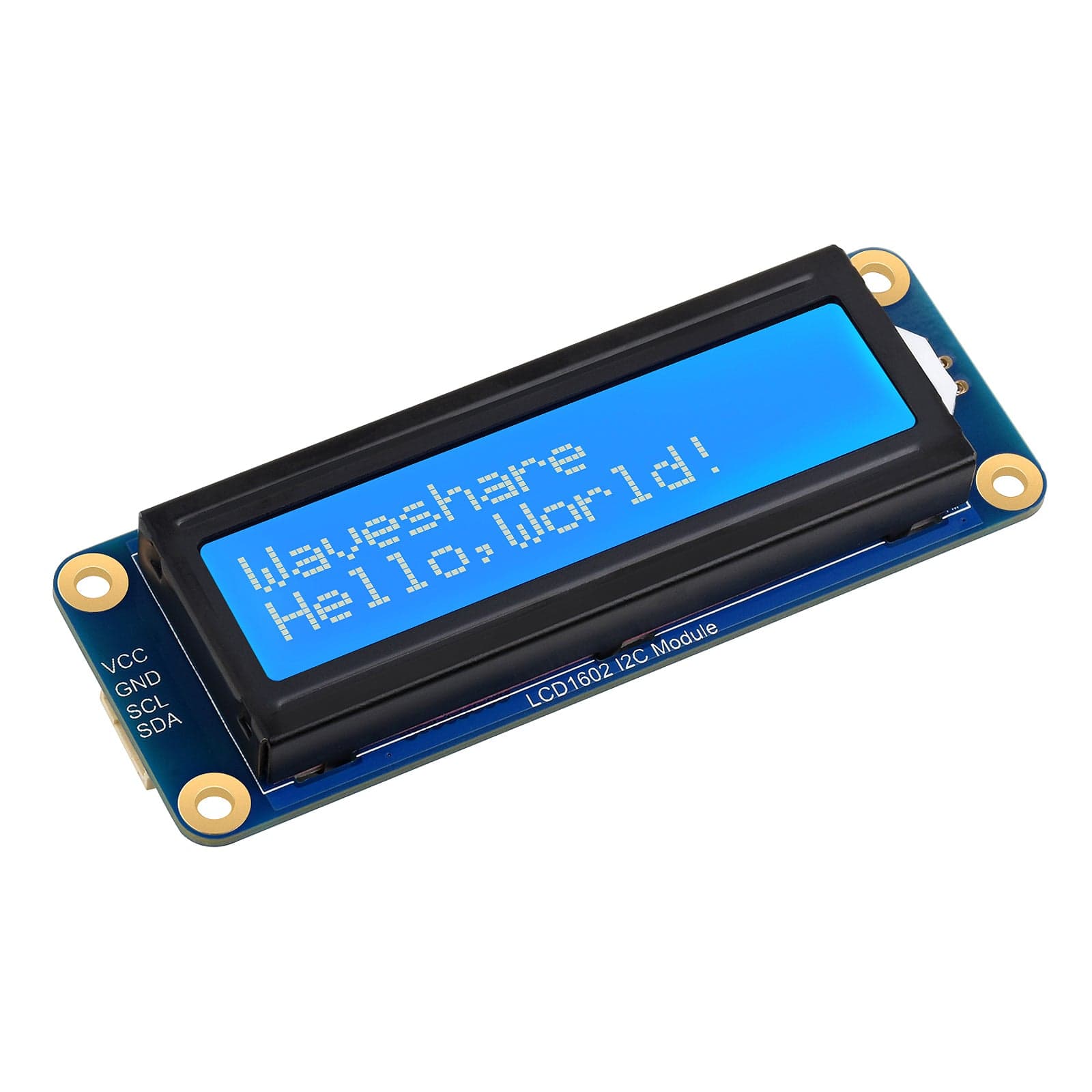

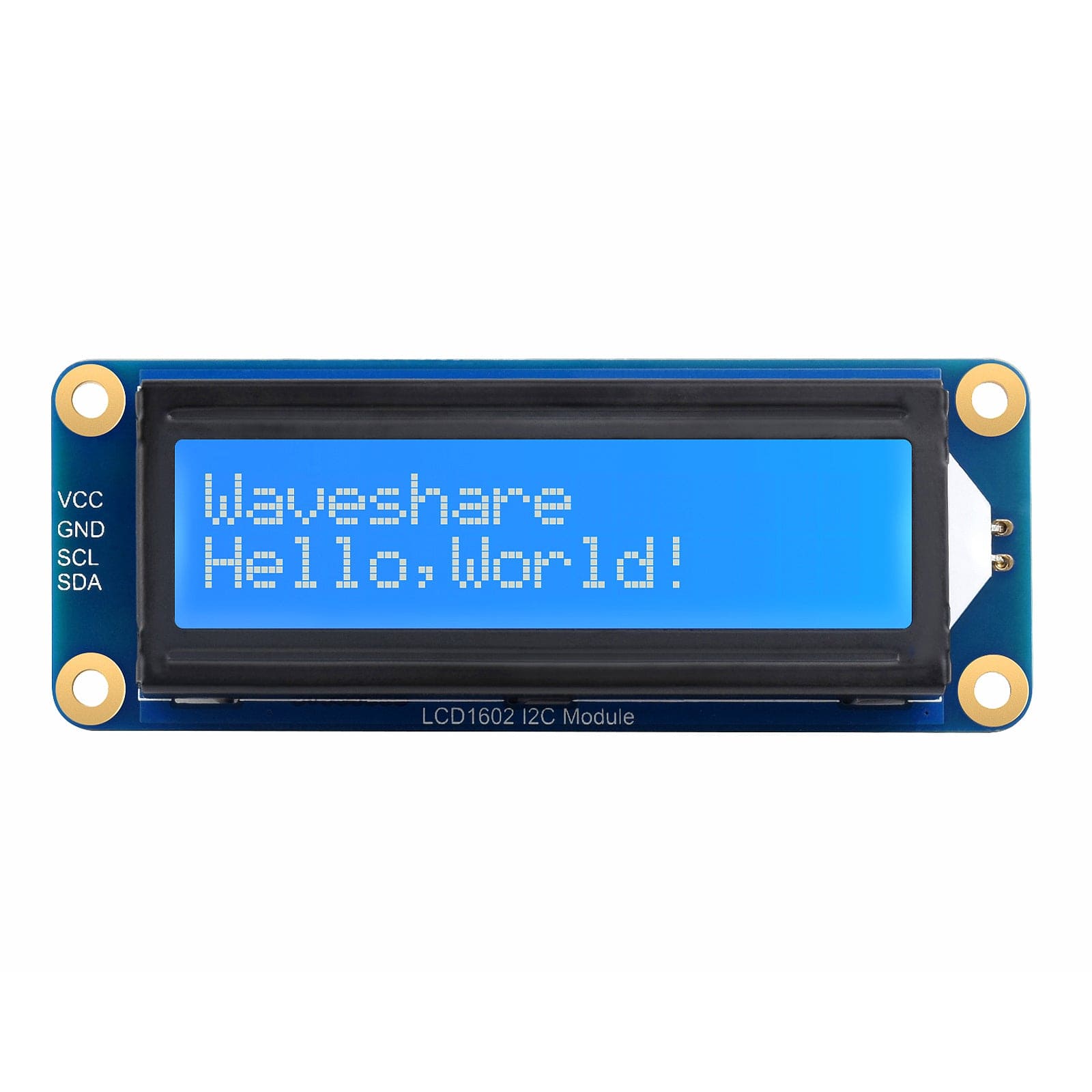

This 16x2 Waveshare LCD1602 LCD module, based on the AiP31068L display driver, has white text with a lovely sky-blue background. It also features an I2C interface requiring just 4 pin connections, making wiring your project not only much easier but also leaving more room for other devices.
Add the smooth rounded edges, handy M3 mounting holes and included jumper wire and you've just found the ultimate LCD upgrade!
The online resources provide demo code for the Raspberry Pi, Pico, Arduino, ESP32 and more.
Note: Raspberry PI is NOT included
Features
- 16x2 LCD panel LCD1602
- I2C control interface, only two signal pins are required
- Compatible with 3.3V/5V operating voltage
- Rounded edges
- M3 Mounting holes

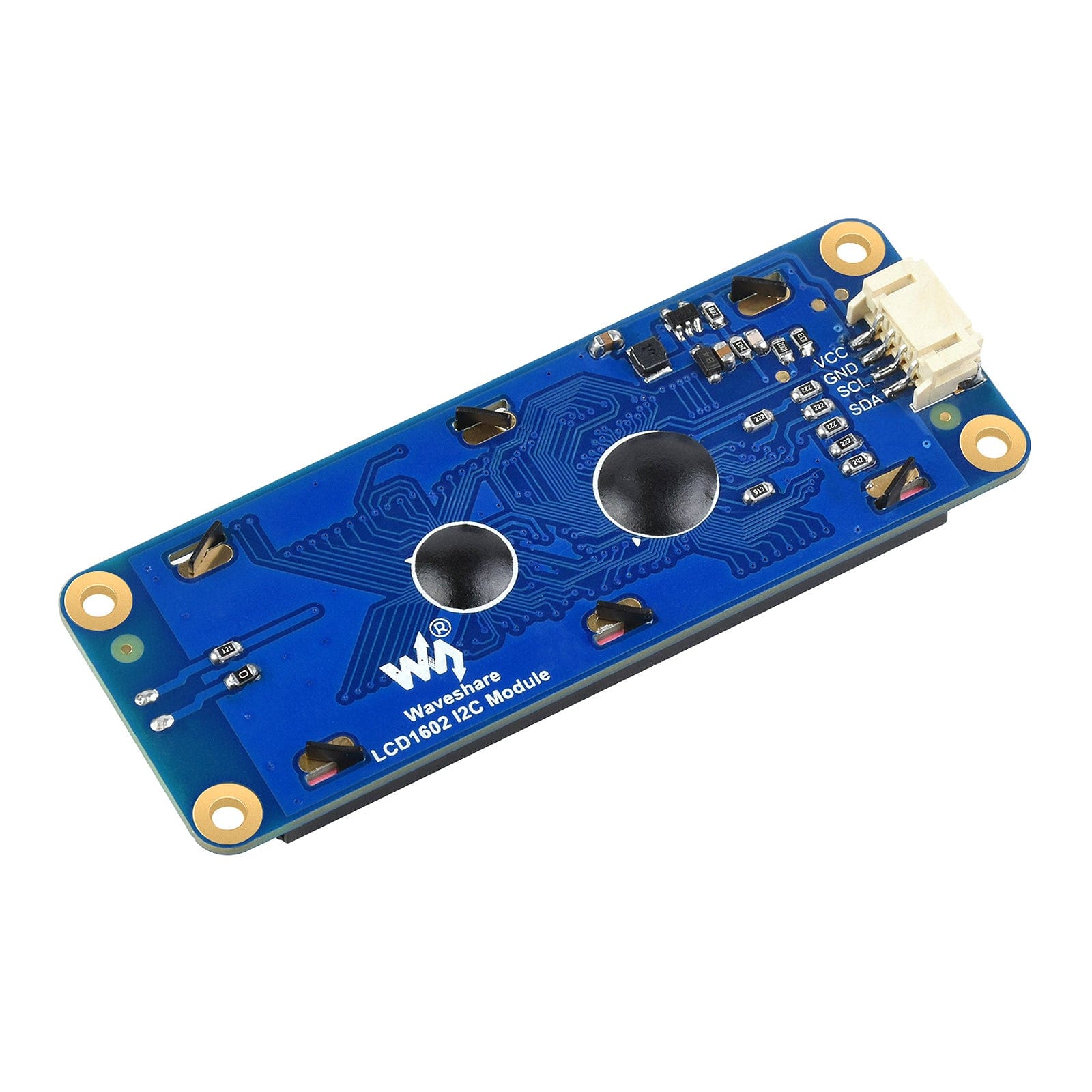

- Onboard AiP31068L LCD driver chip
- Online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

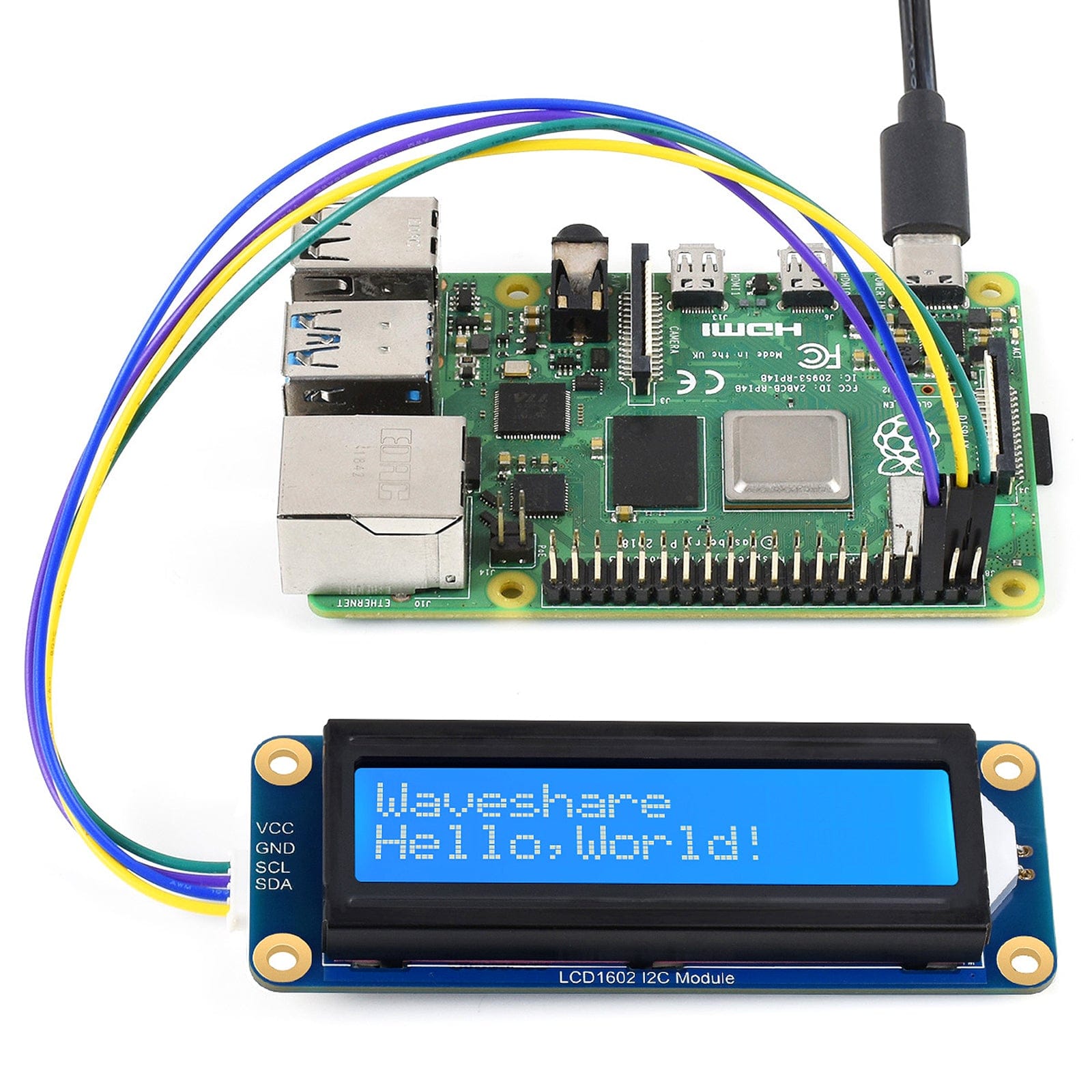

I2C Control Interface
Pinout
| VCC | 3.3V ~ 5V power input |
| GND | GND |
| SCL | I2C clock pin |
| SDA | I2C data pin |
Specifications
| Communication Interface | I2C |
| Operating Voltage | 3.3 ~ 5V |
| Display Panel | character LCD |
| Characters | 16 × 2 |
| LCD Controller | AiP31068 |
| Operating Temperature | -20 ~ +70℃ |

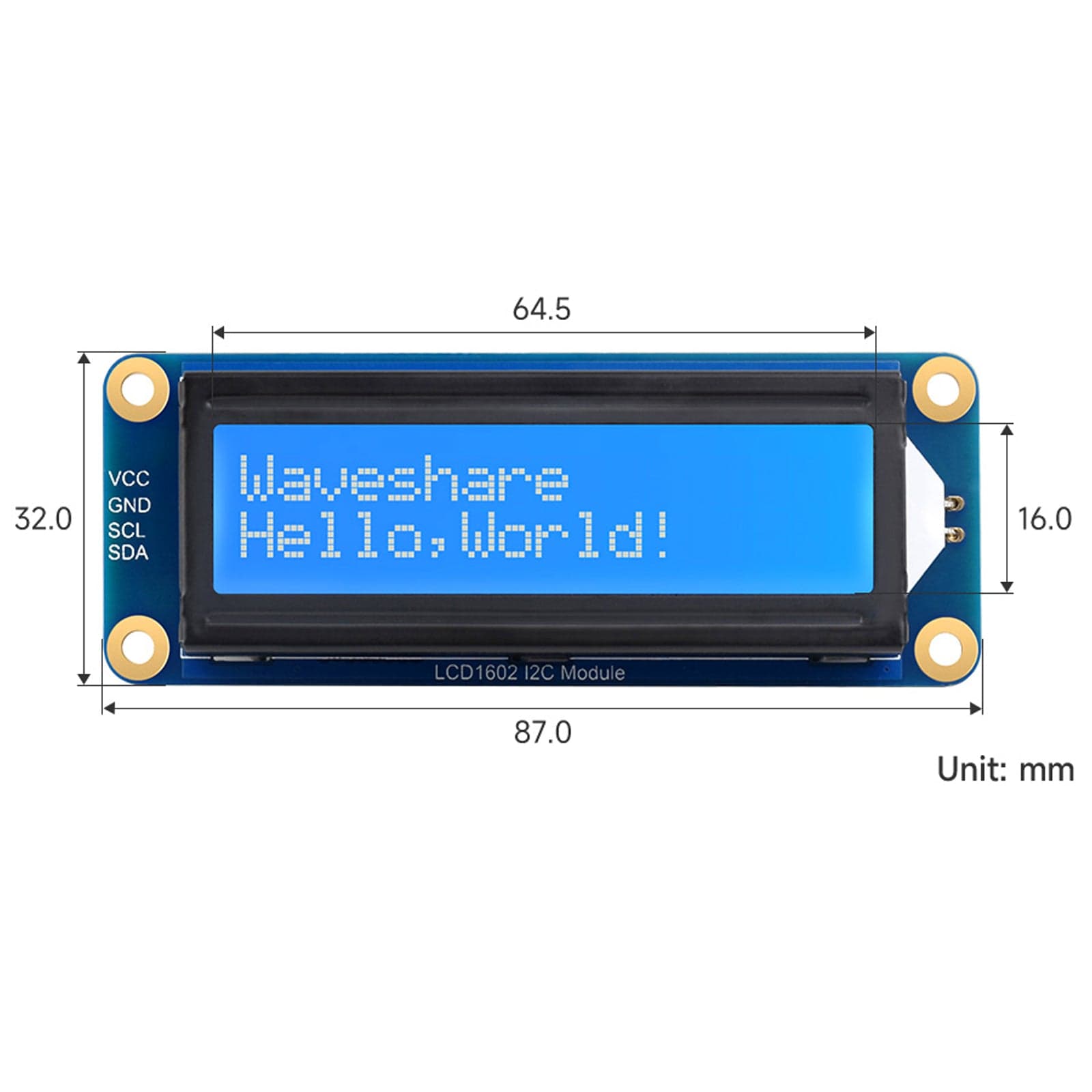

| Display Size | 64.5 × 16.0mm |
| Dimensions | 87.0 × 32.0 × 13.0mm |
Resources
Package Contents
- 1x LCD1602 RGB Module
- 1x PH2.0 4-pin wire
