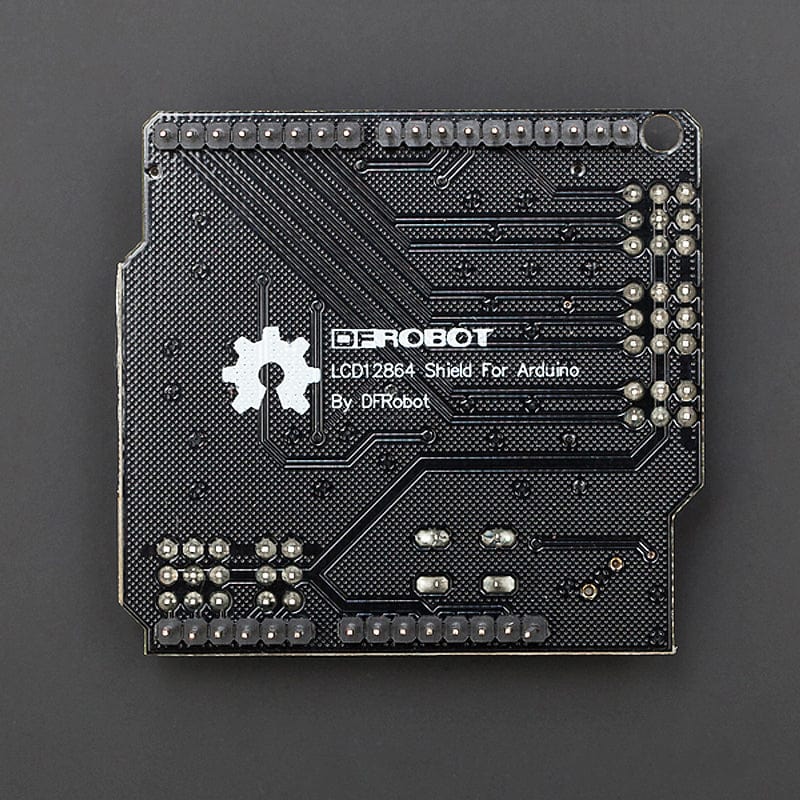

Gravity: LCD12864 Shield

DFRobotSKU: DFR0287
£18.70
incl. VAT
excl. VAT
Only 2 units left

Awesome Extras

Premium Male/Male Jumper Wires - 20 x 6" (150mm) - The Pi HutPremium Male/Male Jumper Wires - 20 x 6" (150mm) - The Pi Hut
The Pi HutPremium Male/Male Jumper Wires - 20 x 6" (150mm)
£1.70 incl. VAT excl. VAT
DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
£16 incl. VAT excl. VAT
Notify me
Premium Female/Female Jumper Wires - 20 x 6" (150mm) - The Pi HutPremium Female/Female Jumper Wires - 20 x 6" (150mm) - The Pi Hut
The Pi HutPremium Female/Female Jumper Wires - 20 x 6" (150mm)
£1.70 incl. VAT excl. VAT

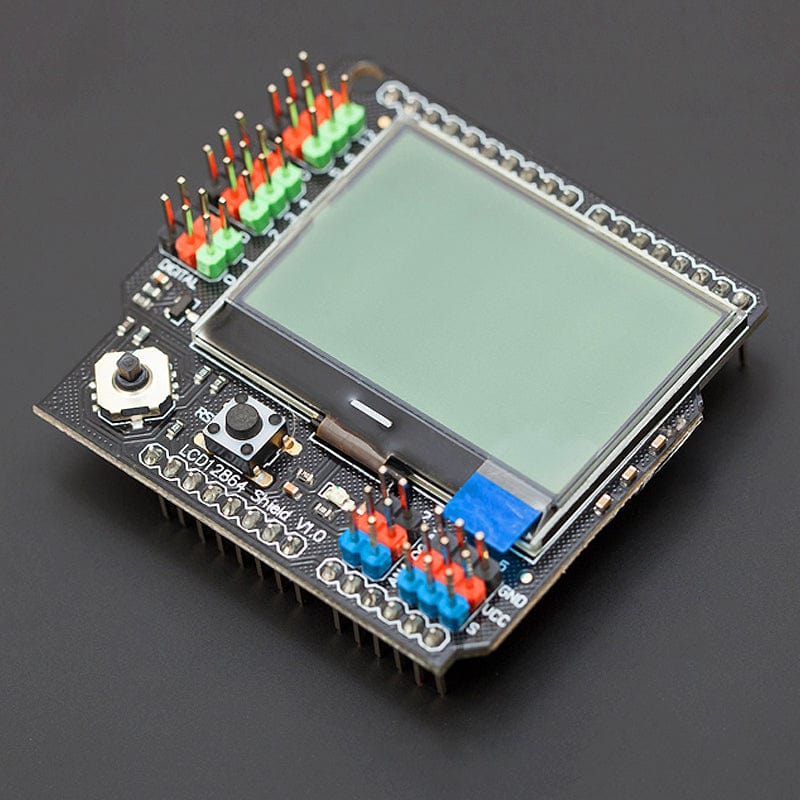

This framed LCD12864 Shield with LED backlight is compatible with most Arduino Uno compatible controllers and supports English/Chinese and image display.

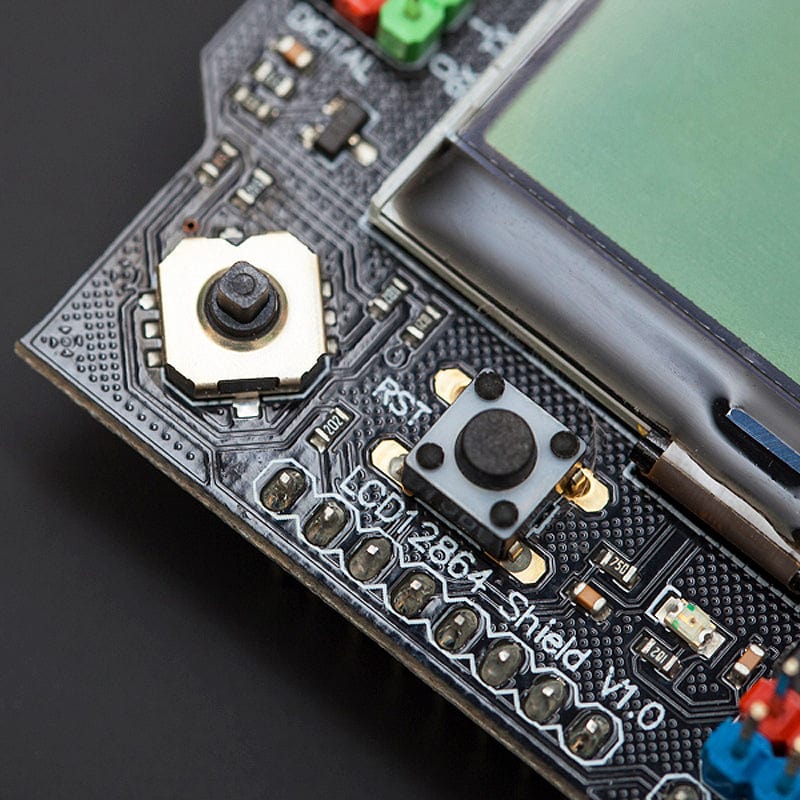

With 5 analog extension pins and 8 digital pins, the LCD12864 Shield also integrates a 5-key joystick for controlling additional functions, making it an ideal module for prototyping and interactive projects.

Specifications

  • Power supply: 3.3V
  • Pin used: D7, D8, D9, D10, D11, D13, A0
  • Reset button
  • 5-degree joystick (using Arduino Analog Pin 0)
  • Backlit control (using Arduino Digital Pin 7)
  • Extra 5 Analog pins & 8 Digital pins
  • Size: 60 x 55 x 20mm

Resources

Tools

Package Contents

  • 1x LCD12864 Shield
