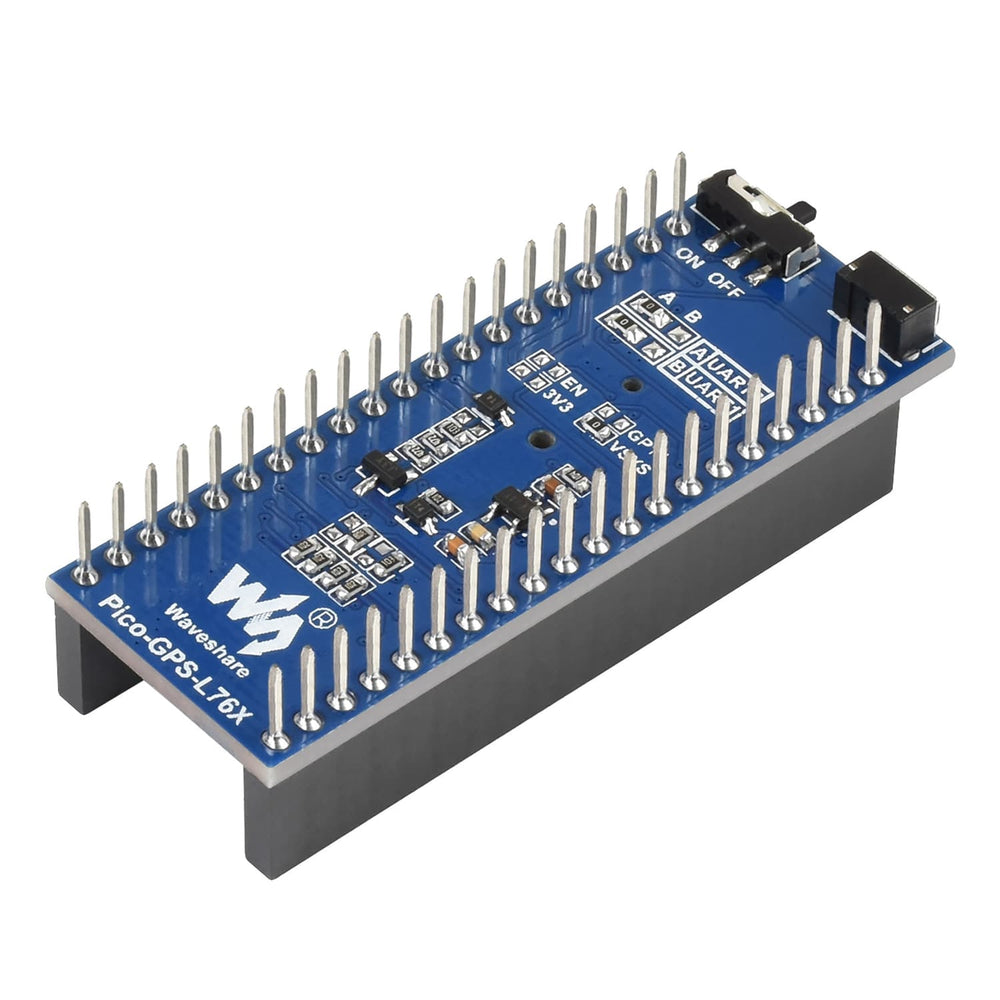

L76K GNSS Module for Raspberry Pi Pico
Price:
Sale price
£13.50
Stock:
Quantity:
Awesome Extras
This add-on for your Raspberry Pi Pico supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning.
The board offers fast positioning, high accuracy, and low power consumption, and supports AGNSS (Assisted GNSS), a technology that dramatically speeds up and improves satellite positioning by downloading critical orbital data via mobile networks or Wi-Fi rather than slow satellite links.
It has a built-in Low-Noise Amplifier (LNA) for improved reception sensitivity, and built-in Surface Acoustic Wave (SAW) Filter for enhanced noise reduction performance. There is a holder for an ML1220 rechargeable battery (battery not included - do not use single use batteries!), for preserving ephemeris information and hot starts. Four LEDs indicate the module operating status.

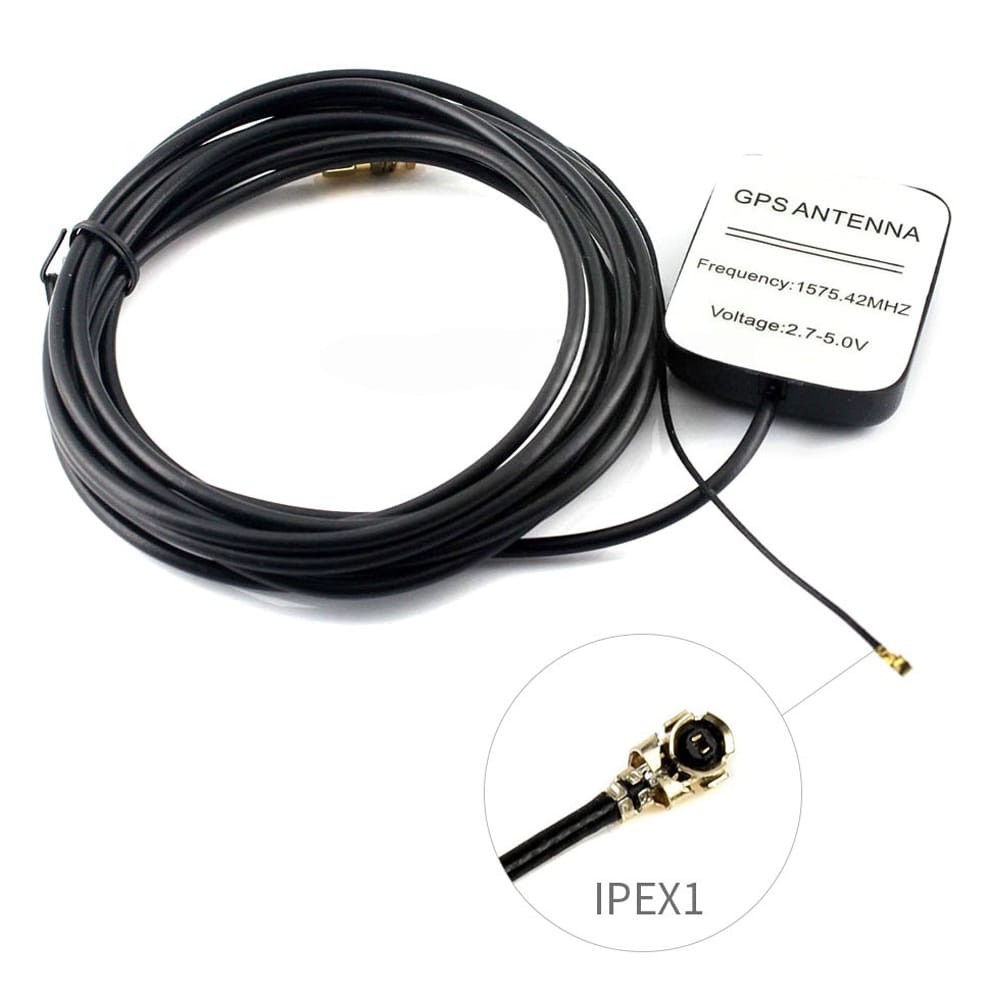

The board comes with a separate GPS antenna (see images).

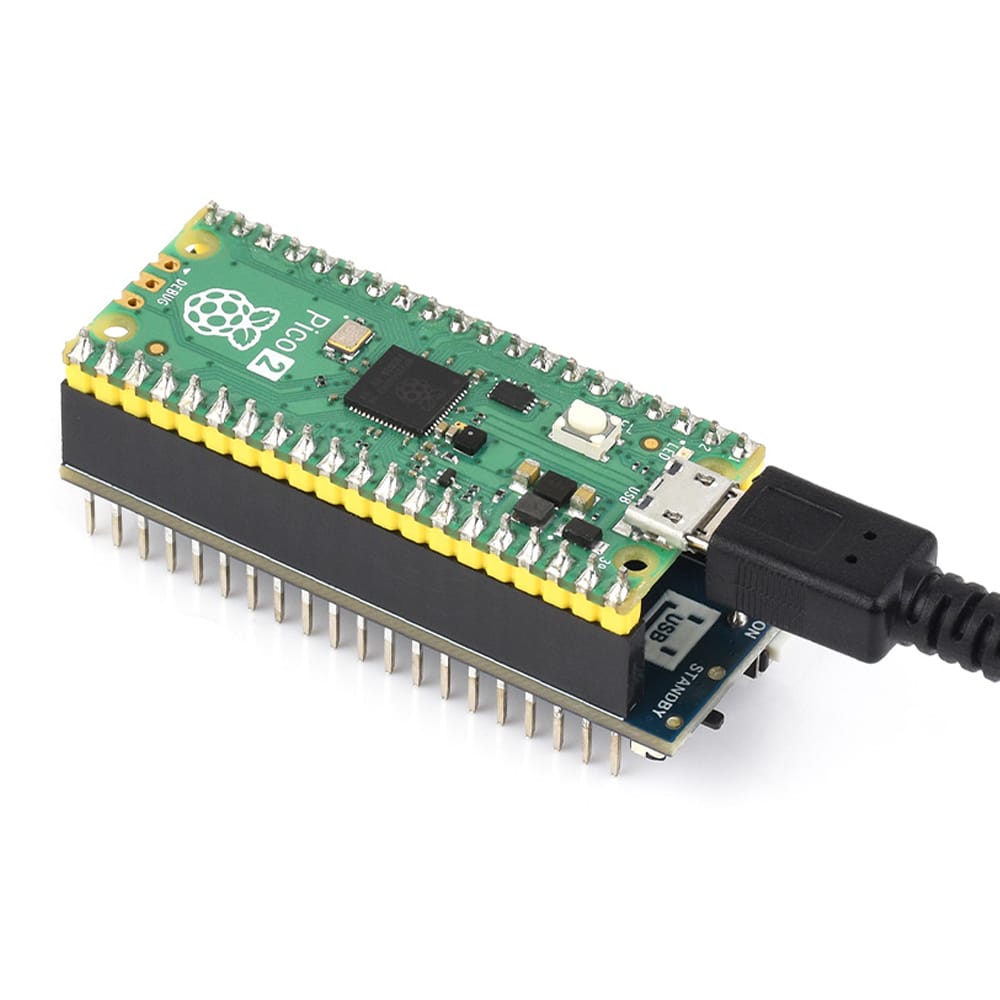

Raspberry Pi Pico not included.

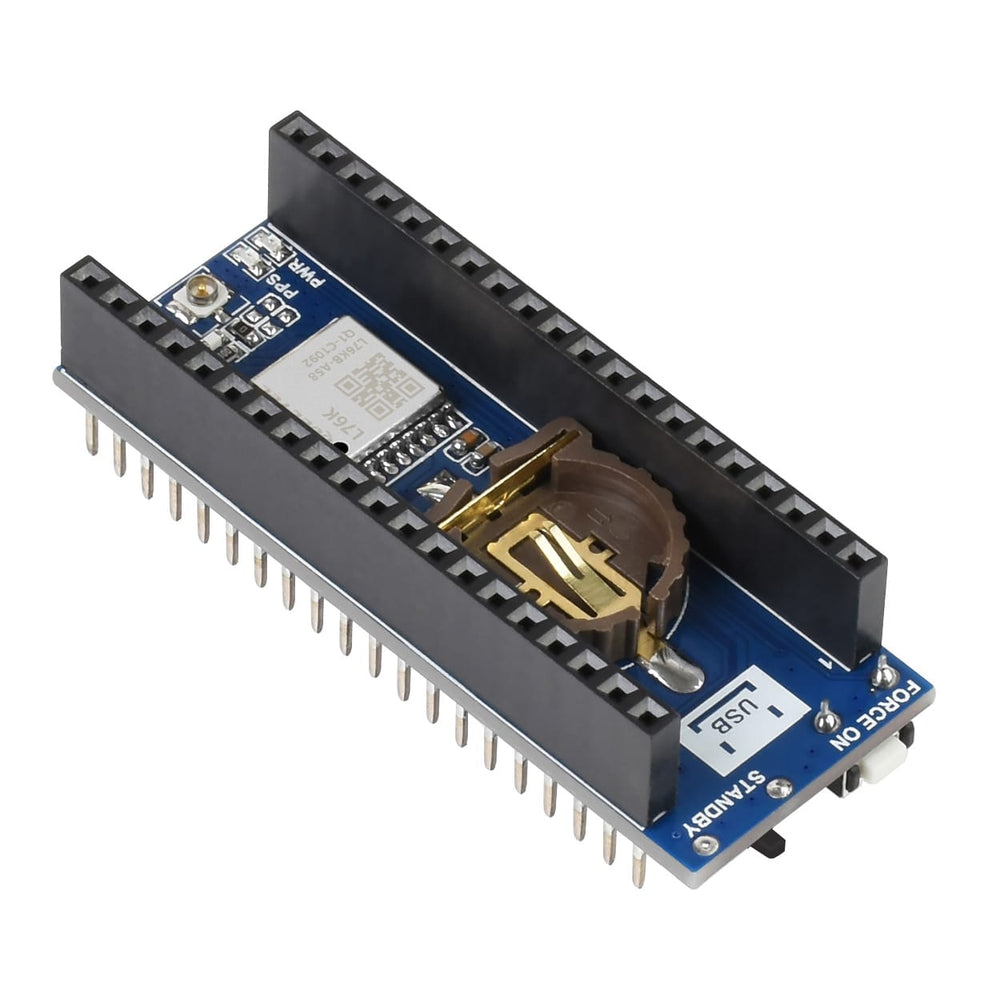

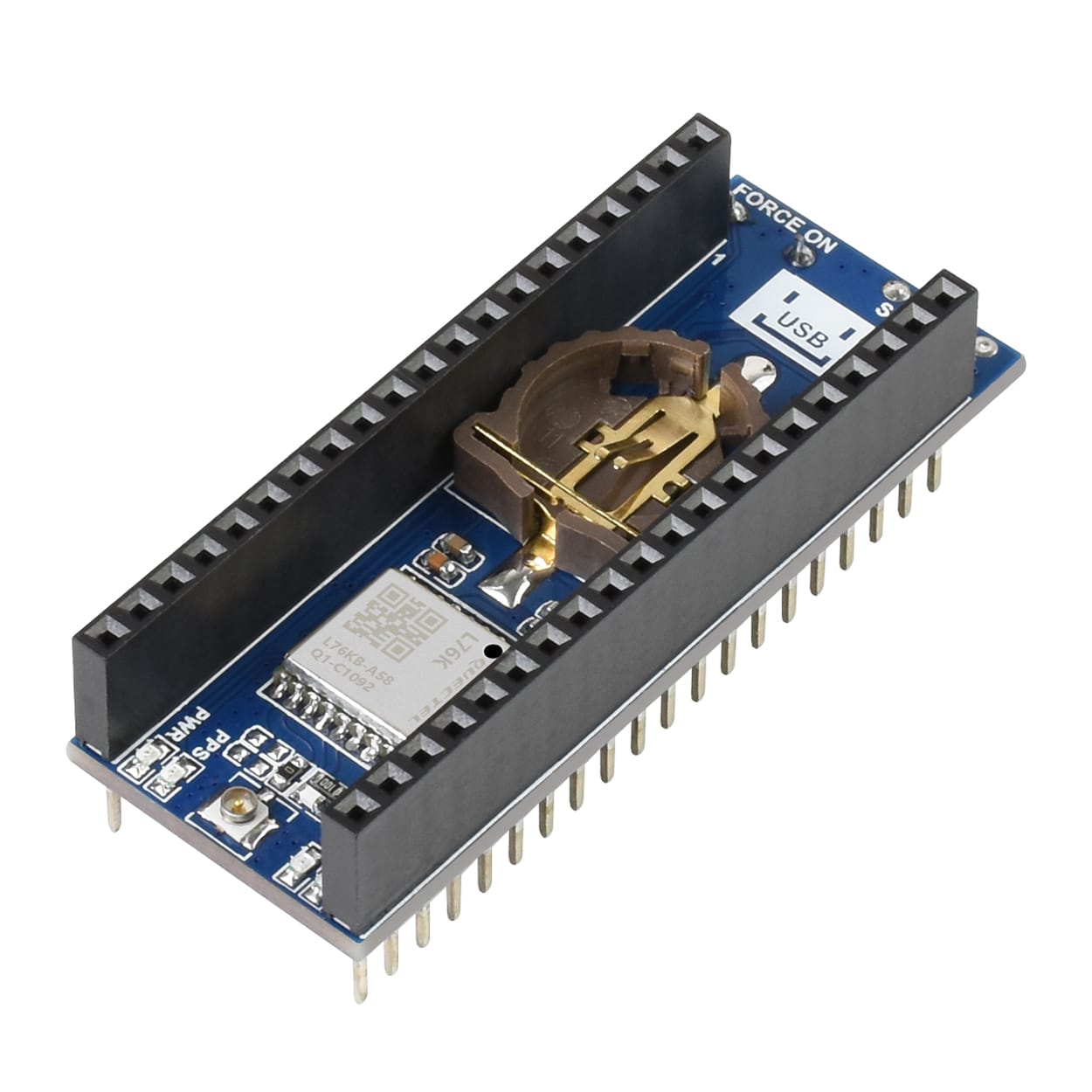

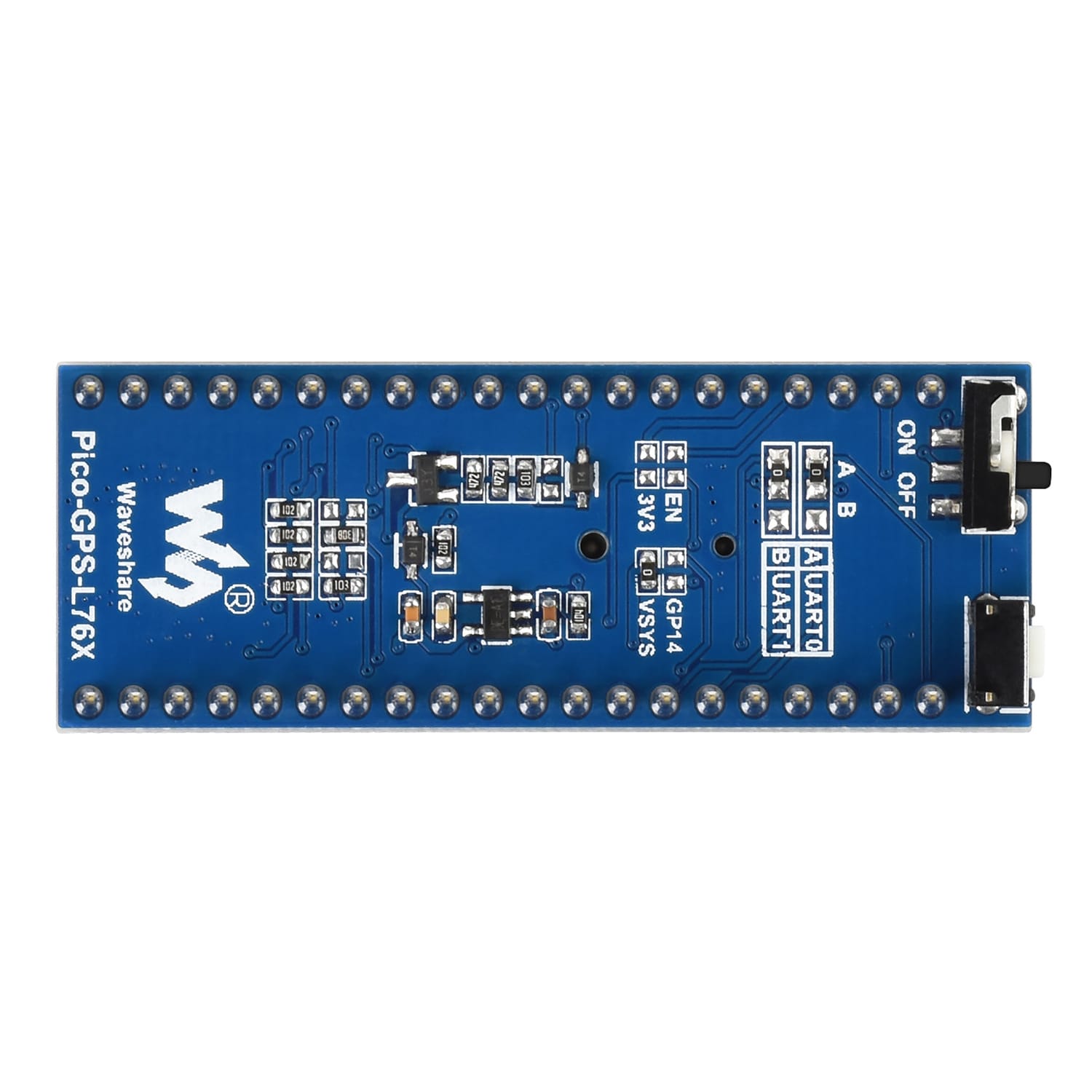

What's Onboard?
- L76K module
-
Battery holder
- Supports an ML1220 rechargeable cell for preserving ephemeris information and enabling hot starts
- GNSS antenna connector
- Raspberry Pi Pico header
- Standby mode switch
- GNSS configuration button
- RT9193-33 power chip
-

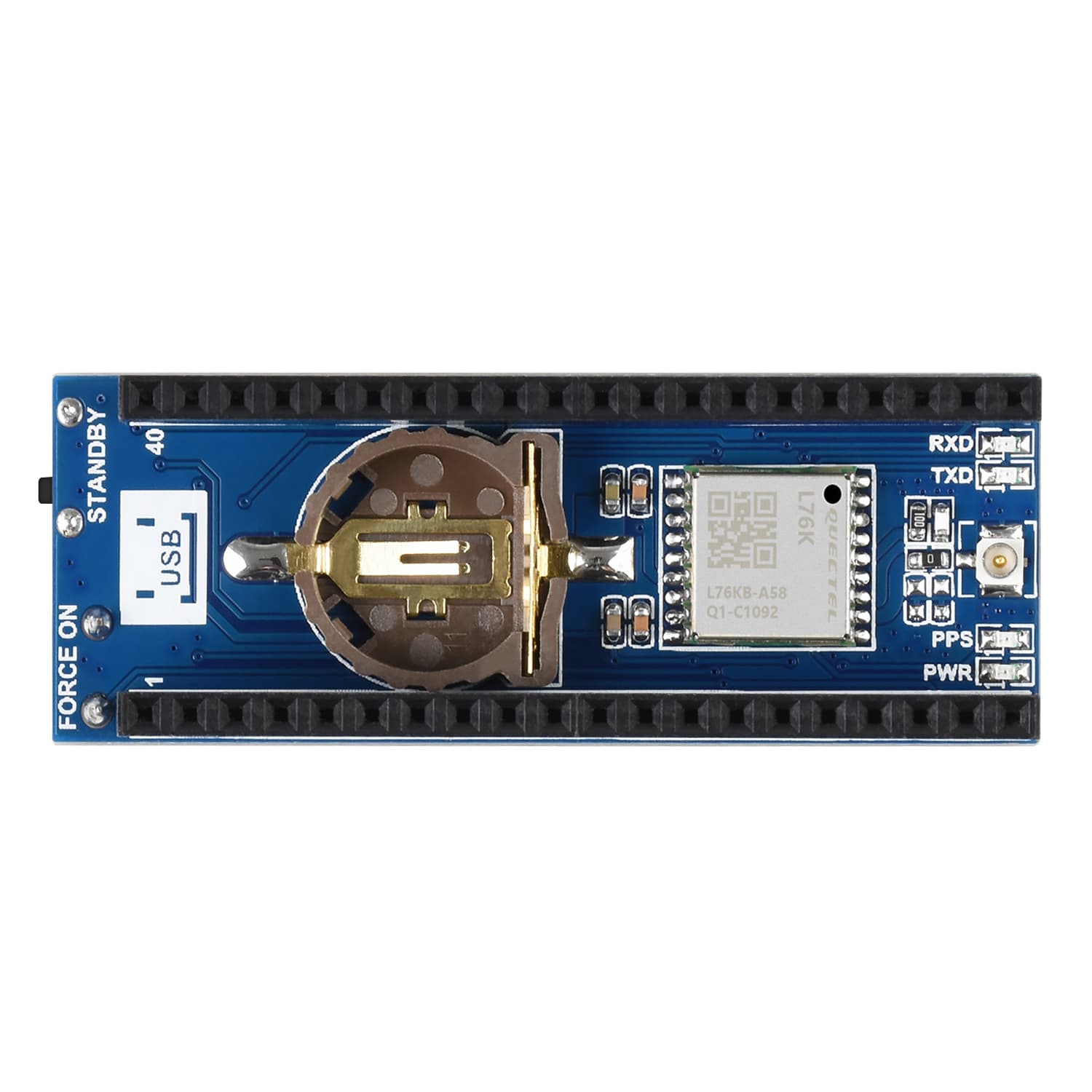

Status indicators
- RXD/TXD: UART TX/RX indicator
- PPS: GPS status indicator
- PWR: Power indicator
Features
- Designed for Raspberry Pi Pico
- Supports GPS, BeiDou (BDS), GLONASS and QZSS
- Combined or independent positioning modes
- AGNSS support
- Built-in Low-Noise Amplifier
- Built-in SAW filter
- ML1220 rechargeable cell holder (battery not included)
- Four status LEDs
- Separate GPS antenna included
Specifications
| GNSS | GPS/GLONASS/BDS/QZSS |
| Chip platform | AT6558R |
| L1 band receiver channels | 32 tracking / 72 acquisition |
| SBAS | N/A |
| A-GNSS | Supported |
| Acquisition sensitivity | -148dBm |
| Re-acquisition sensitivity | -160dBm |
| Tracking sensitivity | -162dBm |
| Cold start TTFF | 30s autonomous 5.5s with AGNSS |
| Hot start TTFF | 2s |
| Position accuracy | 2.0m CEP |
| Speed accuracy | 0.1m/s |
| Maximum acceleration accuracy | 0.1m/s² |
| Timing accuracy | 30ns |
| Communication interface | UART |
| Baud rate | 4800–115200bps, 9600bps by default |
| Update rate | 1Hz default, 5Hz maximum |
| Protocols | NMEA 0183, CASIC Proprietary Communication Protocol |
| Power supply voltage | 5V |
| Overall current consumption | <40mA @ 5V, continue mode |
| Operating temperature | -40°C to 85°C |
| Dimensions | 55.95 × 21.00mm |
Resources
Pinout
Package Contents
- 1x L76K GNSS Module for Raspberry Pi Pico
- 1x GPS Antenna
Raspberry Pi Pico not included
