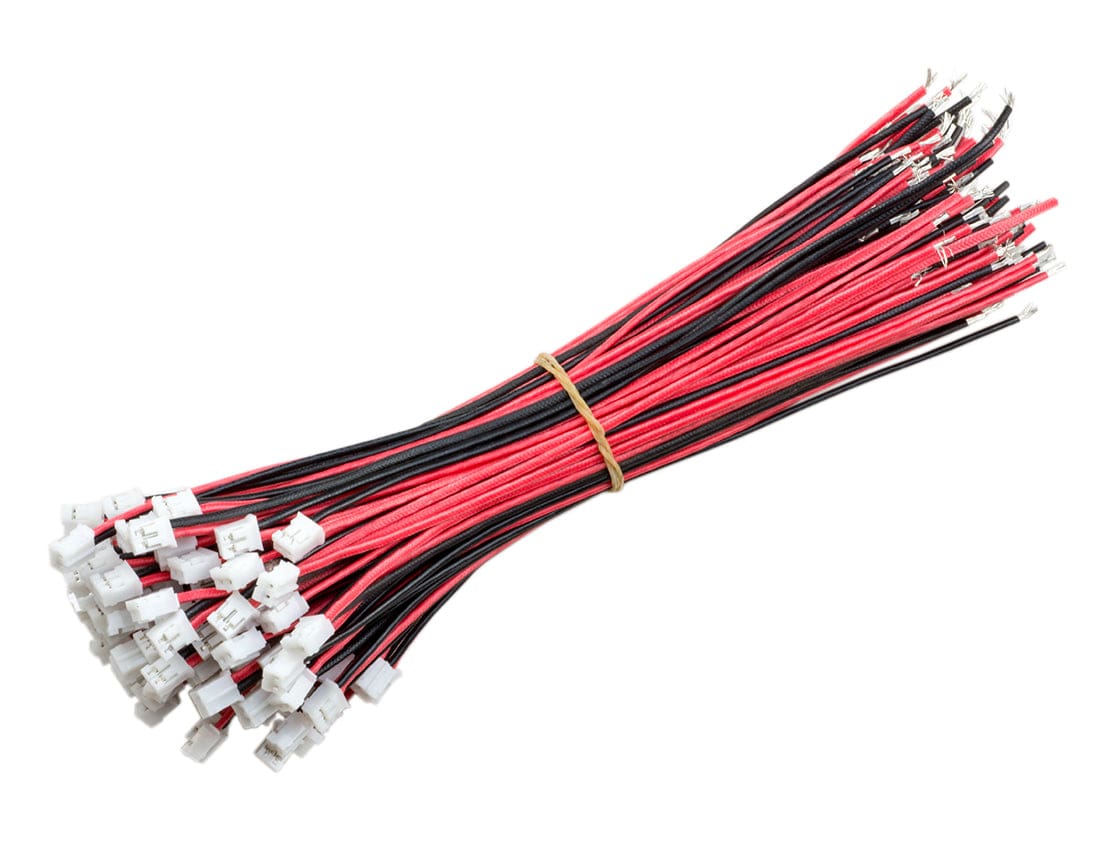

JST-PH Jumper Assembly (2 Wire) - Pack of 100

JST-PH Jumper Assembly (2 Wire) - Pack of 100
Only 10 left!
£ 42.00

JST-PH jumper wires are our favorite type of "crimp" connector. They're solid, reliable, compact, low-cost, easy to connect/disconnect, and simple to solder on most projects! JST-PH connectors are 8.0mm (.295") in height after mounting, 4.5mm (.177") in width and feature a low-profile 2.0mm (.079") pitch connector. All assemblies are 150mm (6") long and feature colour coding for easy hacking!

We stock 2-wire, 3-wire, 4-wire and 5-wire JST -PH jumper assemblies, with a male JST connector on one end and bare cable on the opposite end.

Each purchase is for a bundle of 100 x 2-Wire JST Cables

Features

  • 2 Pin JST PH Assembly
  • Current rating: 2A AC, DC (AWG #24)
  • Voltage rating: 100V AC, DC
  • Temperature range: -25?C to +85?C (including temperature rise in applying electrical current)
  • Contact resistance: Initial value/10m ? max. After environmental testing/20m ? max.
  • Insulation resistance: 1,000M ? min.
  • Withstanding voltage: 800V AC/minute
  • Applicable wire: AWG #32 to #24
  • Applicable PC board thickness: 0.8 to 1.6mm(.031" to .063")
  • The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
  • The contact has a long wire strip holding length of 2.6 +/-0.4mm.
  • Fully shrouded header
