Industrial USB to TTL Converter (CH343G)

WaveshareSKU: WAV-21550
Price:
Sale price £6.50
incl. VAT
excl. VAT
Stock:
Only 19 units left
Quantity:

Awesome Extras

USB 2.0 Extension Cable - The Pi HutUSB 2.0 Extension Cable - The Pi Hut
The Pi HutUSB 2.0 Extension Cable
Sale priceFrom £2 incl. VAT excl. VAT
Industrial USB to TTL Converter - The Pi HutIndustrial USB to TTL Converter - The Pi Hut
WaveshareIndustrial USB to TTL Converter (FT232RL)
Sale price £8.60 incl. VAT excl. VAT
Industrial 4-Channel USB to UART Converter - The Pi HutIndustrial 4-Channel USB to UART Converter - The Pi Hut
WaveshareIndustrial 4-Channel USB to UART Converter
Sale price £16.20 incl. VAT excl. VAT

This Waveshare industrial USB to TTL converter uses an original CH343G chip, offering a high-speed asynchronous serial port connection, supporting up to 115200bps communication, automatic identification and dynamic self-adaptation of baud rate.

Housed in a robust plastic casing, the converter features protection in the form of an onboard resettable fuse and TVS Diode, providing over-current, over-voltage, reverse polarity and ESD Protection. An internal TTL voltage level switch also allows you to quickly switch between 3.3V or 5V.

Three LED Indicators allow easy identification of the operating status for debugging and general operation. Multiple popular systems are supported including Windows 7/8/8.1/10/11, Mac, Linux and Android.

Features

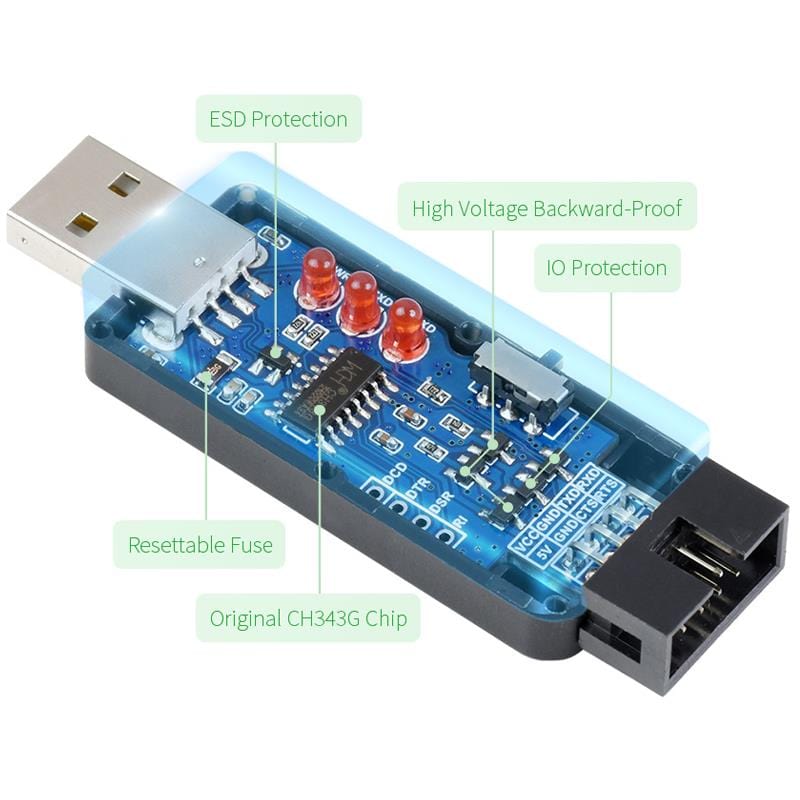

  • Onboard resettable fuse and TVS diode
  • Over-current, over-voltage, reverse polarity and ESD protection
  • Onboard IO protection circuit for surge suppress

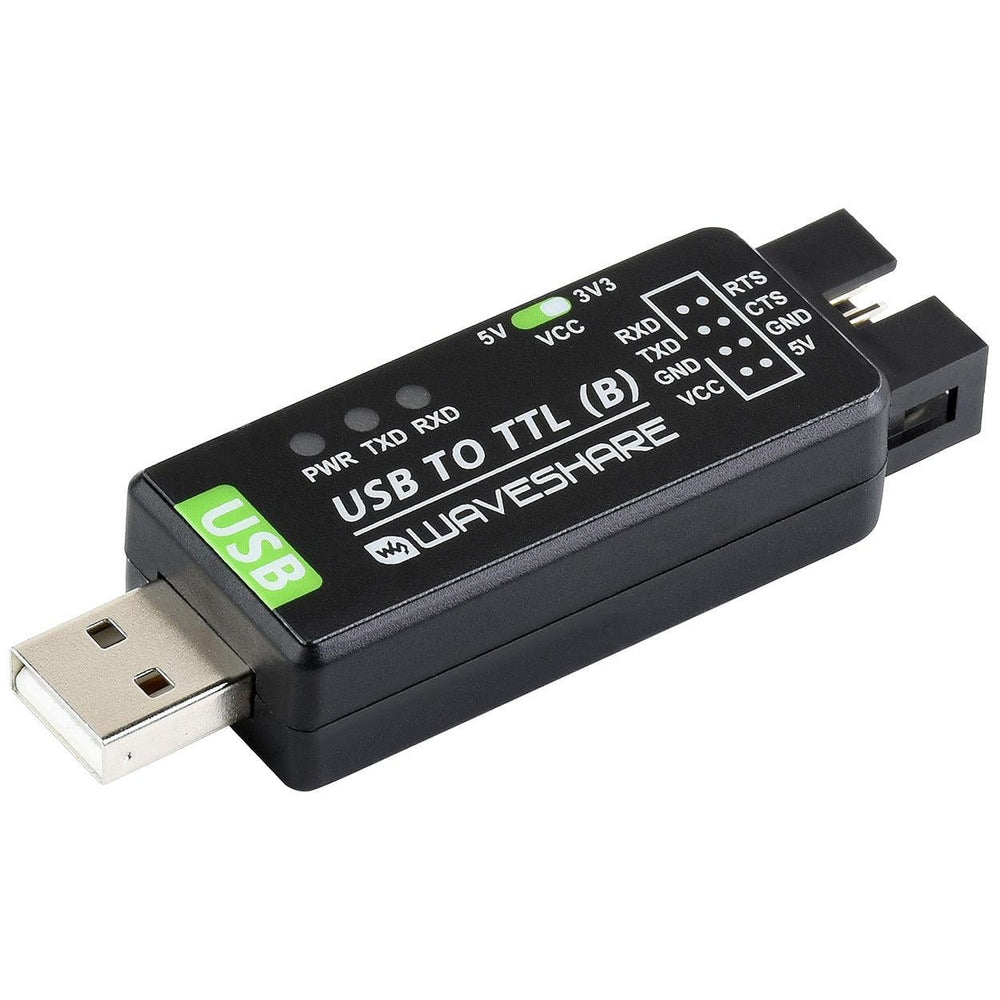

  • Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level

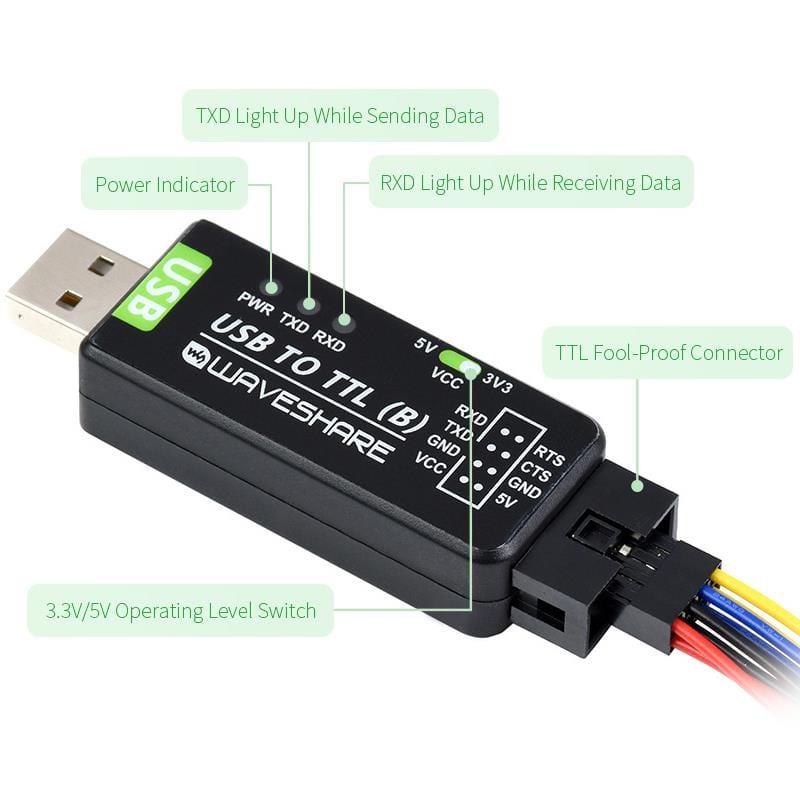

  • 3x LED indicators for easily checking power connection and signal TX/RX statuses
  • Quality plastic case
  • IDC connector with fool-proof design

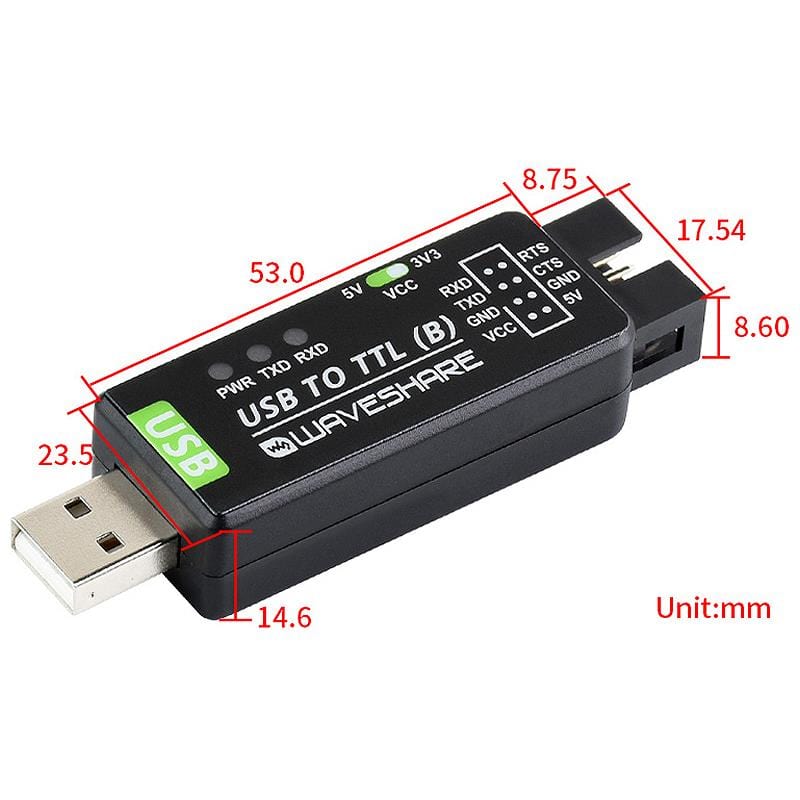

Specifications

  • Host interface: USB
  • Device interface: UART
  • Communication range: 50bps ~ 6Mbps
  • USB Device Interface:
    • Connector: USB Type-A
    • Protection: resettable Fuse, ESD protection
  • UART interface:
    • Connector: 6-pin right-angle pin header
    • Protection: IO protection diode
  • Indicator:
    • PWR: power indicator, turns red when USB voltage is detected
    • TXD: TX indicator, turns red while the USB port is sending data
    • RXD: RX indicator, turns red while the device port is receiving data

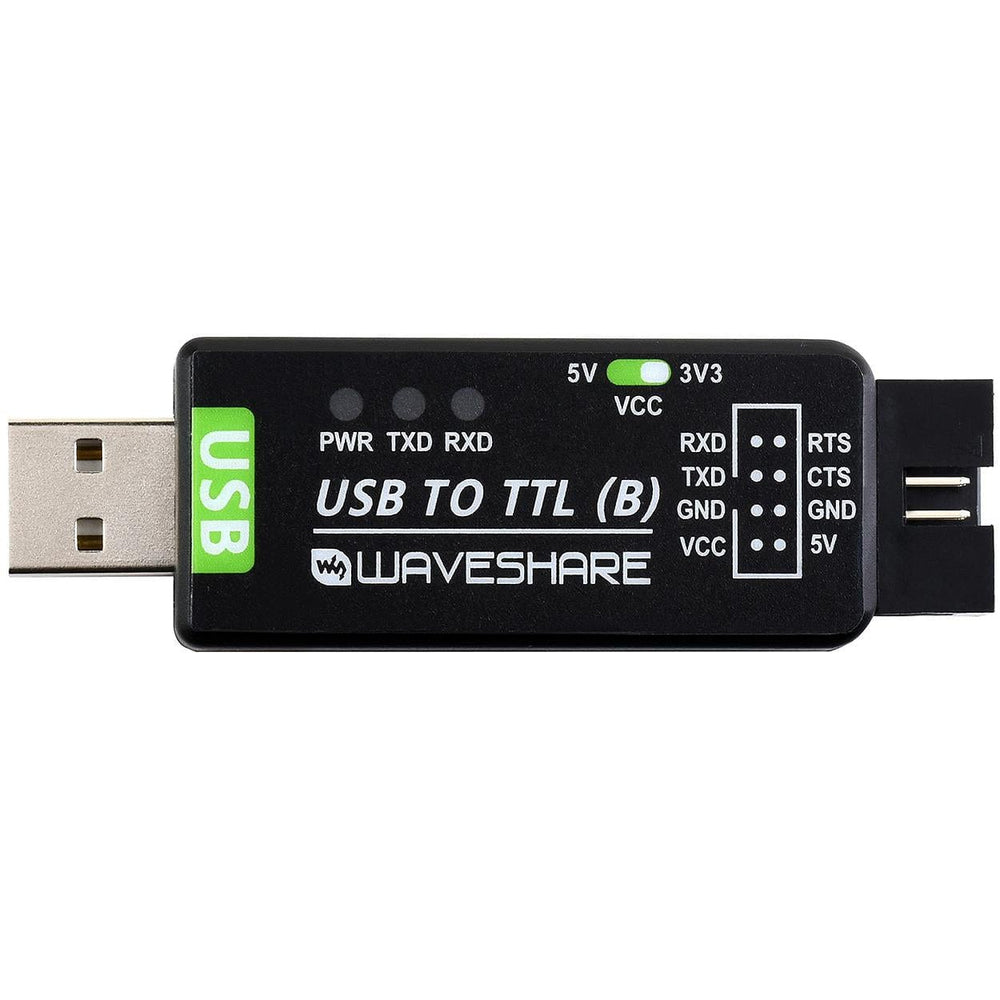

USB Signal & Pinouts Definition

Pin Description
VCC 5V or 3.3V output for external device (configured by jumper)
GND Power gound
TXD Connects to MCU.RXD
RXD Connects to MCU.TXD
RTS# Connects to MCU.CTS
CTS# Connects to MCU.RTS

Package Contents

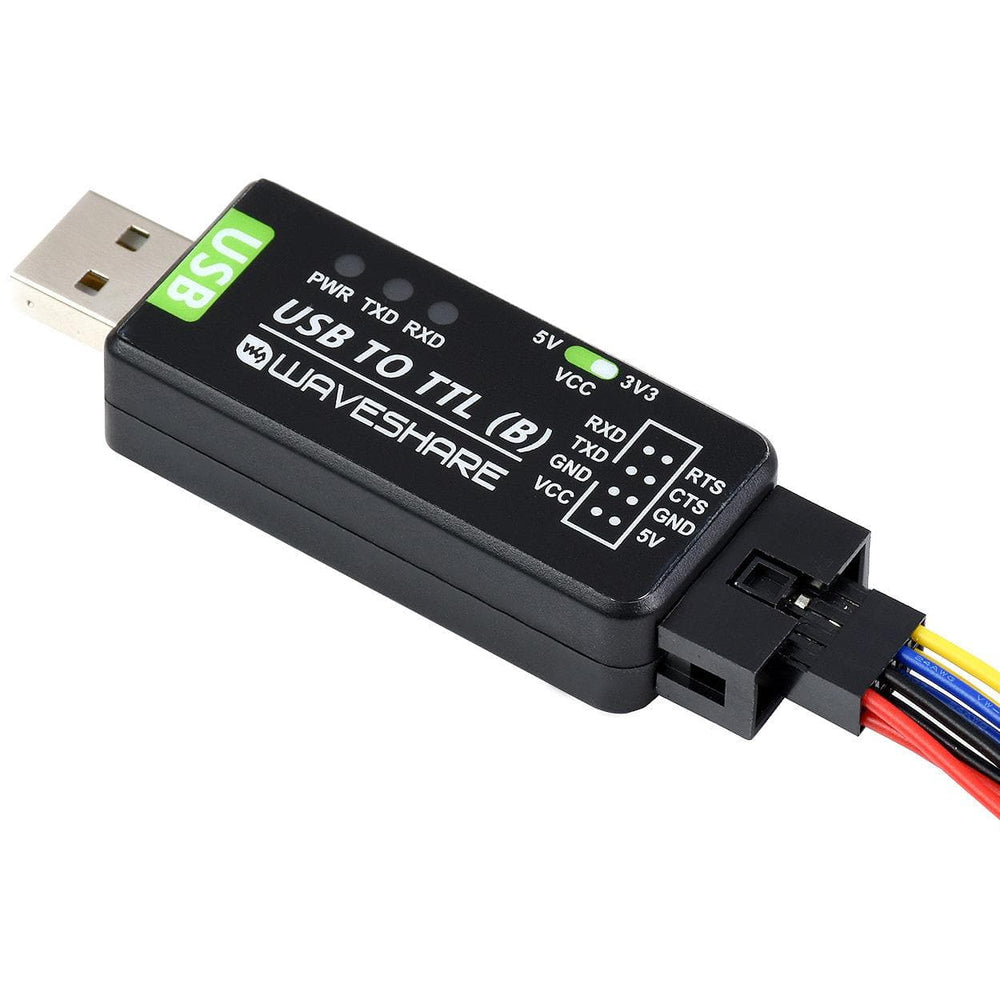

  • 1x USB to TTL Converter (CH343G)

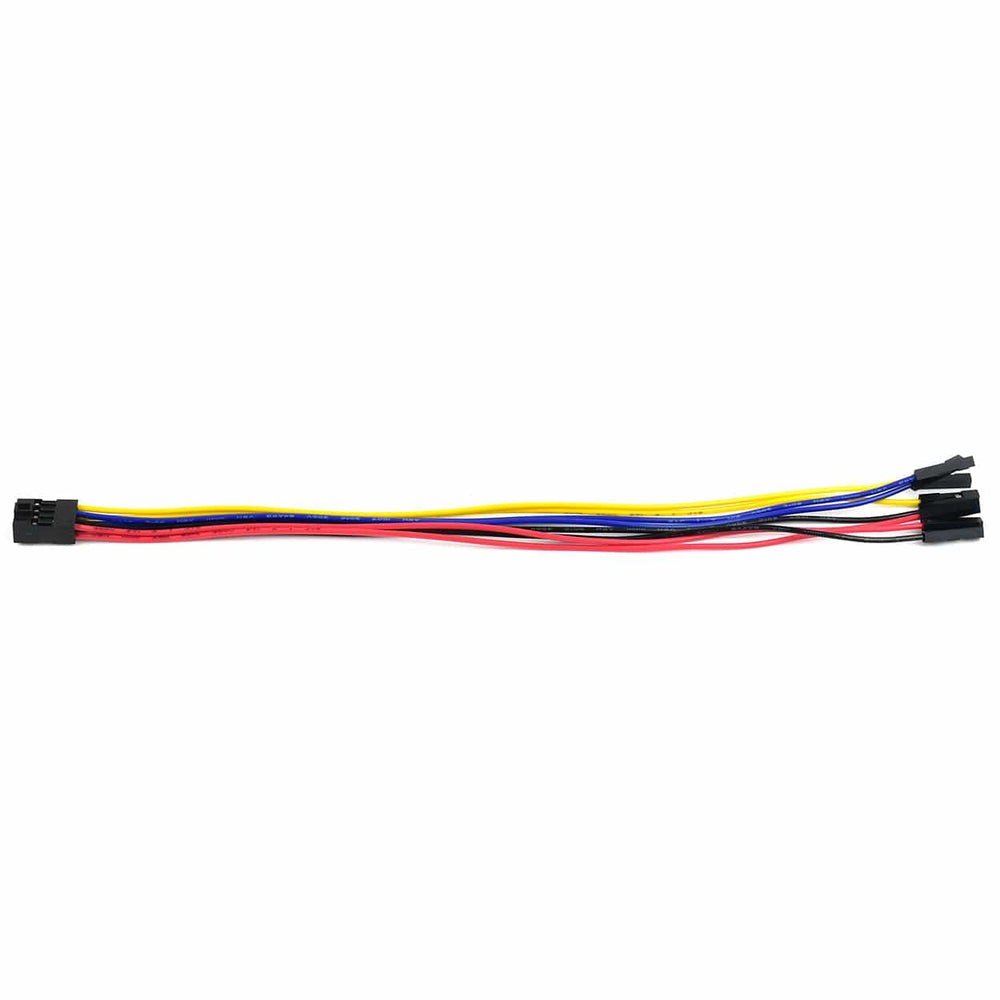

  • 1x 8-pin TTL "fool-proof" wire
