In-line Wire 1-to-4 Splitter

This 4-Way EL Wire Splitter connects up to four EL wires, strips or panels to a single compatible inverter, with one male input connector and four female outputs. Designed specifically for EL lighting.

If you want to connect multiple EL wires/strips/panels up to one inverter, these splitters are quite useful.

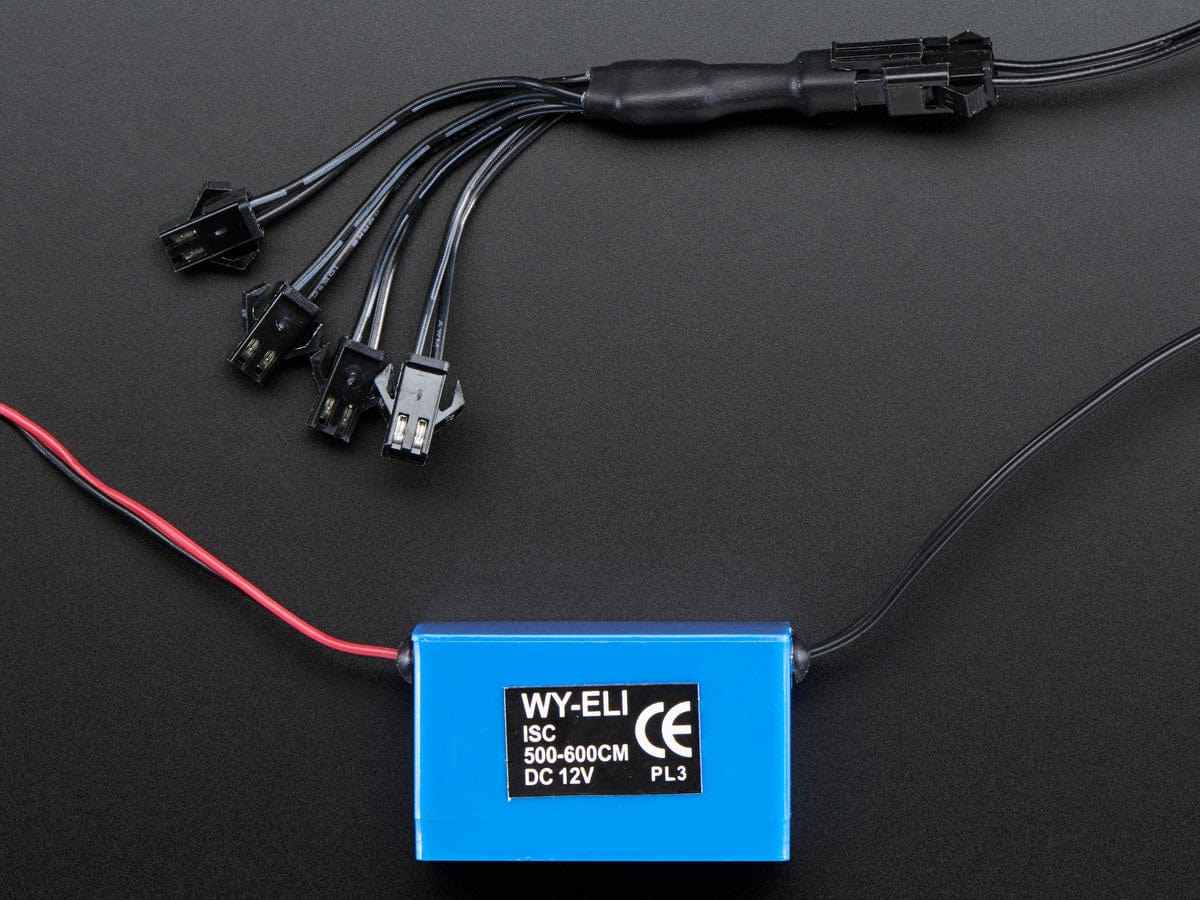

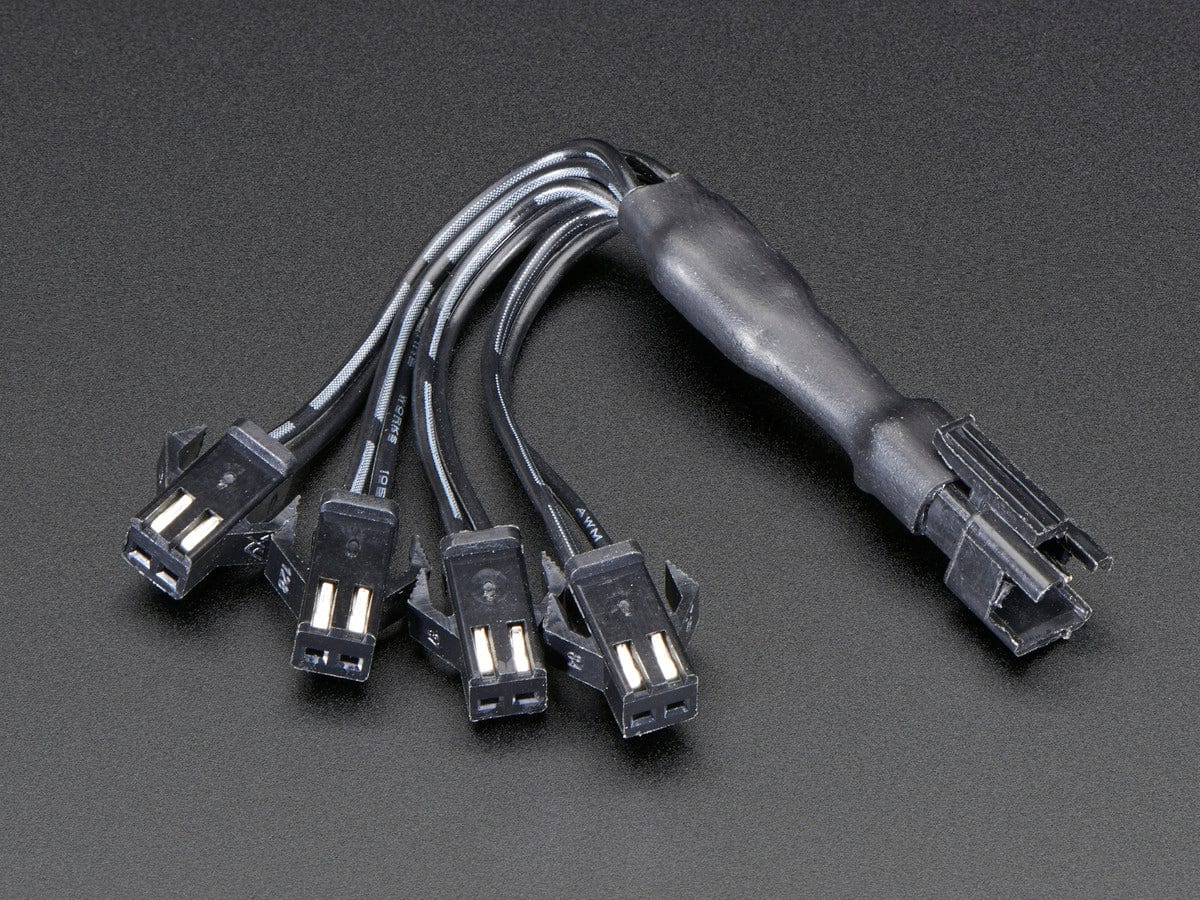

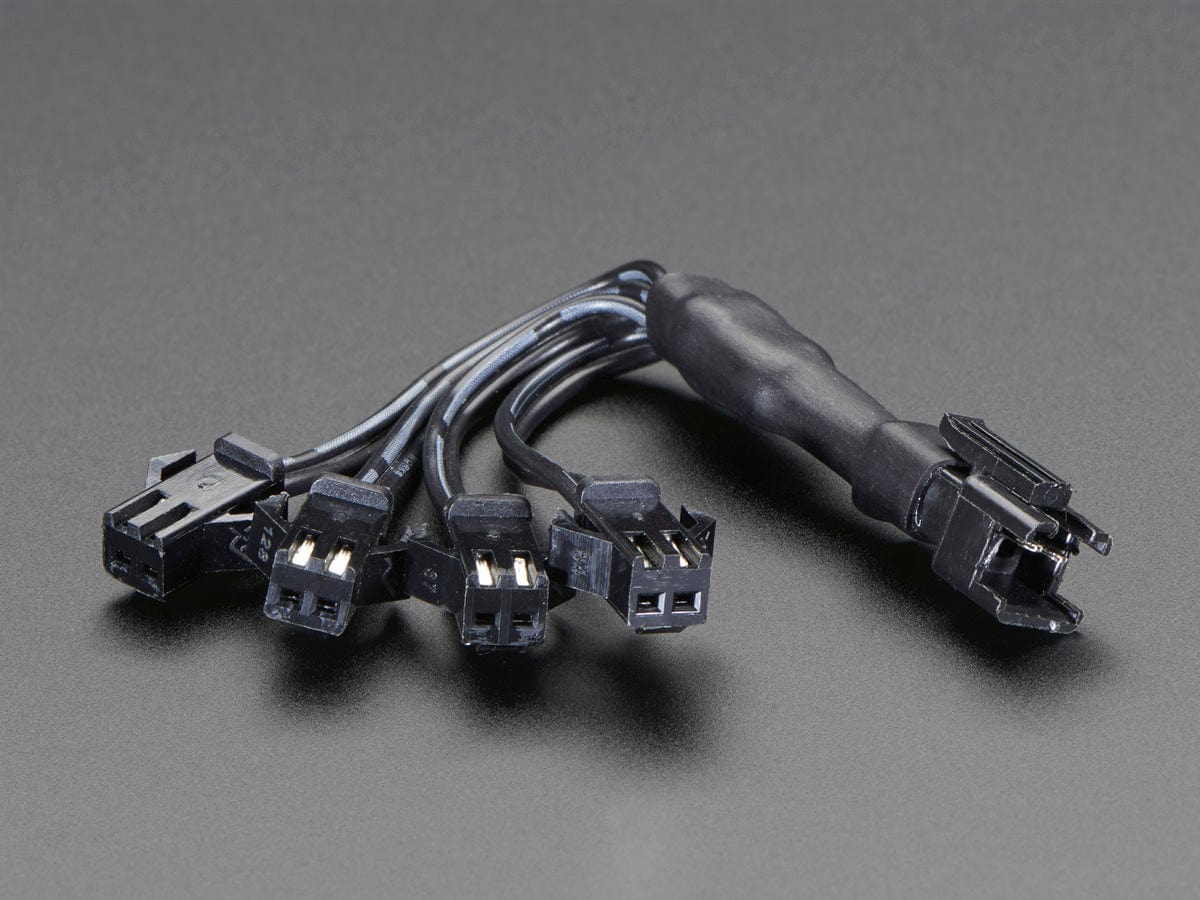

 There is one male connector (goes to the inverter) and then 4 female connectors (which will connect to each wire/strip/panel. You can even cascade them! Only thing to watch for is make sure that the total length of EL does not exceed what the inverter can drive!

These are for EL only! EL is 'AC' powered so there is no 'polarity' on the wires - the polarity of the pins may not line up right if you're using with anything other than EL. The wires may be 'swapped' on the 4 ends - so be super-aware of that.

Features

• One male connector input for inverter connection
• Four female connectors for EL wires, strips, or panels
• Allows multiple EL elements to connect to a single inverter
• Cascade-capable for expanded connectivity
• Compatible with EL (electroluminescent) products only
• No polarity concerns with EL AC power
• Monitor total EL length to stay within inverter capacity
• Connector pins may be swapped on output ends

Resources

• Tutorial

Package Contents

• 1x In-line Wire 1-to-4 Splitter
