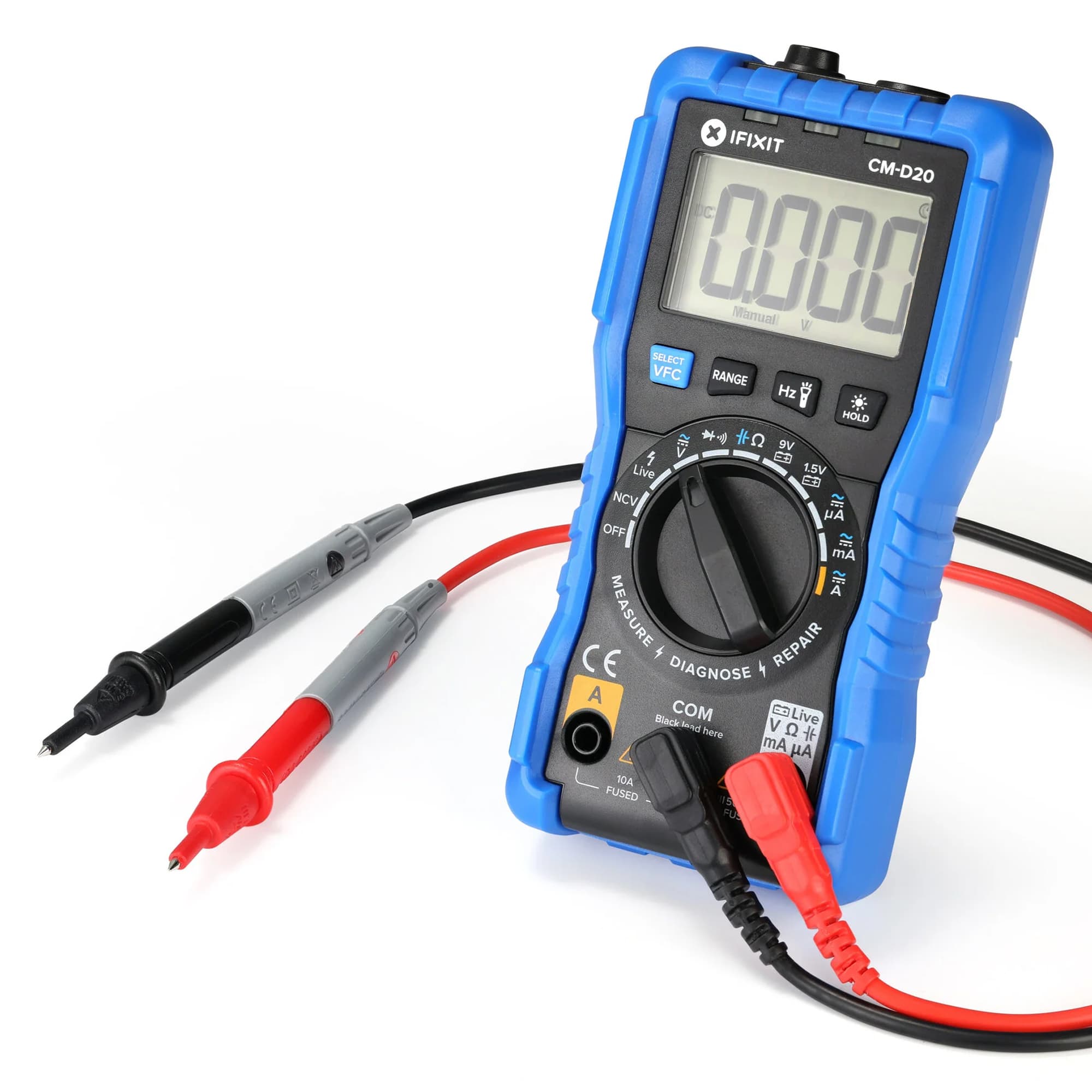

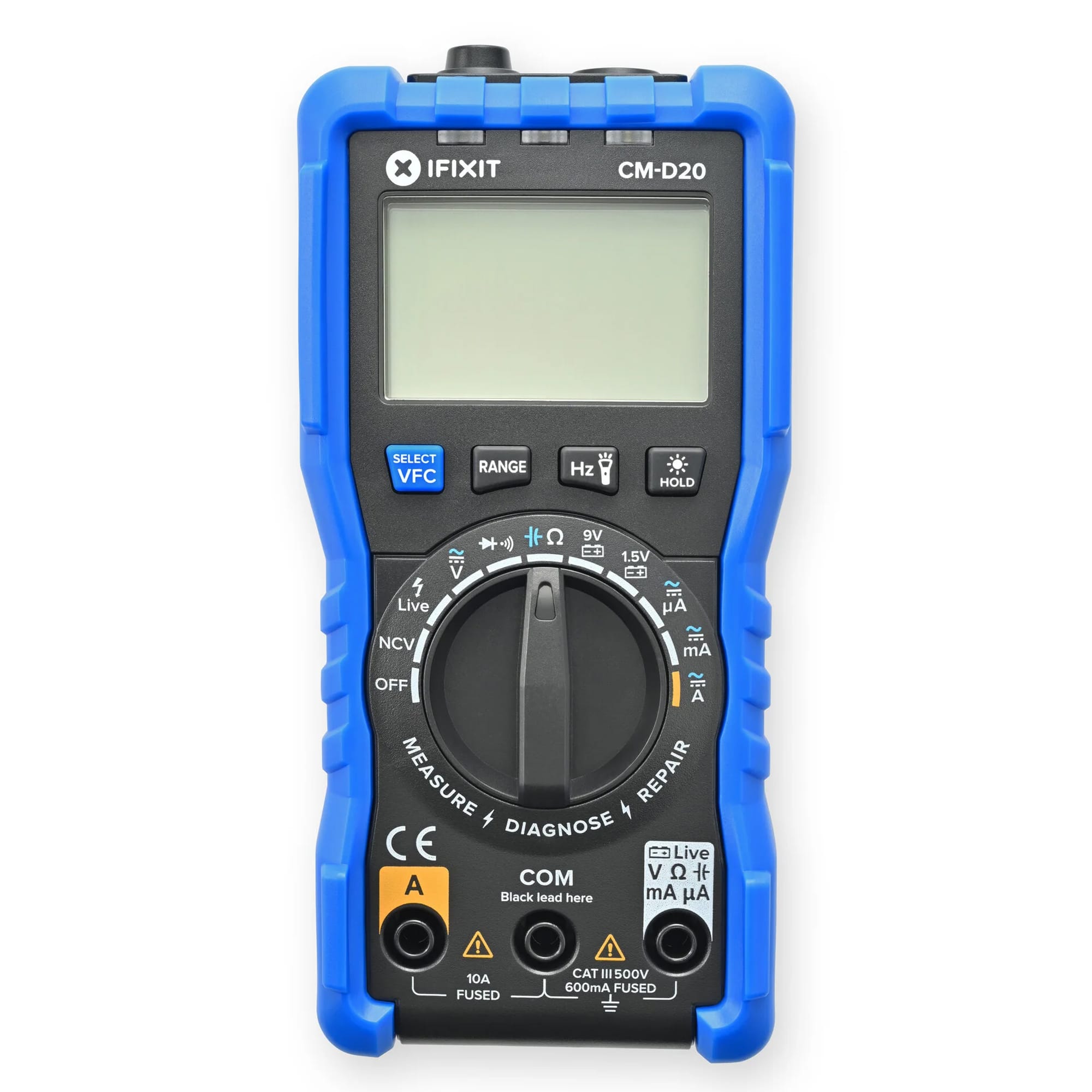

iFixit Digital Multimeter

The iFixit Digital Multimeter provides accurate electrical measurements and essential diagnostic functions, making it ideal for electronics repair, troubleshooting, and general electrical testing.

The iFixit Digital Multimeter is your go-to diagnostic tool for electronics repair and troubleshooting. With a robust set of functions—including AC/DC voltage and current, continuity, resistance, capacitance, diode testing, and non-contact voltage detection—this True RMS multimeter is engineered for precision.

Designed for both professionals and hobbyists, its compact form factor, intuitive controls, and clear 4-digit LCD make it an essential addition to any toolkit.

View our full range of iFixit tools here!

Features

• True RMS automatic ranging for precise AC/DC voltage and current readings
• Measures voltage (AC/DC), current (AC/DC), resistance, capacitance, frequency, diode function, and battery voltage
• Non-contact voltage (NCV) detection and Live Wire sensing
• 4-digit LCD display with backlight and hold function
• Auto shut-off and low battery warning
• Fuse-disconnection warning system with audible alert
• Compact and lightweight (195g) for easy portability
• Silicone test leads for improved durability, flexibility, and heat resistance
• Display:
  • 9999 count True RMS LCD
  • Backlight and data hold
• Measurement Ranges:
  • DC Voltage: 0.1mV to 500V ±(0.7–0.8%)
  • AC Voltage: 0.001V to 500V ±(1.0–1.2%)
  • DC Current: 0.1µA to 10A ±(0.8–1.2%)
  • AC Current: 0.1µA to 10A ±(1.0–1.5%)
  • Resistance: 0.1Ω to 99.99MΩ ±(1.0–2.0%)
  • Capacitance: 0.001nF to 99.99mF ±(4.0–5.0%)
• Additional Functions:
  • Diode test and audible continuity alert
  • Battery test (1.5V/9V) with internal load
  • NCV detection with LED and buzzer alerts
  • Live wire detection via single probe
• Safety Rating:
  • CAT III 500V (IEC61010-1)
  • Double insulation
  • Fused µA/mA (600mA/500V) and 10A (10A/600V) protection
• Environmental:
  • Operating: 0°C to 40°C (32°F to 104°F)
  • Storage: -10°C to 50°C (14°F to 122°F)
  • Max altitude: 2000m

Specifications

• Dimensions: 15 × 7.5 × 5 cm
• iFixit Part Number: IF145-035-8
• EAN: 0810140230065

Package Contents

• 1x iFixit Digital Multimeter

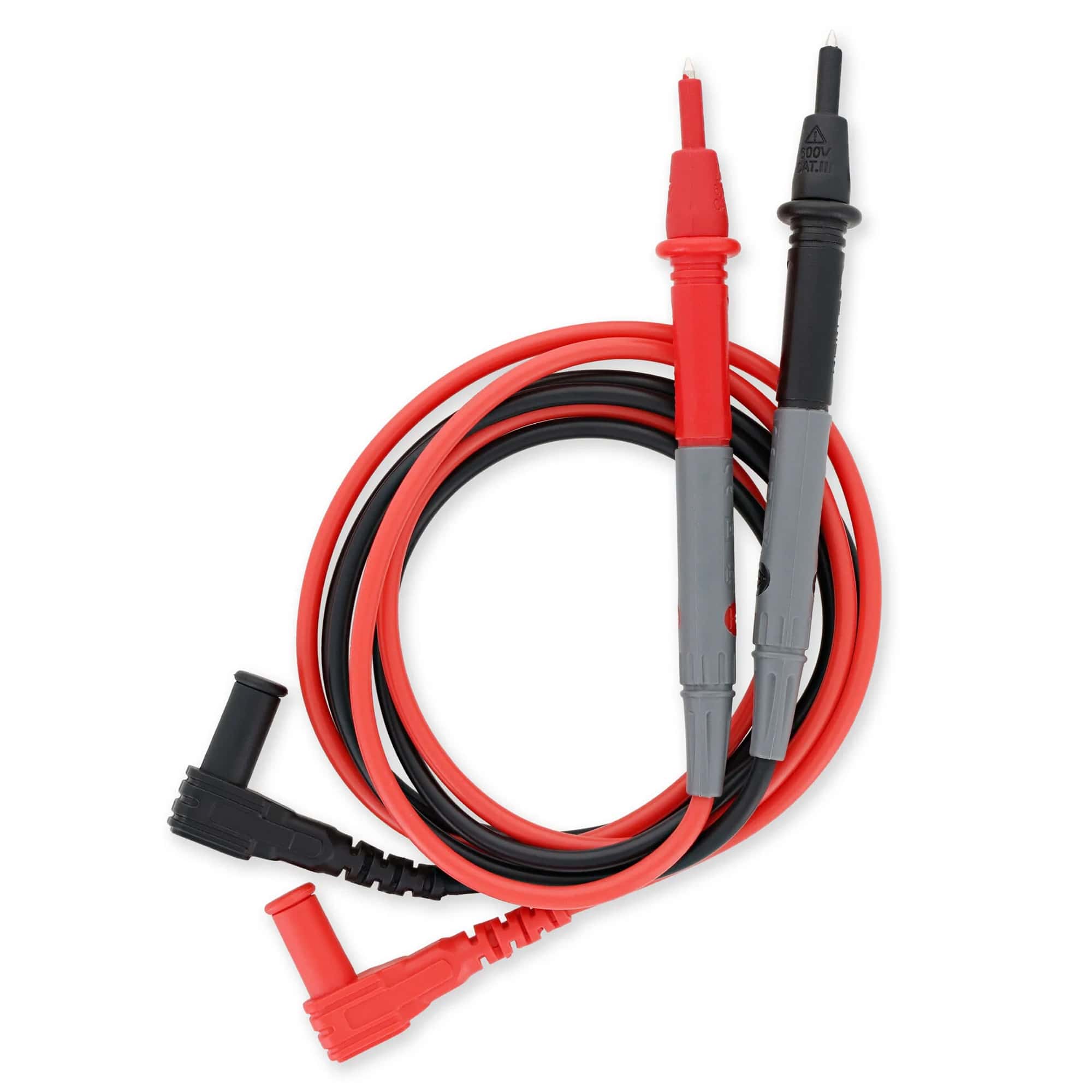

  • Silicone test leads (1 pair)
  • 2× AAA batteries
  • User guide
