Grove - Water Sensor

The Grove Water Sensor detects the presence of water using exposed PCB traces. The sensor is made up of interlaced traces of Ground and Sensor signals.

The sensor traces are weakly pulled up using a 1 MΩ resistor. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the ground trace. This circuit will work with digital I/O pins of an Arduino or you can use it with the analogue pins to detect the amount of water induced contact between the grounded and sensor traces.

Features

• Grove compatible interface
• Low power consumption
• High sensitivity

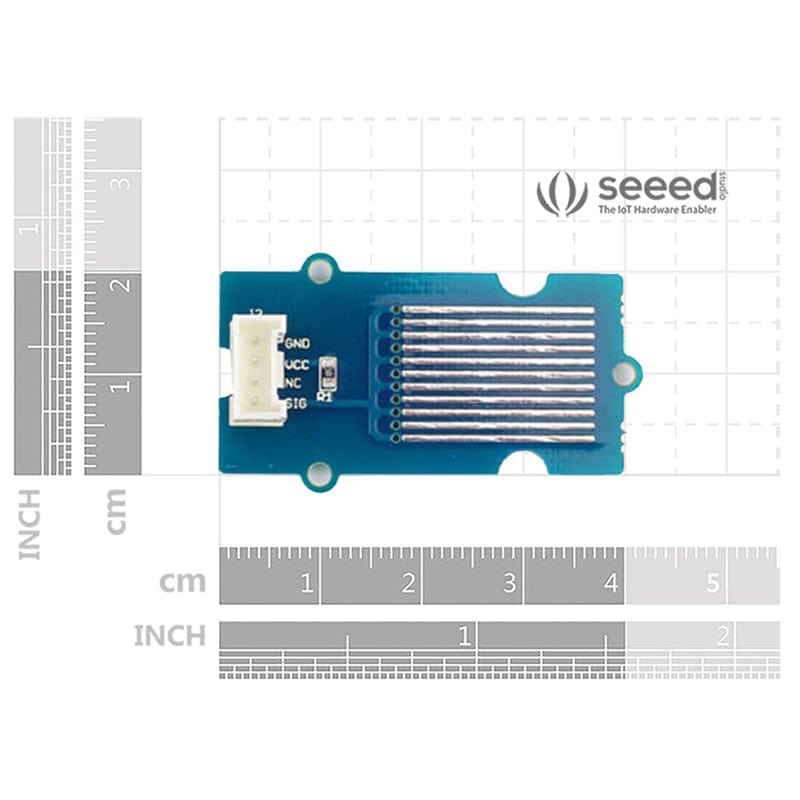

• Dimensions: 40mm x20mm x12mm
• Weight: 9g
• Product number: Seeed 101020018

Resources

• Product Wiki
• Demo Code

Package Contents

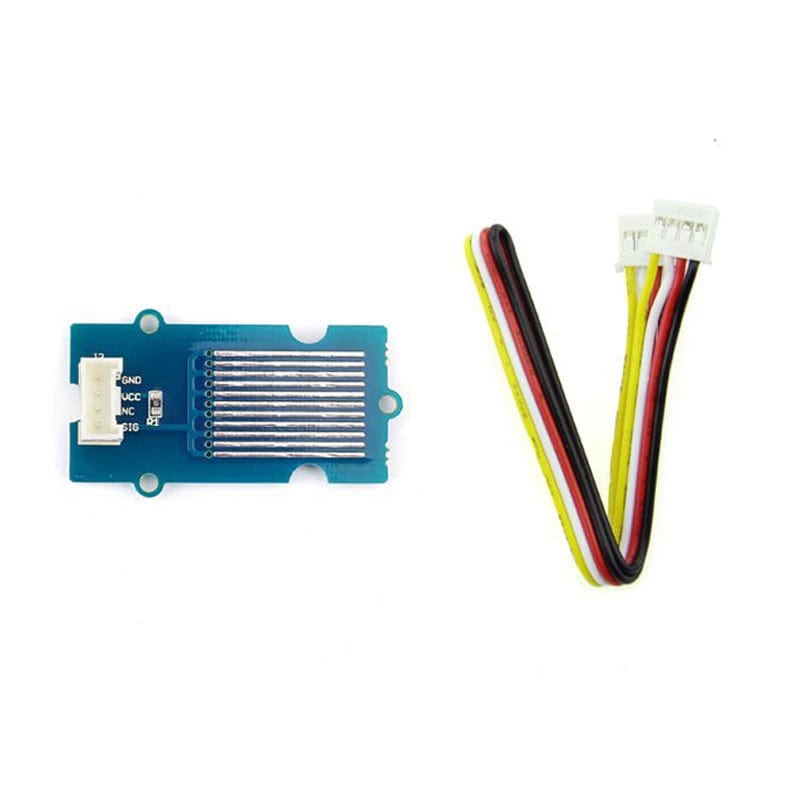

• 1x Grove Water Sensor
• 1x Grove Cable
