Grove - Red LED Matrix with Driver

SeeedSKU: 106118
Price:
Sale price £8.10
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

Grove - RGB LED Matrix with Driver - The Pi HutGrove - RGB LED Matrix with Driver - The Pi Hut
SeeedGrove - RGB LED Matrix with Driver
Sale price £15.80 incl. VAT excl. VAT
Grove Base Shield V2.0 for Arduino - The Pi HutGrove Base Shield V2.0 for Arduino - The Pi Hut
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT
Grove - Universal 4 Pin 20cm Unbuckled Cable (5 PCs Pack) - The Pi HutGrove - Universal 4 Pin 20cm Unbuckled Cable (5 PCs Pack) - The Pi Hut

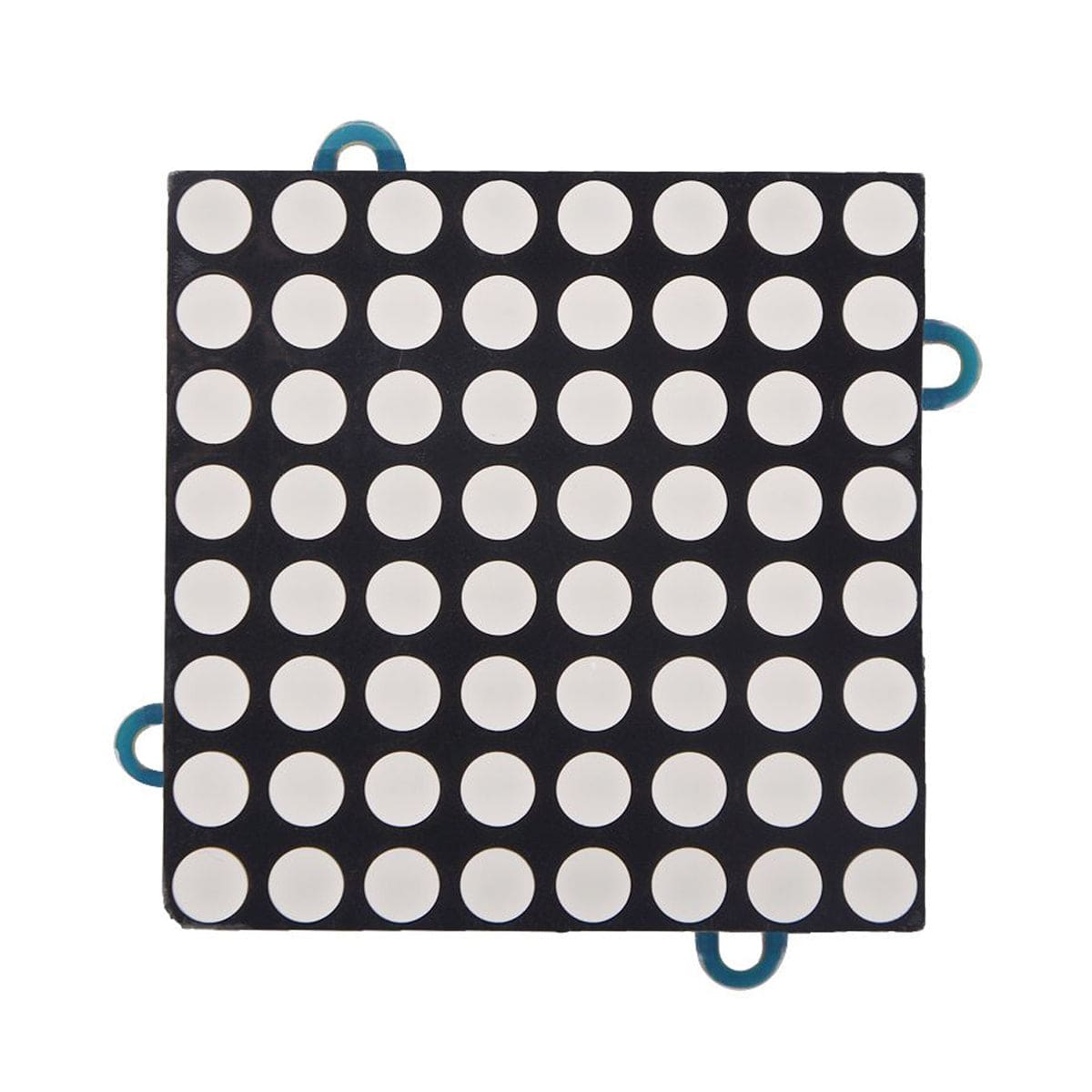

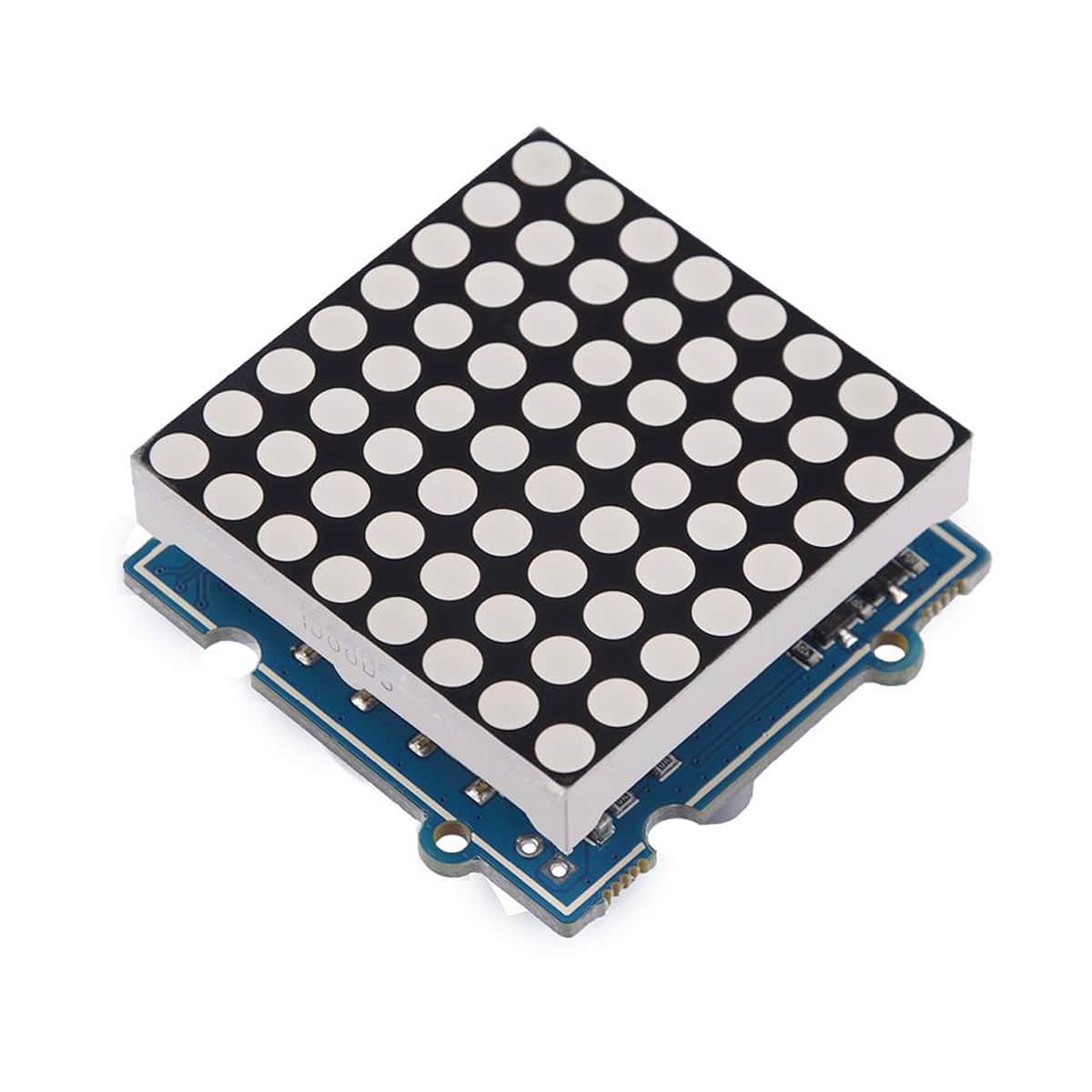

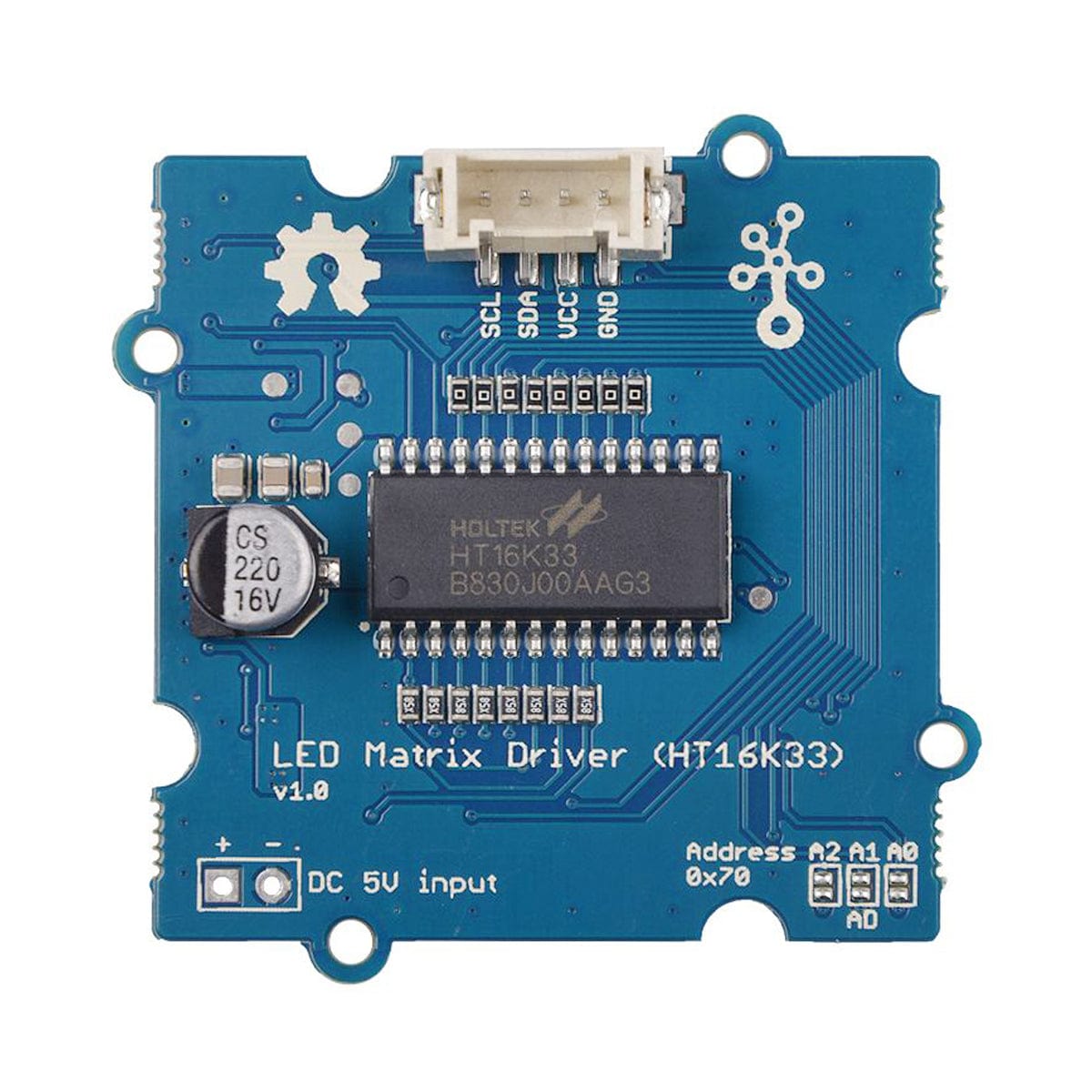

This LED Matrix combines an 8 x 8 red LED matrix with the Grove LED Matrix Driver. The driver uses the HT16K33, a memory-mapped, multifunctional LED controller that allows easy matrix control through provided libraries or custom libraries.

The HT16K33’s software configuration suits various LED projects, such as modules and display systems. It communicates with most microcontrollers via a two-line I2C bus.

If you're looking for a matrix with multiple colours, click here to find it in our shop.

Features

  • Integrated RC oscillator
  • R/W address auto increment
  • Max. 8 x 8 patterns
  • I2C-bus interface
  • Product Number: Seeed 104020089

Specifications

Supply Voltage 3.3V / 5V
LED Matrix Dot 8 x 8
Operating temperature -40 - 85℃
Storage temperature -50 - 125℃
Interface I2C
I2C address 0x70 (default)
0x71 - 0x77 (configurable)

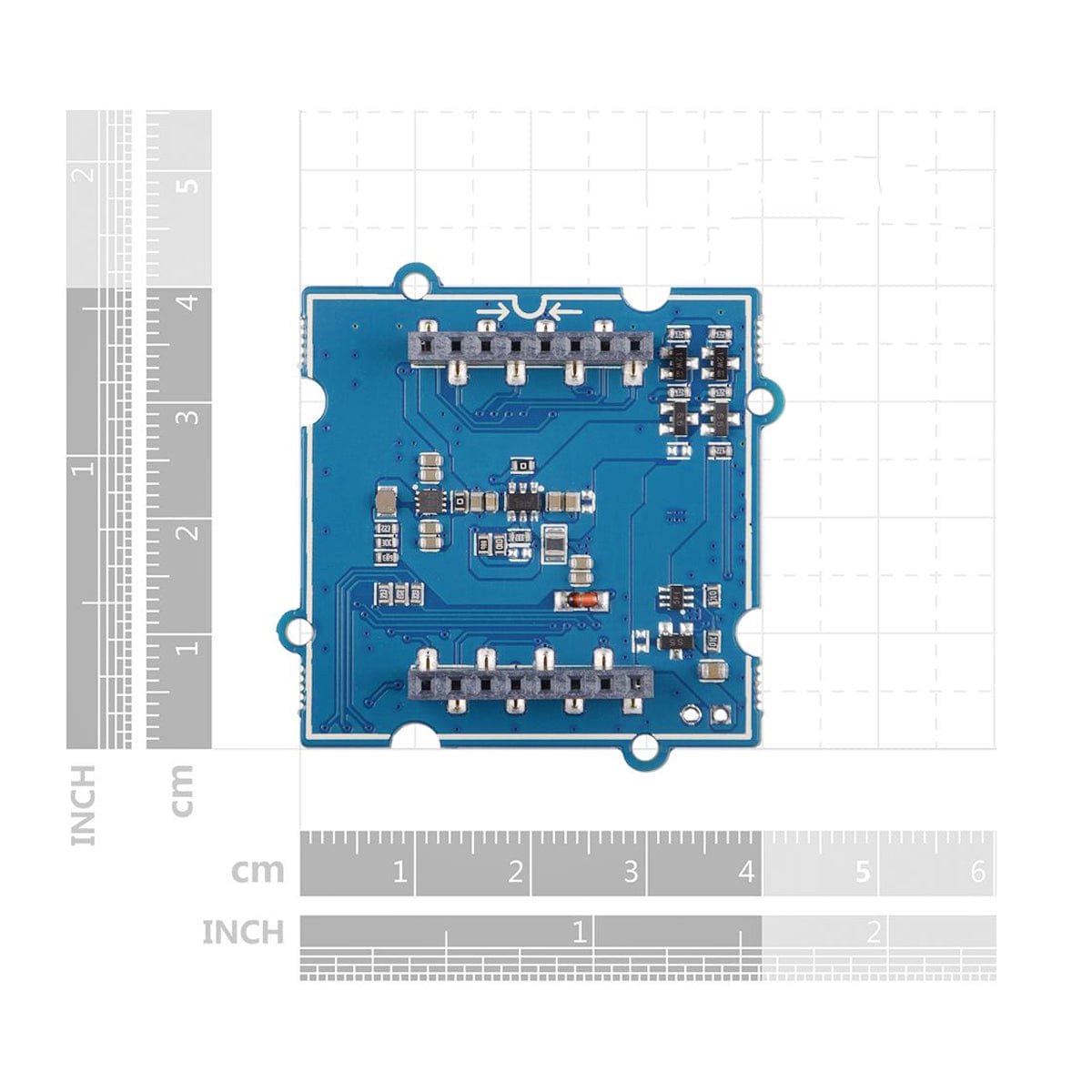

Size L: 40mm W: 40mm H: 21mm
Weight 17.4g
Package size L: 140mm W: 90mm H: 20mm
Gross Weight 24g

Resources

Pinout

Package Contents

  • 1x Grove - Red LED Matrix with Driver
