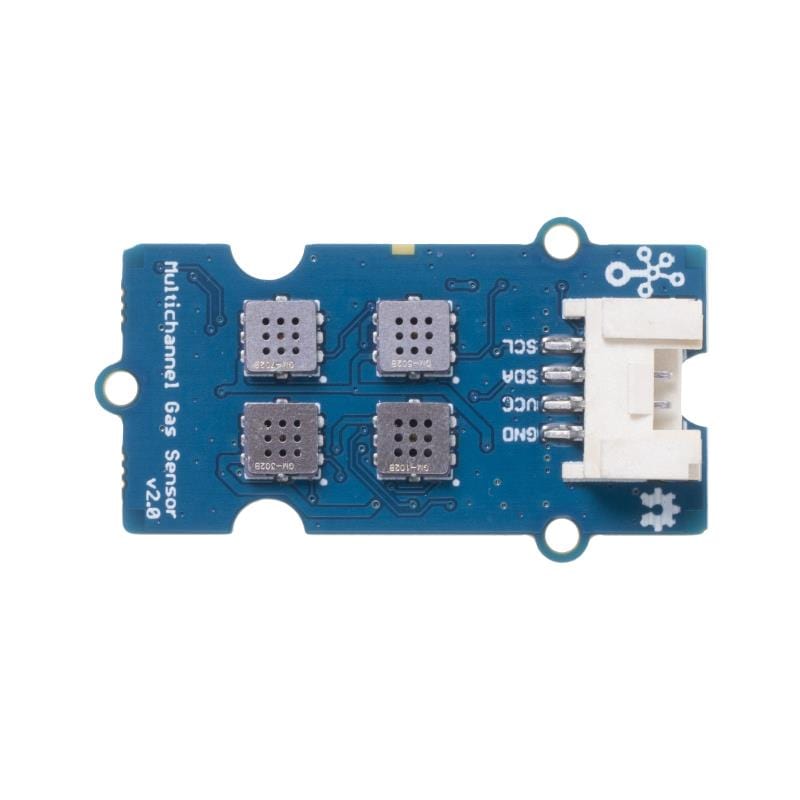

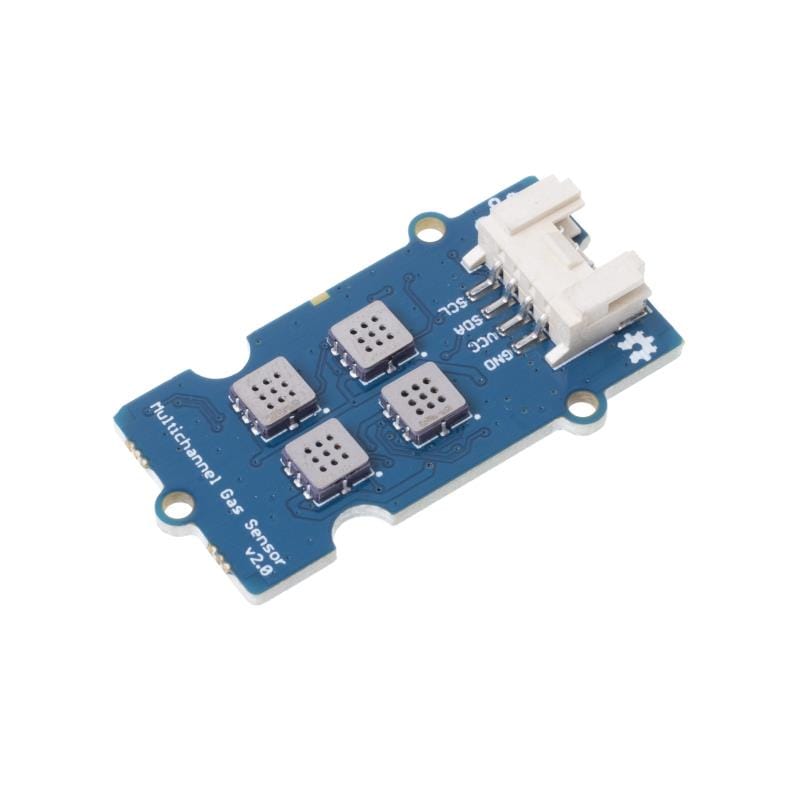

Grove - Multichannel Gas Sensor v2

SeeedSKU: 102933
Price:
Sale price £29.10
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

Awesome Extras

SeeedGrove - Base HAT for Raspberry Pi
Sale price £9.70 incl. VAT excl. VAT
SeeedGrove - Gas Sensor (O2)
Sale price £57 incl. VAT excl. VAT

The Grove - Multichannel Gas Sensor V2 provides a stable and reliable gas detecting function of four sorts of gases. It can detect a variety of gases, including Carbon monoxide (CO), Nitrogen dioxide (NO2), Ethyl alcohol(C2H5CH) and Volatile Organic Compounds (VOC).

Worried about not recognizing the gas around your workplace or other surroundings and environment? The Grove - Multichannel Gas Sensor V2 has 4 measuring units, each of which is sensitive to various kinds of gases which means you are able to get four sets of data at the same time. And different sorts of gases can also be judged by these four sets of data.

The gas sensor used in this module is based on MEMS technology and has the advantage of being in a small size with considerable measurement stability and is more suitable for qualitative than quantitative measurement.

Features

  • Four fully independent sensor elements on one package.
  • The ability to detect a variety of gases, besides Carbon monoxide (CO), Nitrogen dioxide (NO2), Ethyl alcohol(C2H5CH), Volatile Organic Compounds (VOC) and etc.
  • Qualitative detecting, rather than quantitative.

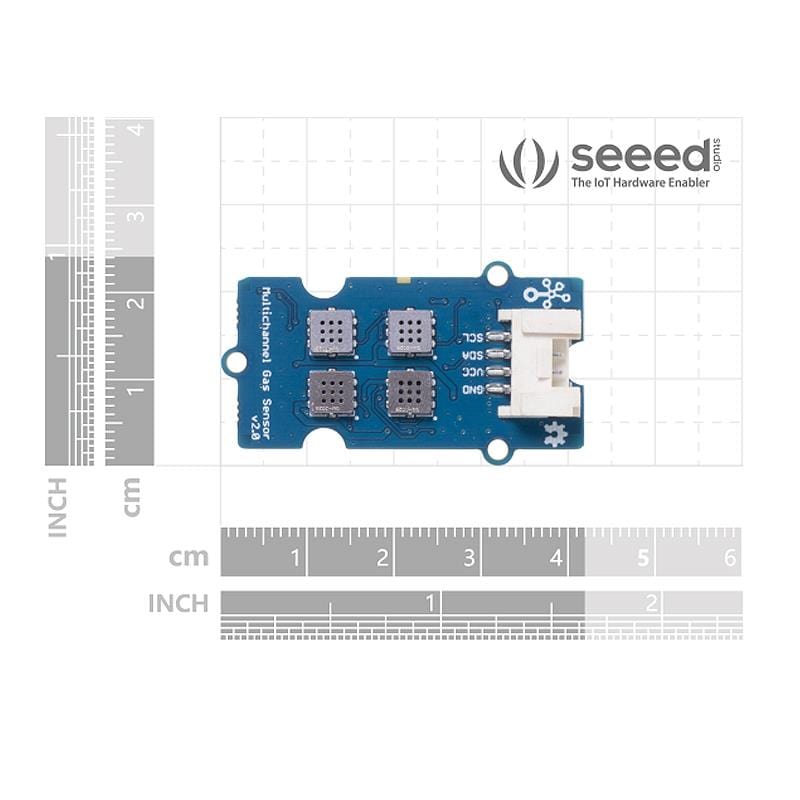

  • Compact size for easy deployment.
  • Product number: Seeed 101020820

Package Contents

  • 1x Multichannel gas sensor board
  • 1x Grove cable

Specifications

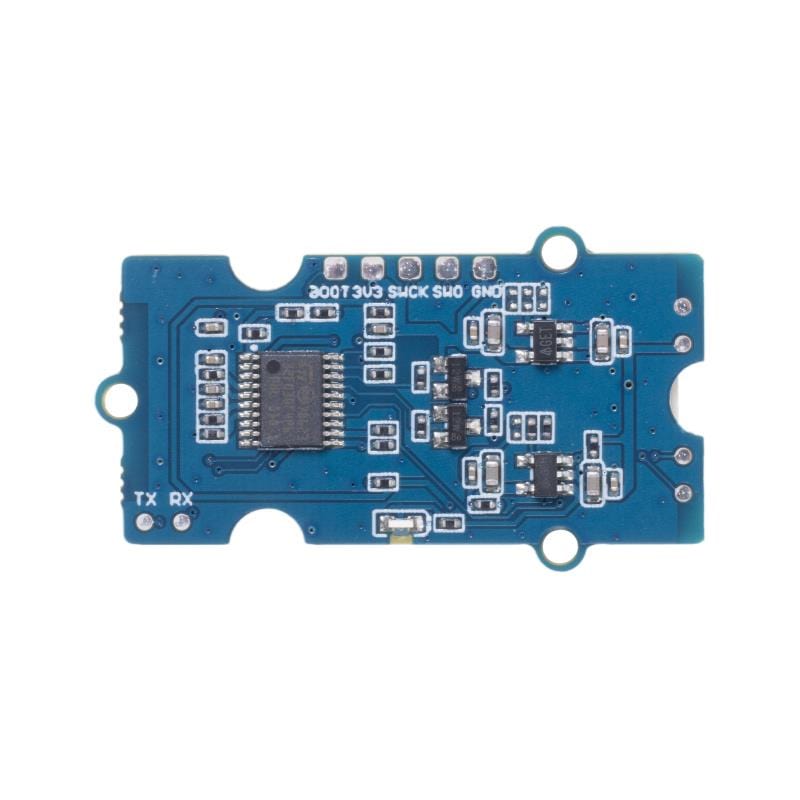

MCU STM32F030
Interface 0x55
I2C address 3.3V~5V
Onboard Gas Sensors GM-102B; GM-302B; GM-502B; GM-702B



How Does Storage Time Affect The Recommended Warm-Up Time of This Sensor?

Storage time Recommended warm-up time
Less than 1 month No less than 24 hrs
1-6 months No less than 48 hrs
Over 6 months No less than 72 hrs



Notes

  • The module should avoid being placed in the volatile silicon compound steam, or it will cause the sensitivity to be reduced and irrecoverable.
  • The module should avoid being exposed to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.), otherwise, it will be irreversibly damaged.
  • The module should not be placed in water or ice.
  • After the module is powered on, the sensor will heat up to a certain degree during the process, which is a normal phenomenon.
  • Users MUST preheat the module before starting to measure gases
