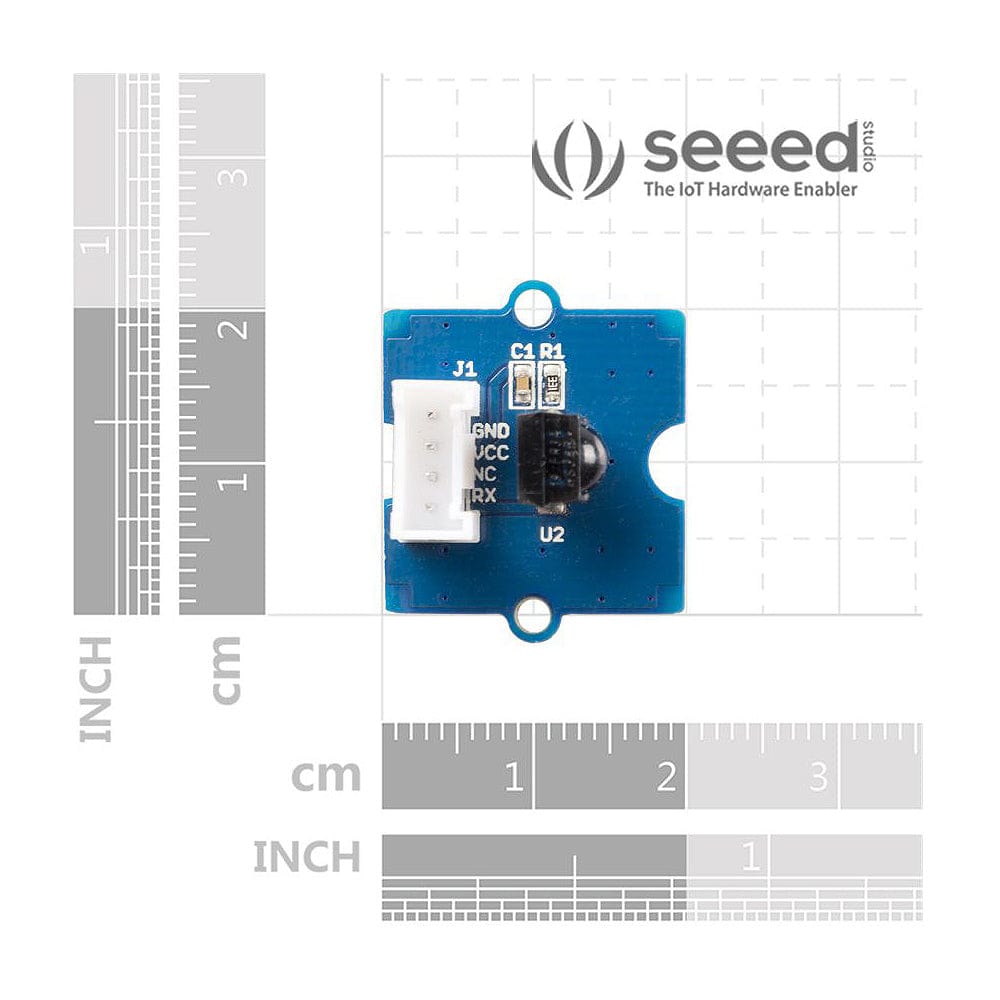

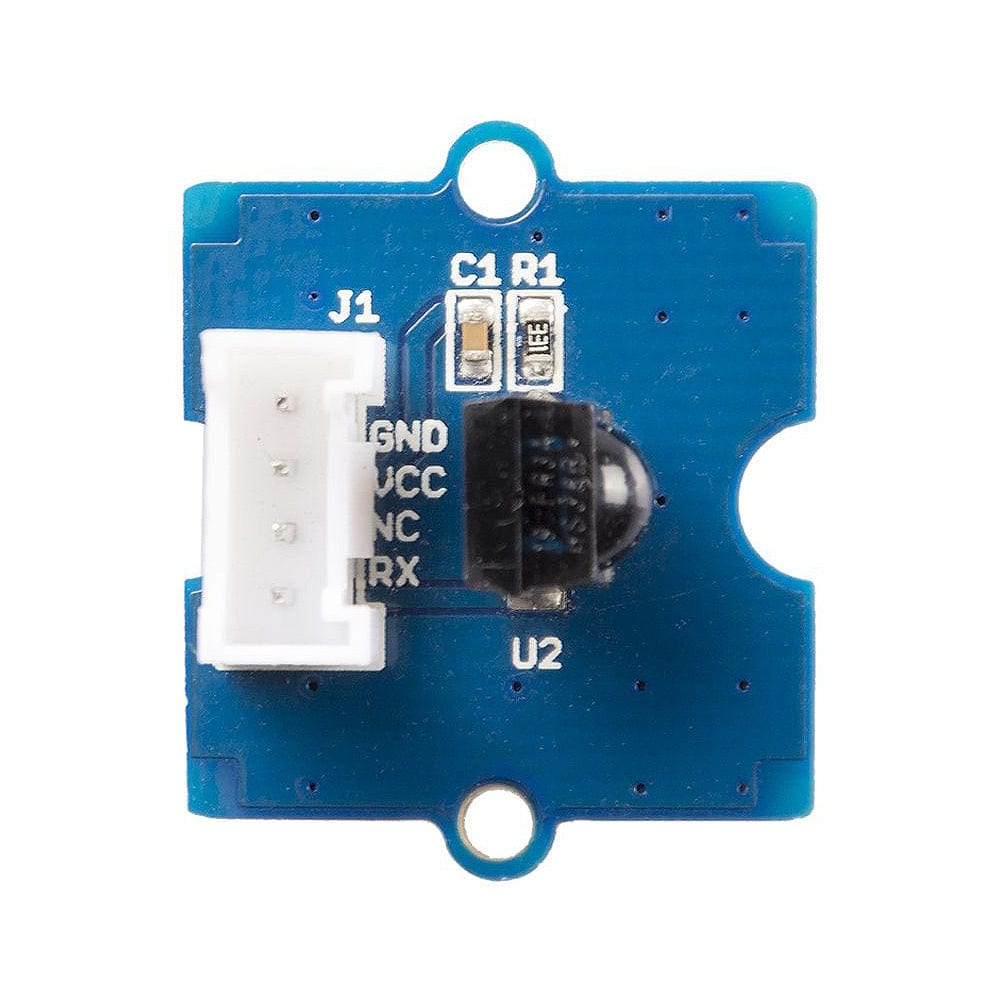

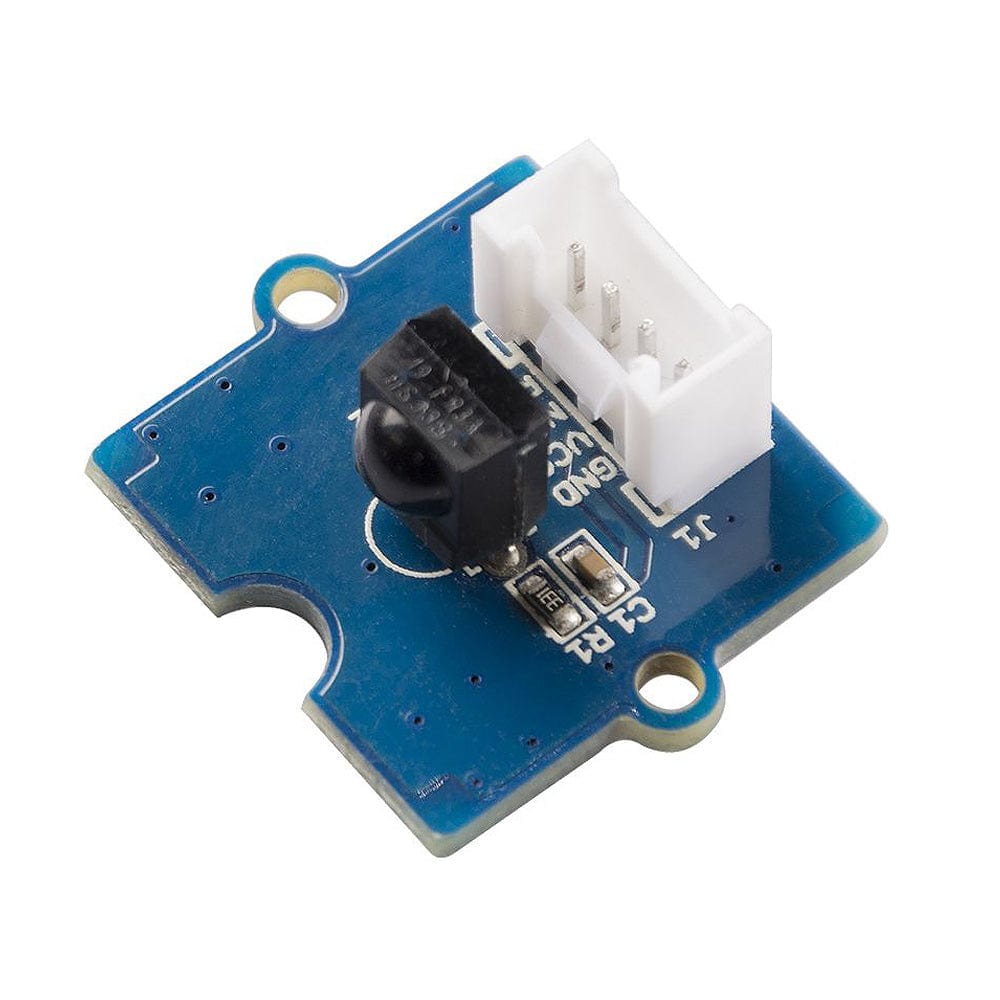

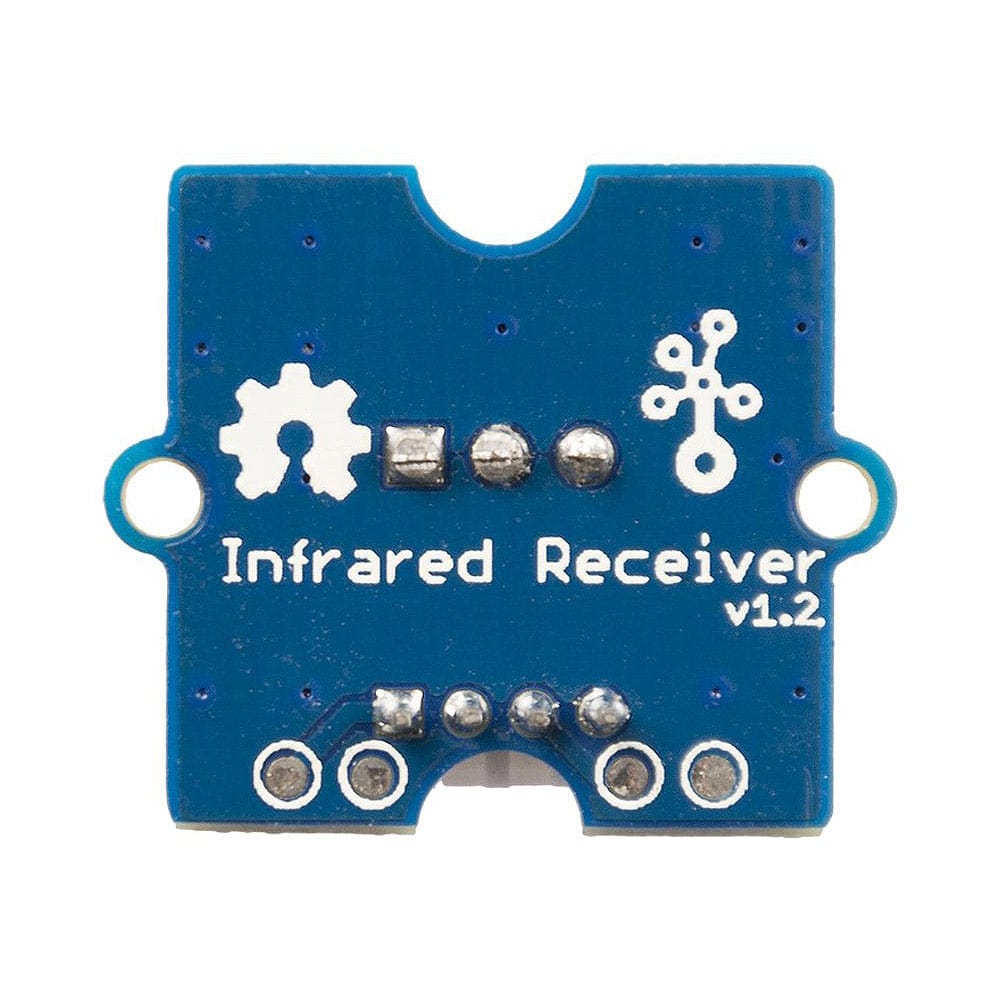

Grove - IR (Infrared) Receiver

SeeedSKU: MMP-0991
£3.80
incl. VAT
excl. VAT
Only 15 units left

Awesome Extras

Grove - Infrared Emitter - The Pi HutGrove - Infrared Emitter - The Pi Hut
SeeedGrove - Infrared Emitter
£3.80 incl. VAT excl. VAT
Grove Base Shield V2.0 for Arduino - The Pi HutGrove Base Shield V2.0 for Arduino - The Pi Hut
SeeedGrove - Base Shield V2.0 for Arduino
£4.50 incl. VAT excl. VAT
Notify me
Grove - Base HAT for Raspberry Pi - The Pi HutGrove - Base HAT for Raspberry Pi - The Pi Hut
SeeedGrove - Base HAT for Raspberry Pi
£9.70 incl. VAT excl. VAT

The Grove - IR (Infrared) Receiver is used to receive infrared signals and also used for remote control detection. The IR detector has a demodulator inside that looks for modulated IR at 38 kHz.

The Infrared Receiver can receive signals well within 10 meters. If more than 10 meters, the receiver may not receive consistent signals.

Use the two Grove IR modules together - this Infrared Receiver and the Infrared Emitter!

Features

  • The inside demodulator modulates IR at 38 kHz
  • The Infrared Receiver can receive signals well within 10 meters
  • Low supply current
  • Includes photodetector and preamplifier in one package
  • Improved immunity against ambient light
  • Product number: Seeed 101020016

Resources

Package Contents

  • 1x Grove IR Receiver
