Grove - Gas Sensor(MQ9)

SeeedSKU: MMP-0981
Price:
Sale price £7
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

How to choose a gas sensor ?

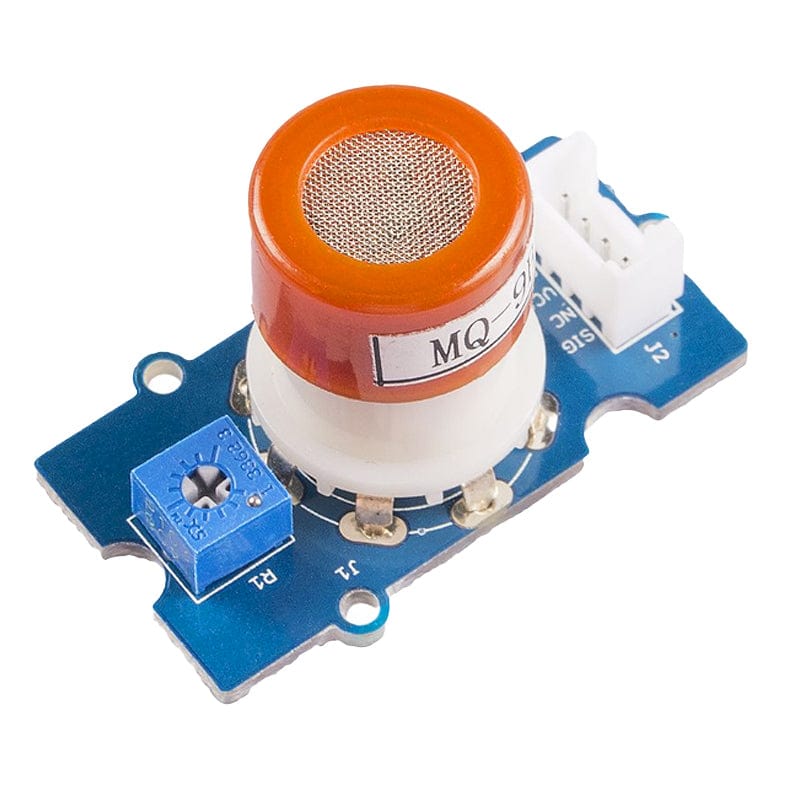

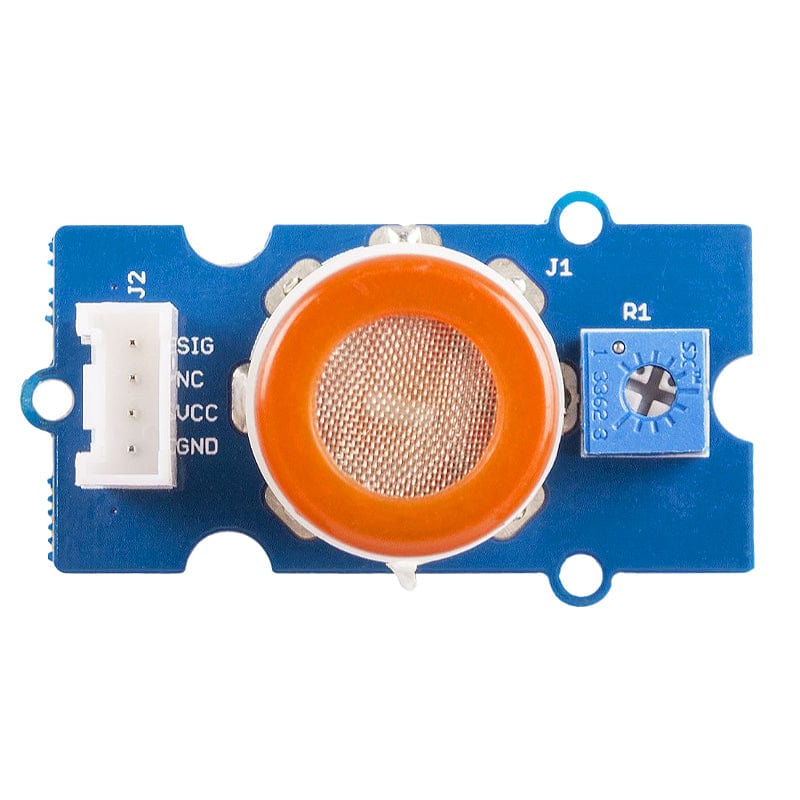

The Grove - Gas Sensor module is useful for gas leakage detecting(in home and industry). It can detect LPG, i-butane, methane, alcohol, Hydrogen, somke and so on. Measurements can be taken as soon as possible based on its fast response time. Also the sensitivity can be adjusted by the potentiometer.

Each Grove - Gas Sensor Kit consists of one gas sensor base and four detectors, including MQ2,MQ3, MQ5 and MQ9. Below is a contrast table of them. You can switch the detector on the base according to specific target gases.

Sysmbol MQ-2 MQ-3 MQ-5 MQ-9
Detect Gas Combustible Gas?Smoke Alcohol Vapor LPG, Natural Gas, Town Gas Carbon Monoxide, Coal Gas, Liquefied Gas
Detect Concentration 300-10000ppm 0.04-4mg/L Alcohol 300-10000ppm 10-1000ppmCO;100-10000PPm Gas

Features

  • High sensitivity to Combustible gas in wide range
  • Stable performance, long life, low cost
  • Fast response
  • Wide detection range
  • Simple drive circuit

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

Note

Hot-swapping the grove may lead to IC burnout, please turn off the power of main board before swapping grove.

Documents

please visit SEEED support pages wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

More information about gas sensor, please refer to this manual.
