Grove D7S Vibration Sensor
Price:
Sale price
£38.50
Stock:
Coming Soon
Coming Soon
Awesome Extras

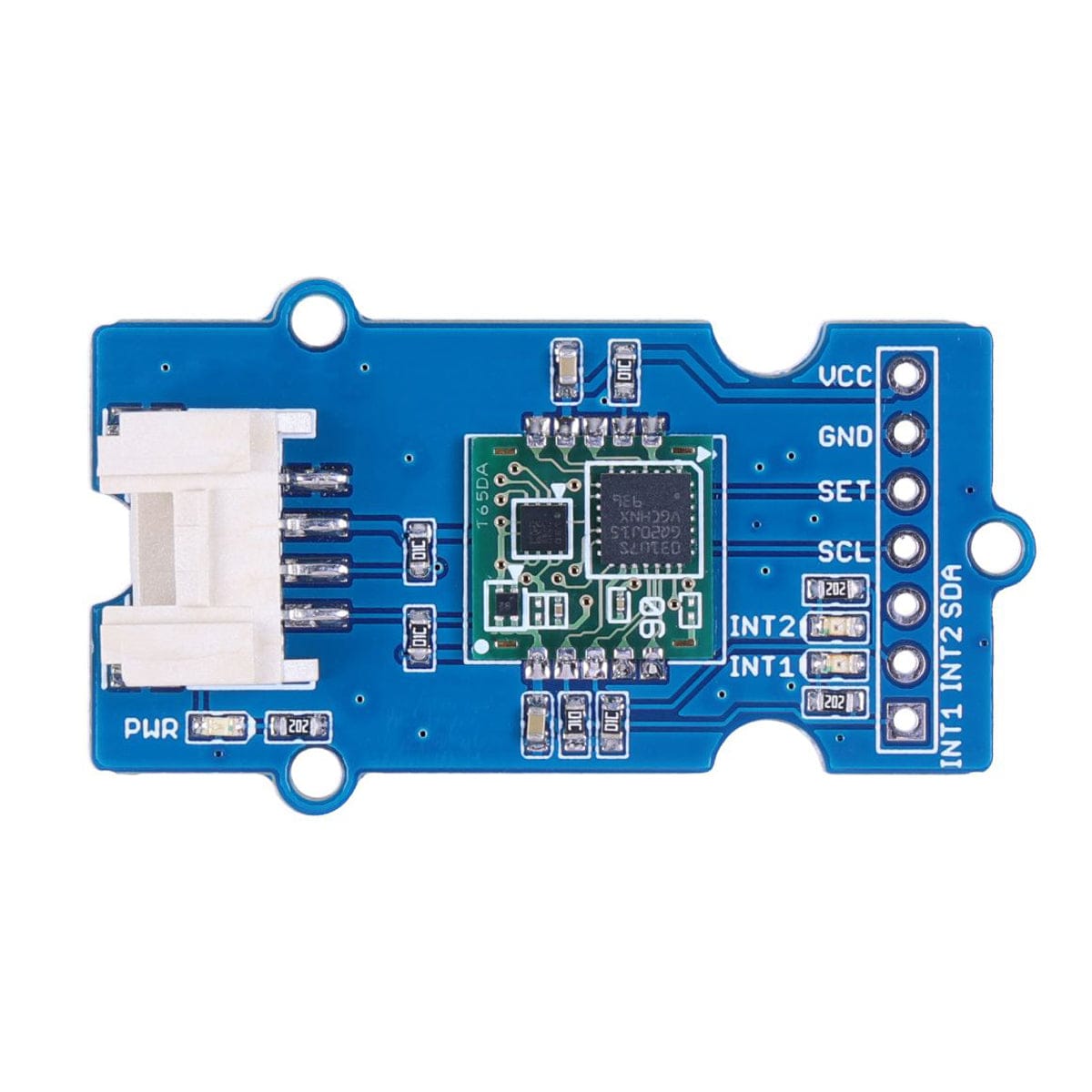

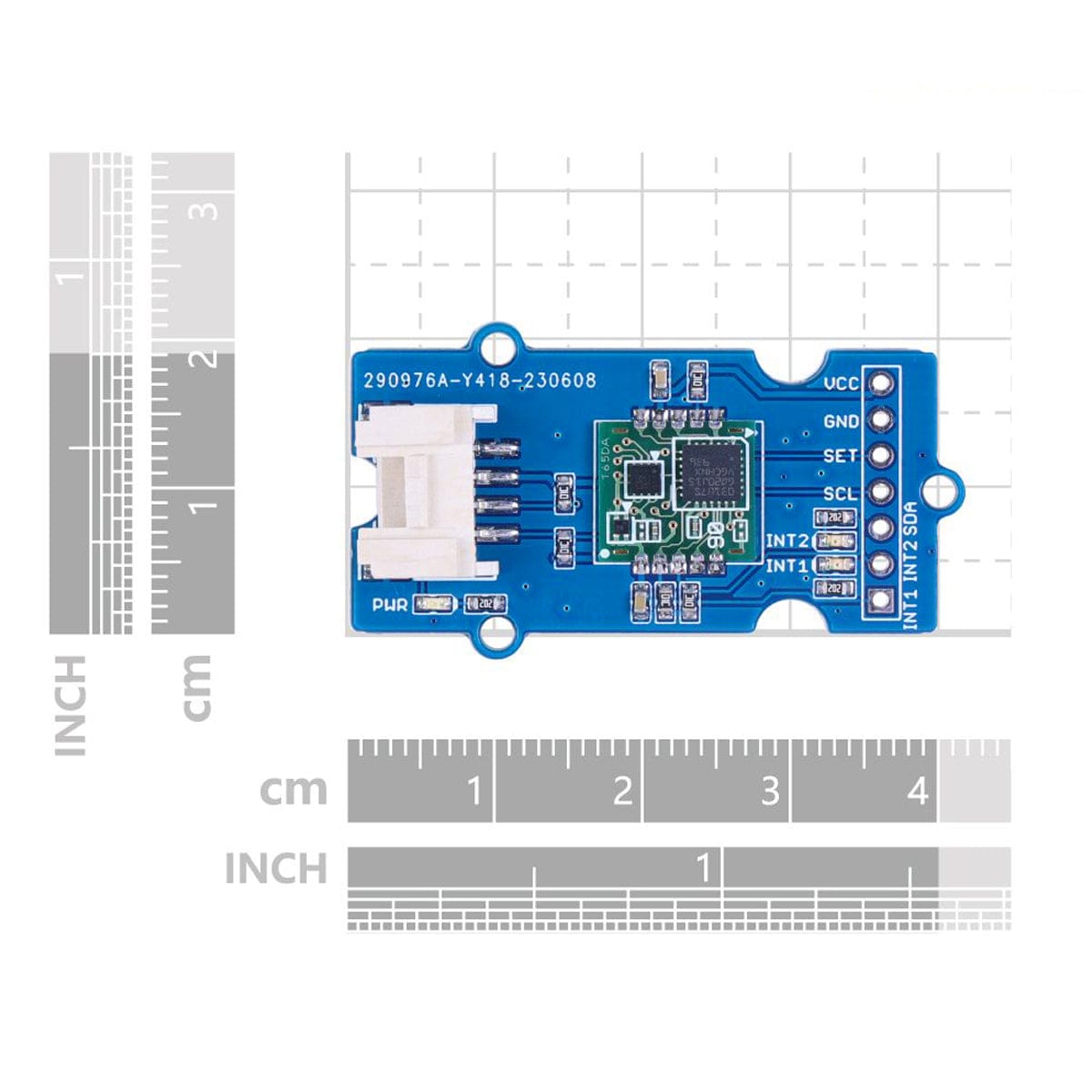

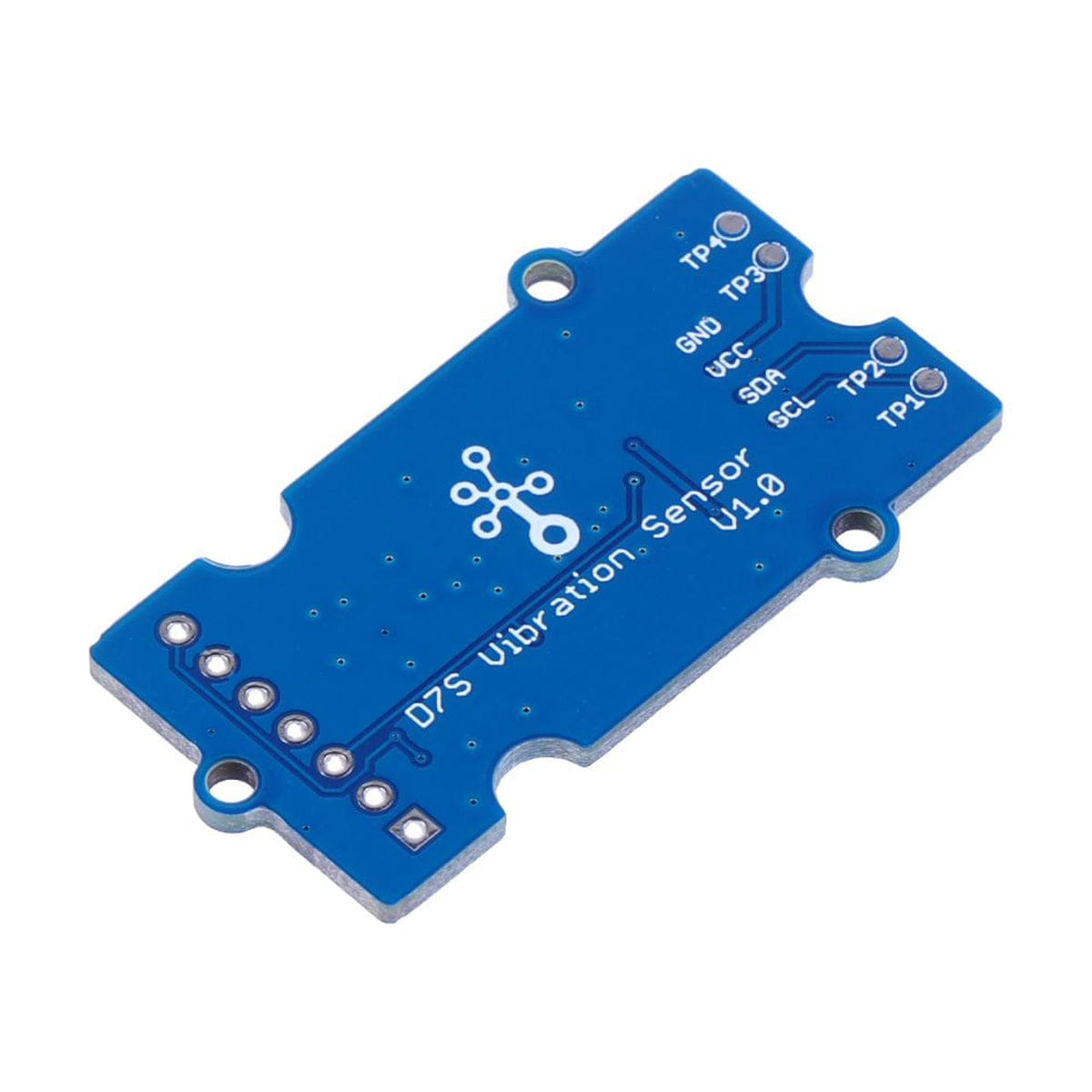

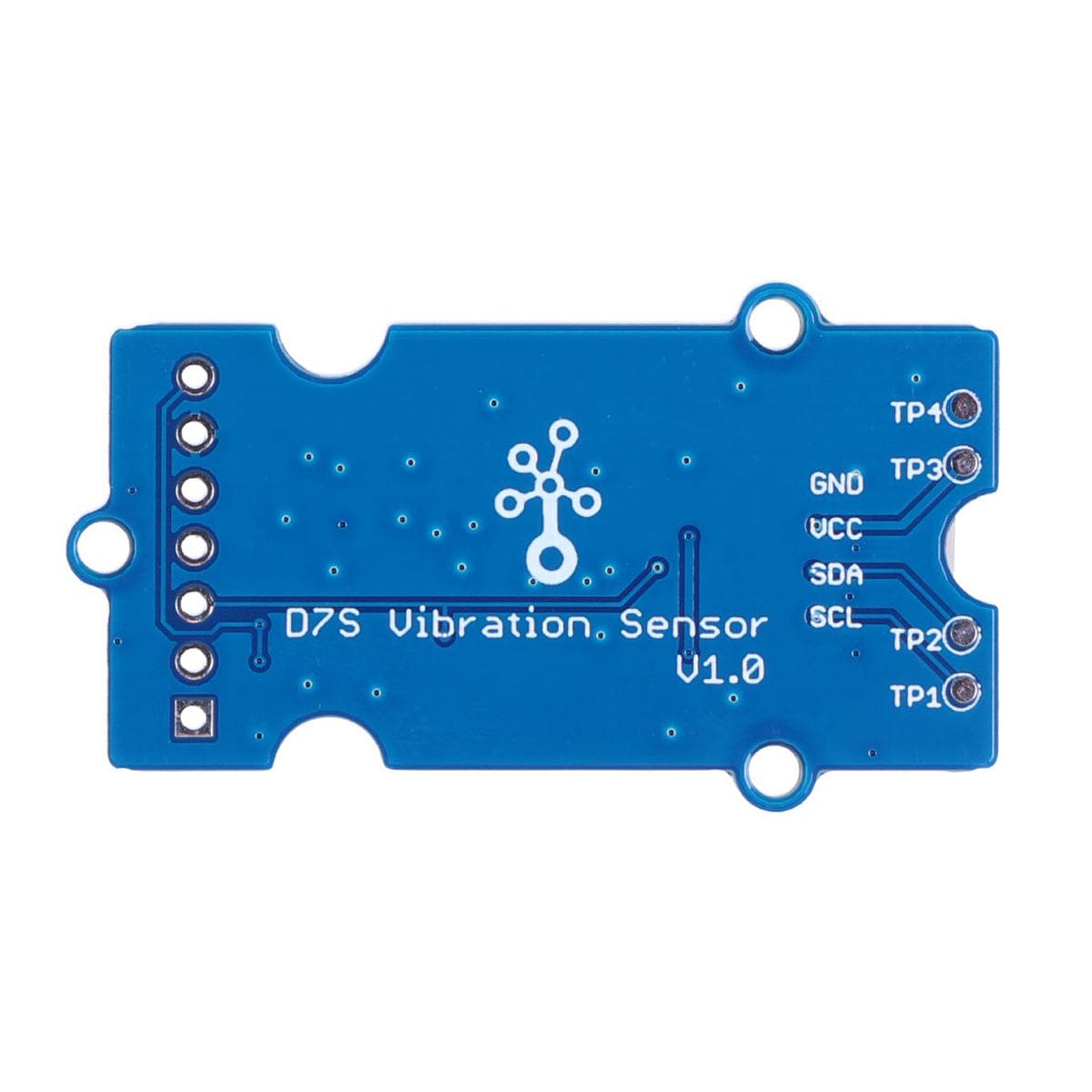

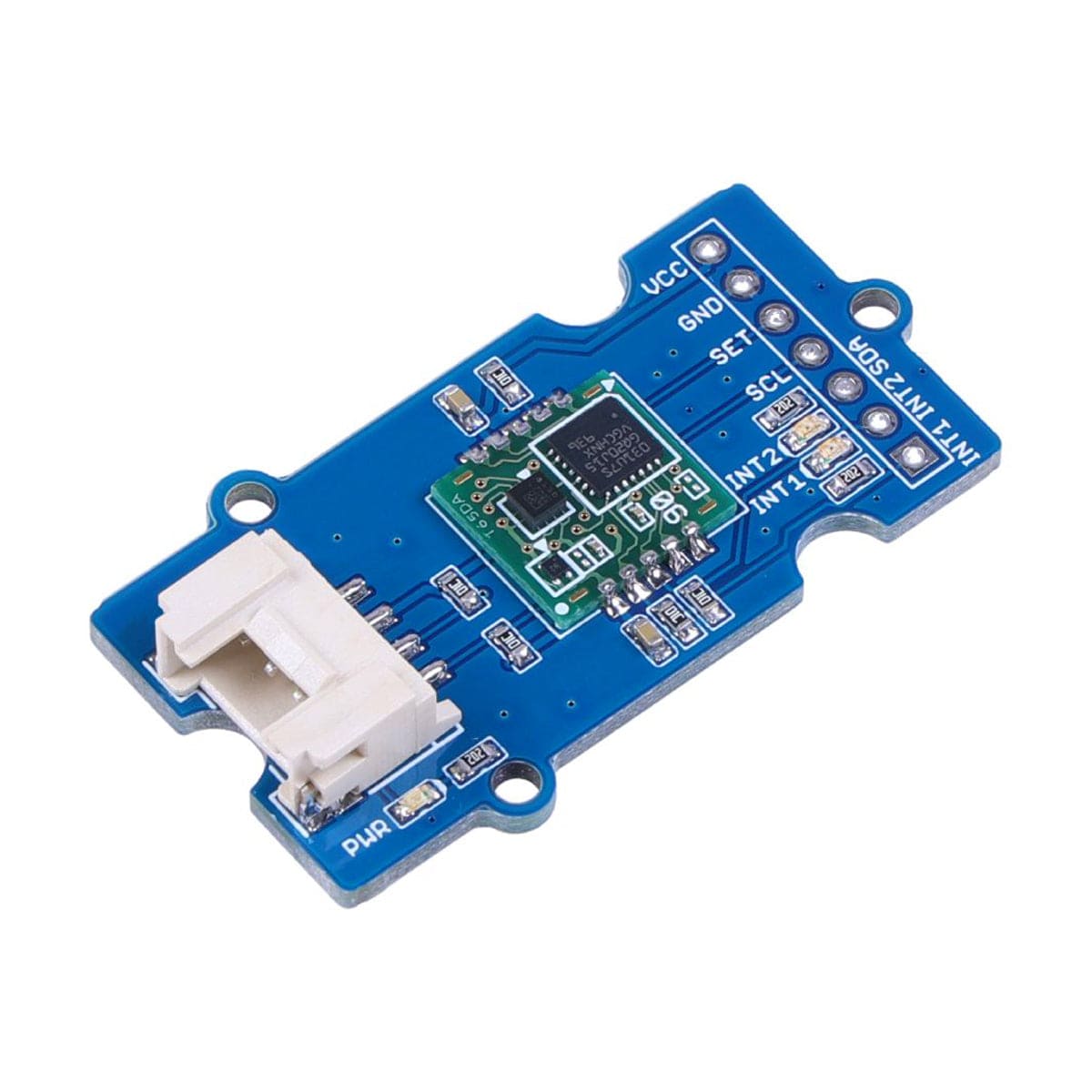

This D7S Vibration Sensor is used for real-time monitoring of seismic activity. It uses a precise accelerometer and earthquake detection algorithms to identify different types of vibrations and assess their severity, which is very useful for earthquake monitoring and safety measures.
This sensor is part of the Grove system and its design lets you easily connect it to Arduino boards and other compatible development platforms, expanding the variety of projects you can get started on!
Features
- Real-Time Earthquake Detection: It uses advanced algorithms to detect and classify seismic events in real time. It can differentiate between different magnitudes of earthquakes and provide corresponding alert signals.
- Simple Connection and Operation: Uses the standard Grove connector (HY2.0 - 4Pin) for easy integration with other Grove modules. No complex wiring or soldering is required, making it accessible to users of all skill levels.
- Low Power Consumption: The sensor is designed to operate with low power consumption, making it suitable for long-term monitoring applications without draining the power source quickly.
- High-Precision Accelerometer: Equipped with a three-axis accelerometer, the sensor provides accurate measurements of vibrations and seismic activity.
- Product Number: Seeed 101021096
Specifications
| Chip | D7S |
| Measurement Range | ±6g |
| Communication interface | I2C |
| Grove Connector | 4-pin HY2.0 |
| Operating Voltage | 3.3/5V |
Resources
Pinout
Package Contents
- 1x D7S Vibration Sensor
- 1x Grove Cable
