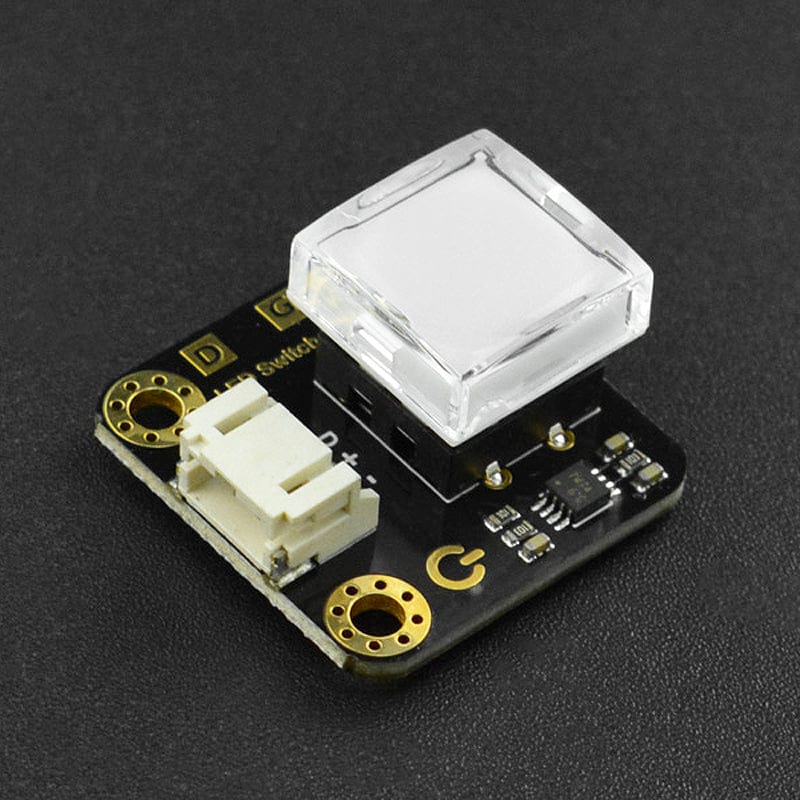

This is a simple LED-illuminated self-lock switch button. It’s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed down, which gives you visual feedback. These little buttons can be used with micro: bit to realize various fun interactive projects, such as switch, backlight keyboard, music player panel, and recording control panel.
Note: The module comes with self-lock function. When the button is pressed down, the module outputs high, and the LED lights up. When being pressed again, the module outputs low and the LED turns off.
- Internal LED turns On when the button is pressed down
Connection Diagram - Micro:Bit with IO Extender
- Operating Voltage: +3.3-5V (3.3V is recommended)
- Output: Digital
- Connector: PH2.0-3P

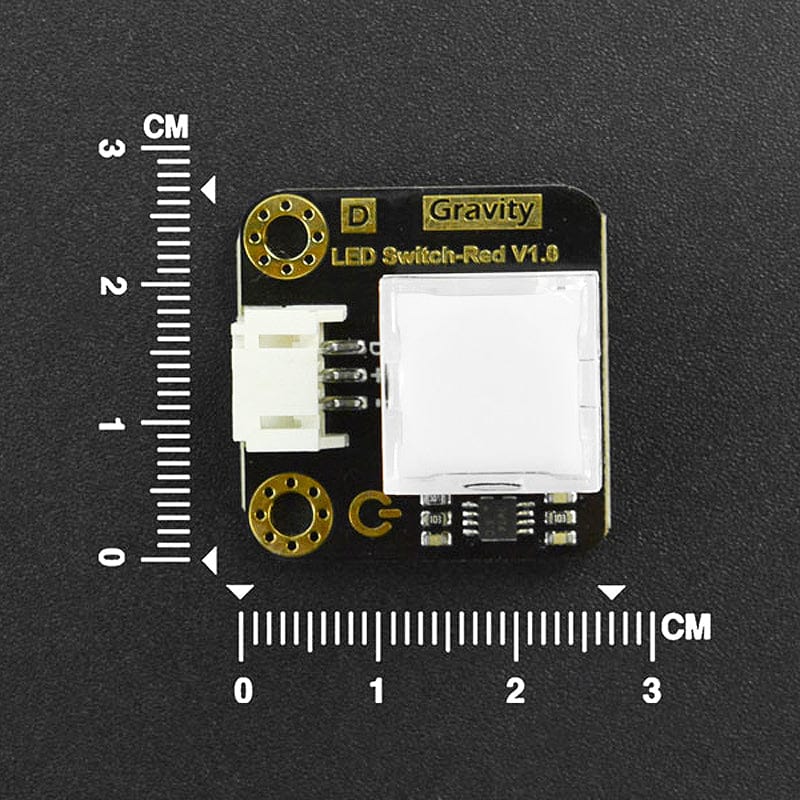

- Dimension: 27 x 26.5mm
- Colors Available: Red, Yellow, Green, Blue, White

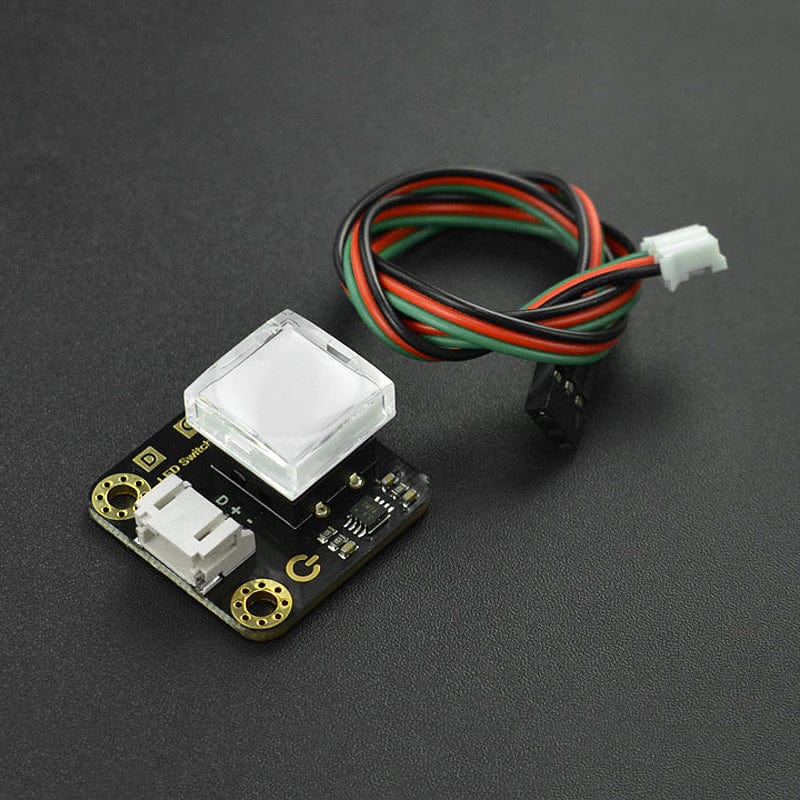

- 1x Gravity: LED Switch
- 1x Digital Sensor Connector
