These block servos add a splash of colour and fun to your projects, whilst also having building brick compatible mounting points! This model is a 180-degree 'block' servo, great for projects requiring restricted movement.

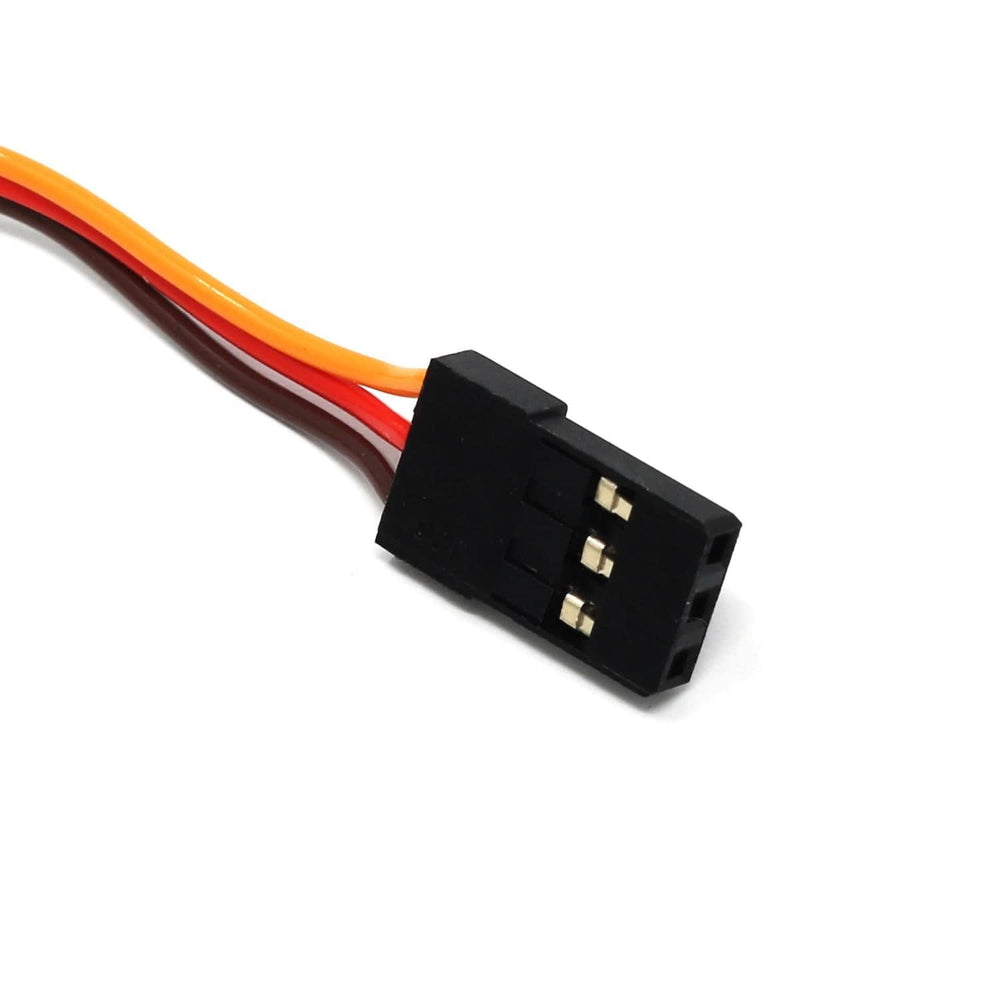

These block servos use a traditional 3-pin connection found on almost all servos/servo controllers:
- Brown = GND
- Red = VCC
- Yellow = Signal
They're a block/rectangular shape but have internals like traditional servos!
Check out the full range of GeekServo motors and servos here!
Building Brick Compatible!

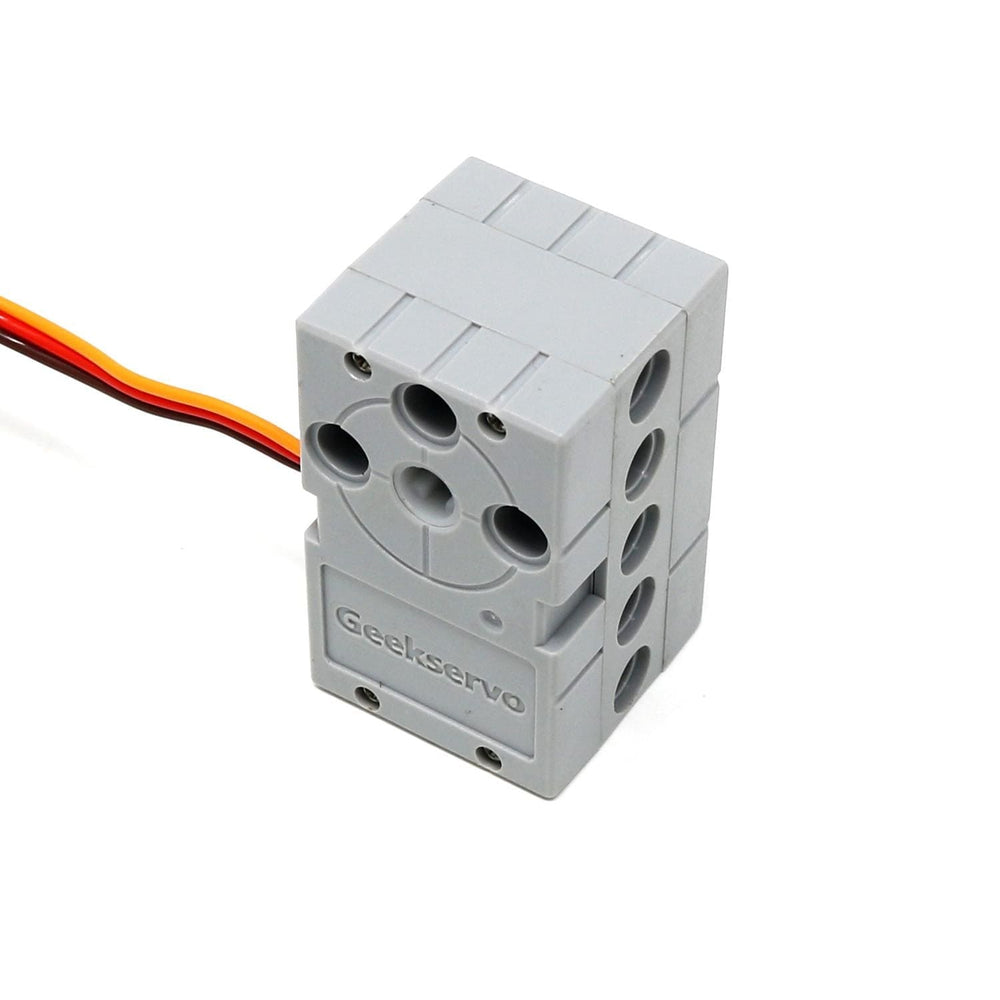

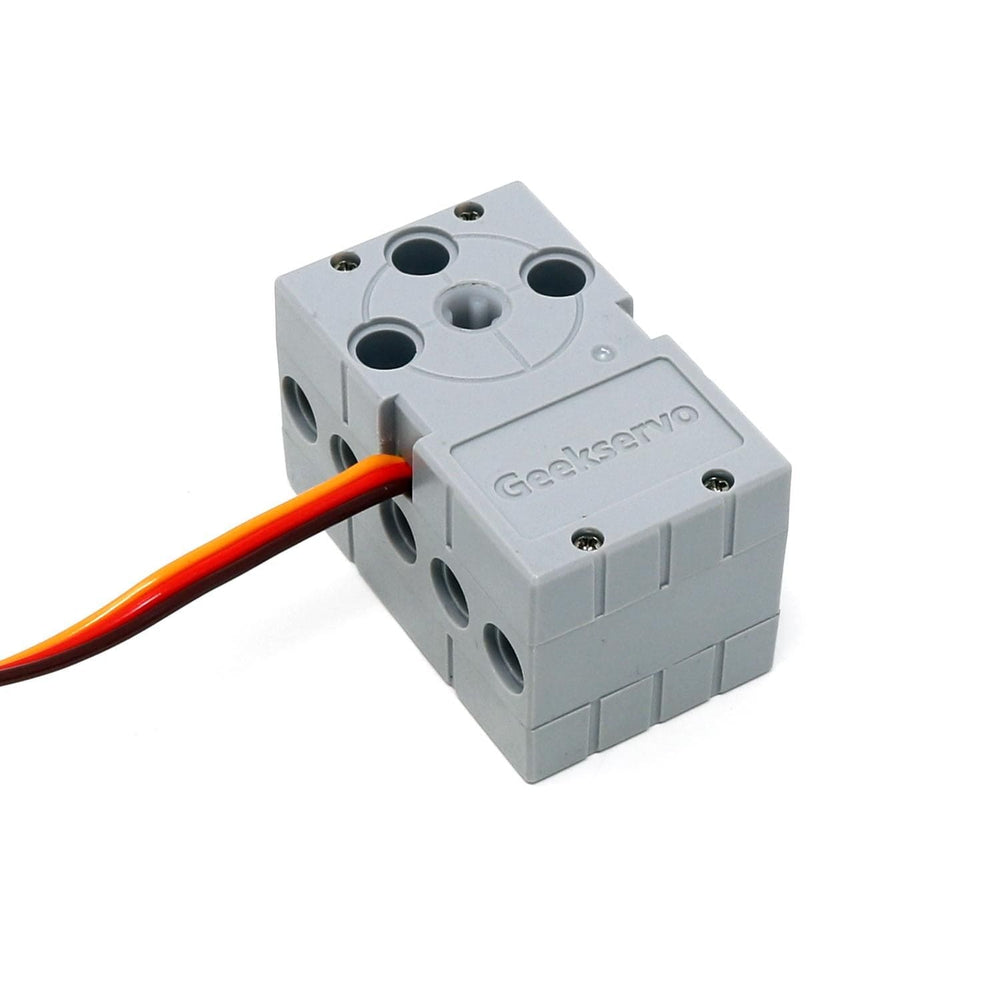

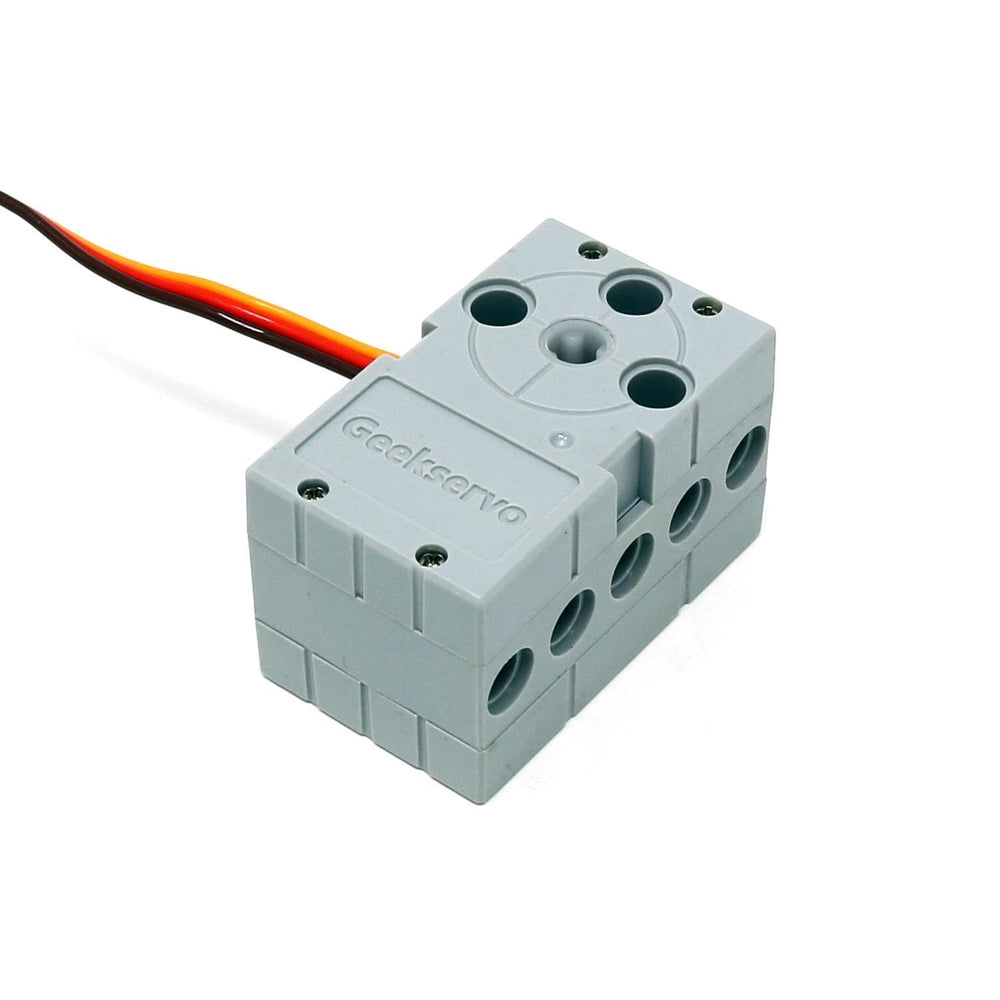

The servos have building brick axle mounting holes in various positions for mounting to your project however you like.
These servos don't use standard servo horns, instead, they're rocking a building brick axle fitment meaning you can fit gears, wheels or other compatible axle mount parts!
Specification
- Rotation: 180 Degree
- Start Voltage: 2.5V
- Working Voltage: 3.3-6.0V
- Rated Voltage: 4.8V
- Rated Current: 100mA
- Stall Current: 550mA
- Stall Torque (max): 500g.cm
