Flexible RGB Full-Colour LED Matrix Panel - 2.5mm Pitch, 96x48 Pixels

WaveshareSKU: WAV-23709
Price:
Sale price £29.70
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

ArduinoArduino Mega 2560 Rev3
Sale price £43.70 incl. VAT excl. VAT
ArduinoArduino Giga R1 WiFi
Sale price £75 incl. VAT excl. VAT

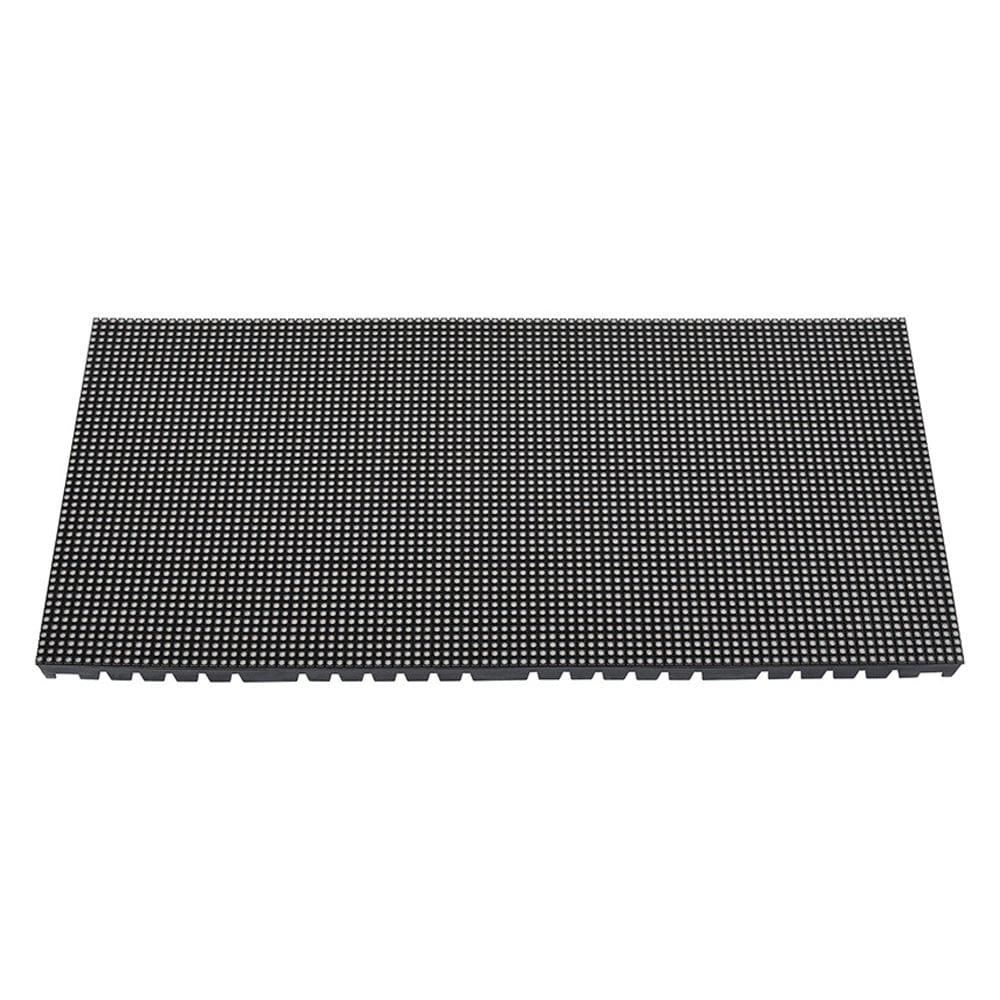

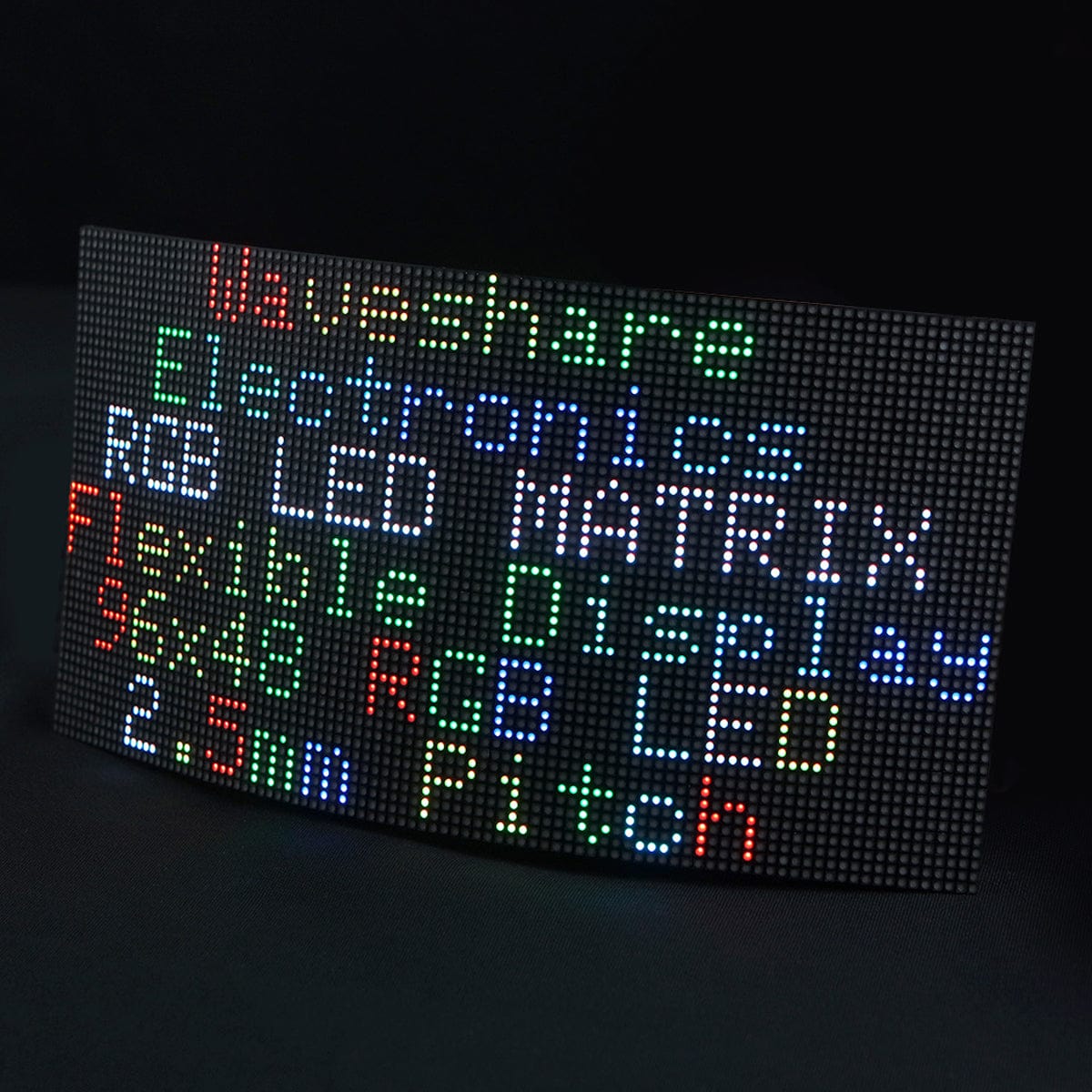

This RGB LED Matrix panel is made from a lighter and thinner material than our standard matrix units, making it flexible and allowing you to make some cool curved displays!

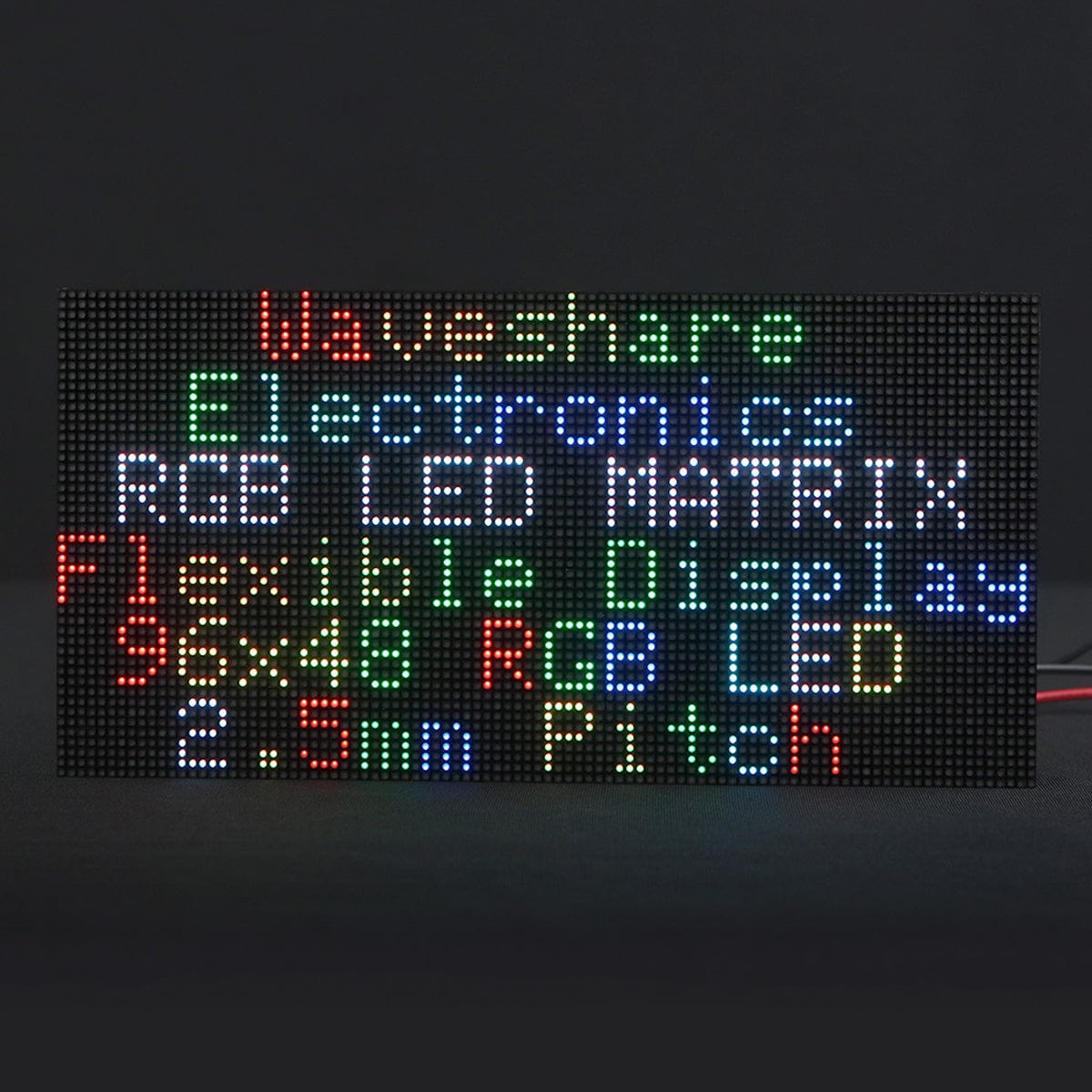

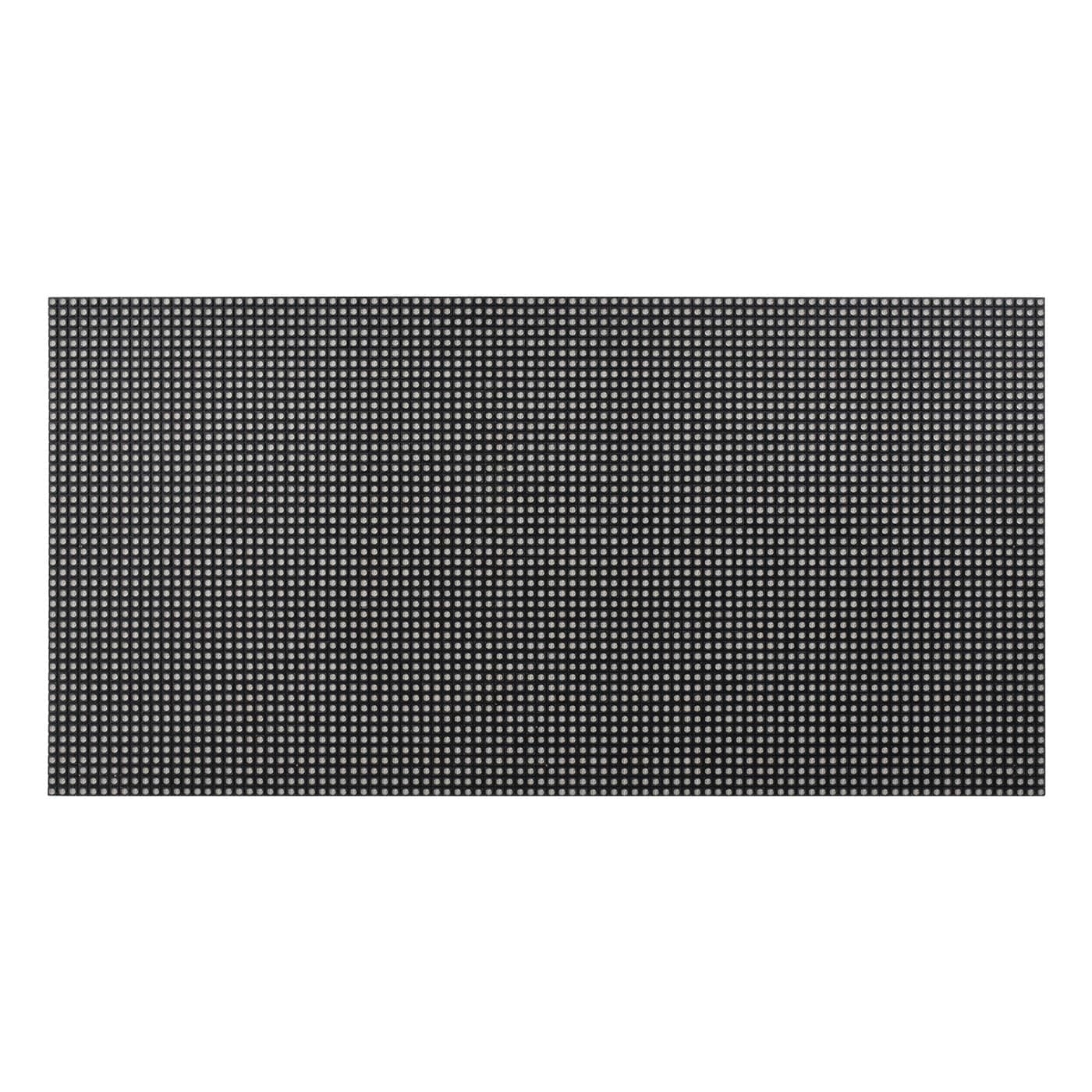

This LED matrix panel contains 4608 individual RGB LEDs which you can control with your favourite compatible microcontroller. The flexible matrix has 96x48 LEDs with a 2.5mm pitch, suitable for text, animations and more.

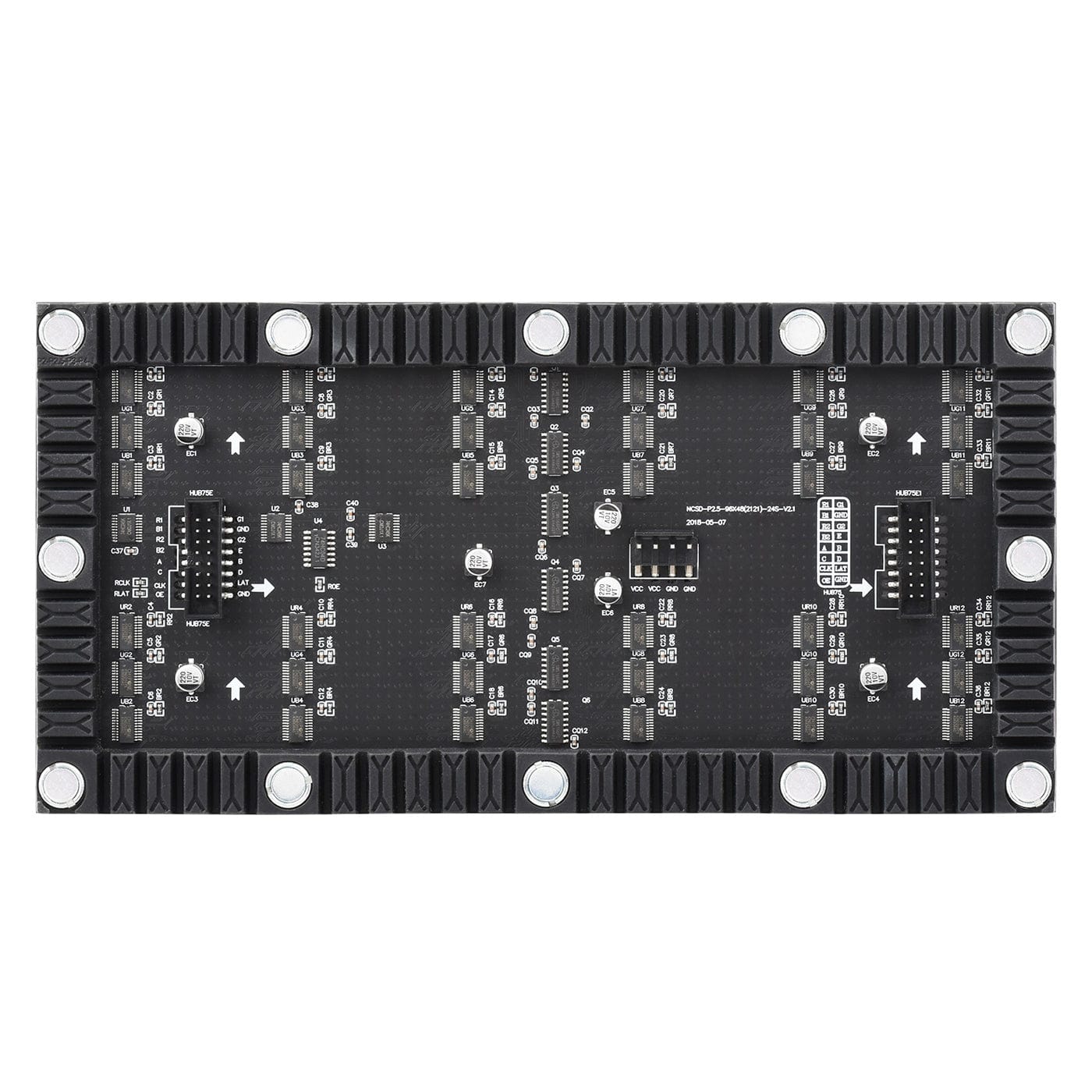

The 240x120mm panel includes two HUB75 headers for data, one for input and another for output, which allows you to chain multiple panels together for even larger displays - just keep an eye on current usage and ensure you have an adequate power supply. Power is fed to the unit via the central VCC/GND header.

Important Notes

  • Your favourite HUB75 controller board may not have sufficient memory or code examples to handle this slightly uncommon 4608 LED/96x48 format. Check the specs of your controller first, and see the Wiki for more on device compatibility and working examples
  • Despite the panel being flexible, do not bend it excessively or repeatedly or it will be permanently damaged
  • A 5V 4A power supply is recommended

Need a different type/size?

We offer these Waveshare LED matrix units in different sizes with different LED pitch layouts, allowing you to find the right option for your specific project - check out the Waveshare range here or simply view our entire LED matrix section!

Features

  • Flexible!
  • 4608 individual RGB LEDs, full-colour display
  • Adjustable brightness
  • 96x48 pixels, 2.5mm pitch - display text, colourful images or animations
  • 240x120mm dimensions - suitable for DIY desktop display or wall mount display
  • Two HUB75 headers, one for controller data input, one for output (chain support)
  • Demo code for use with Raspberry Pi, Arduino and more
  • 5V 4A power supply recommended

Specification

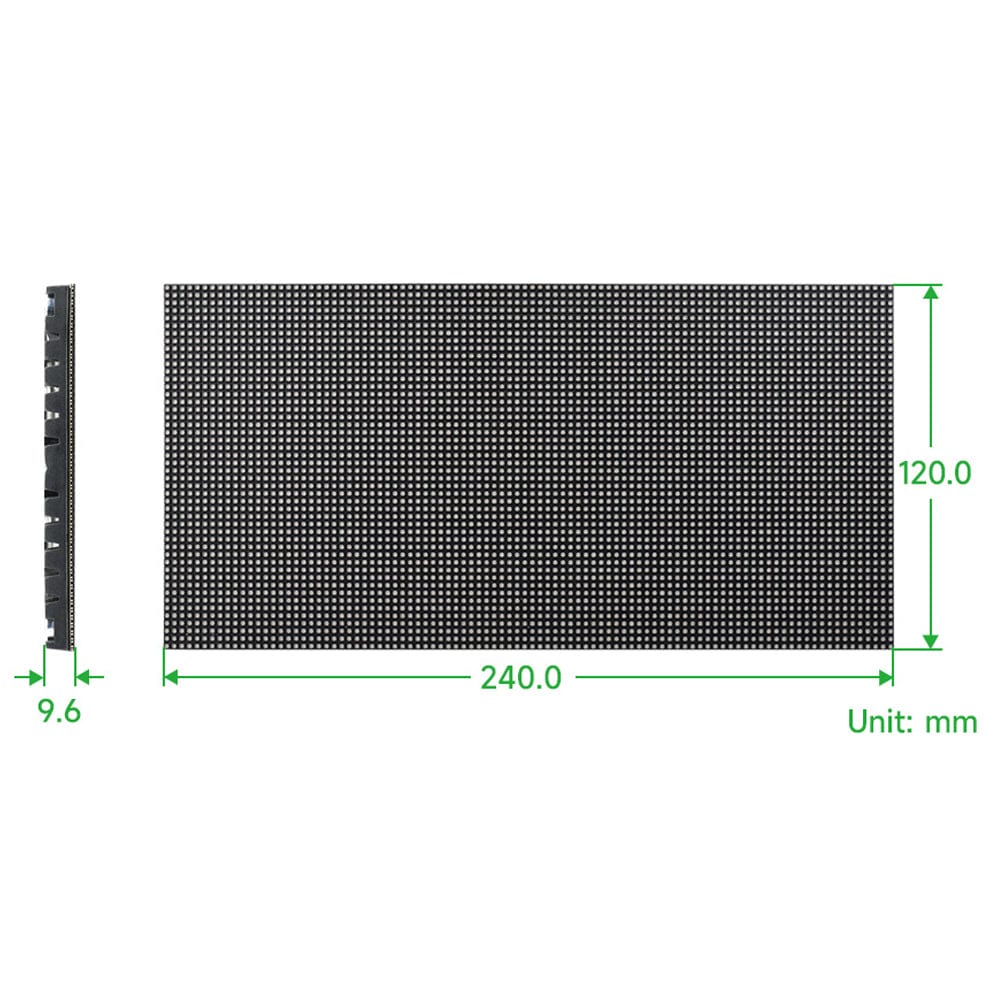

Dimensions 240mm x 120mm x 9.6mm
Pixels 96x48 = 4608 LEDs
Pitch 2.5mm
Pixel Form 1R1G1B
Viewing Angle ≥140°
Control Type synchronization
Driving 1/24 scan
Header HUB75
Power Supply 5V / 4A(VH4 header input)
Power ≤20W

Resources

Pinout

Pin Description Pin Description
VCC 5V power input GND Ground
R1 R higher bit data R2 R lower bit data
G1 G higher bit data G2 G lower bit data
B1 B higher bit data B2 B lower bit data
A A line selection B B line selection
C C line selection D D line selection
E E line selection CLK clock input
LAT/STB latch pin OE output enable

Package contents

  • 1x RGB-Matrix-P2.5-96x48-F LED matrix and accessories
  • 1x Power supply terminal adapter
  • 1x 16P wire ~30cm
