Fixture Clip - Short

This PCB Fixture Clamp securely holds circuit boards in place during testing or programming, with a simple spring-loaded lever for quickly inserting and removing boards and mounting screws for attaching it to your test setup.

Doesn't this fixture clamp look like a character in a Pixar movie?  If you just drew two little eyes on it then you could just imagine it hopping around on nifty, adorable little adventures that are heart warming and...sorry, we got carried away.

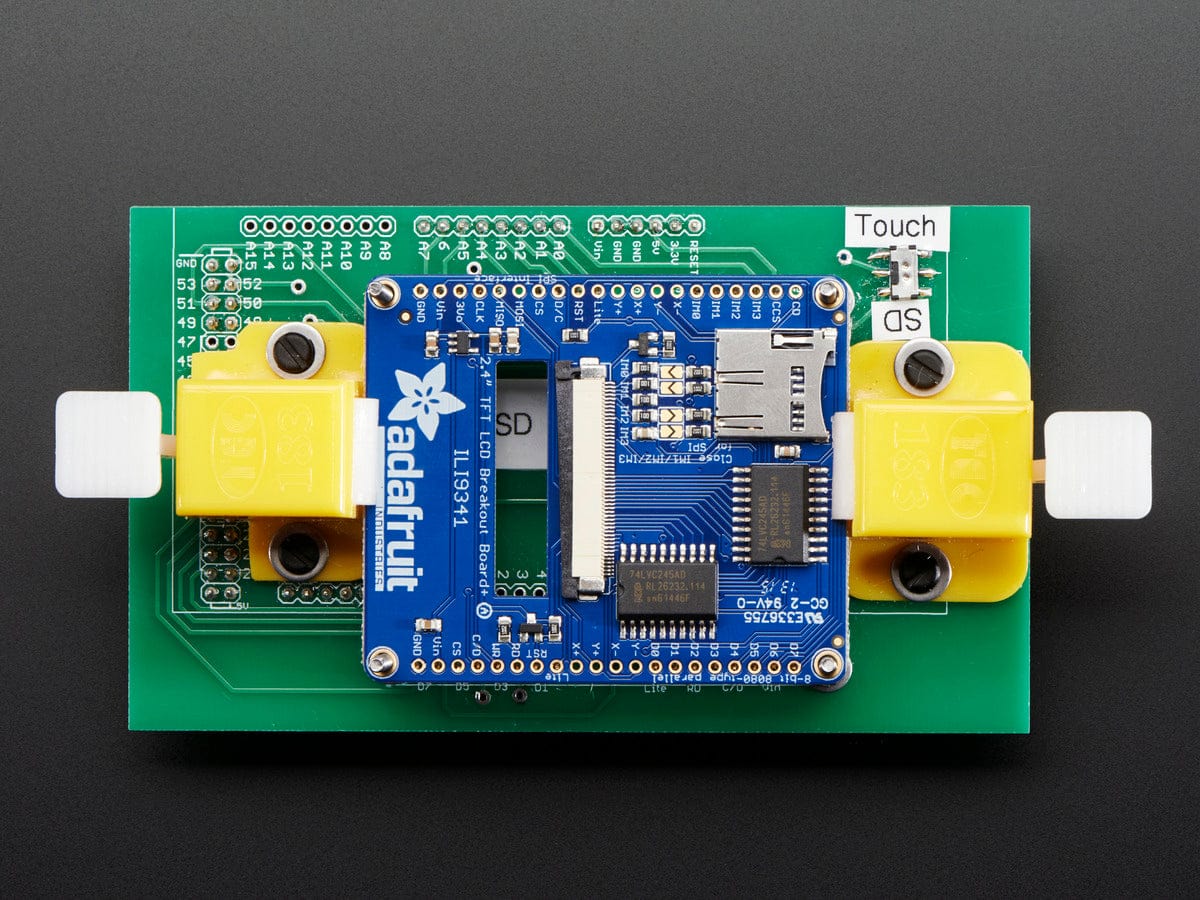

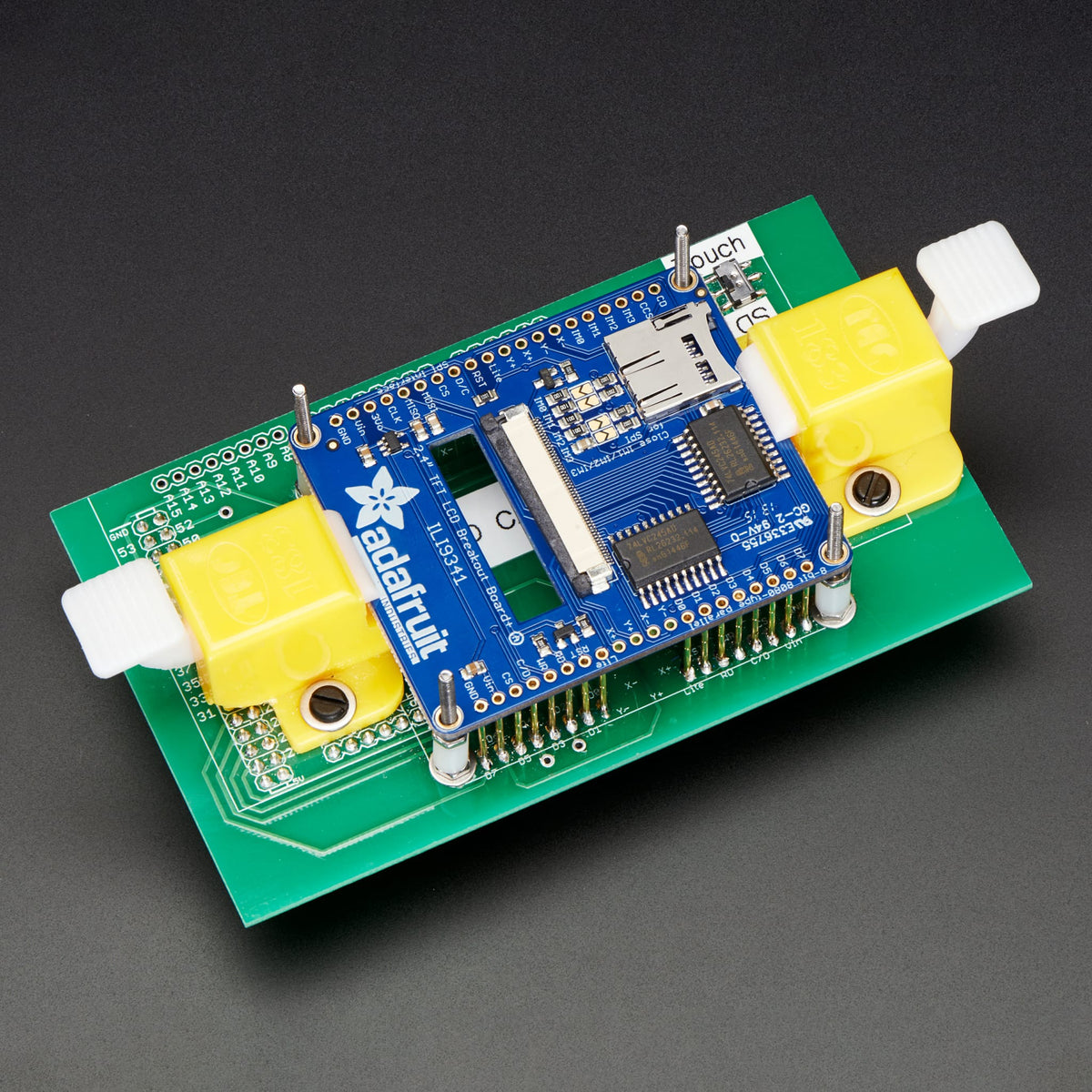

This Adafruit fixture clamp is a great way to hold a printed circuit board in place while you're testing or programming.

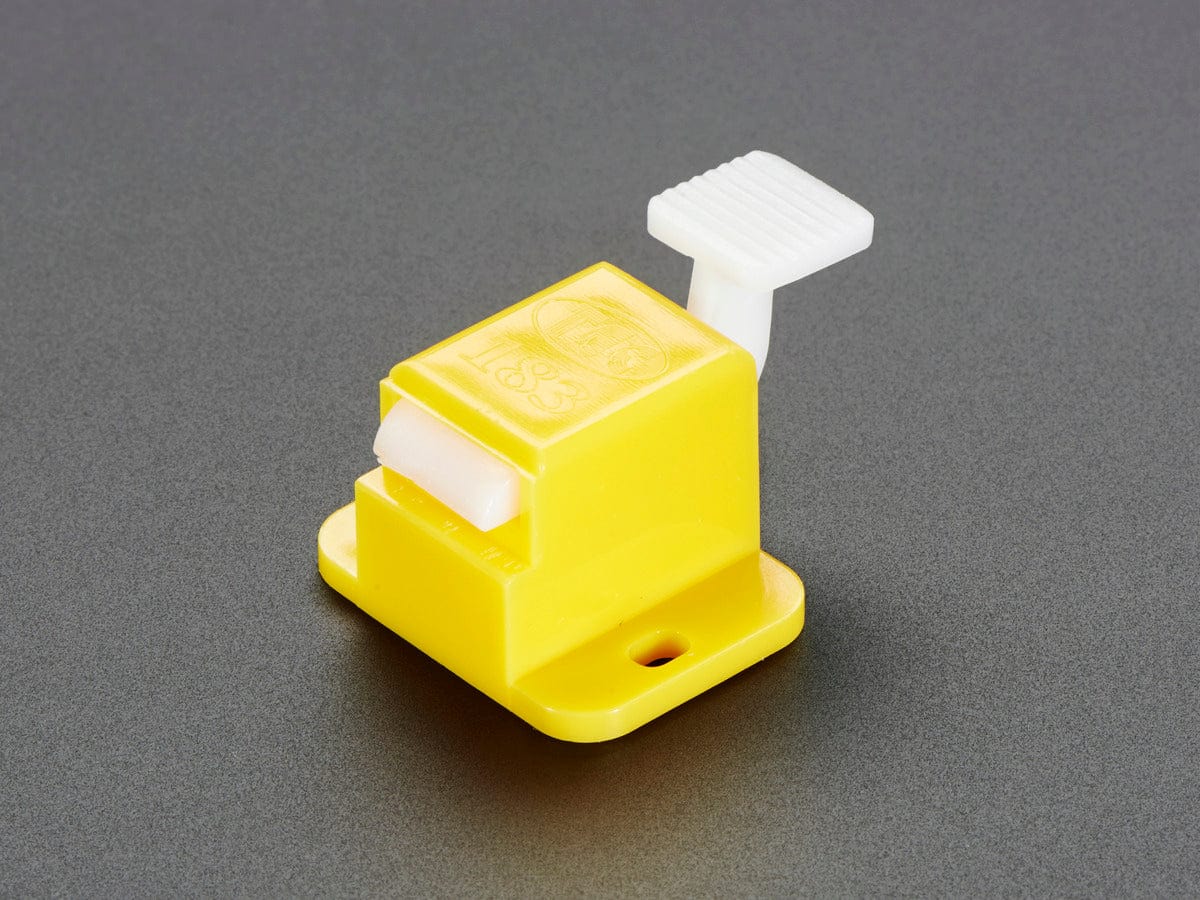

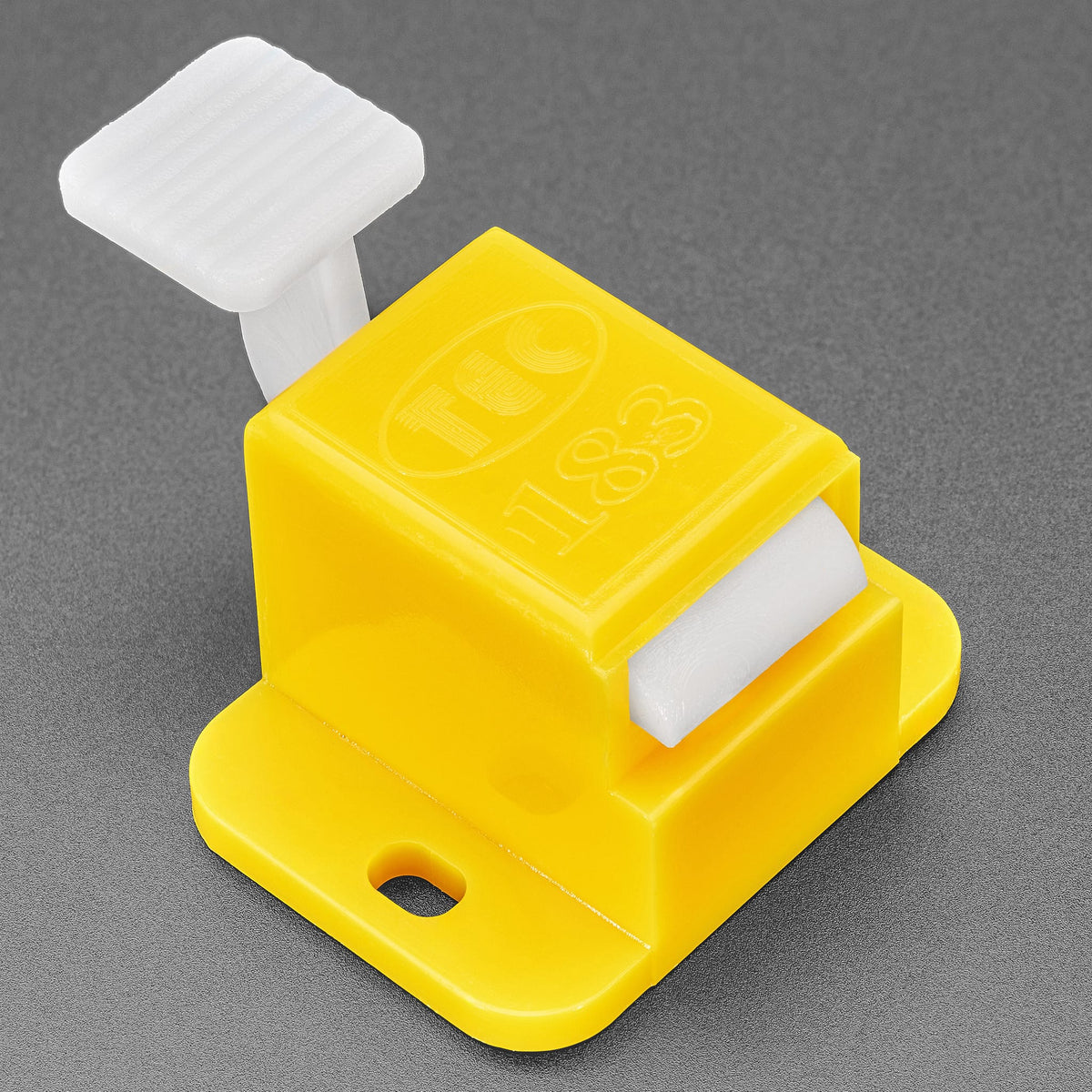

It comes with two mounting screws so you can attach the clamp to your tester.  Just press down on the white lever to add or remove a PCB then release to keep the board in nice and snug.

There is a rough placement object in Adafruits EagleCAD library, its called FIXCLIP, your mileage may vary!

Features

• Holds printed circuit boards securely during testing and programming
• Press-down white lever for easy PCB insertion and removal
• Includes two mounting screws for attachment to testing equipment
• Keeps boards firmly in place during use
• Compact design suitable for workbench and test station setups

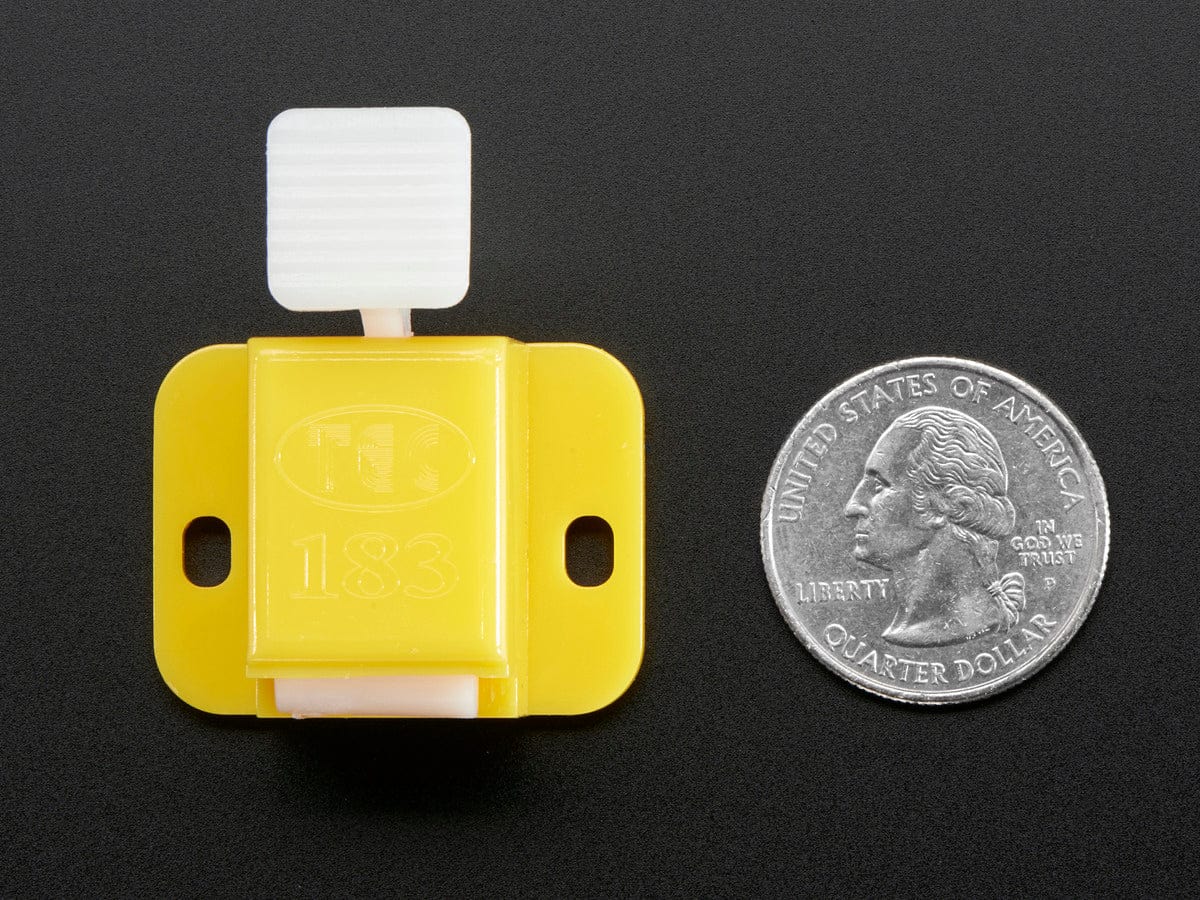

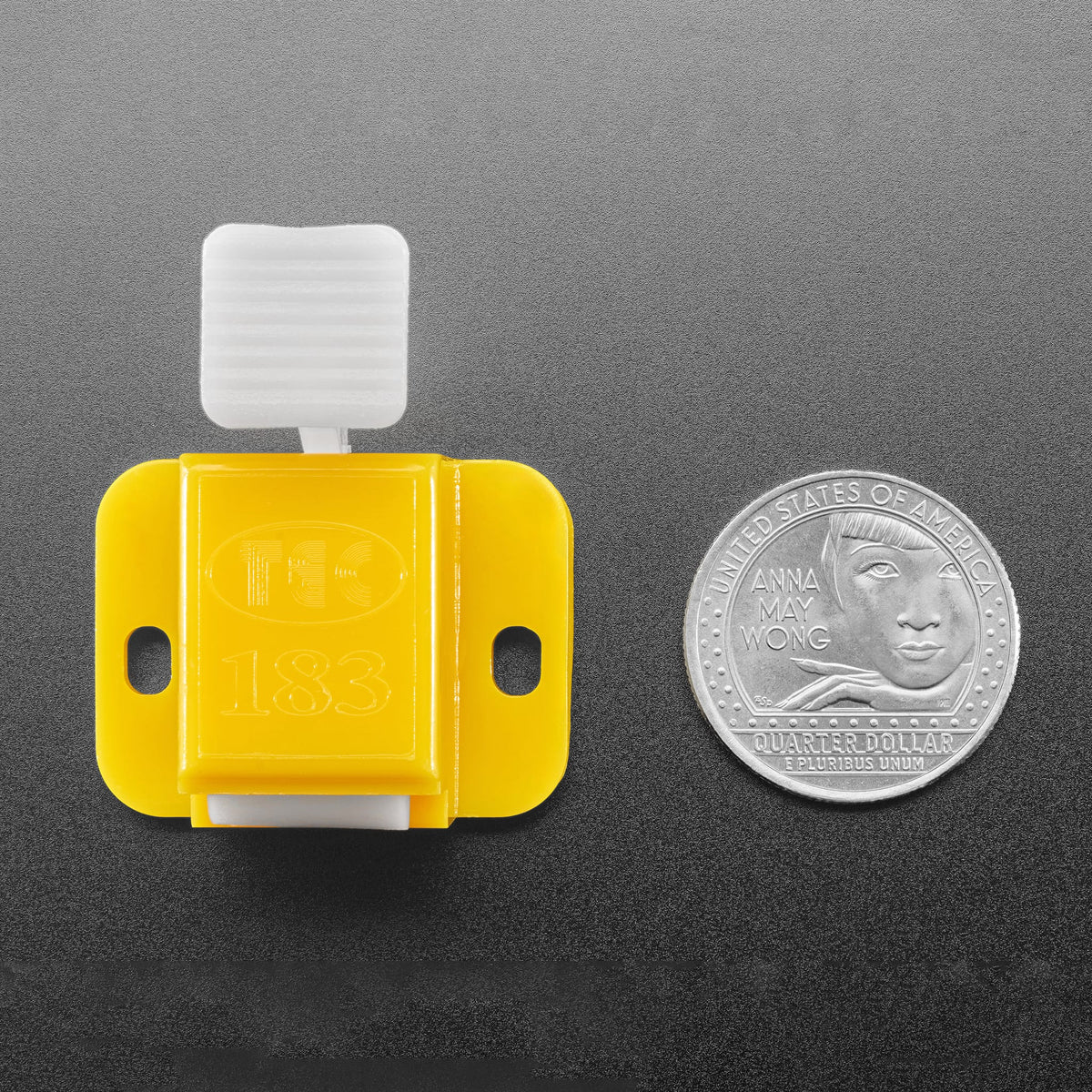

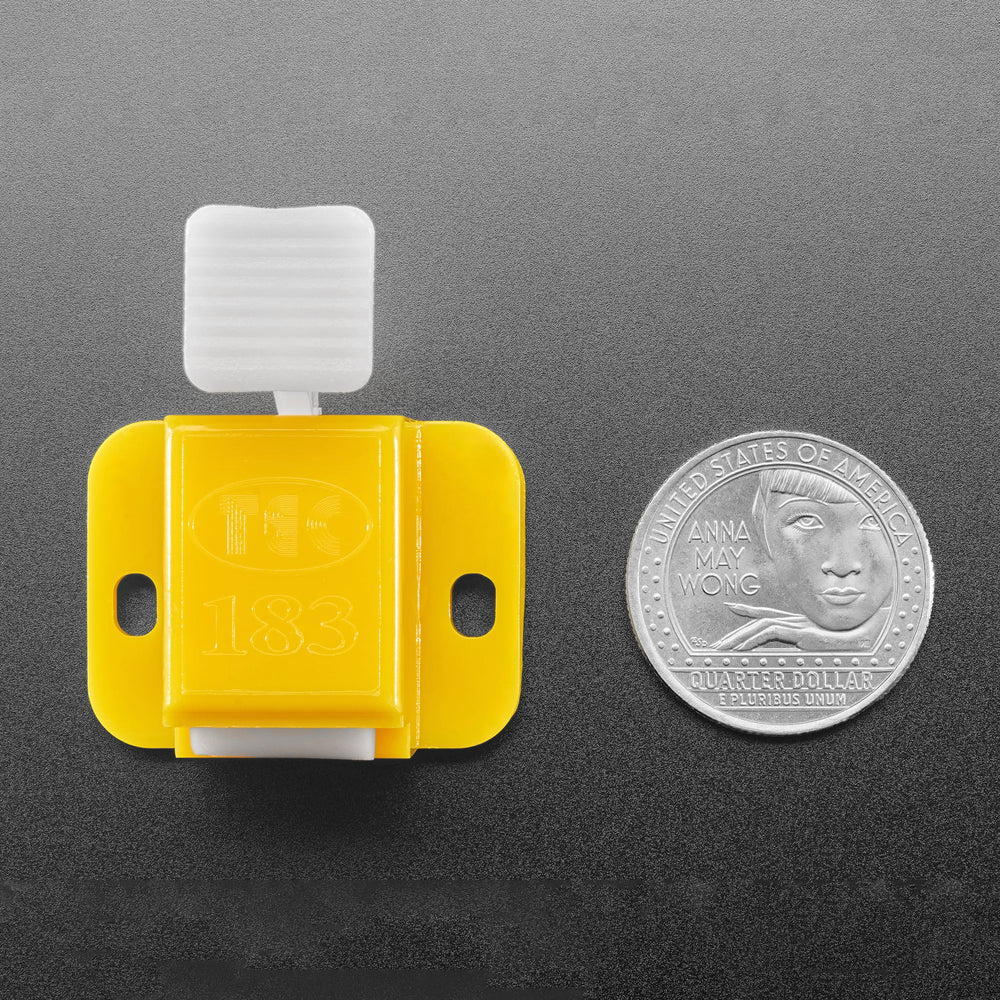

Specifications

• Base Plate: 34mm x 26mm

• Top: 26mm deep x 22mm tall x 18mm wide

• Lever is 21mm

• Mounting holes are 25mm apart

• Weight: 11g

Diagram

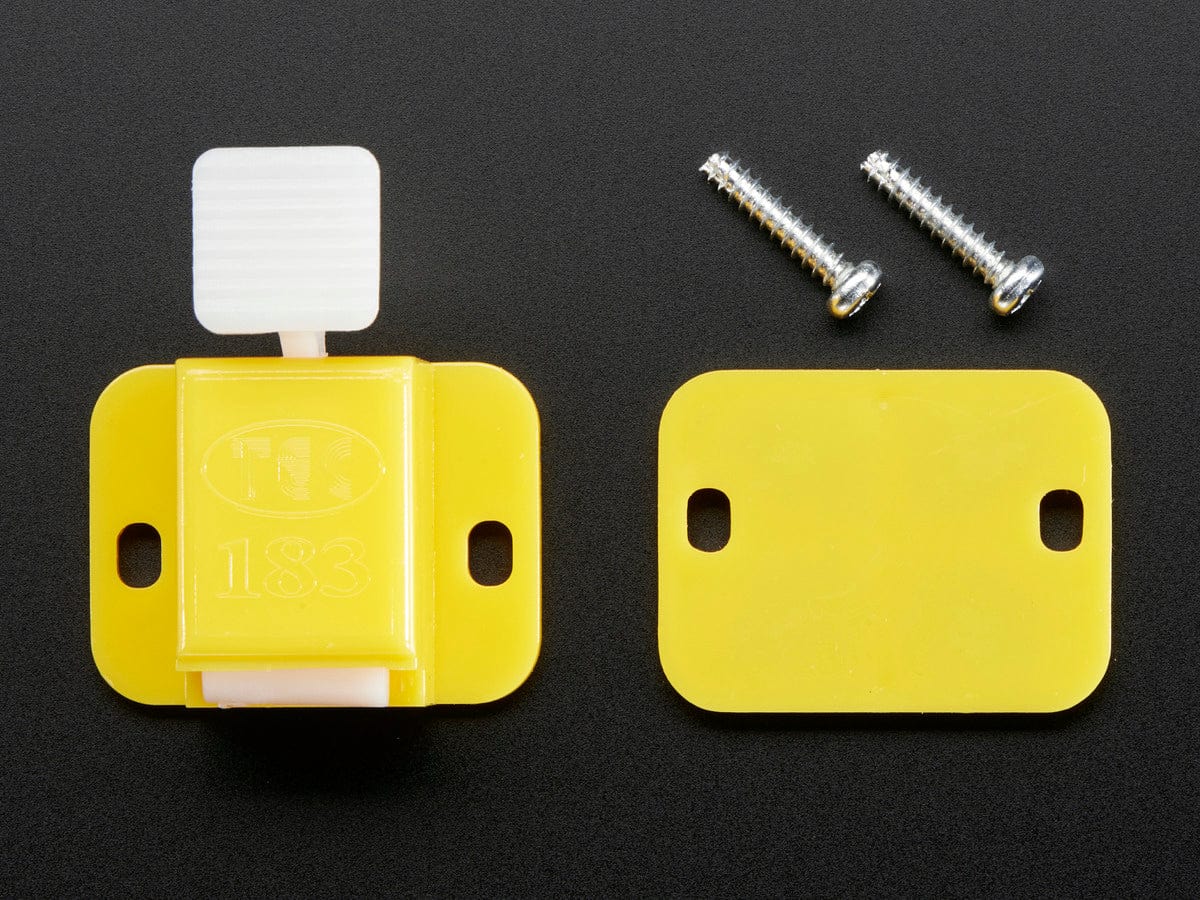

Package Contents

• 1x Fixture Clip - Short
• 2x Mounting screws
