Fermion: TCS3430 Tristimulus Color Sensor (Breakout)

DFRobotSKU: SEN0403
£14.10
incl. VAT
excl. VAT
Only 3 units left

Awesome Extras

The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
Full-Size Breadboard - Transparent - The Pi HutFull-Size Breadboard - Transparent - The Pi Hut
The Pi HutFull-Size Breadboard - Transparent
£5 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT

DFRobot TCS3430 XYZ Tristimulus Color Sensor employs the new generation of TCS3430 spectral sensor IC launched by the well-known AMS company.

It features advanced digital ambient light sensing(ALS) and CIE 1931 tristimulus colour sensing(XYZ). Each of the channels has a filter to control its optical response, which allows the device to accurately measure ambient light and sense colour.

These measurements are used to calculate chromaticity, illuminance, and colour temperature, all of which are used to support various potential applications.

You can learn more about the CIE 1931-XYZ system here:

Features

  • XYZ Tristimulus Filter
  • Capable of ±10% illuminance and correlated colour temperature accuracy
  • Wide dynamic range and high sensitivity
  • Programmable gain and integration time

    • Applications

  • Color detection
  • Brightness detection
  • White balance detection
  • Colour temperature measurement

    • Specification

  • Power Supply: 3.3V~5V
  • Operating Current: ＜5mA
  • LED Operating Current: ＜15mA
  • I2C Address: 0x39
  • Operating Temperature Range: -30℃~85℃
  • Dimension: 22*15mm/0.87*0.59”

    • Documents

  • Product wiki
  • CIE 1931-XYZ system

    • Shipping List

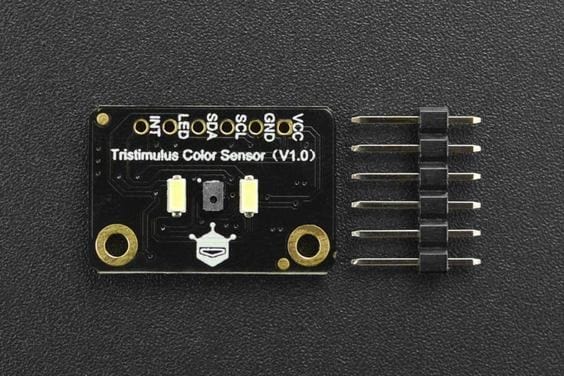

  • Fermion:TCS3430 Tristimulus Color Sensor(Breakout) x1
  • 2.54-6P Black Single Row Pin Header x1
    •
