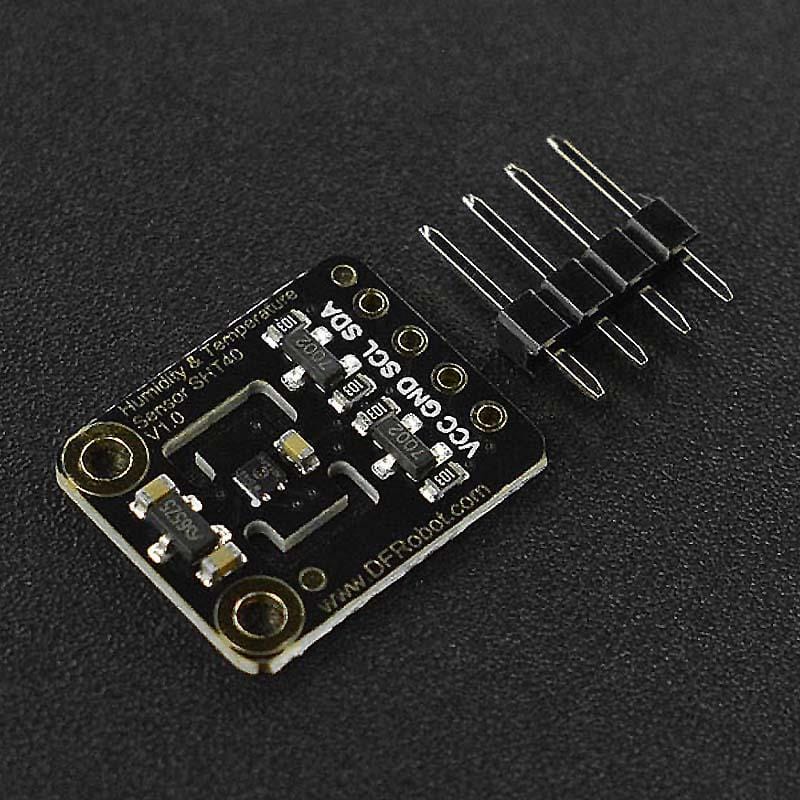

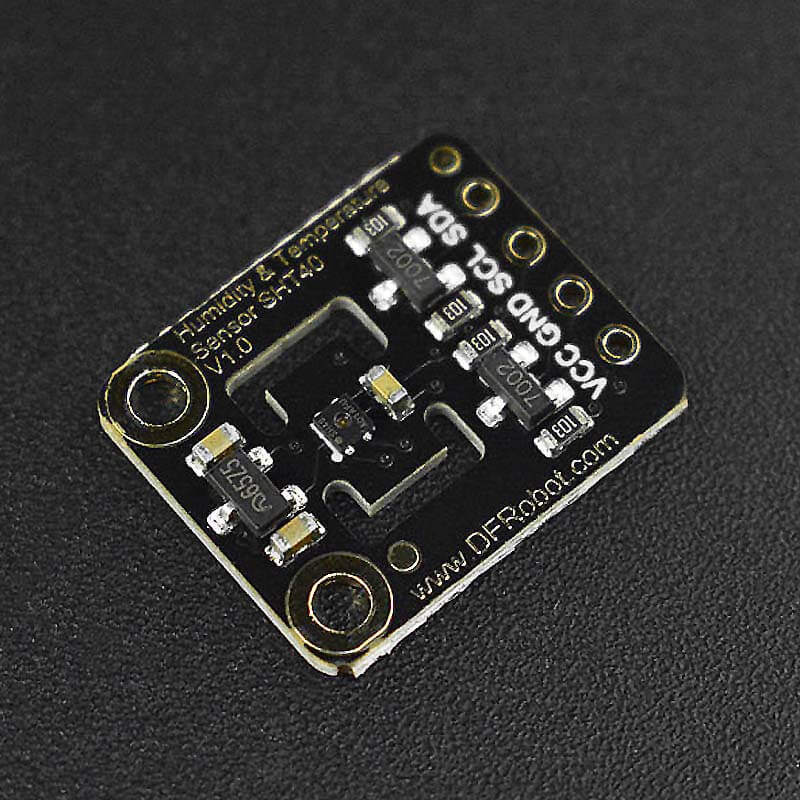

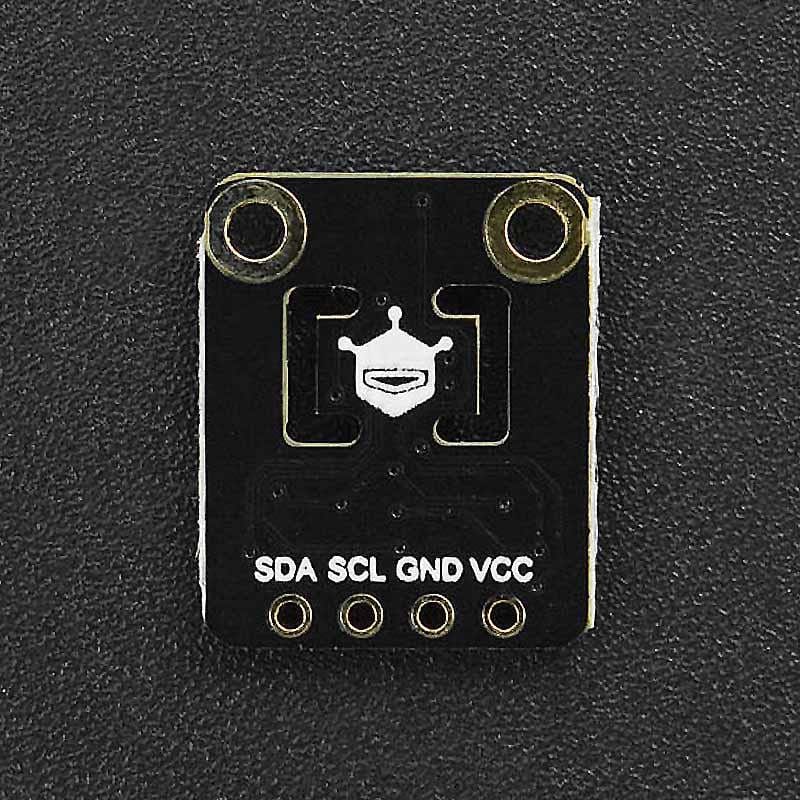

Fermion: SHT40 Humidity & Temperature Sensor Breakout

DFRobotSKU: SEN0428
Price:
Sale price £7.20
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

(97 Reviews)
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
Sale price £6 incl. VAT excl. VAT
(79 Reviews)
The Pi HutPrototyping Wire Spool Set - 6 Spool
Sale price £12 incl. VAT excl. VAT
(19 Reviews)
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.20 incl. VAT excl. VAT

The SHT40 is the 4th generation digital temperature and humidity sensor from Sensirion. In line with Sensirion’s industry-proven humidity and temperature sensors, the SHT40 offers consistent high accuracy within the measuring range.

The SHT40 sensor covers a humidity measurement range of 0 to 100%RH and a temperature detection range of -40°C to 125°C with a typical accuracy of ±1.8%RH and ±0.2℃. The internal variable power heater enables the device to work properly under extreme operating conditions like condensing environments.

The board can accept a voltage of 3.3V to 5V and a current consumption below 0.15mA in low power mode. This low current requirement makes the SHT40 suitable for mobile or wireless battery-driven applications. It's ideal for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

Features

  • High Accuracy
  • Low Power Consumption
  • Small Size
  • Fast Response

Connection Example (Arduino)

SEN0428 Arduino Connection Example

Specification

  • Operating Voltage: 3.3V-5V
  • Operating Current: 0.45mA
  • Communication Interface: I2C
  • Response Time: 8s (tau63%)
  • Humidity Measurement Range: 0~100%RH
  • Humidity Measurement Accuracy: ±1.8%
  • Temperature Measurement Range: -40~+125℃ (-40 to +275℉)
  • Temperature Measurement Accuracy: ±0.2℃

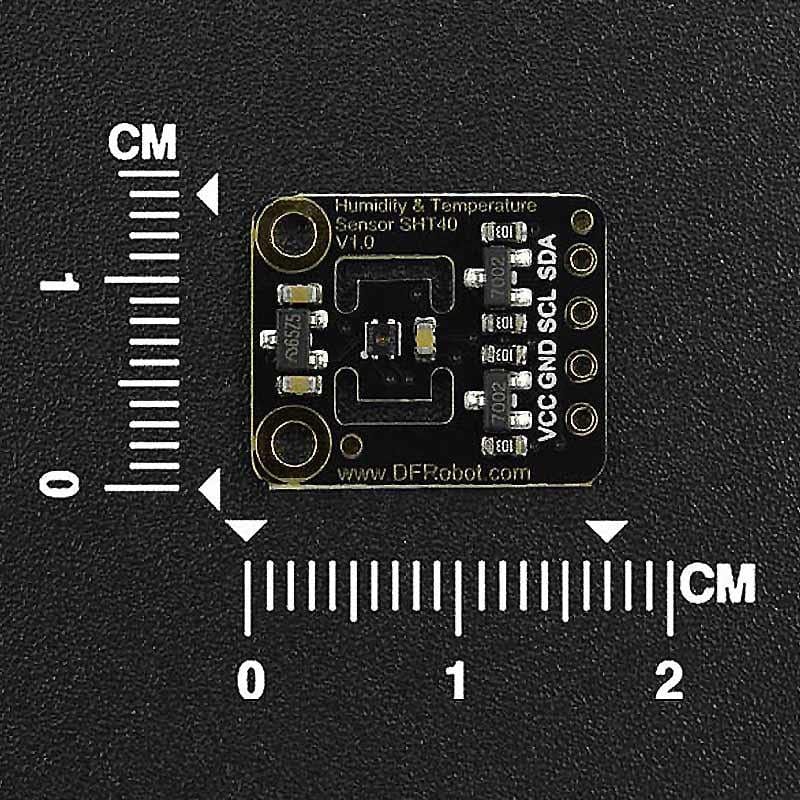

  • Dimension: 14x17mm/0.55x0.67"
  • Mounting Hole Size: M2 (2mm)
  • Mounting Hole Pitch: 10mm

Package Contents

  • 1x Fermion: SHT40 humidity & temperature sensor
