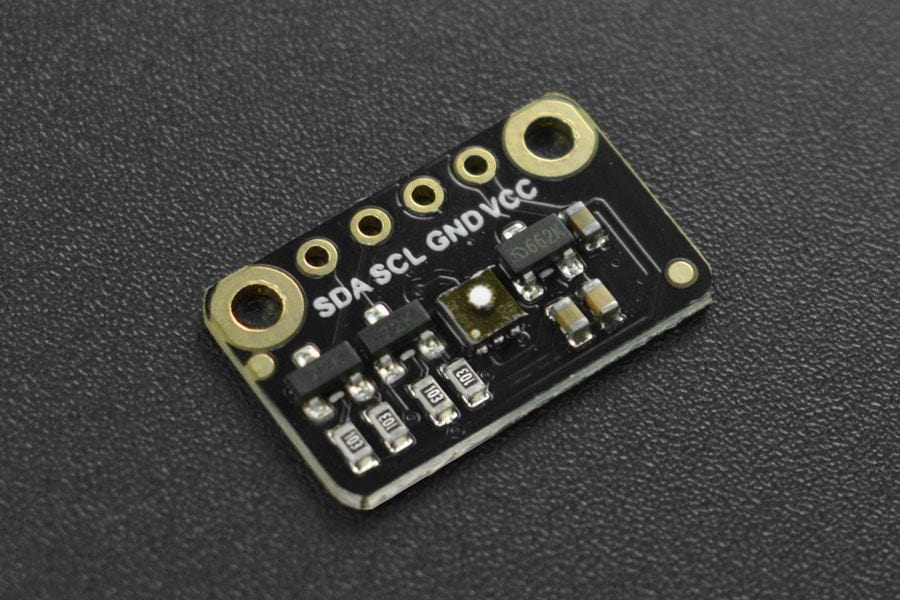

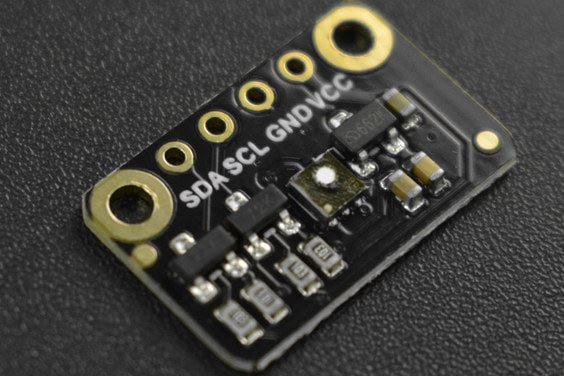

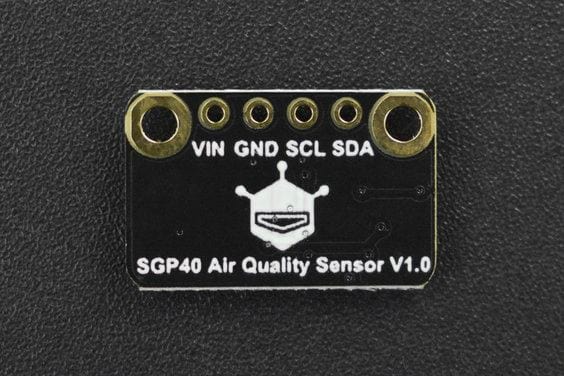

Fermion: SGP40 Air Quality Sensor (Breakout)

DFRobotSKU: SEN0392
Price:
Sale price £13.90
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

(77 Reviews)
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
Sale price £6 incl. VAT excl. VAT
(15 Reviews)
The Pi HutFull-Size Breadboard - Transparent
Sale price £5 incl. VAT excl. VAT
(38 Reviews)
The Pi HutPrototyping Wire Spool Set - 6 Spool
Sale price £12 incl. VAT excl. VAT

The SGP40 Air Quality sensor adopts the new SGP40 digital VOC sensor chip launched by the well-known Sensirion.

Based on the Sensirion’s CMOSens® technology, the SGP40 offers a complete sensor system on a single chip, a temperature-controlled micro-hotplate and a humidity-compensated indoor air quality signal.

In combination with Sensirion’s powerful VOC algorithm, the sensor signal can be directly used to evaluate indoor air quality. It features low power(2.6mA), and fast response(2s). The data from the sensor can be directly used to evaluate air quality without calibration.

With its compact and small body, this Breakout SGP40 Air Quality sensor is very suitable for indoor projects that will be used for a long time, such as refitting air purifiers, kitchen hoods, etc. Besides, we provide you with C and Python libraries for use with different main controllers.

Note: VOC index is obtained by converting the detected ethanol equivalent in air.

Features

  • Ultra-low Power Consumption(2.6mA)
  • Built-in Temperature and Humidity Compensation, no need to calibrate
  • VOC Index for direct Air Quality Indication

Applications

  • Air Purifiers
  • Kitchen Hoods
  • Demand-controlled Ventilation
  • Thermostats
  • Indoor Air Quality Monitoring

Specification

  • Power Supply: 3.3V~5V
  • Operating Current: 2.6mA
  • Preheat Time: 10S
  • Response Time: 2S
  • Communication: I2C
  • I2C Address: 0x59
  • Operating Temperature Range: -10℃~50℃
  • Storage Temperature Range: 5℃~30℃
  • Operating Humidity Range: 0%RH~90%RH
  • VOC Index: 0-500
  • Measuring Range: 0-1000ppm(Ethanol Equivalent)

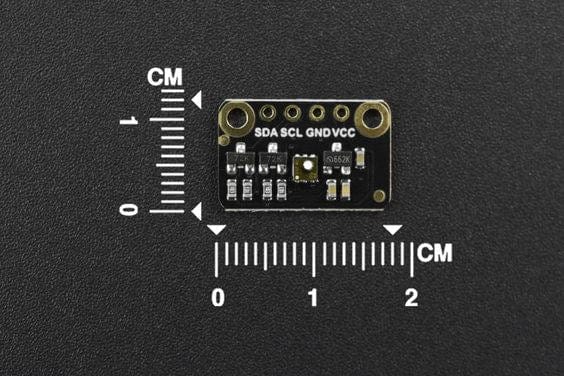

  • Dimension: 18*11.5mm/ 0.71*0.45”

Documents

Shipping List

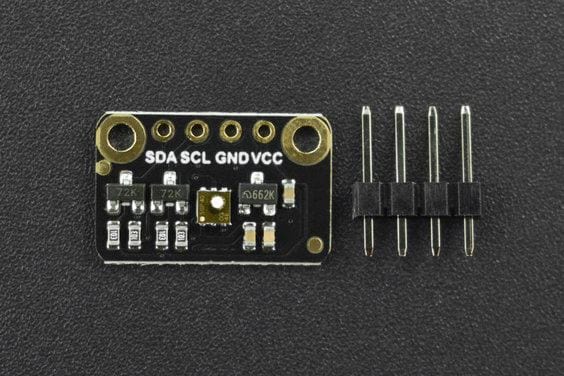

  • SGP40 Air Quality Sensor - Breakout x1
  • 2.54-4P Black Single-Row Connector x1
