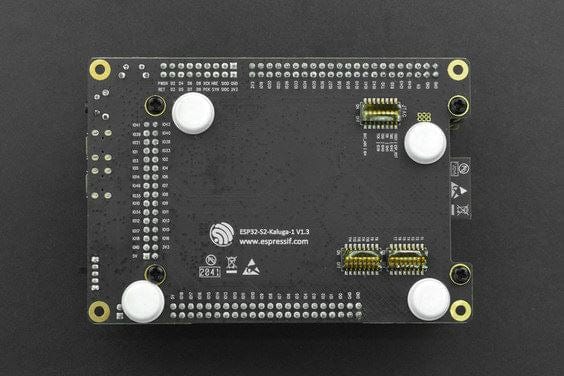

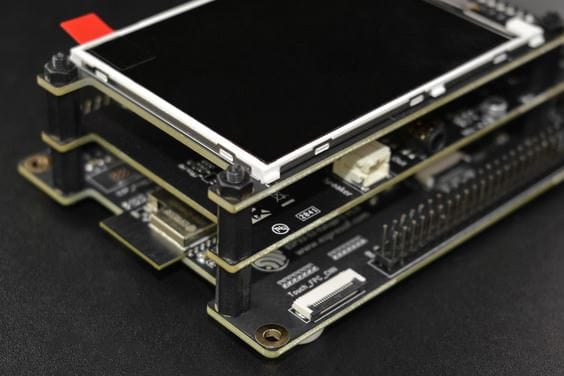

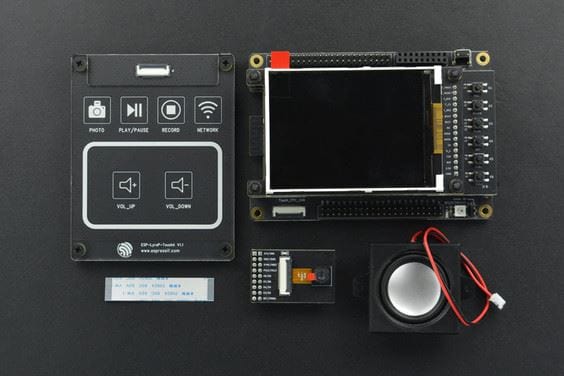

The ESP32-S2-Kaluga-1 is a development kit mainly designed for human-computer interaction applications. It includes one main-board and four extension boards that support: touch panel control, audio playback, LCD display and camera image acquisition, which allows users to interact with machines through sensory channels and body language.
Touch Panel Control
Audio Playback
LCD Display
Camera Image Acquisition
Description of Components
Key Component |
Description |
---|---|
ESP32-S2-WROVER Module |
Module integrating the ESP32-S2 chip that provides Wi-Fi connectivity, data processing power, and flexible data storage. |
4.3” LCD FPC Connector |
(Reserved) Connect to a 4.3” LCD extension board using the FPC cable. |
ESP Prog Connector |
(Reserved) Connection for Espressif’s download device (ESP-Prog) to flash ESP32-S2 system. |
JTAG Switch |
Switch to ON to enable connection between ESP32-S2 and FT2232; JTAG debugging will then be possible using USB-UART/JTAG Port. See also JTAG. |
Breakout Header 2 |
Some GPIO pins of the ESP32-S2-WROVER module are broken out to this header, see labels on the board. |
USB-to-UART/JTAG Bridge |
FT2232 adapter board allowing for communication over USB port using UART/JTAG protocols. |
Camera Header |

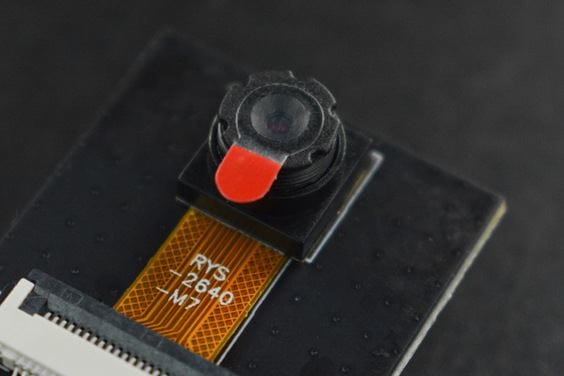

Mount a camera extension board here (e.g., ESP-LyraP-CAM). |
Extension Header |
Mount the extension boards having such connectors here. |
Reset Button |
Press this button to restart the system |
Boot Button |
Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port. |
USB-UART/JTAG Port |
Communication interface (UART or JTAG) between a PC and the ESP32-S2 module. |
USB Power Port |
Power supply for the board. |
Battery Port |
Connect an external battery to the 2-pin battery connector. |
Power On LED |
Turns on when the USB or an external power supply is connected to the board. |
Power Switch |
Switch to ON to power the system. |
RGB Jumper |
To have access to the RGB LED, place a jumper onto the pins. |
RGB LED |
Programmable RGB LED and controlled by GPIO45. Before using it, you need to put RGB Jumper ON. |
Power Regulator |
Regulator converts 5 V to 3.3 V. |
I2C FPC Connector |
(Reserved) Connect to other I2C extension boards using the FPC cable. |
Breakout Header 1 |
Some GPIO pins of the ESP32-S2-WROVER module are broken out to this header, see labels on the board. |
Touch FPC Connector |

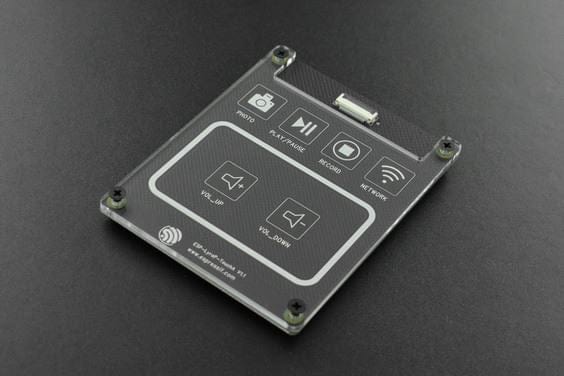

Connect the ESP-LyraP-TouchA extension board using the FPC cable. |
Touch Switch |
In OFF position, GPIO1 to GPIO14 are used for connection to touch sensors; switch to ON if you want to use them for other purposes. |
3.2” LCD FPC connector |
Connect a 3.2” LCD extension board (e.g., ESP-LyraP-LCD32) using the FPC cable. |
