ePaper Breakout Board for XIAO

The ePaper Breakout Board for XIAO is a versatile extension module, equipped with a 24-pin FPC (Flexible Printed Circuit) connector, designed to allow easy integration with various ePaper displays.

This board is compatible with a diverse array of ePaper displays, accommodating everything from compact to large screen sizes. It is specifically engineered to support various Seeed XIAO boards, offering a seamless experience without the need for soldering.

It also features an 8-pin 2.54mm pitch header, enabling straightforward connectivity with a range of microcontrollers, including popular options like the Arduino UNO and Raspberry Pi.

Note: XIAO and ePaper not included

Features

• ePaper display extension designed for Seeed XIAO boards
• Additional 8-pin 2.54mm Header
• Plug and Play
• Product Number: Seeed 105990172

Resources

• Product Wiki

What's on Board

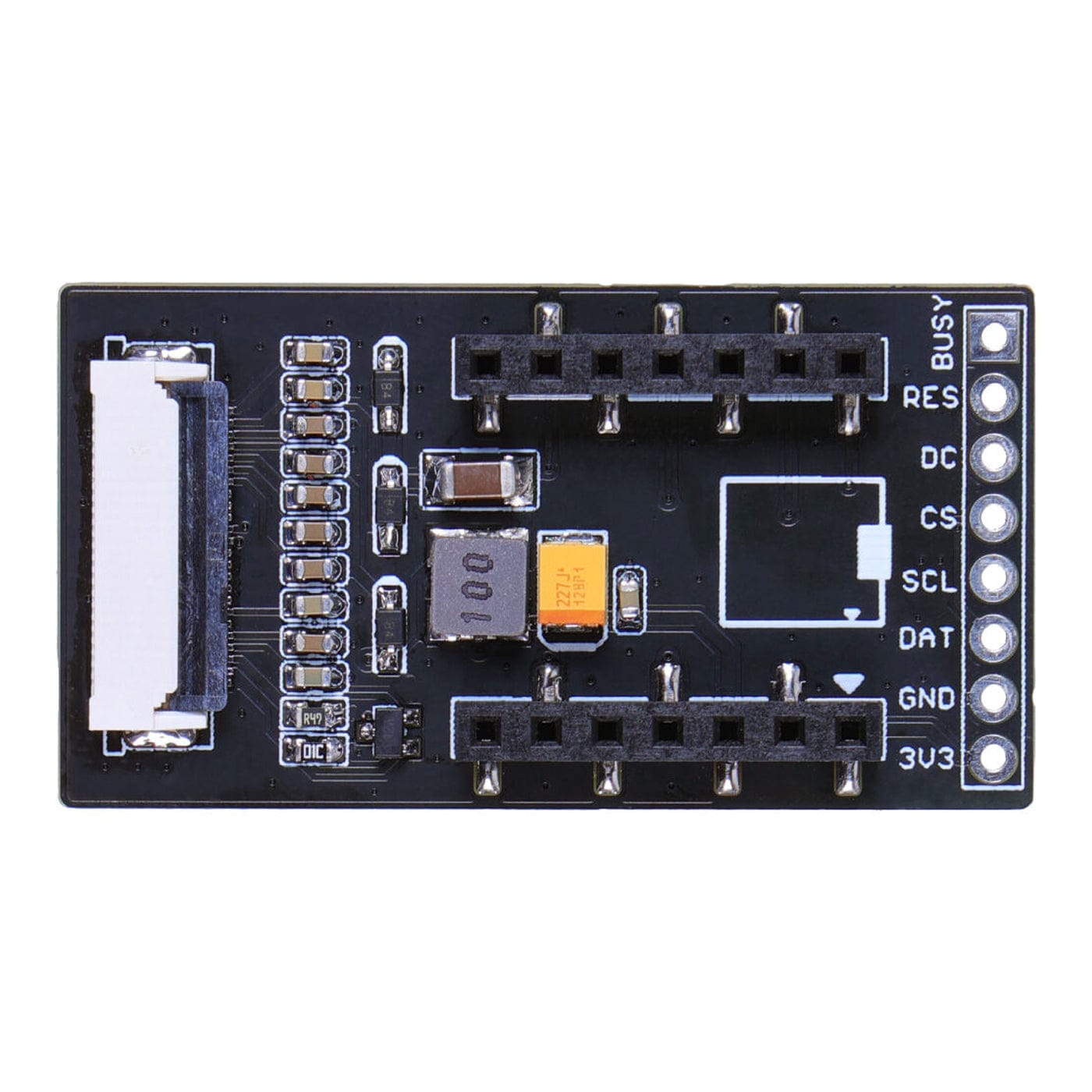

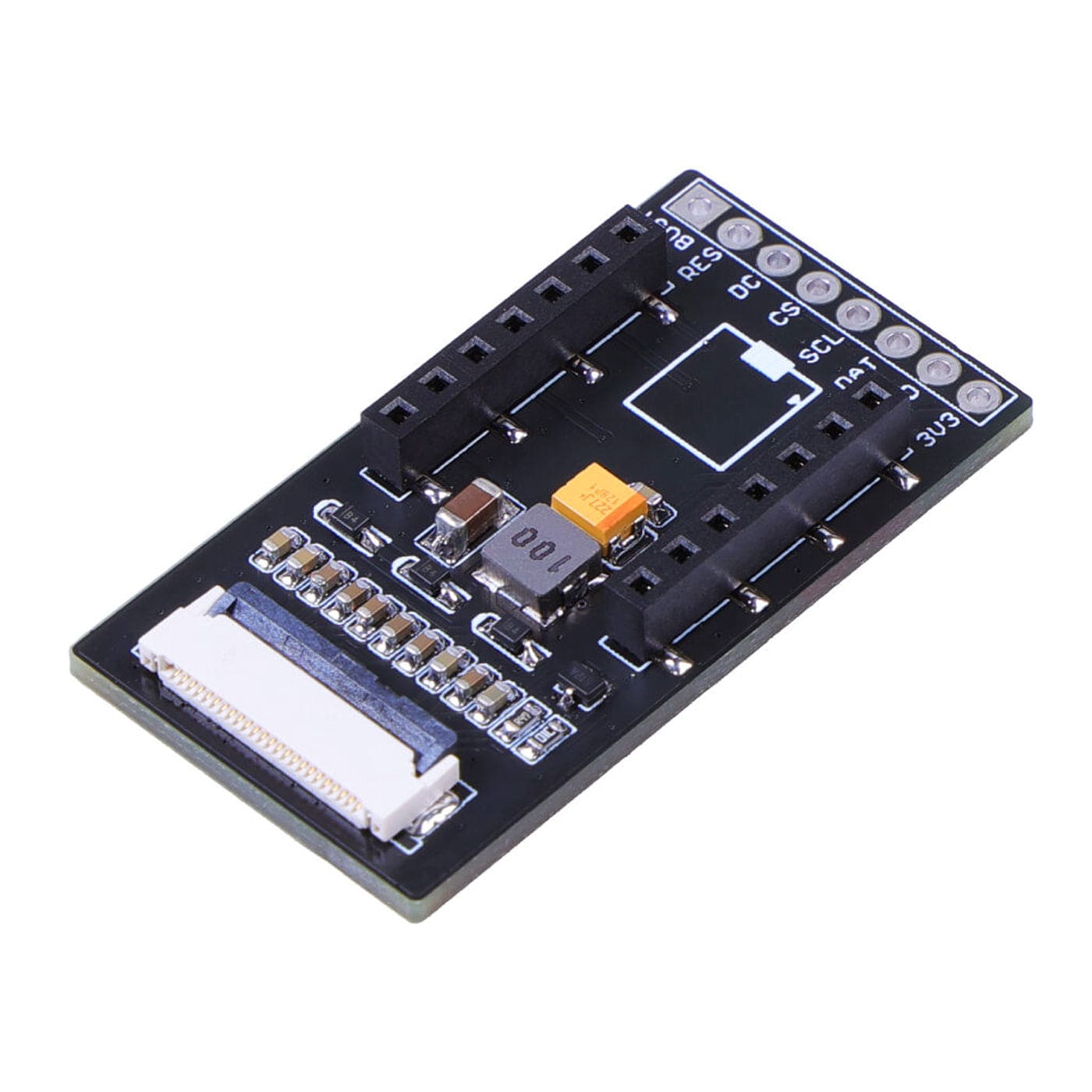

1. 24-pin FPC Connector: For the 2.13" ePaper
2. XIAO Socket: For connecting the Seeed Studio XIAO development board.
3. IO Break out: For connecting the other controllers, such as Arduino UNO or Raspberry Pi

Pinout

Package Contents

• 1x ePaper Breakout Board for XIAO

XIAO and ePaper not included
