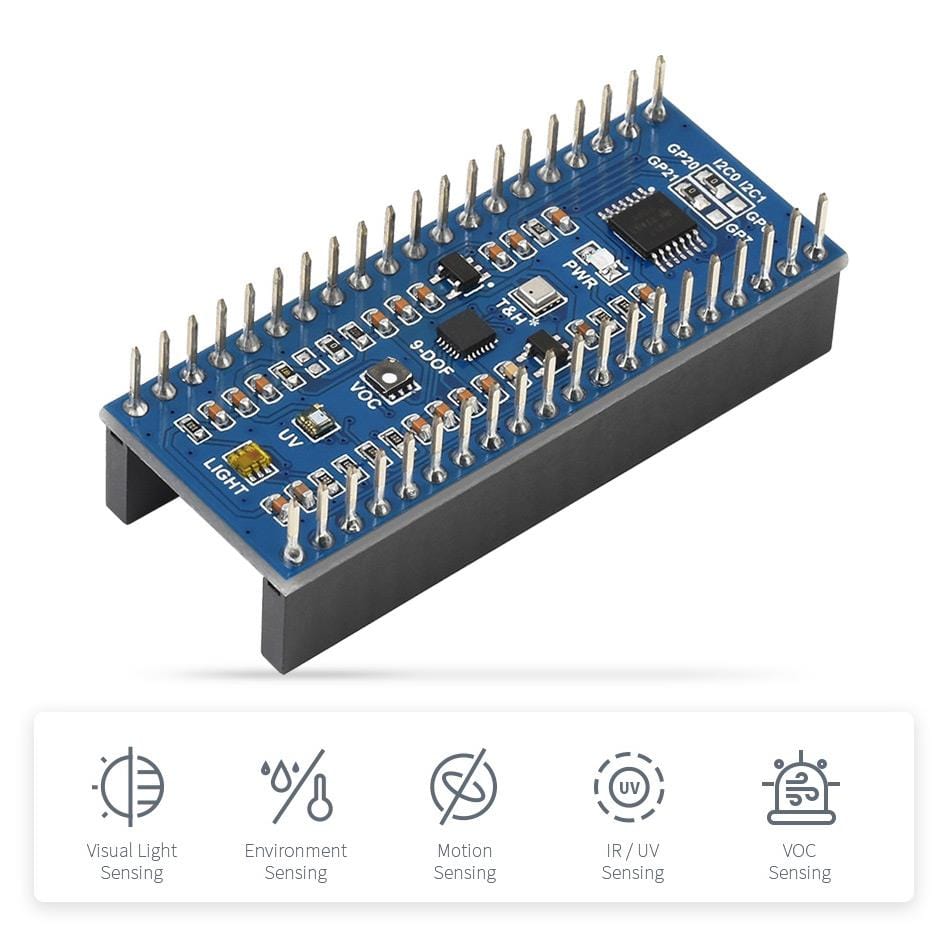

Now your Raspberry Pi Pico can monitor your environment with this fantastic Environmental Sensor Module from Waveshare!

This Pico HAT can monitor the following aspects of your local environment using its range of onboard sensors:

  • Visible light
  • IR light
  • UV rays
  • Temperature
  • Humidity
  • Air Pressure
  • Air Quality/VOC (Volatile Organic Compounds)
  • Motion and position
    • 3-axis Accelerometer
    • 3-axis Gyroscope
    • 3-axis Magnetometer

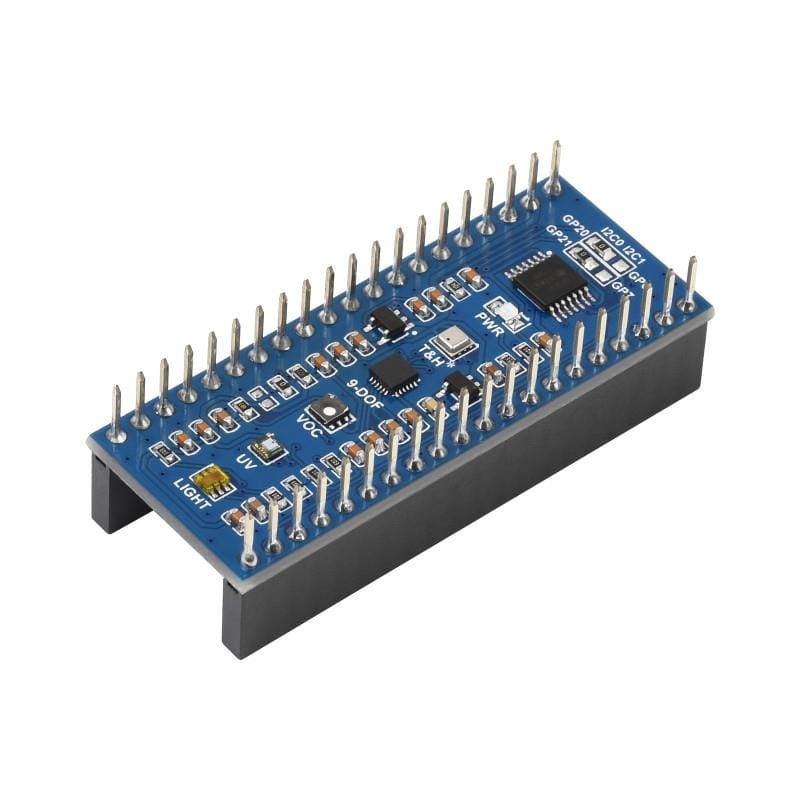

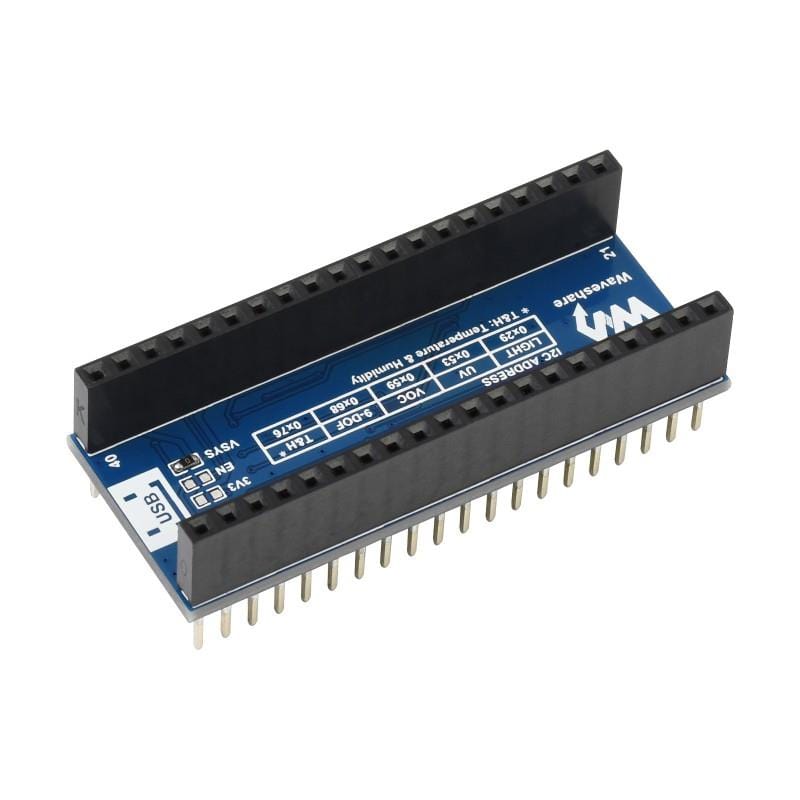

The HAT comes pre-assembled with female headers allowing you to slot your Pico in place, ready to use the online resources and example code to get you up and running quickly and easily. The stacking headers allow you to connect other components to your project with ease.

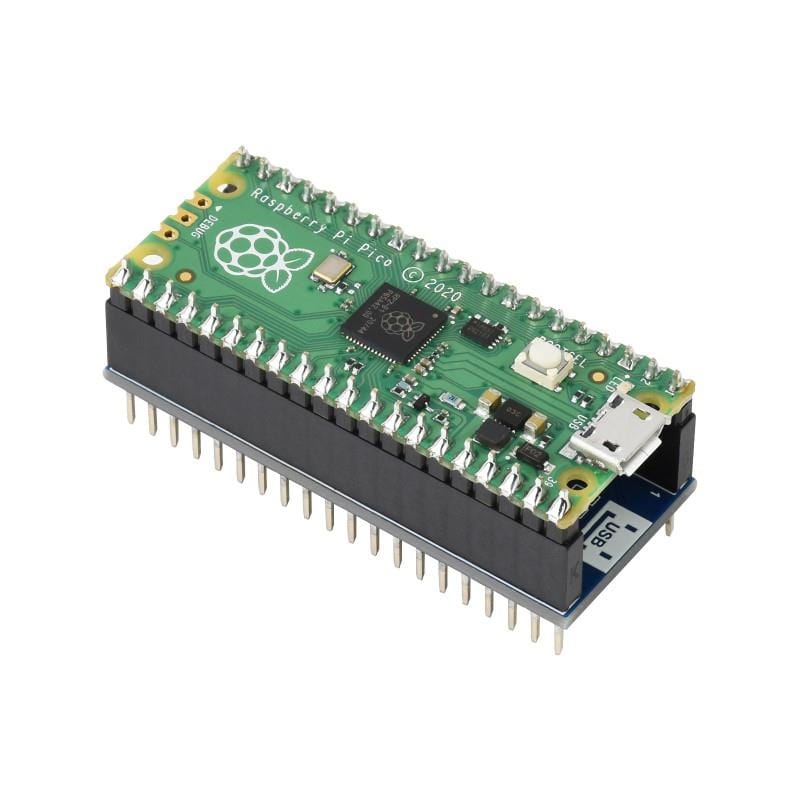

Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

  • Compatible with Raspberry Pi Pico
  • Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
  • Onboard BME280 sensor, for measuring temperature, humidity and air pressure
  • Onboard ICM20948 motion sensor - accelerometer, gyroscope and magnetometer
  • Onboard LTR390-UV-1 sensor for measuring UV rays
  • Onboard SGP40 sensor, for detecting ambient air quality/VOC

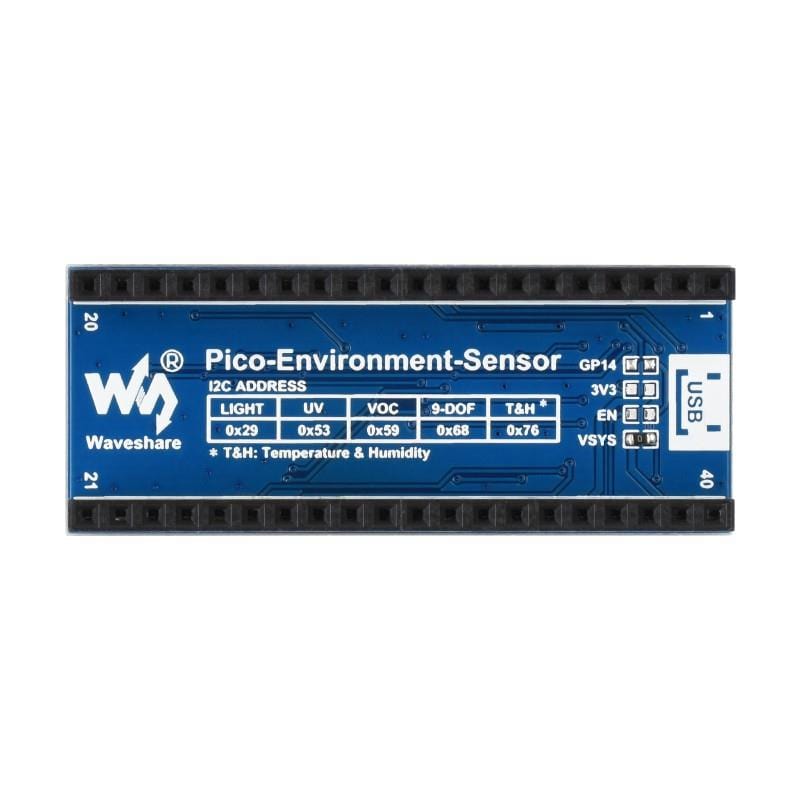

  • I2C bus - allows retrieving data by using just two wires/pins
  • Pre-assembled - no soldering required
  • Pins broken out for use with other components in your project

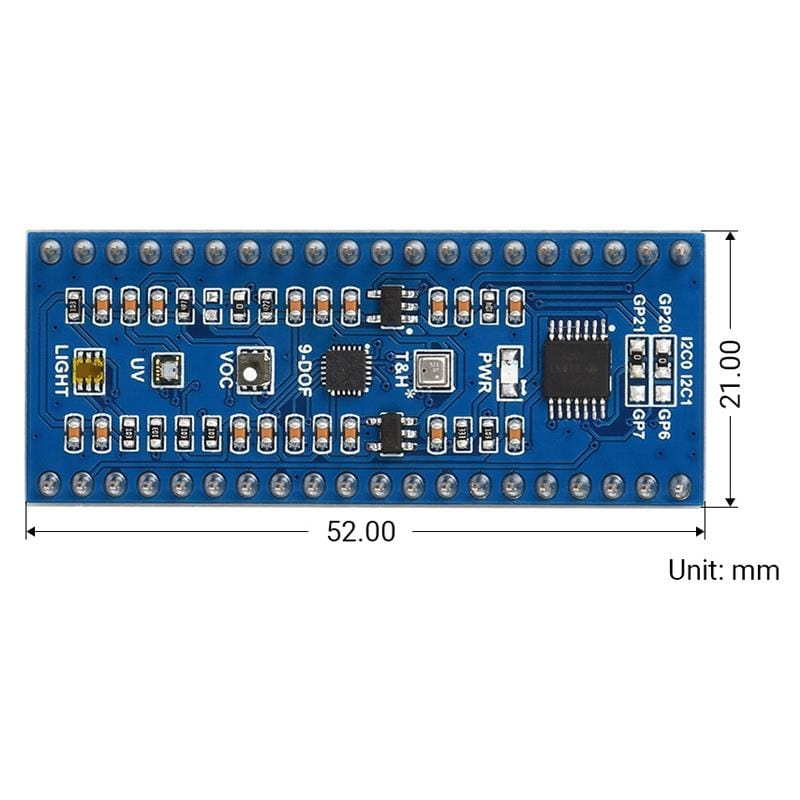

  • Dimensions: 52mm x 21mm

Specifications

TSL25911FN DIGITAL AMBIENT LIGHT SENSOR
I2C address 0x29
Effective range 0~88000Lux
BME280 TEMPERATURE, HUMIDITY, AND AIR PRESSURE SENSOR
I2C address 0x76
Temperature detection -40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy)
Humidity detection 0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay)
Air presure detection 300~1100hPa (0.18Pa resolution, ±1hPa accuracy)
ICM20948 MOTION SENSOR
(9-DOF: 3-AXIS ACCELEROMETER, 3-AXIS GYROSCROPE, 3-AXIS MAGNETOMETER)
I2C address 0x68
Accelerometer resolution 16-bit
Accelerometer range (configurable) 2, ±4, ±8, ±16g
Gyroscope resolution 16-bit
Gyroscope range (configurable) ±250, ±500, ±1000, ±2000°/sec
Magnetometer resolution 16-bit
Magnetometer range ±4900µT
LTR390-UV-1 UV SENSOR
I2C address 0x53
Response wavelength 280nm - 430nm
SGP40 VOC Sensor
I2C address 0x59
Measuring range 0 ~ 1,000 ppm ethanol equivalent
Limit condition < 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail)
Response time < 10 s (tau 63 %)
Start time < 60 s
On-chip humidity compensation support

Resources

Package Contents

  • 1x Pico Environment Sensor Module

Raspberry Pi Pico not included

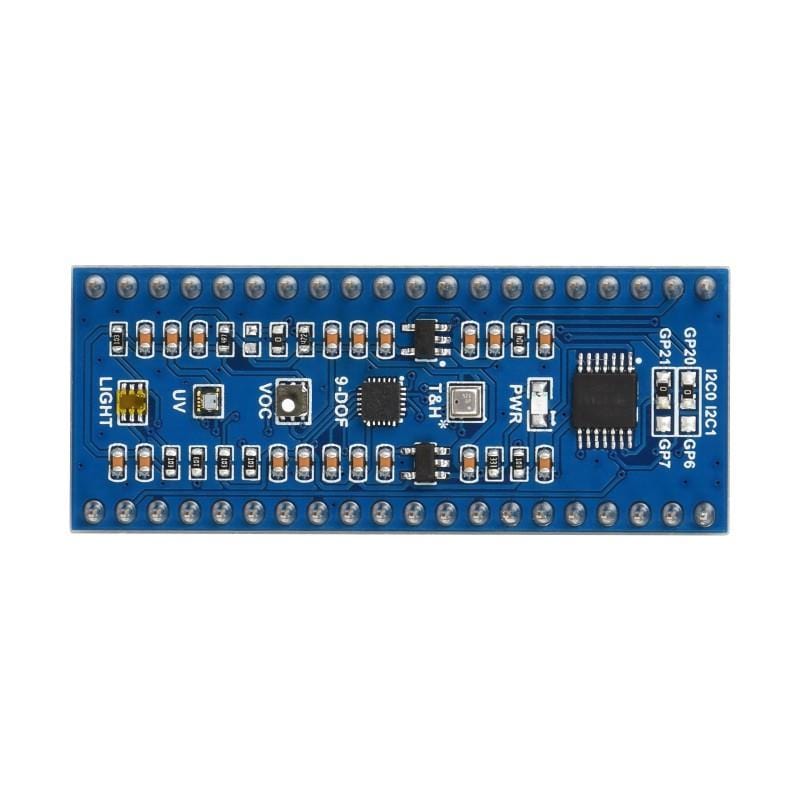

What's Onboard?

Raspberry Pi Pico Environment Sensor Features

1) TSL25911FN
- Digital ambient light sensor, for measuring IR and visible light
2) LTR390-UV-1
- UV sensor
3) SGP40
- VOC sensor
4) ICM20948
- 3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer
5) Voltage level translator
- 5V to 3.3V/1.8V
6) BME280
- Temperature, humidity, and air pressure sensor
7) Logic level conversion
- 3.3V-1.8V
8) I2C selection

Pinout

Raspberry Pi Pico Environment Sensor Pinout
