Engineer® Pin Extractor

The Engineer® Pin Extractor is a dedicated tool for extracting 'circular ended' crimp pins from their housing quickly & with ease.

This PAS type of ejector tool has a built-in return spring - this pulls (retracts) the ejector prong back into its nozzle after operation - this prevents the ejector pin from being damaged during transportation, storage or whilst being placed down temporarily.

Please note: This extractor tool will not work with crimp pins that have square shaped ends - only circular ended pins)

We stock this handy tool in a range of diameters. Please select your preferred size before checkout.

Engineer has been manufacturing high-quality Japanese precision tools since 1948. If you're looking for the very best precision hand tools for your projects - look no further. Check out our full range of Engineer tools here!

Features

• An ejector tool for extracting (circular ended) crimped pins from their crimp housings
• Simple operation - ejects crimp pins quickly & with ease
• Built-in return spring to protect the ejector prong whilst not in use
• Precision engineering from Japan (ROHS compliant)

Specifications

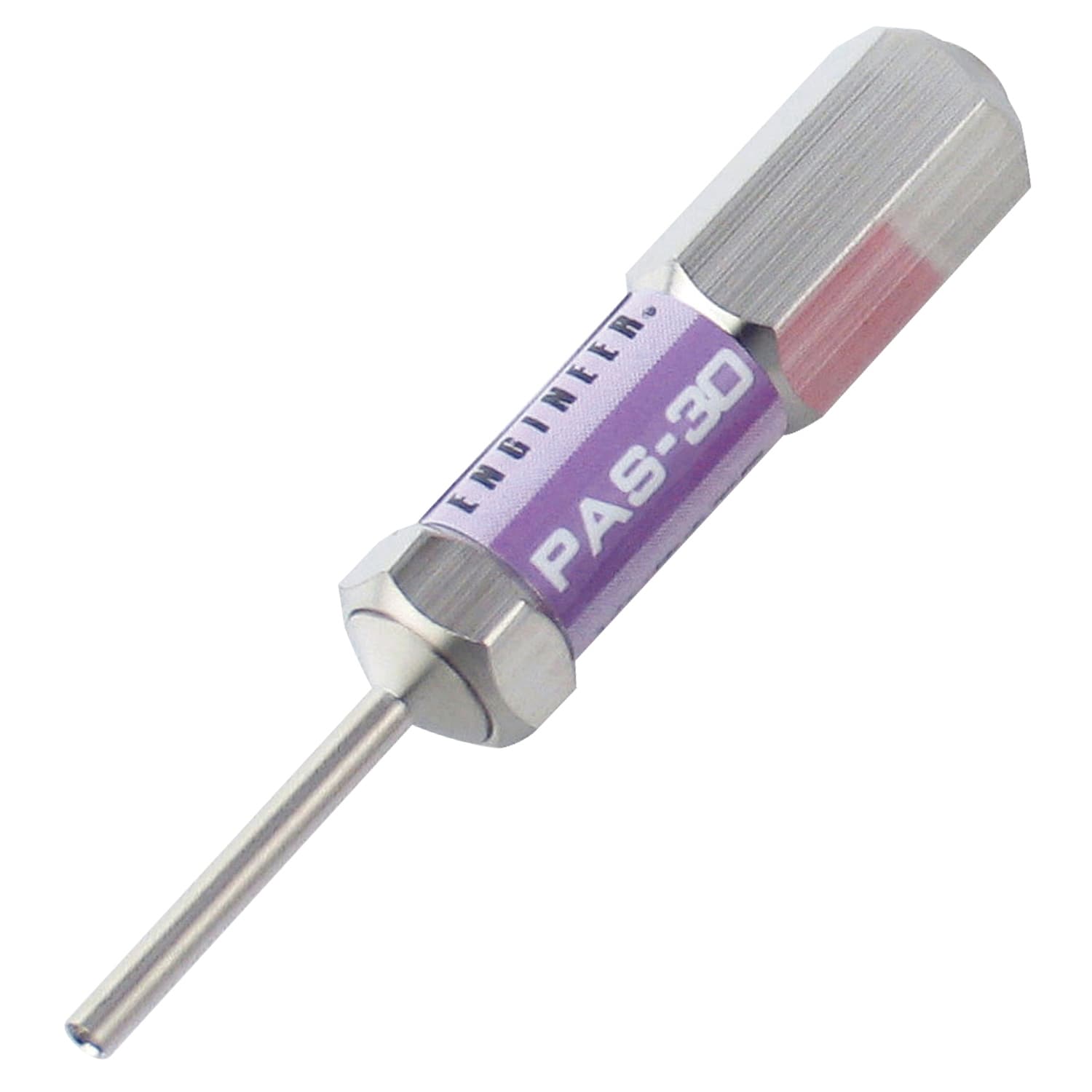

PAS-30

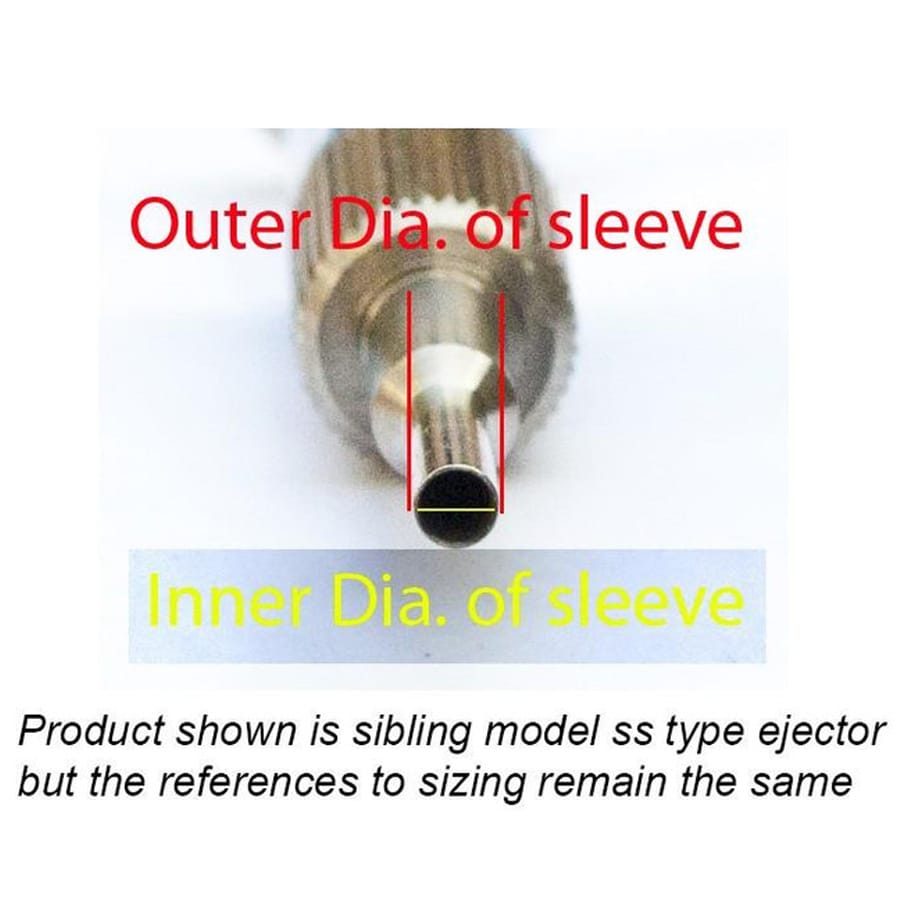

• Outer Dia. of Sleeve: φ2.5mm
• Inner Dia. of Sleeve: φ1.9mm
• Length: 62mm
• Weight: 20g

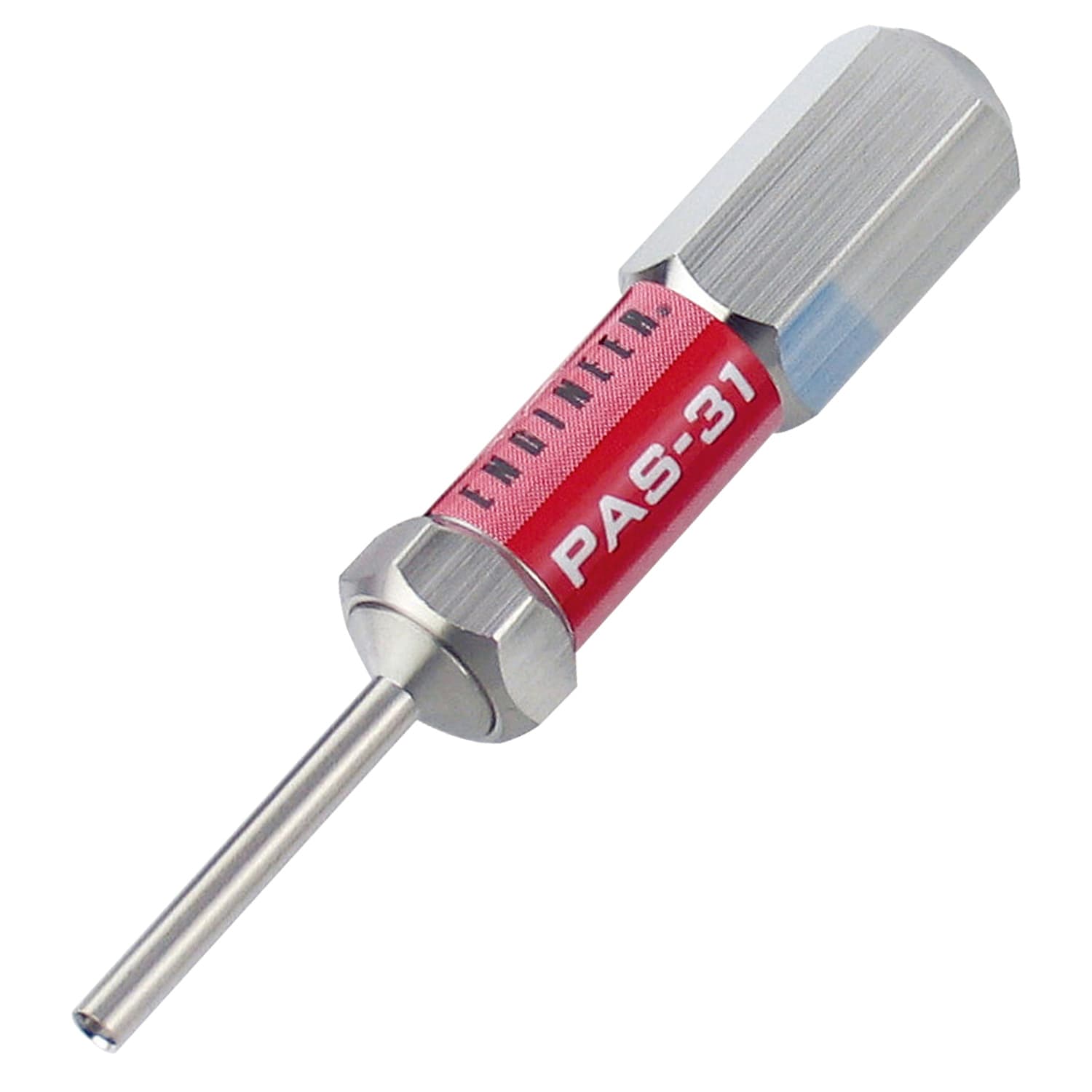

PAS-31

• Outer Dia. of Sleeve: φ2.7mm
• Inner Dia. of Sleeve: φ2.1mm
• Length: 62mm
• Weight: 20g

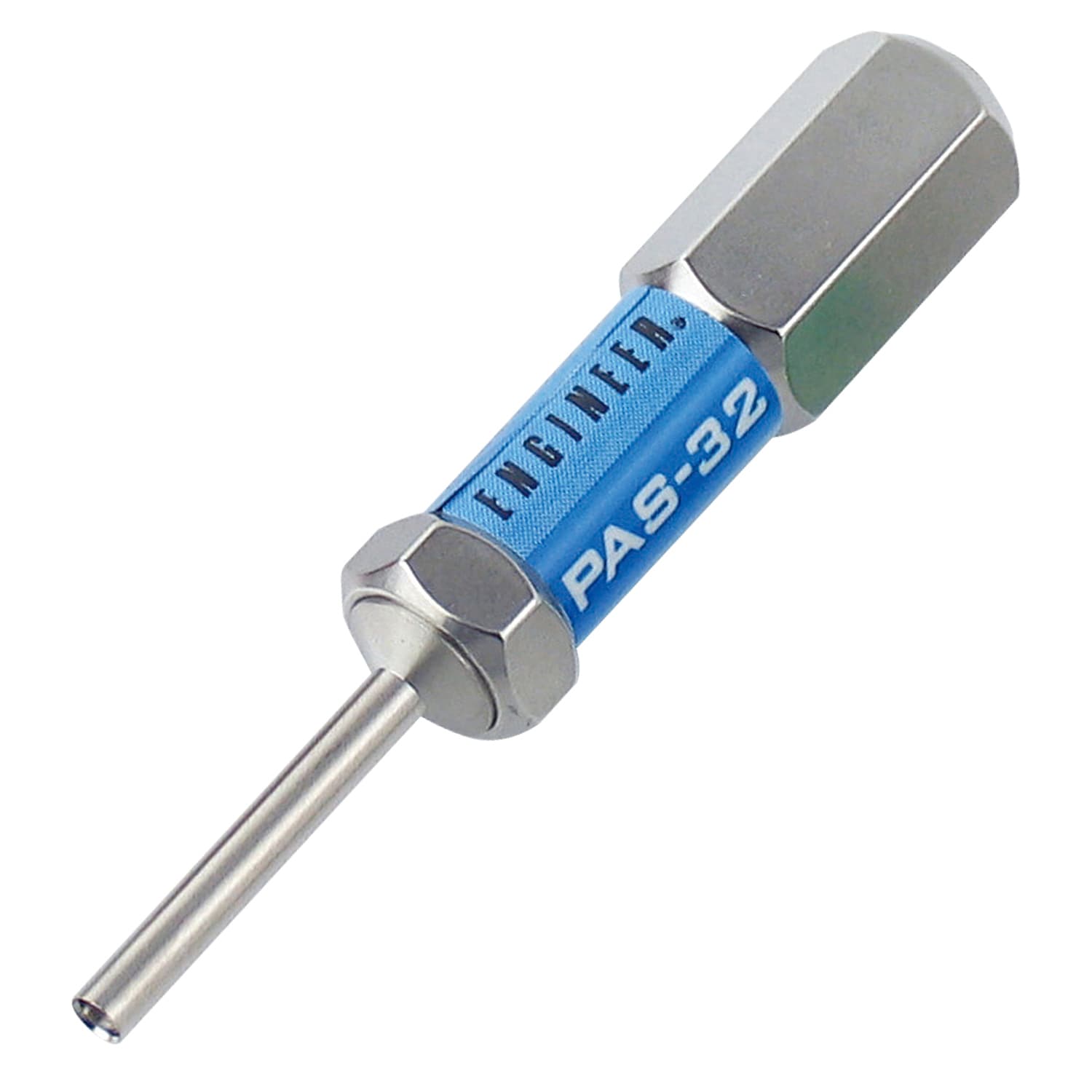

PAS-32

• Outer Dia. of Sleeve: φ2.9mm
• Inner Dia. of Sleeve: φ2.4mm
• Length: 62mm
• Weight: 20g

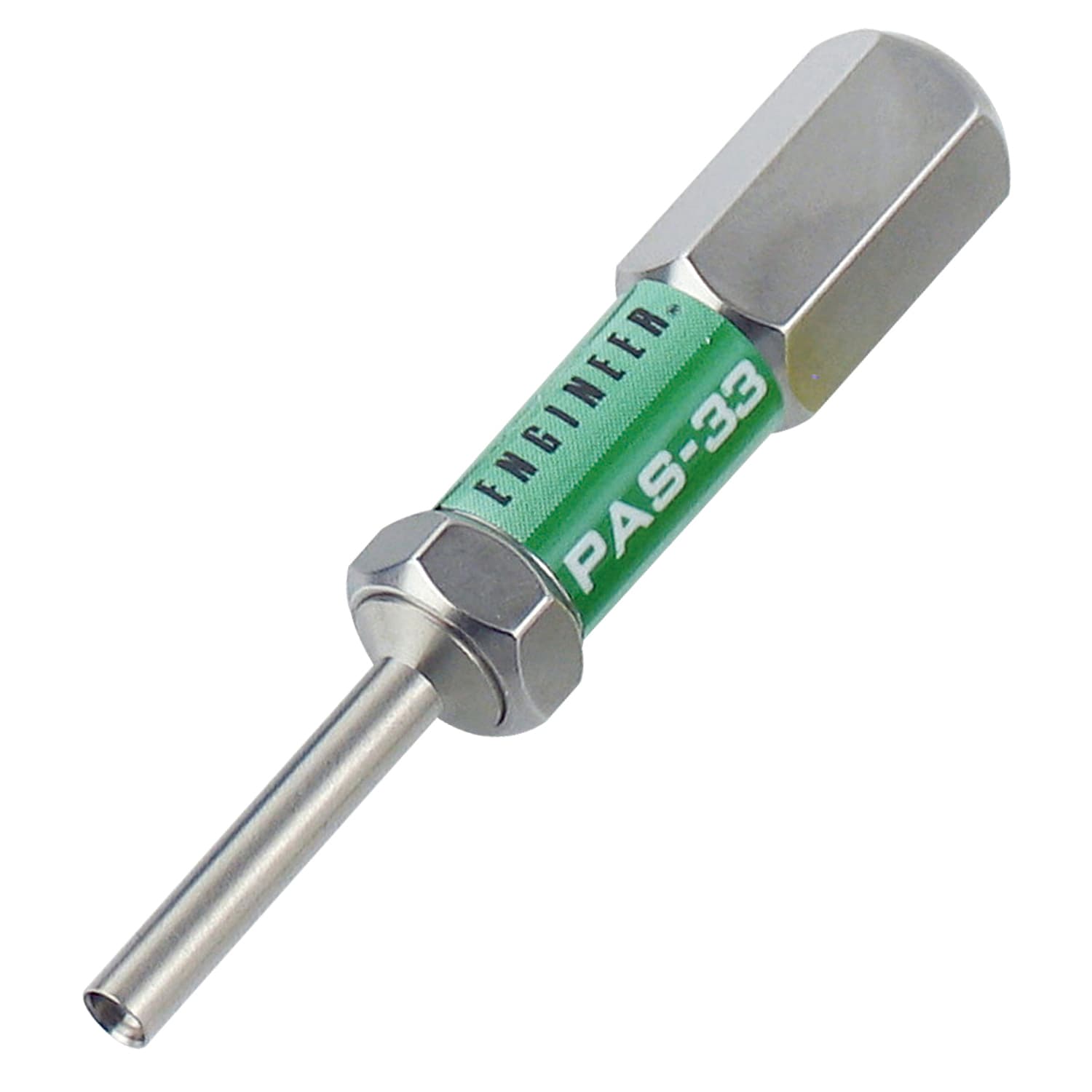

PAS-33

• Outer Dia. of Sleeve: φ3.6mm
• Inner Dia. of Sleeve: φ3.1mm
• Length: 62mm
• Weight: 20g

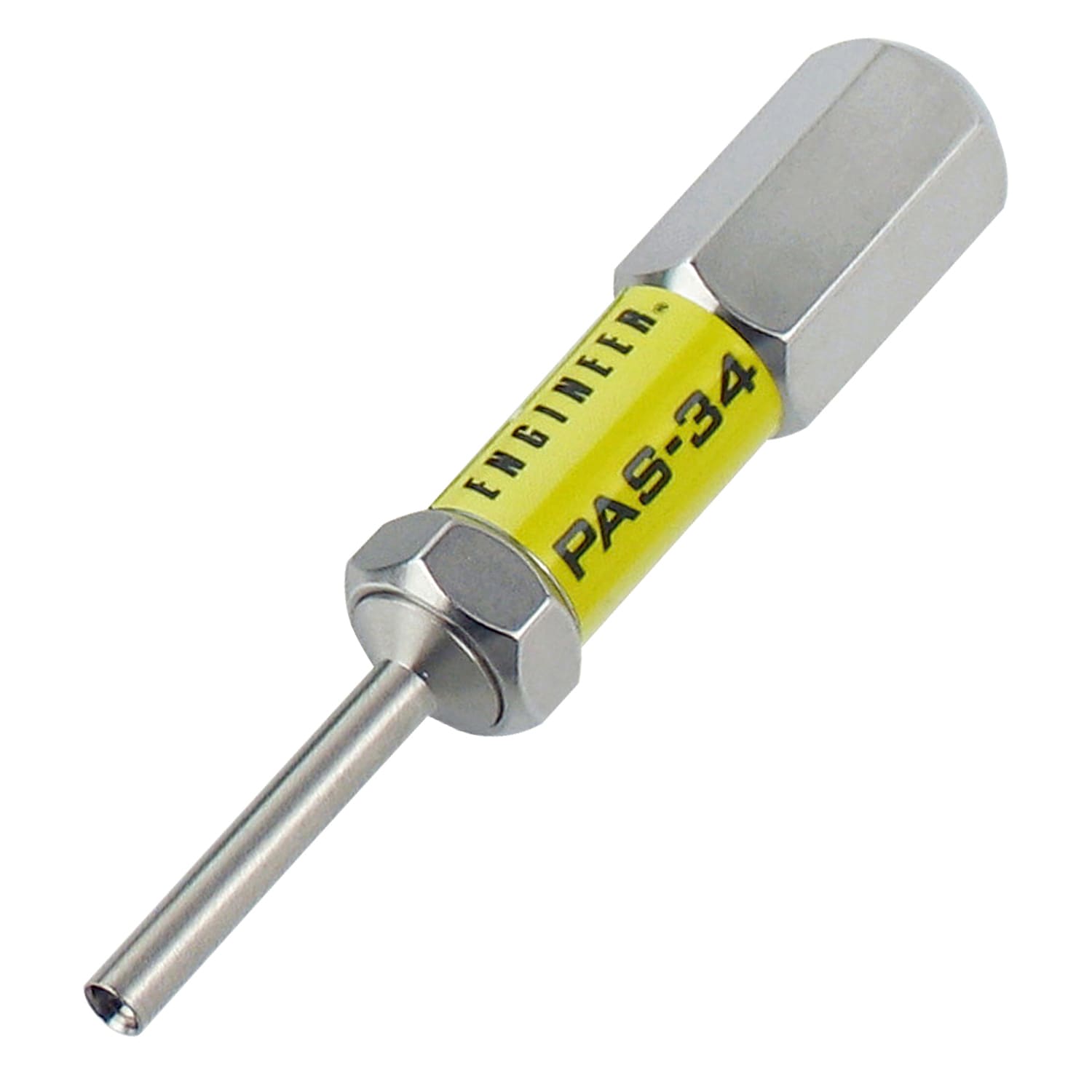

PAS-34

• Outer Dia. of Sleeve: φ3.2mm
• Inner Dia. of Sleeve: φ2.7mm
• Length: 62mm
• Weight: 20g

Package Contents

• 1x Engineer® Pin Extractor - Please select your preferred size before checkout.
