Edge-Launch SMA Connector for 0.8mm / 0.031" Slim PCBs by Adafruit - The Pi Hut

Edge-Launch SMA Connector for 0.8mm / 0.031" Slim PCBs

AdafruitSKU: ADA1864

£2.40

incl. VAT

excl. VAT

Only 5 units left

Awesome Extras

SMA Jack to RP-SMA Plug RF Adapter by The Pi Hut - The Pi Hut

Adafruit SMA Jack to RP-SMA Plug RF Adapter

£2.90 incl. VAT excl. VAT

Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire by Warton Metals - The Pi Hut

Warton Metals Autosol RA 99C No-Clean Fast-Flow Lead-Free Solder Wire

From £8.80 incl. VAT excl. VAT

Ceramic Tip Tweezers by Adafruit - The Pi Hut

Adafruit Ceramic Tip Tweezers

£5.80 incl. VAT excl. VAT

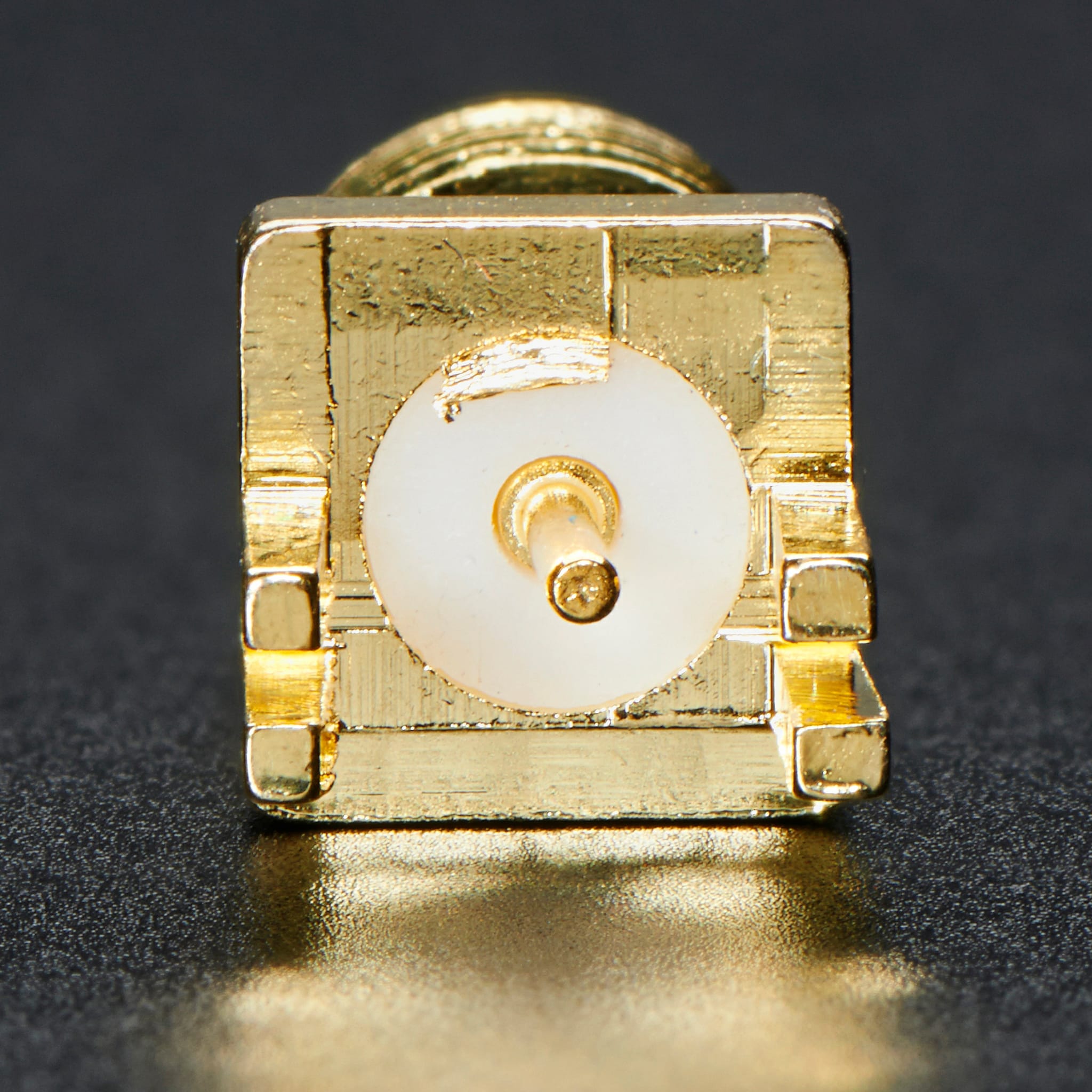

This Edge-Mount SMA Connector provides a low-profile, solder-friendly way to add an SMA connection to compatible PCBs, making it ideal for RF, wireless, and antenna projects.

This is a great connector for anyone doing RF work, when an SMA connector is required.

It hugs the edge of a "half thickness" 0.031" thick PCB (or thinner!) and 'launches' off of the edge. We like these for their ease of soldering and low profile. Mates with any SMA plug, there is also a SMA to RP-SMA in case your antenna is RP-SMA.

You can find an Eagle footprint for this part in the Adafruit Eagle Library, it's called SMA_EDGELAUNCH.

Features

Edge-launching SMA connector for PCB-mounted RF applications
Supports PCB thickness of 0.031" or thinner
Low-profile design
Compatible with standard SMA plugs
Easy to solder
RP-SMA adapter available for RP-SMA antennas

Specifications

Impedance: 50 ohm
Diameter of Jack: 6.1mm
Width of Plug: 6.4mm
Total Length of Connector: 13.5mm
Weight: 2g

Package Contents

1x Edge-Launch SMA Connector for 0.8mm / 0.031" Slim PCBs
