Easy Assembly Electronics Enclosure - Size 2

(2 Reviews)
Price:
Sale price £4.30
incl. VAT
excl. VAT
Stock:
Only 17 units left
Quantity:

Awesome Extras

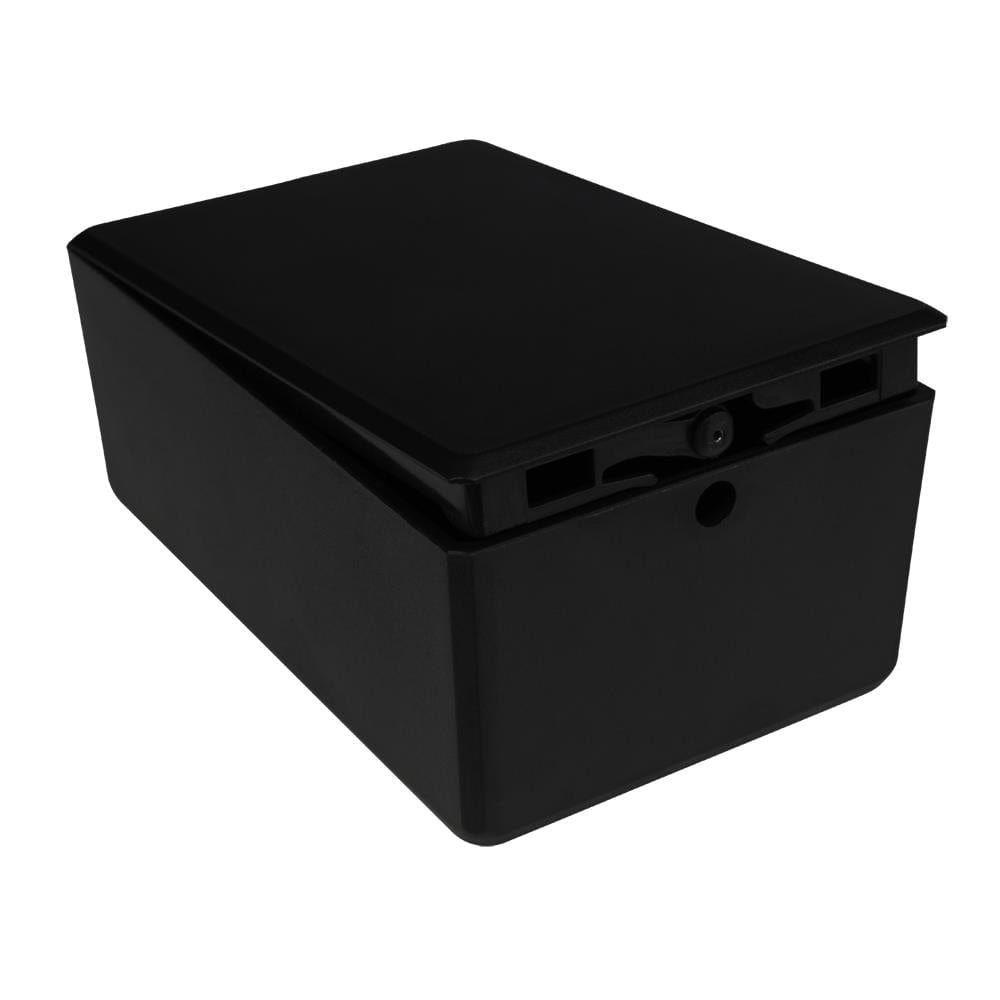

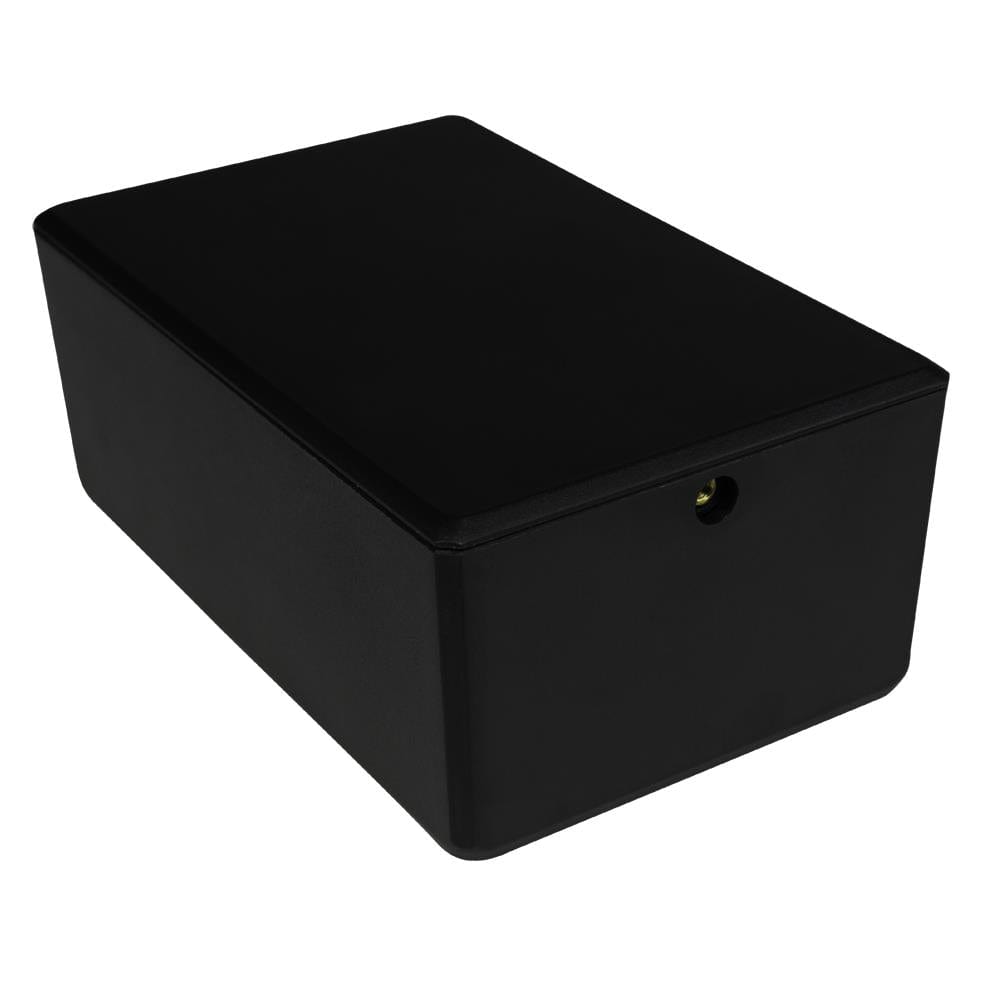

Moulded in robust ABS and manufactured in the UK, the Easy Assembly Electronics Enclosure (Size 2) is a premium cost-effective enclosure solution for your projects. The overall dimensions are 110mm x 70mm x 45mm.

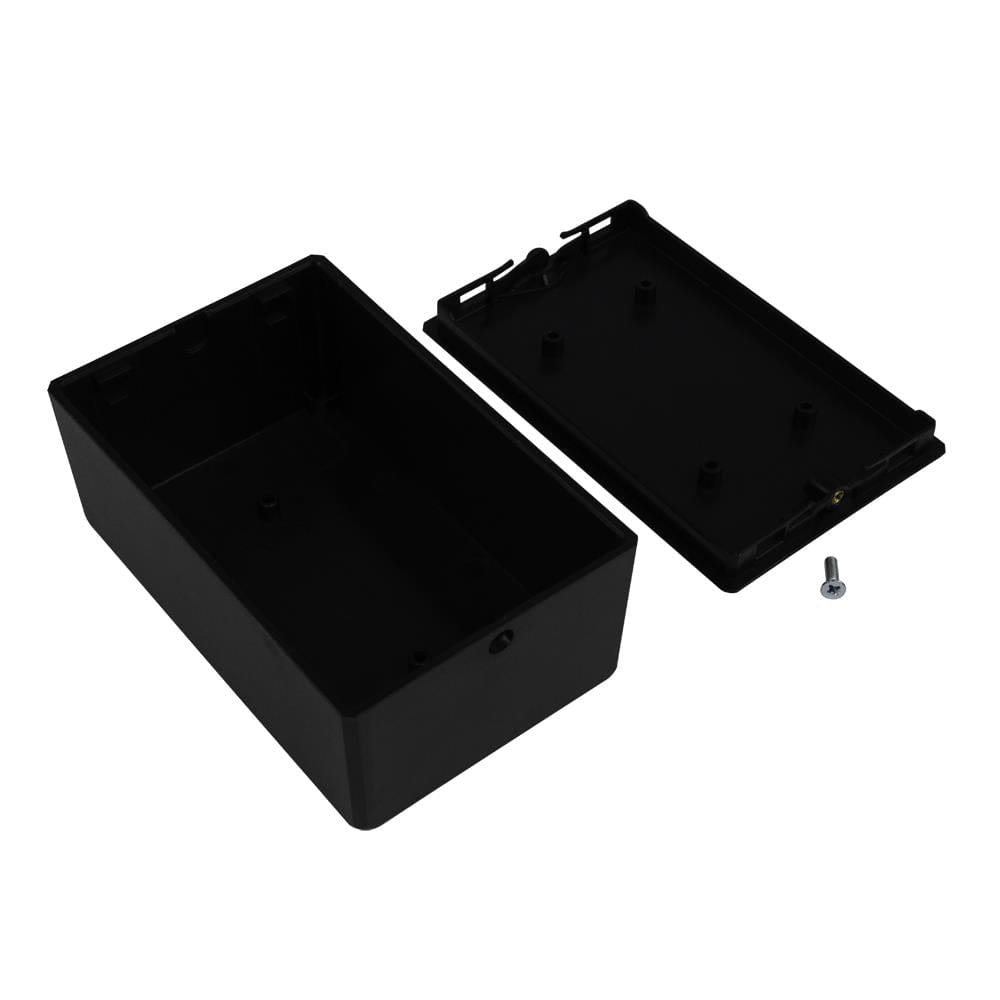

The lid of the enclosure (or the base if you prefer to use it that way) includes mounting points for use with your own PCB or internal parts.

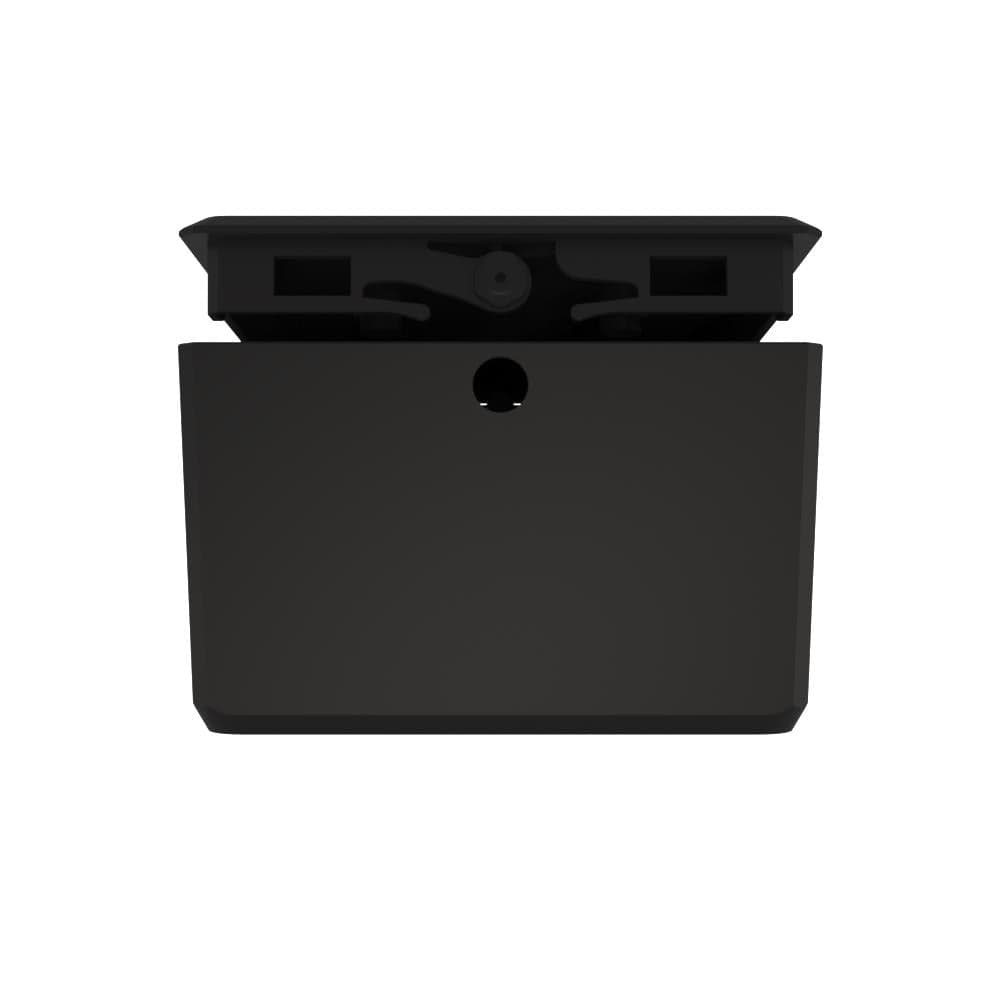

Gaining access is easier than ever thanks to the unique dual-action lid - held in place by either a push-button clip or single (included) screw (just spin the lid around to use your desired fixing option).

The enclosure's design uses no corner pillars, maximising space inside. There are also multiple PCB mounting points in base and lid, along with PCB edge corner supports in the base.

Features

  • Unique dual action lid is held in place by either a push-button clip or a single screw
  • Mounting fixings included (x4 screws)
  • No corner pillars, providing maximised PCB footprint with edge-to-edge capability
  • Multiple PCB mounting points in base and lid, along with PCB edge corner supports in the base
  • Unique spring feature in lid holds your PCB securely in place without the need for screws, greatly improving assembly time
  • In conjunction with the spring feature in the lid, the 'easy assembly' ledge holds the PCB in place without the need for screws, for quick and easy assembly
  • Premium quality universal enclosure with cost-saving assembly design features
  • Robust 2.5mm thick walls moulded in UL94-V0 ABS material with a smooth finish to aid customisation and modification
  • Designed and manufactured in the UK
  • Black colour

Package Contents

  • 1x Easy Assembly Electronics Enclosure (Size 2)
  • 1x Lid screw
  • 4x Mounting screws

Resources

Specifications

External Length (mm) 110
External Width (mm) 70
External Height (mm) 45
Internal Length (mm) 101.5
Internal Width (mm) 61.5
Internal Height (mm) 41
Weight (G) 84
Base Material Plastic
Material Type ABS UL94-V0
UL Rating UL94-V0
IK Rating IK06
IP Rating IP40
Development Board N/A
Wall Thickness (mm) 2.5
