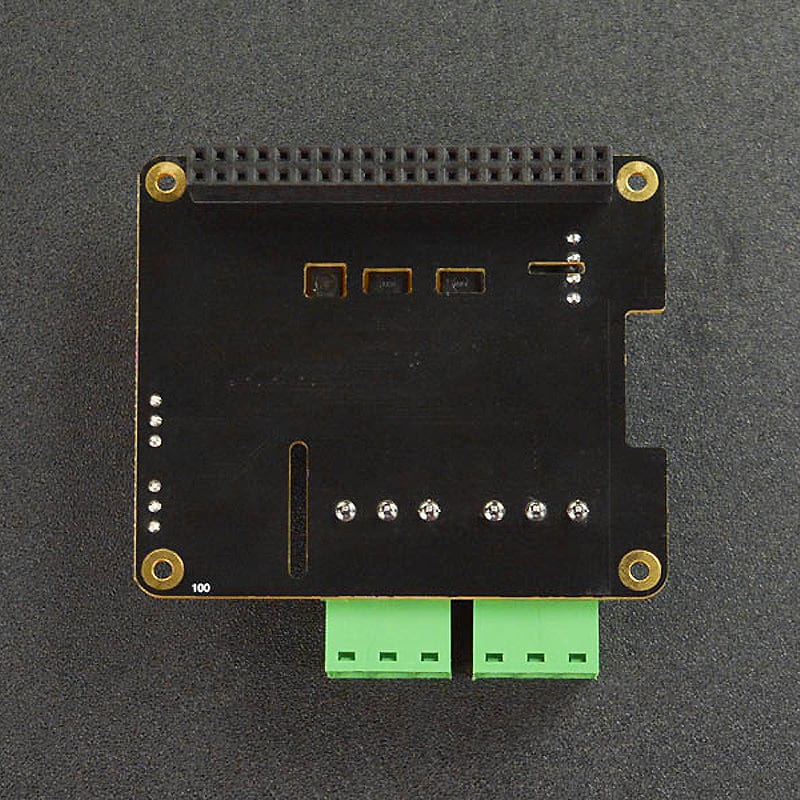

Dual-channel RS485 Expansion HAT for Raspberry Pi

DFRobotSKU: DFR0824
Price:
Sale price £23.33
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £29.17 incl. VAT excl. VAT
The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £53.33 incl. VAT excl. VAT

This dual-channel RS485 expansion HAT designed for the Raspberry Pi adopts an isolated transceiver to achieve isolation for RS485, which increases the reliability and anti-interference of data transmission in each channel. And it features embedded protection circuits such as a lightning and surge protector, a TVS diode, and power supply isolation to protect the Raspberry Pi development board effectively.

Besides, the order includes a screw accessory kit that allows users to tightly fix this board onto a Raspberry Pi controller.

Connection Example - RS485 Expansion HAT and Laser Ranging Sensor

Features

  • Dual Channel RS485
  • Electrical & signal isolation
  • Lightning & surge protection
  • Transient voltage suppressor
  • RX/TX data transmitting/receiving indicator

Specifications

  • Operating Voltage: 3.3V
  • RS485 Transceiver: TP75176E
  • Serial Chip: CH432T
  • RS485 Communication Interface ×2
  • Power Indicator: red
  • TX Communication Indicator: blue
  • RX Communication Indicator: green
  • 120Ω Terminal Resistance: ×2

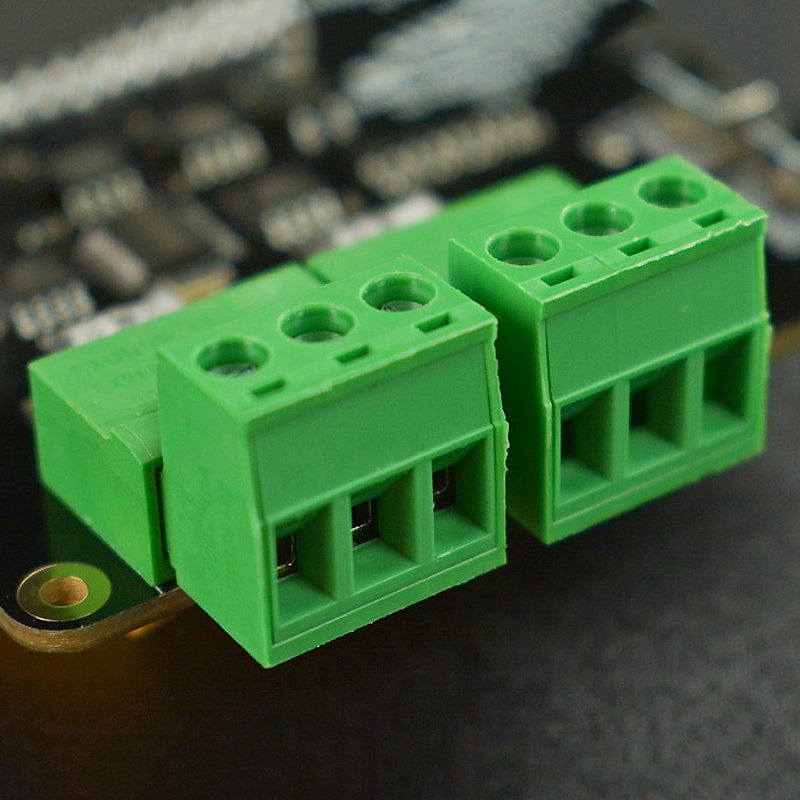

  • Wiring Method: 5.08-3P pluggable terminal block
  • Raspberry Pi 3B+/4B Supported
  • Mounting Hole Size: diameter 2.5mm

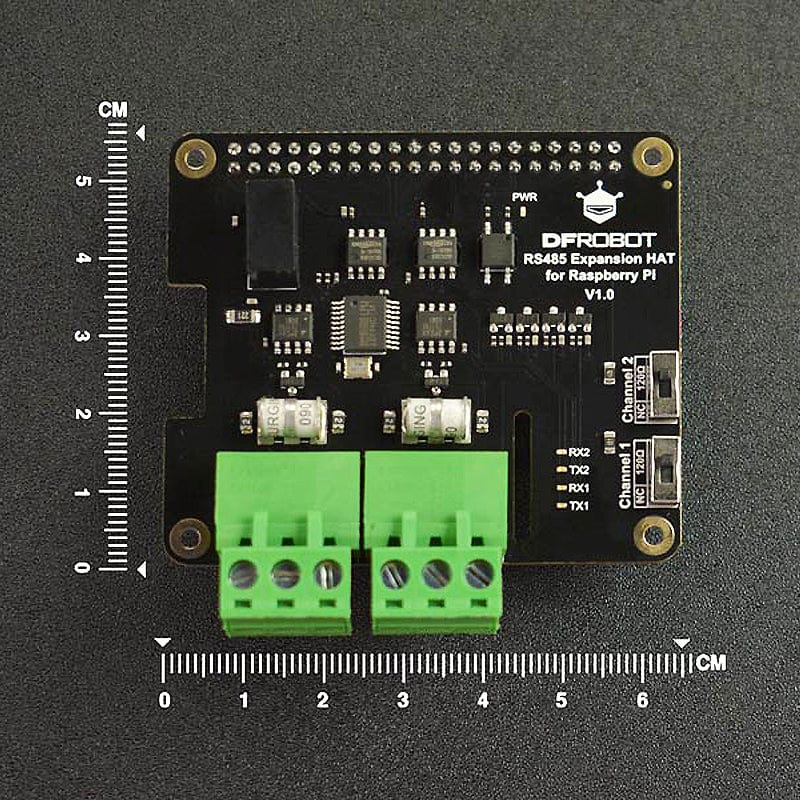

  • Dimension (Package Not Included): 56×65mm

Resources

Package Contents

  • 1x RS485 Expansion HAT for Raspberry Pi
  • 4x Copper Column & Screw
