DPDT ON-ON Latching Toggle Switch

The Pi HutSKU: 105227
£2.50
incl. VAT
excl. VAT
In stock

Awesome Extras

Antex Lead Free Solder - 4m Tube - The Pi Hut
AntexAntex Lead Free Solder - 4m Tube
£4.50 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT
265-Piece Ultimate Heat Shrink Kit - The Pi Hut265-Piece Ultimate Heat Shrink Kit - The Pi Hut
The Pi Hut265-Piece Ultimate Heat Shrink Kit
£6 incl. VAT excl. VAT
Adafruit Wire Strippers - The Pi HutAdafruit Wire Strippers - The Pi Hut
The Pi HutMultifunction Wire Strippers
£6 incl. VAT excl. VAT
Notify me
Magnetic Wire Grip for Soldering - The Pi HutMagnetic Wire Grip for Soldering - The Pi Hut
The Pi HutMagnetic Wire Grip for Soldering
£5 incl. VAT excl. VAT

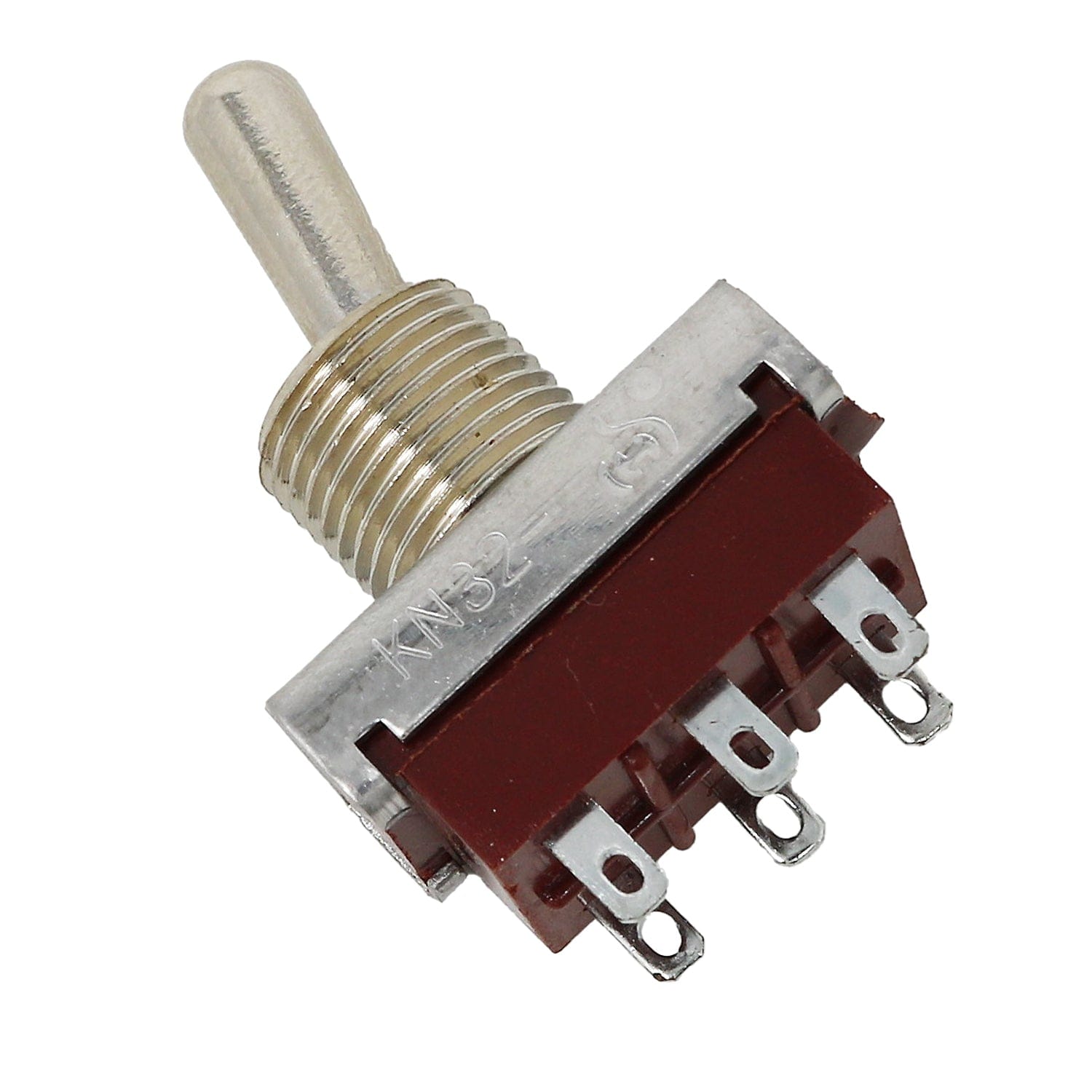

This is a Latching DPDT ON-ON toggle switch with 6 pins, rated to AC 5A/250V.

The switch has 6 pins allowing double pole, double throw use. The thread shaft requires a 12mm hole and has enough length to mount it to a panel/enclosure around 7mm thick (when using the included nuts/washers).

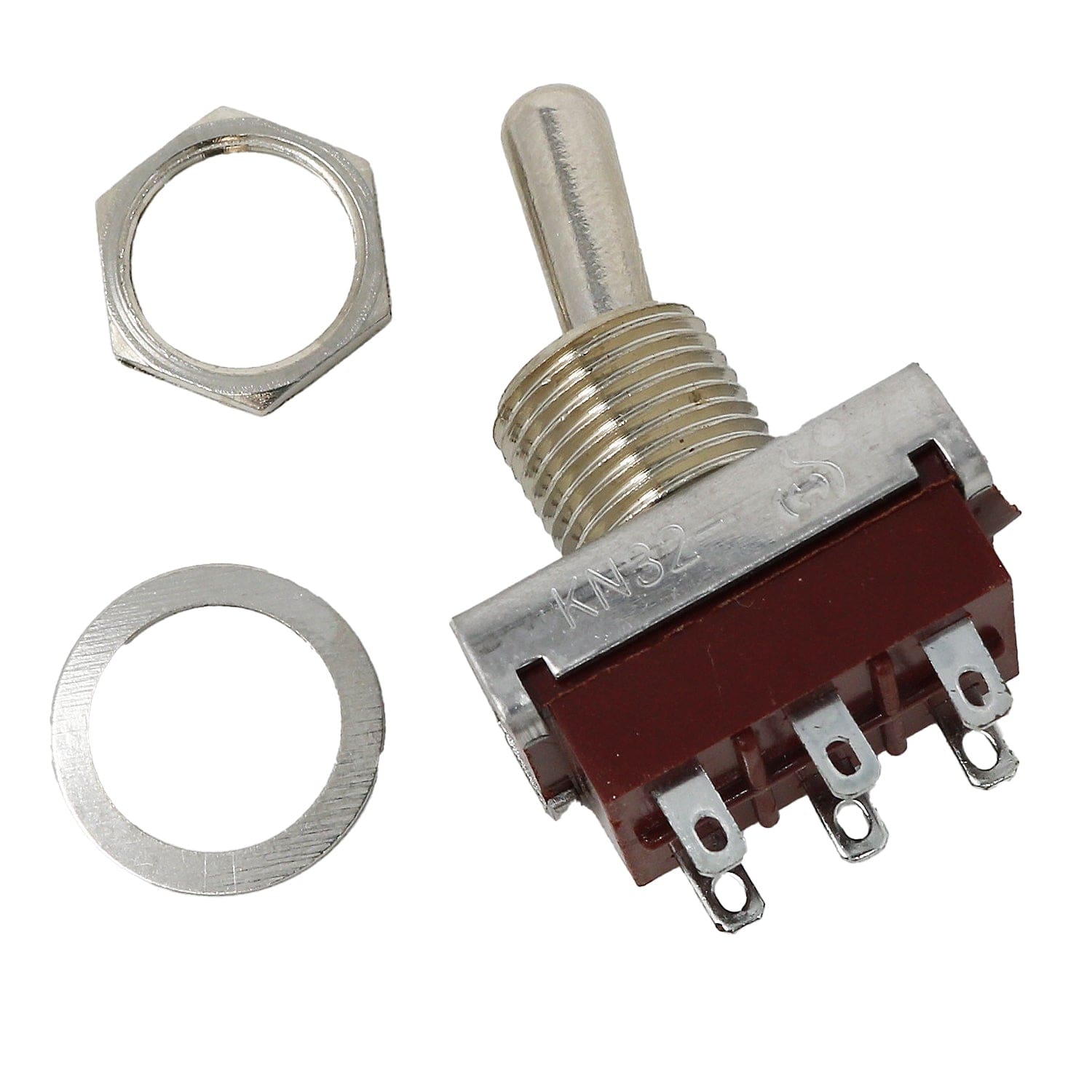

The switch comes with a washer and nut to mount to your panel/enclosure.

Do not use these switches with mains voltages!

Features

  • Toggle switch
  • DPDT (double pole, double throw)
  • Latching action
  • ON-ON switch

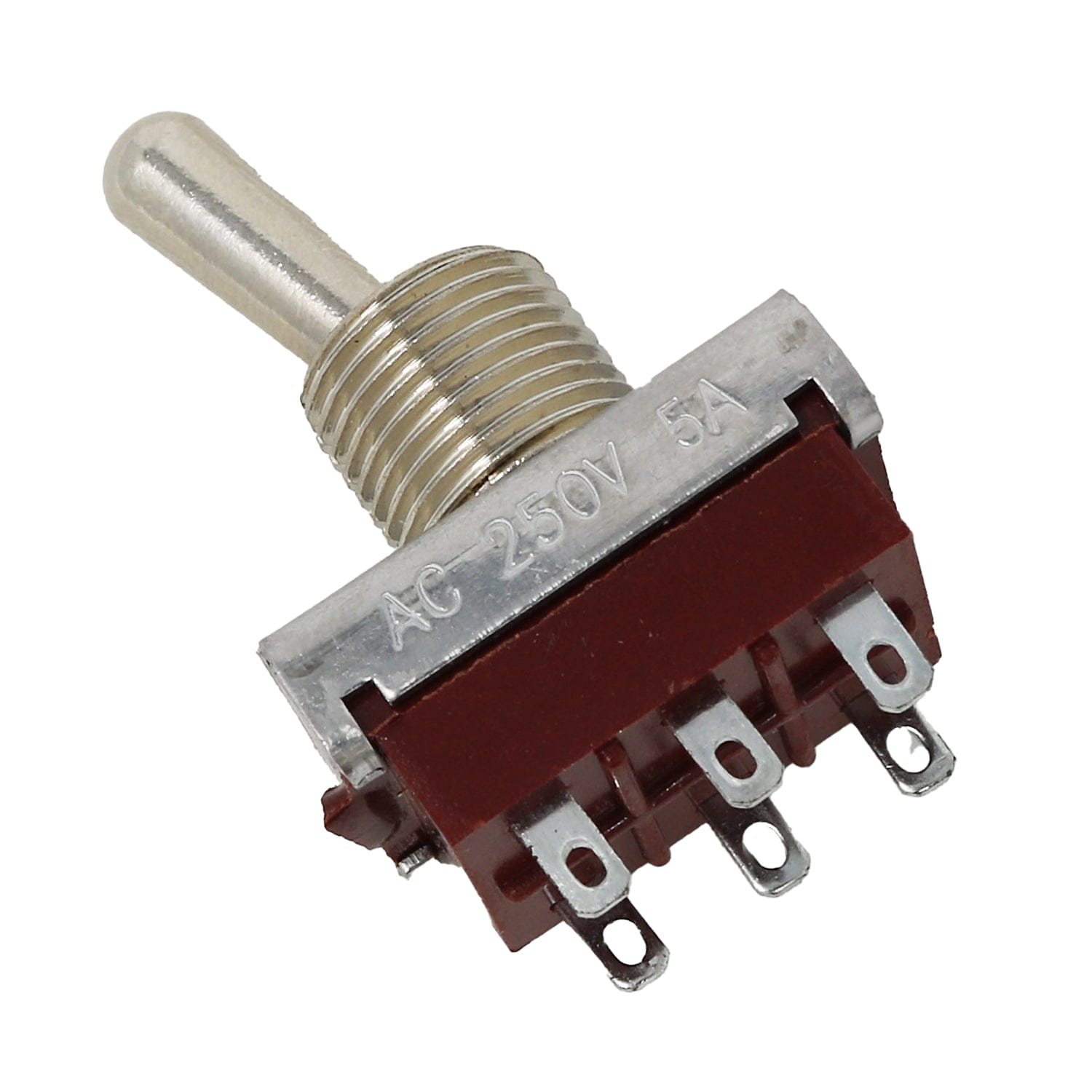

  • Rated to AC 5A/250V
  • 6 contacts/pins
  • Body colour: Red
  • Washer and nut included
  • Model number: KN32
  • Thread hole size: 12mm
  • Maximum mounting panel thickness: 7mm

Resources

  • Datasheet coming soon
