DPDT ON-ON Latching Sub-Miniature Toggle Switch

The Pi HutSKU: 105226
£1.50
incl. VAT
excl. VAT
In stock

Awesome Extras

Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
£4.40 incl. VAT excl. VAT
Notify me
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT
265-Piece Ultimate Heat Shrink Kit - The Pi Hut265-Piece Ultimate Heat Shrink Kit - The Pi Hut
The Pi Hut265-Piece Ultimate Heat Shrink Kit
£6 incl. VAT excl. VAT
Adafruit Wire Strippers - The Pi HutAdafruit Wire Strippers - The Pi Hut
The Pi HutMultifunction Wire Strippers
£6 incl. VAT excl. VAT
Magnetic Wire Grip for Soldering - The Pi HutMagnetic Wire Grip for Soldering - The Pi Hut
The Pi HutMagnetic Wire Grip for Soldering
£5 incl. VAT excl. VAT
Notify me

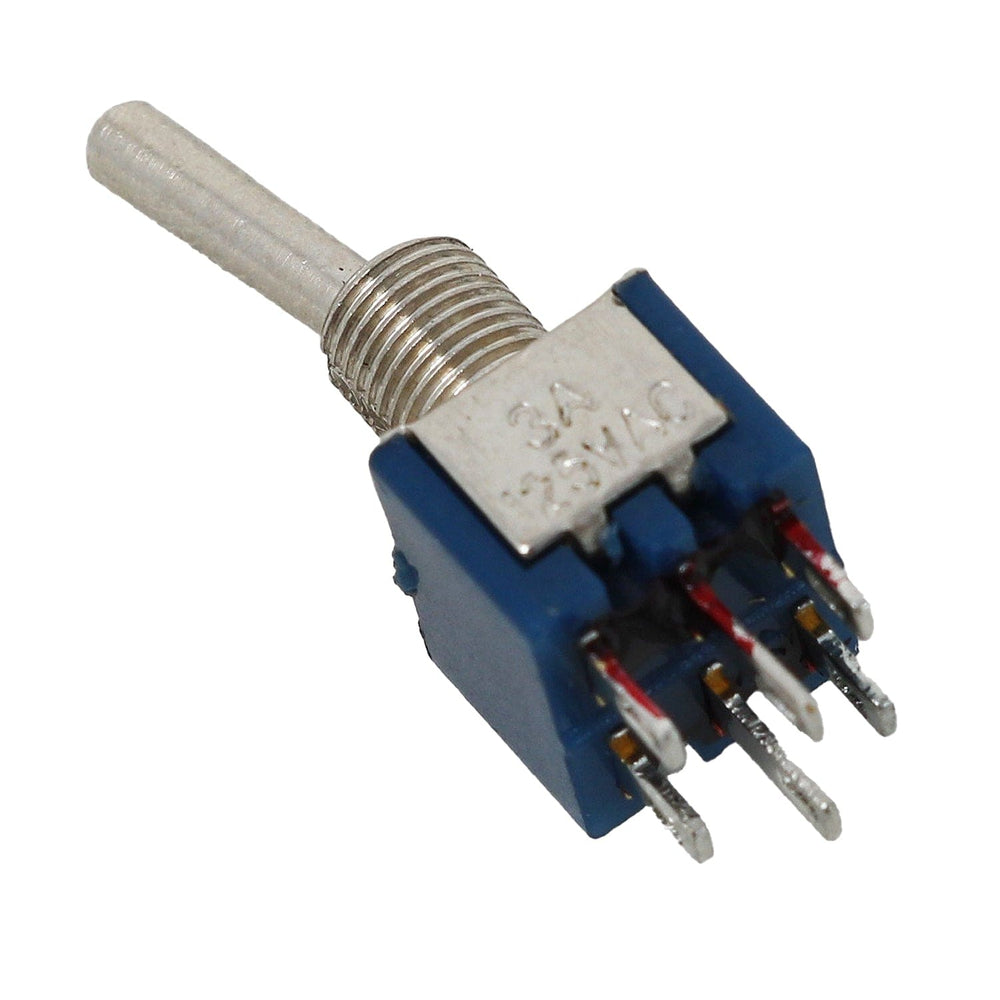

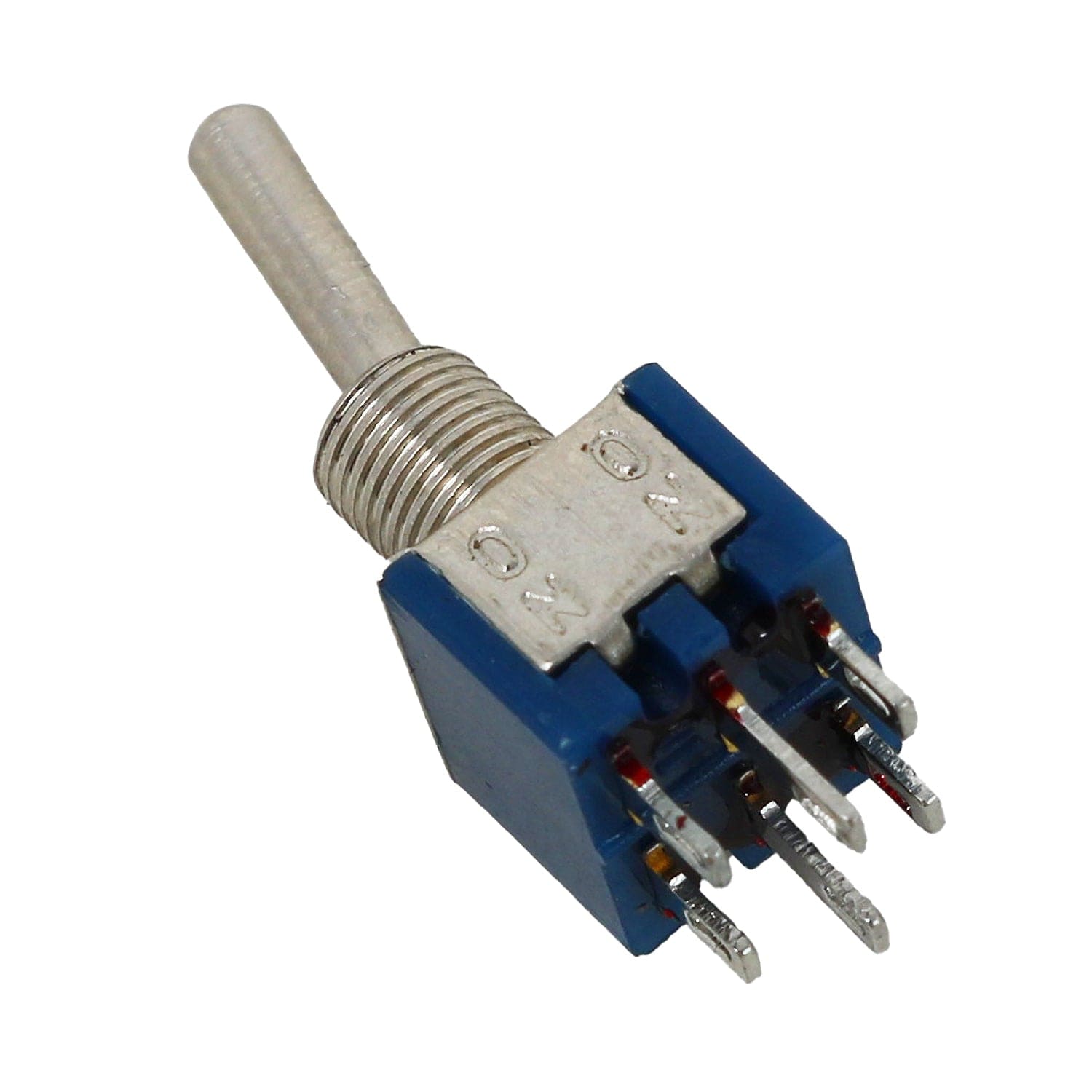

This is a Latching DPDT ON-ON sub-miniature toggle switch with 6 pins, rated to AC 3A/125V.

The switch has 6 pins allowing double pole, double throw use. The thread shaft requires a 5mm hole and has enough length to mount it to a panel/enclosure around 2-3mm thick (when using the included nuts/washers).

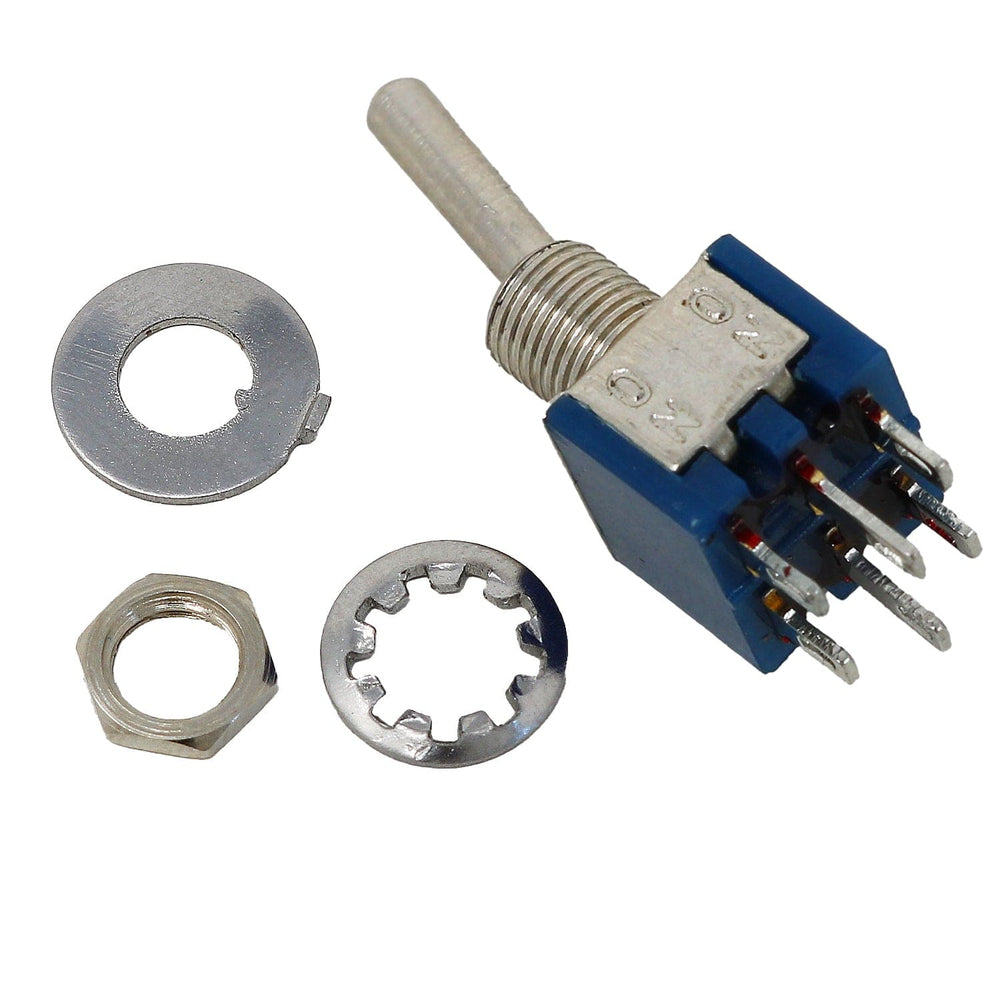

The switch comes with washers and nuts to mount to your panel/enclosure.

Do not use these switches with mains voltages!

Features

  • Sub-miniature toggle switch
  • DPDT (double pole, double throw)
  • Latching action
  • ON-ON switch
  • Rated to AC 3A/125V
  • 6 contacts/pins
  • Body colour: Blue
  • Washers and nut included
  • Model number: SMTS-202
  • Thread hole size: 5mm
  • Maximum mounting panel thickness: 2-3mm

Resources

  • Datasheet coming soon
