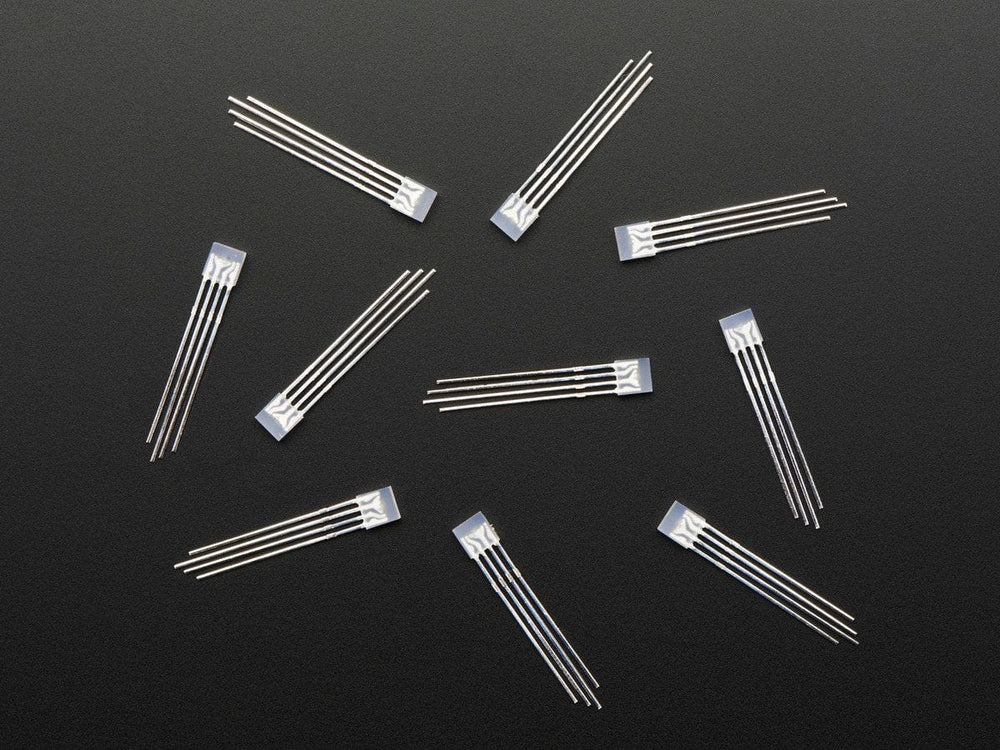

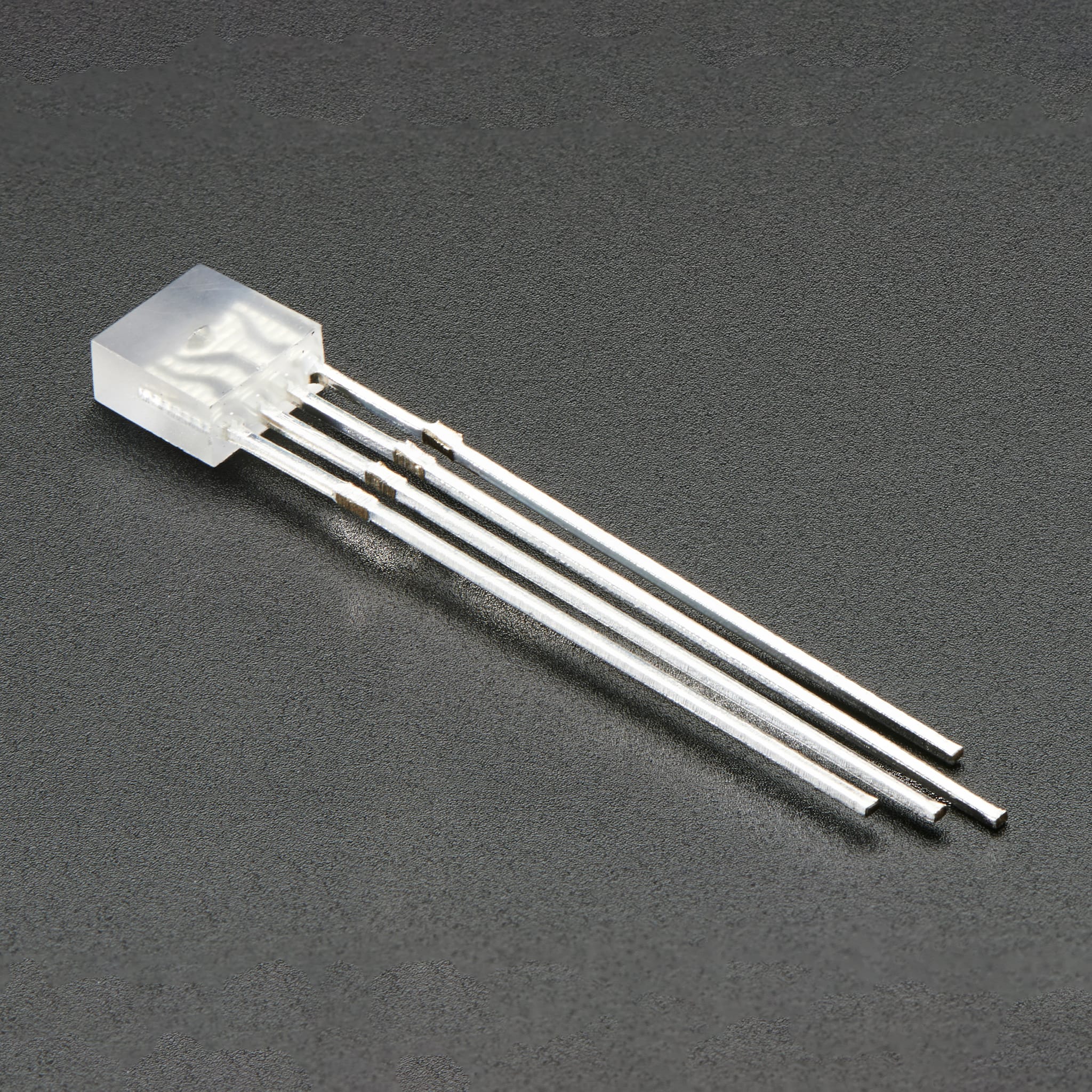

These Diffused Rectangular 5mm RGB LEDs combine red, green and blue chips in a diffused package for smooth colour mixing and colourful indicators. Supplied as a pack of ten.

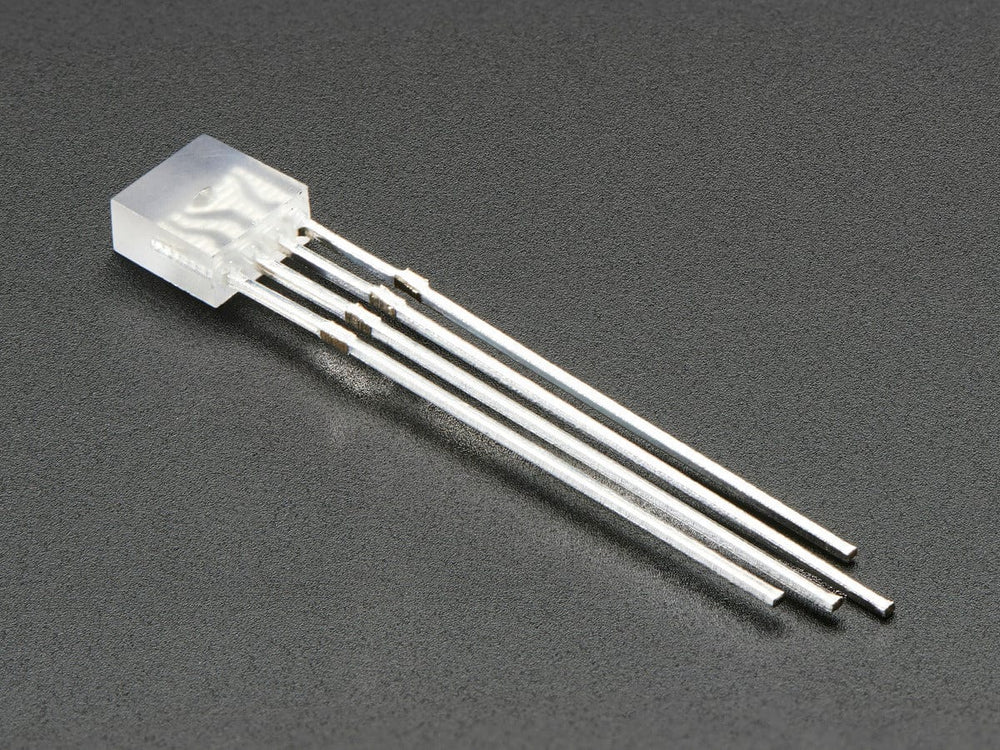

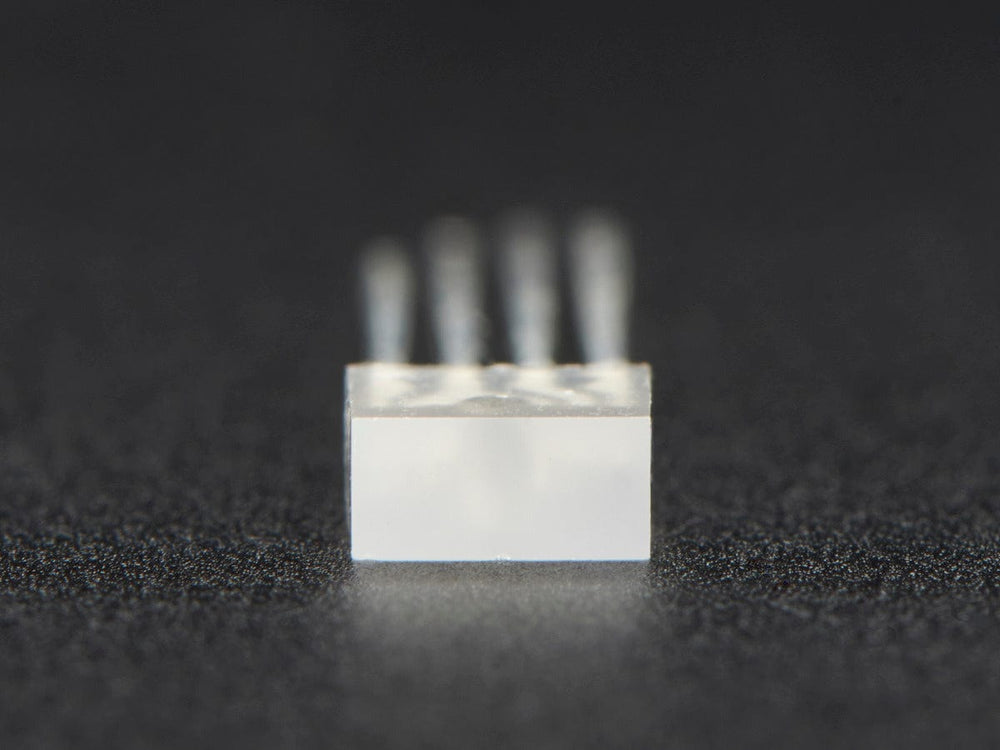

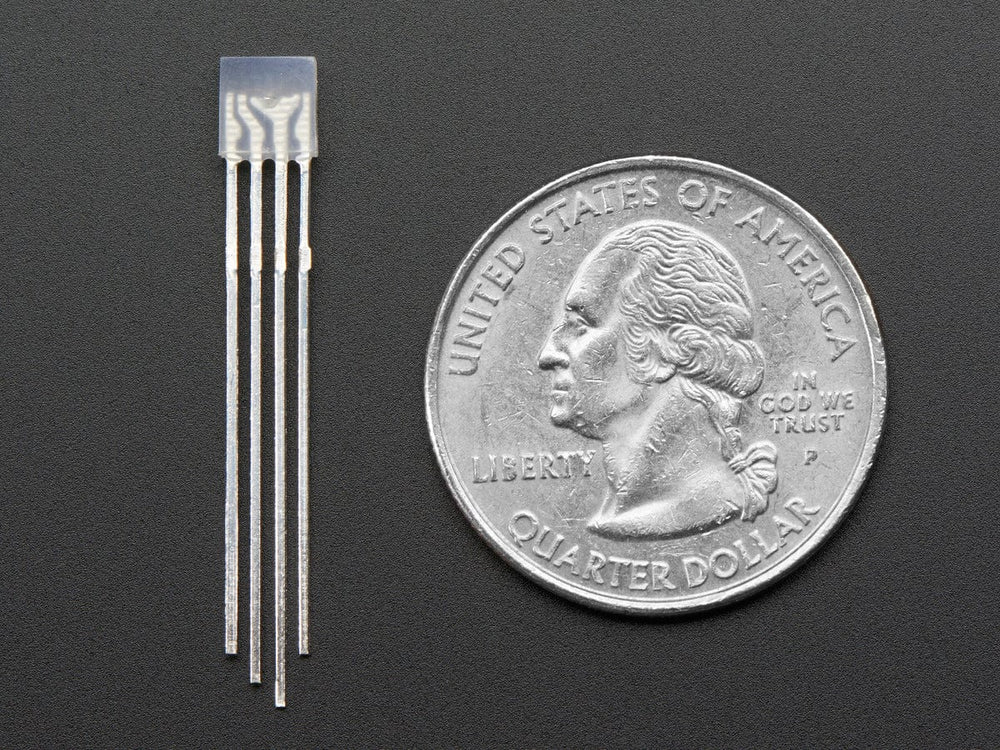

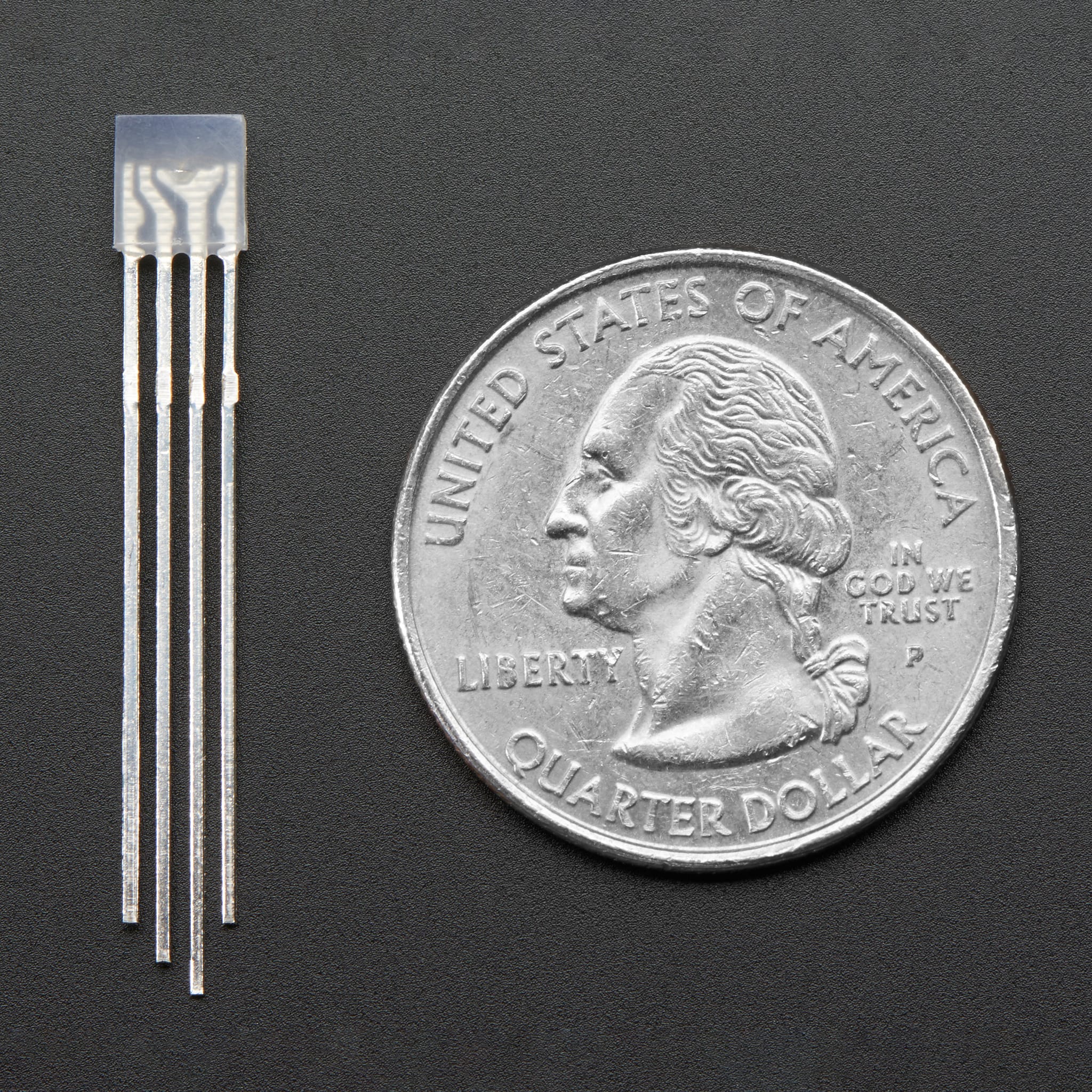

Make some beautiful colours with these diffused rectangular 2.5mm x 5mm RGB LEDs with separate red, green and blue LED chips inside!

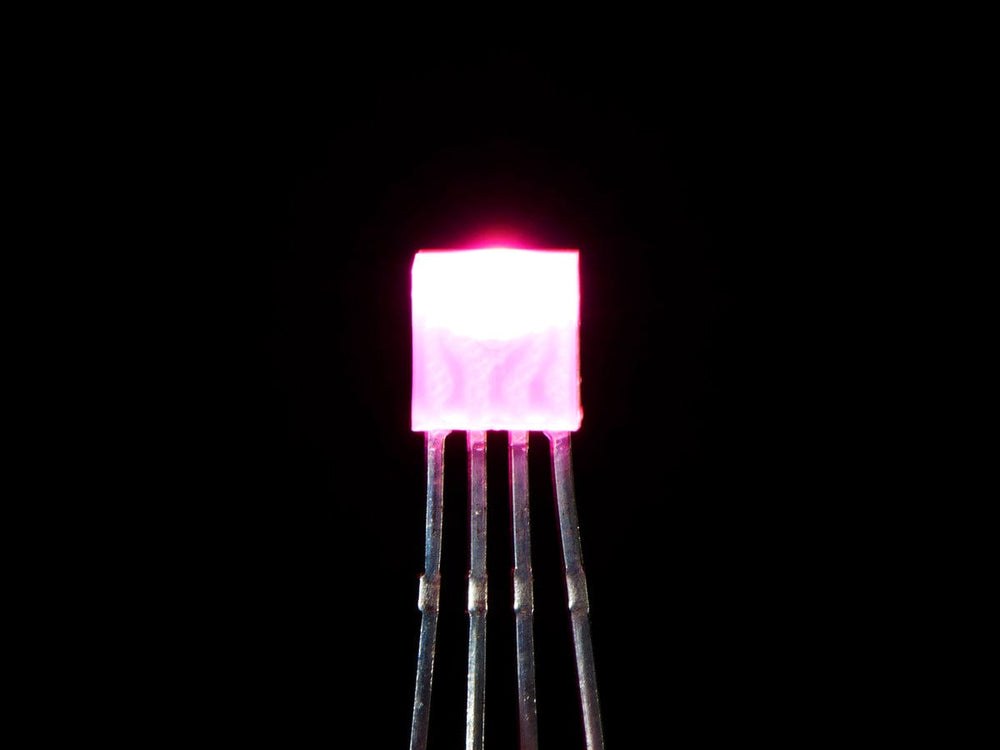

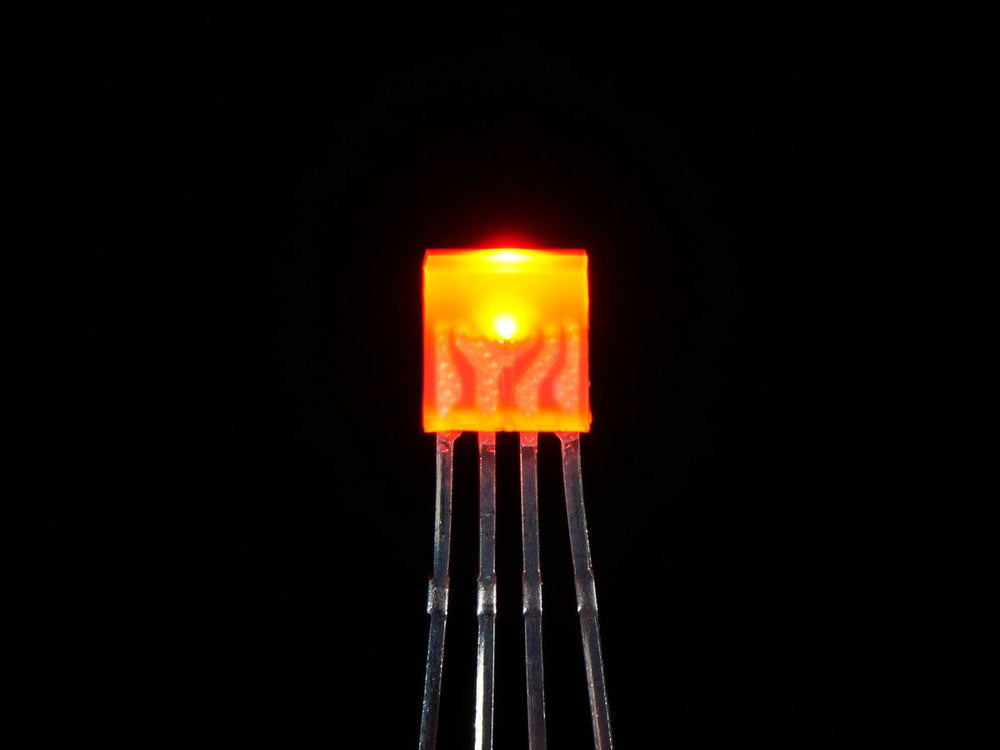

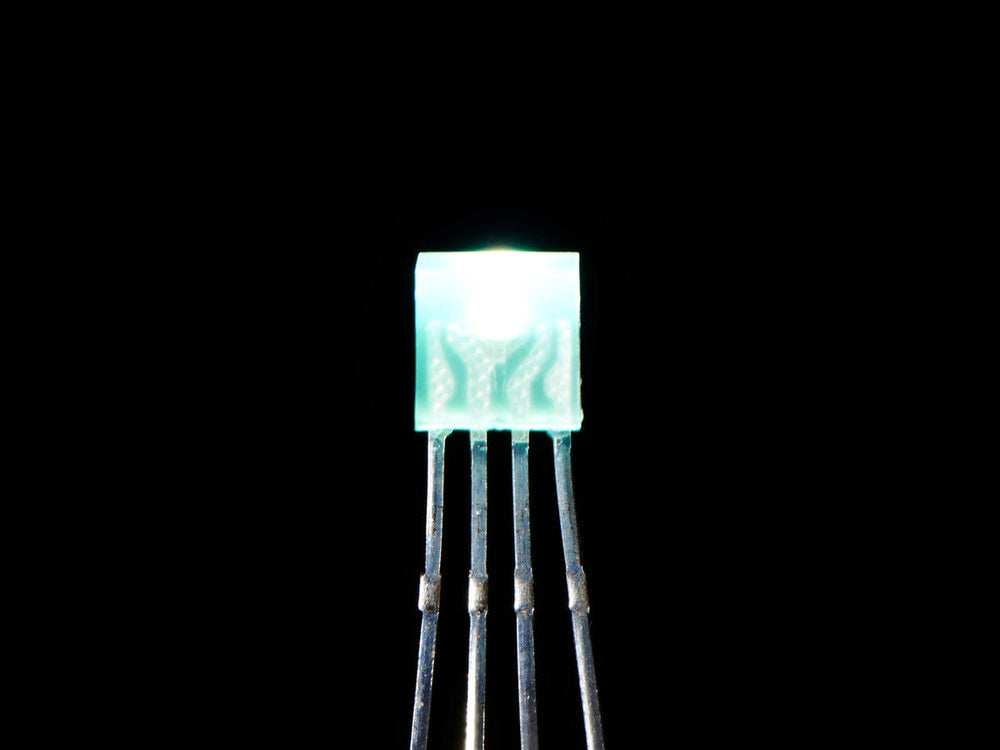

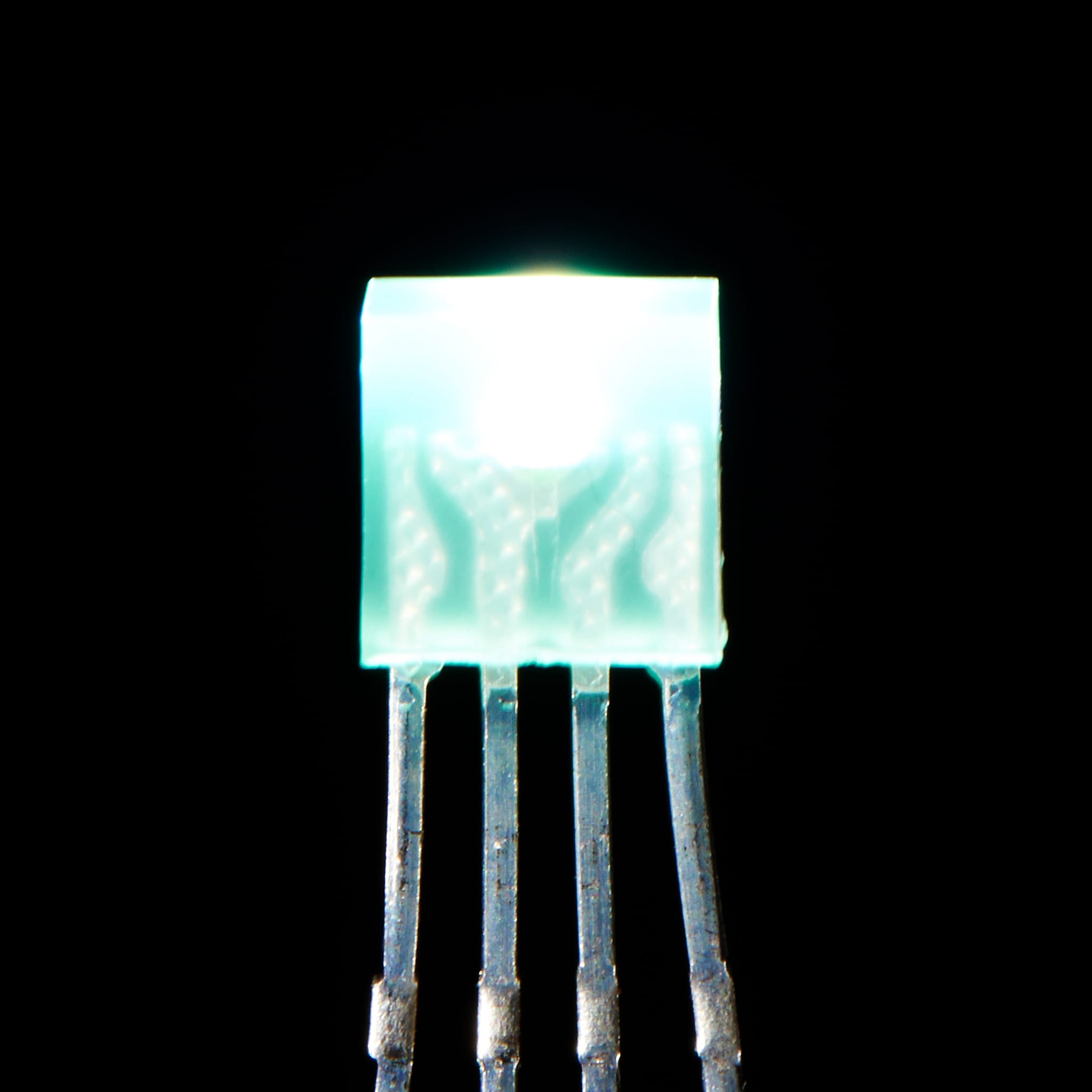

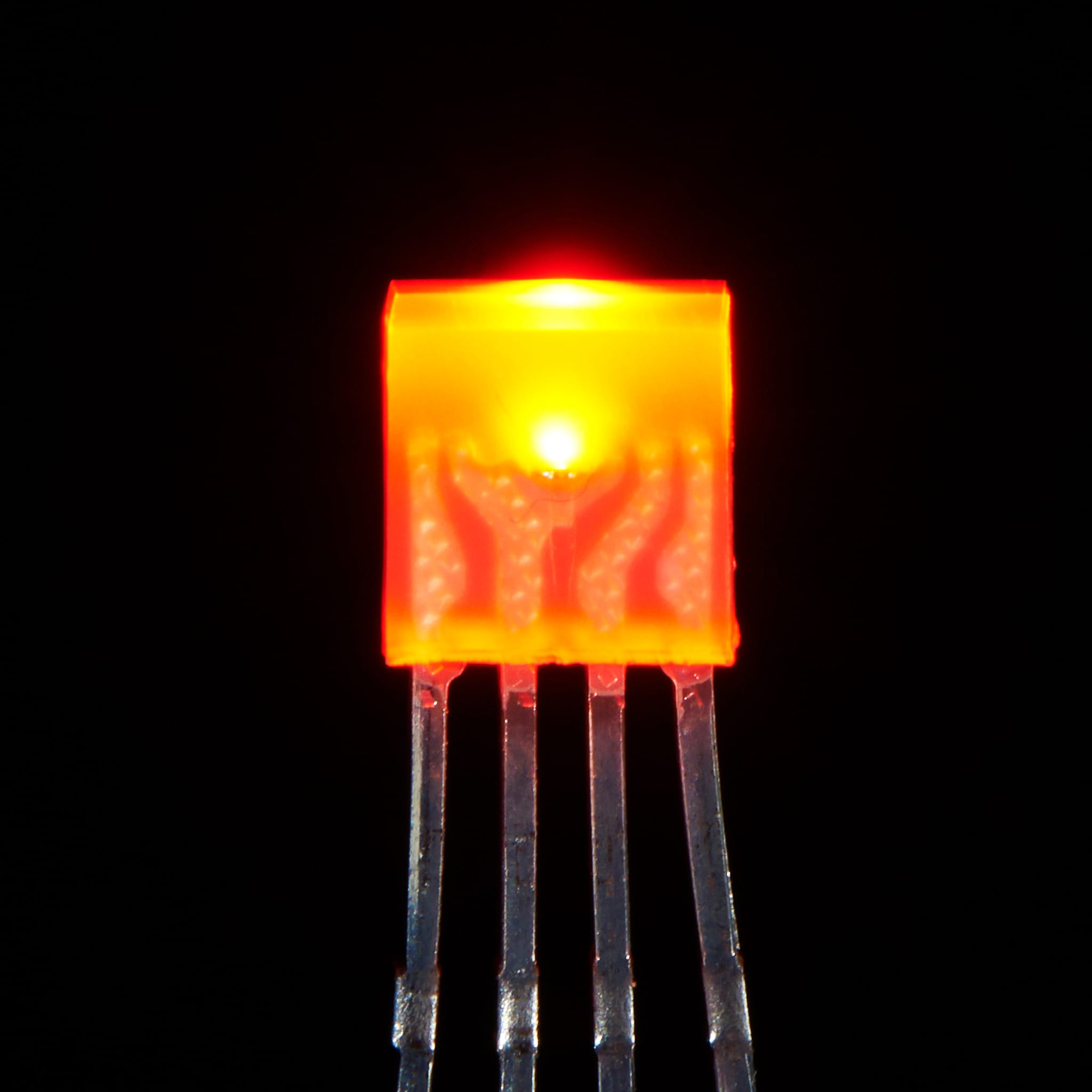

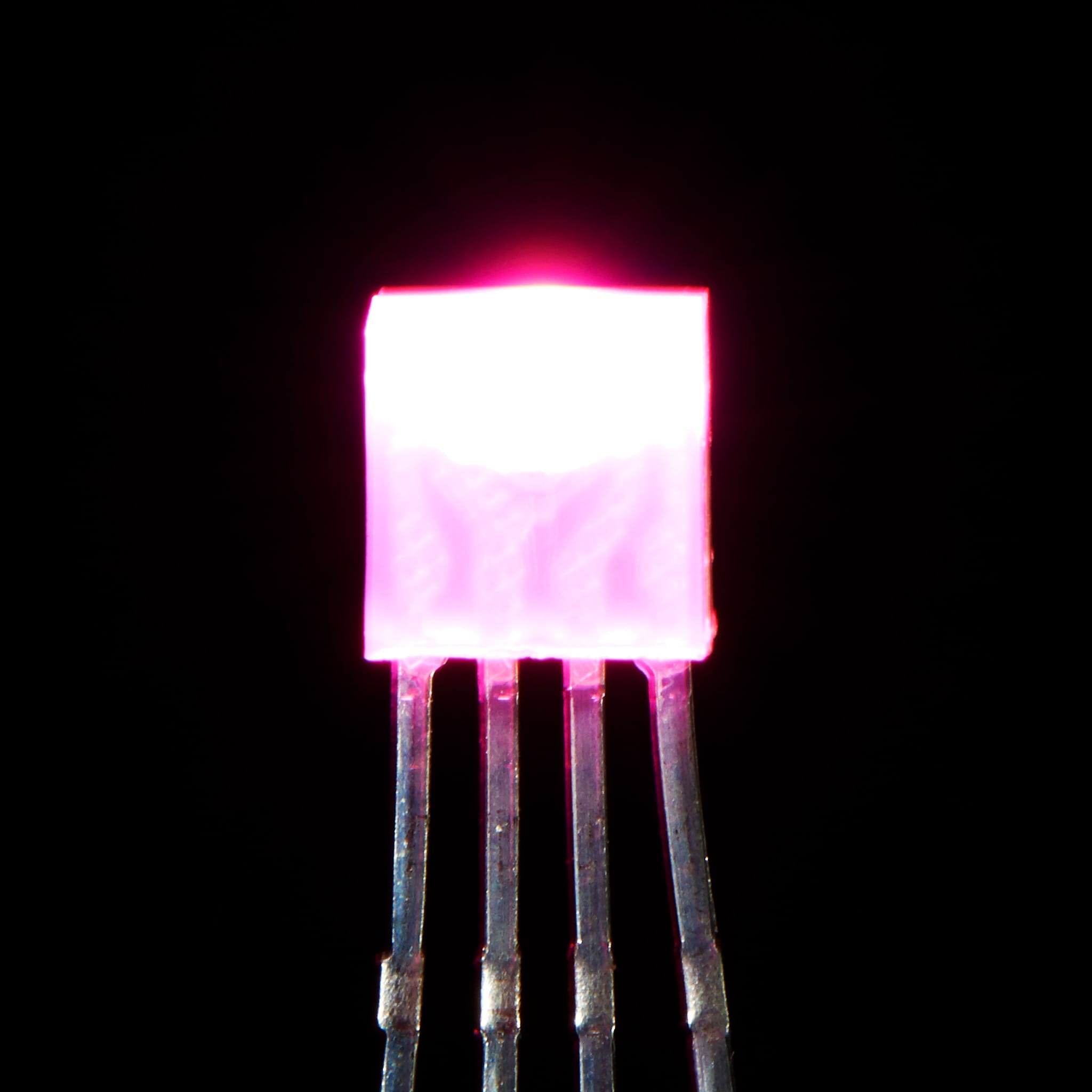

They make nice indicators, and they're fun to colour-swirl! We like diffused RGB LEDs because they colour mix inside instead of appearing as 3 distinct LEDs.
These are Common-Anode type which means you connect one pin to 5V or so and then tie the other three legs to ground through a resistor. We carry and use CA more than CC because multi-LED driver chips (such as the TLC5940/TLC5941) are often designed exclusively for CA and can't be used with Common-Cathode.
If you need some help using LEDs, please read our "Introduction to using LEDs" tutorial for any electronics project.
Features
Diffused rectangular 2.5mm x 5mm RGB LEDs with separate red, green and blue LED chips

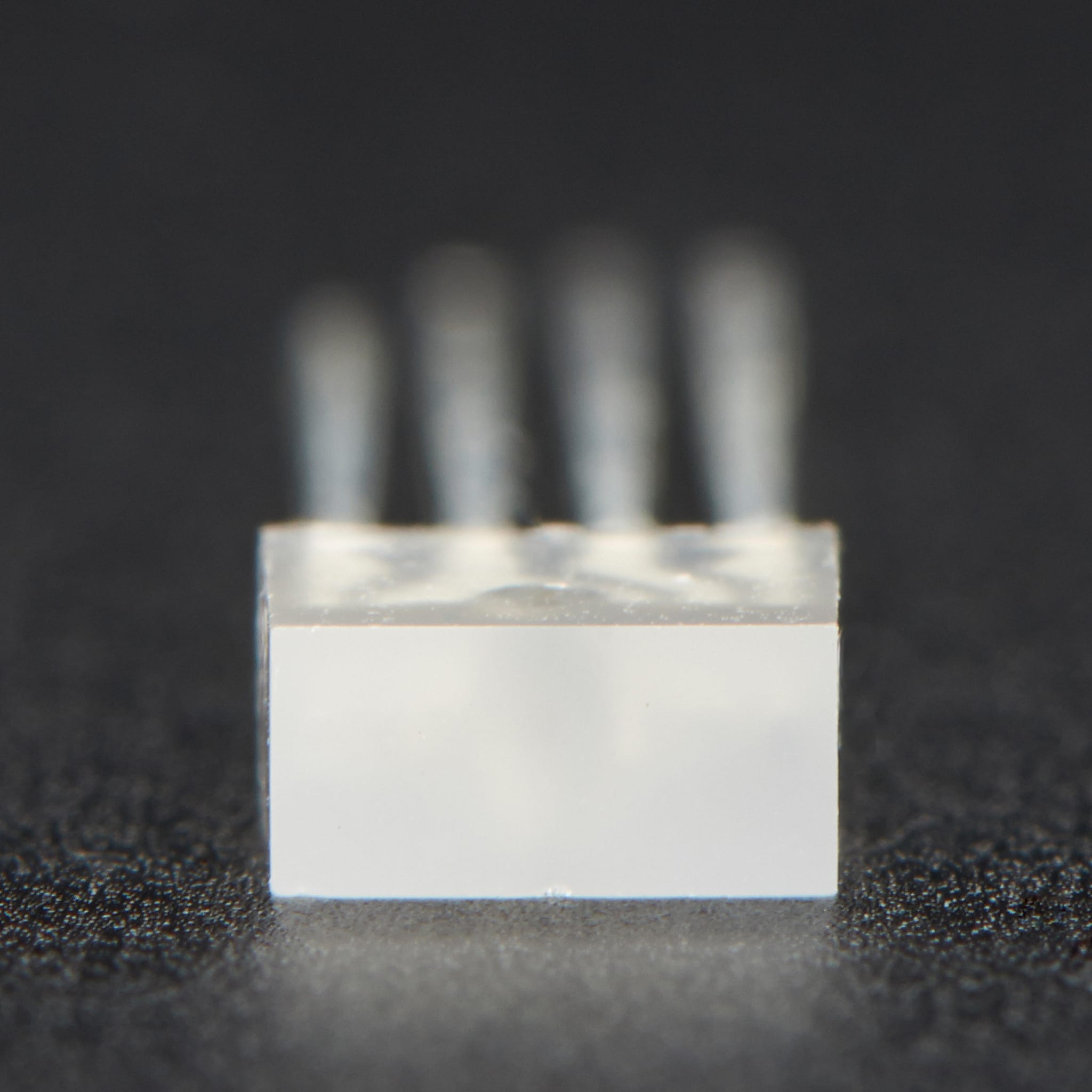

Colour mixing occurs inside the diffused lens for seamless colour blending
Common-Anode configuration - connect one pin to 5V and three legs to ground through resistors
Compatible with multi-LED driver chips such as TLC5940 and TLC5941

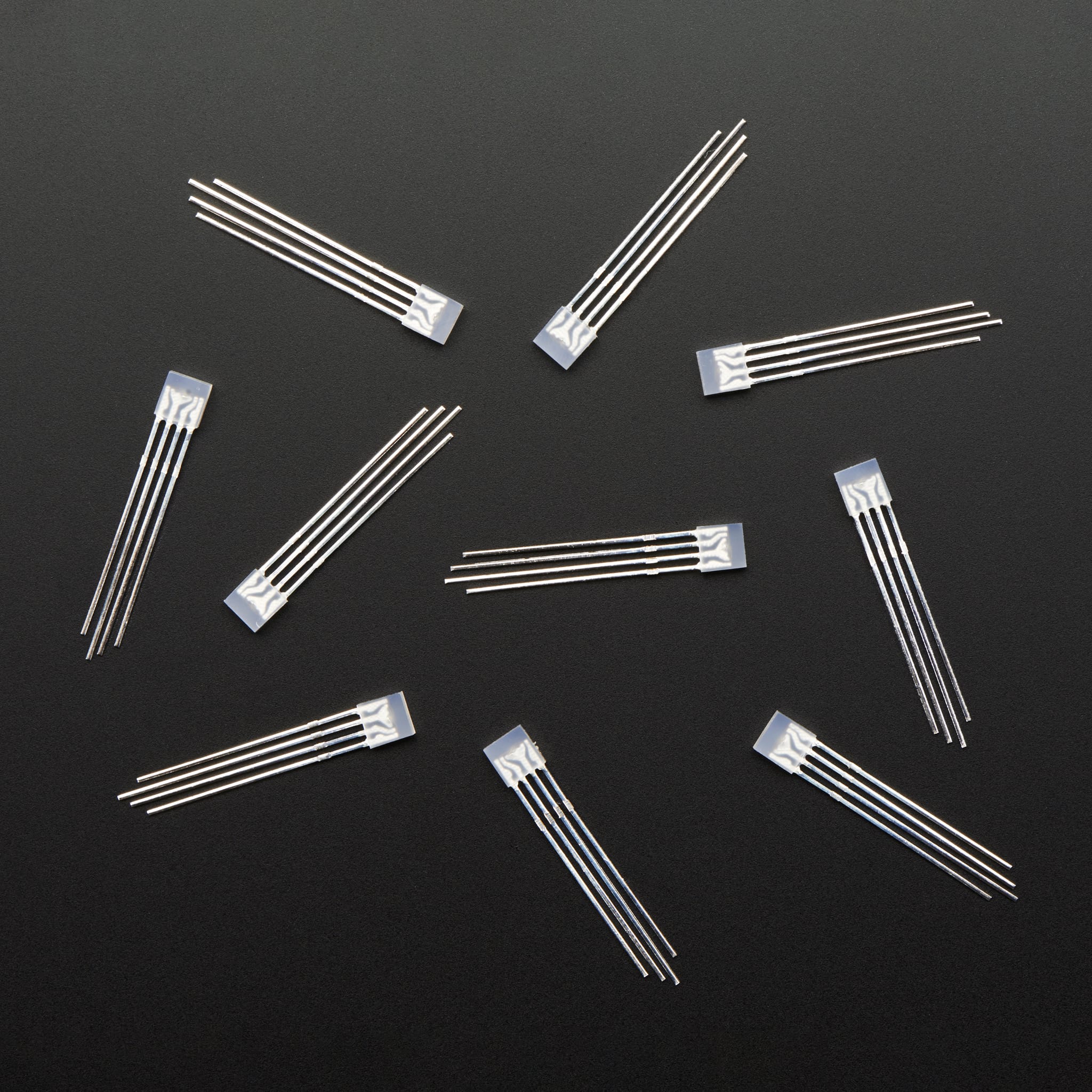

Pack of 10 LEDs
Ideal for indicators and colour-swirling applications
