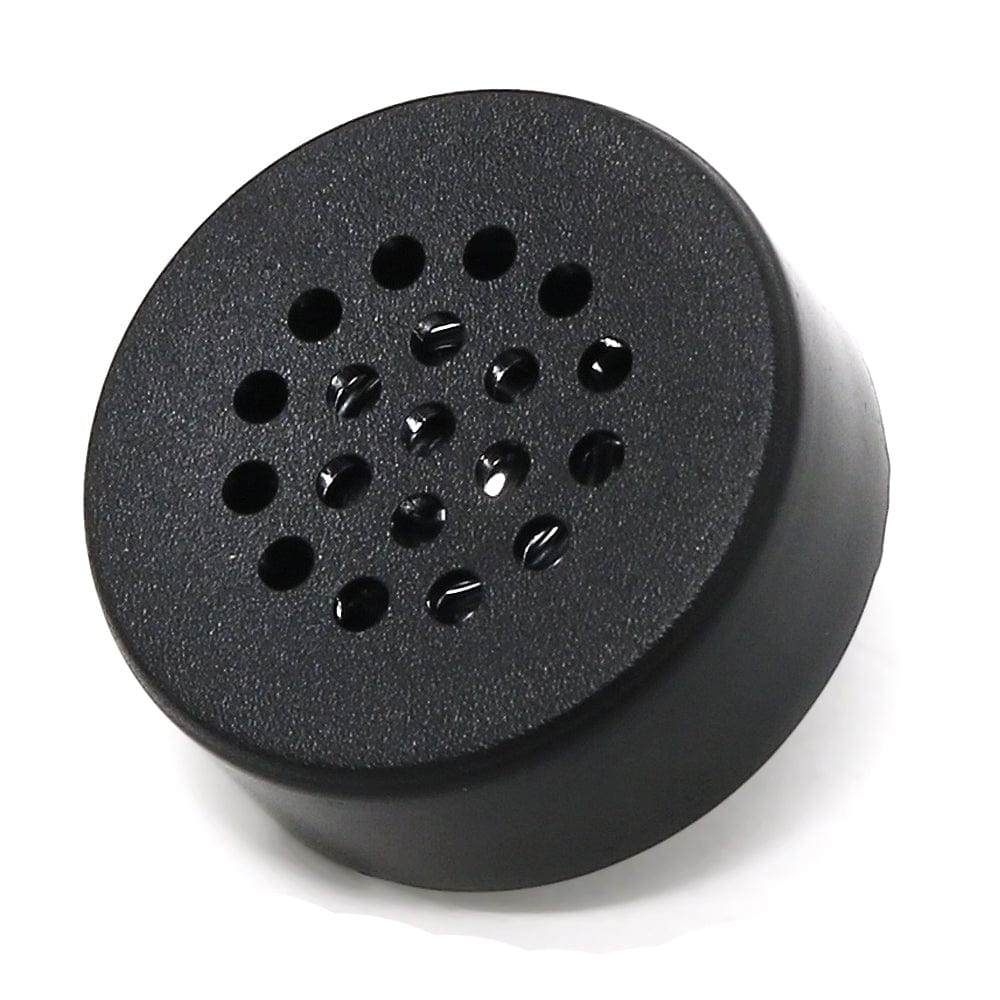

Compact Breadboard-Friendly Mini Speaker - 8 Ohm 0.2W

If you're prototyping your next audio project but your breadboard is already tight on space, these compact versions of our breadboard-friendly speakers might help save you a little real estate for those final few components.

These speakers are rated 8 Ohm 0.2W just like the originals, but come down to just 22mm diameter and only 9mm tall (not including the legs).

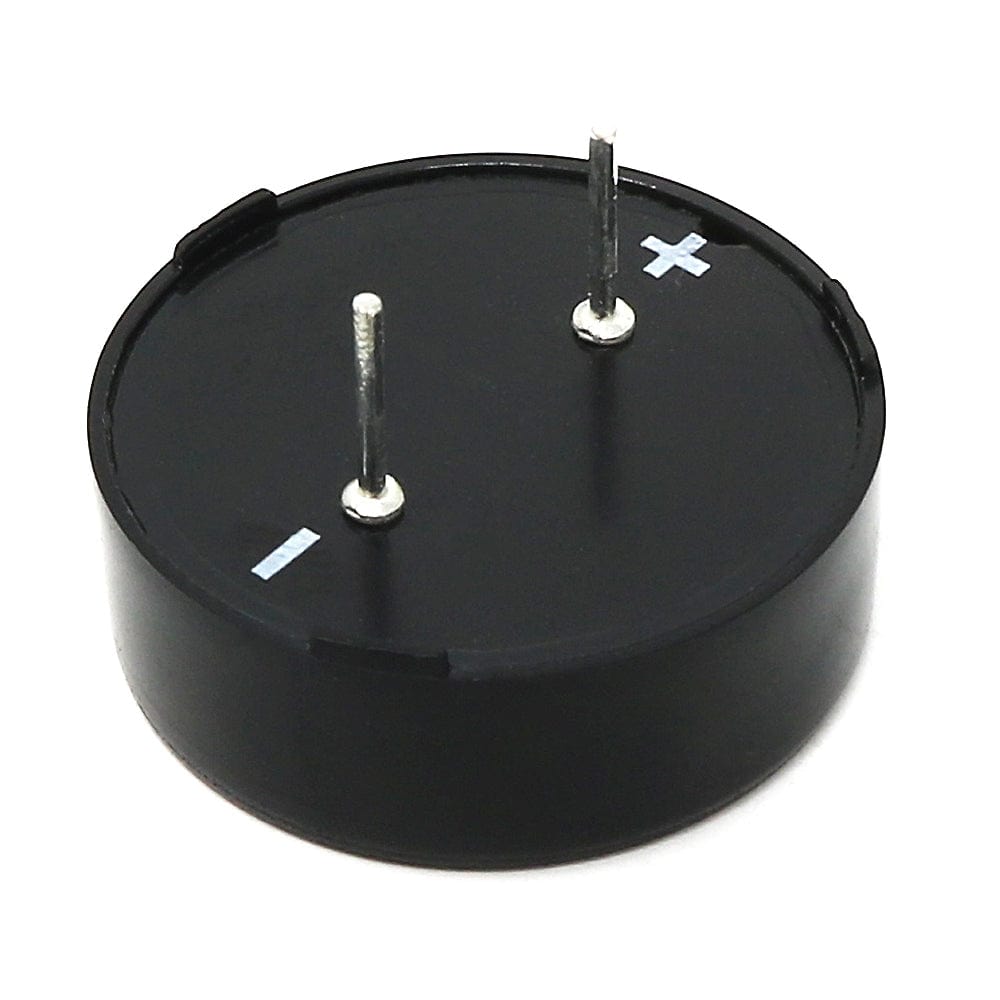

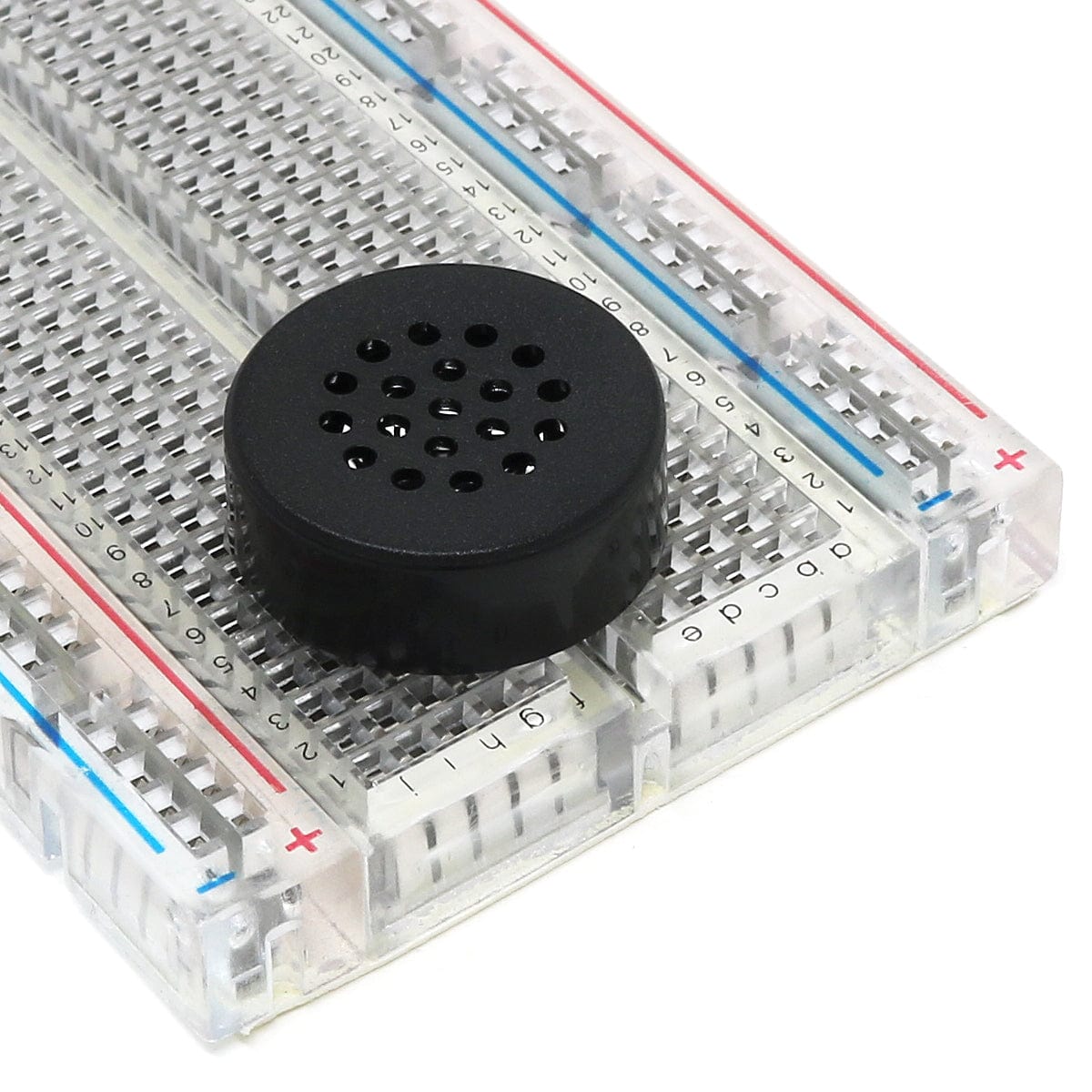

The underside has clear + and - markings and the surprisingly strong legs will pop straight into your breadboard. If you want to use this on a PCB design, you may want to measure the legs first as they're thicker than most common components.

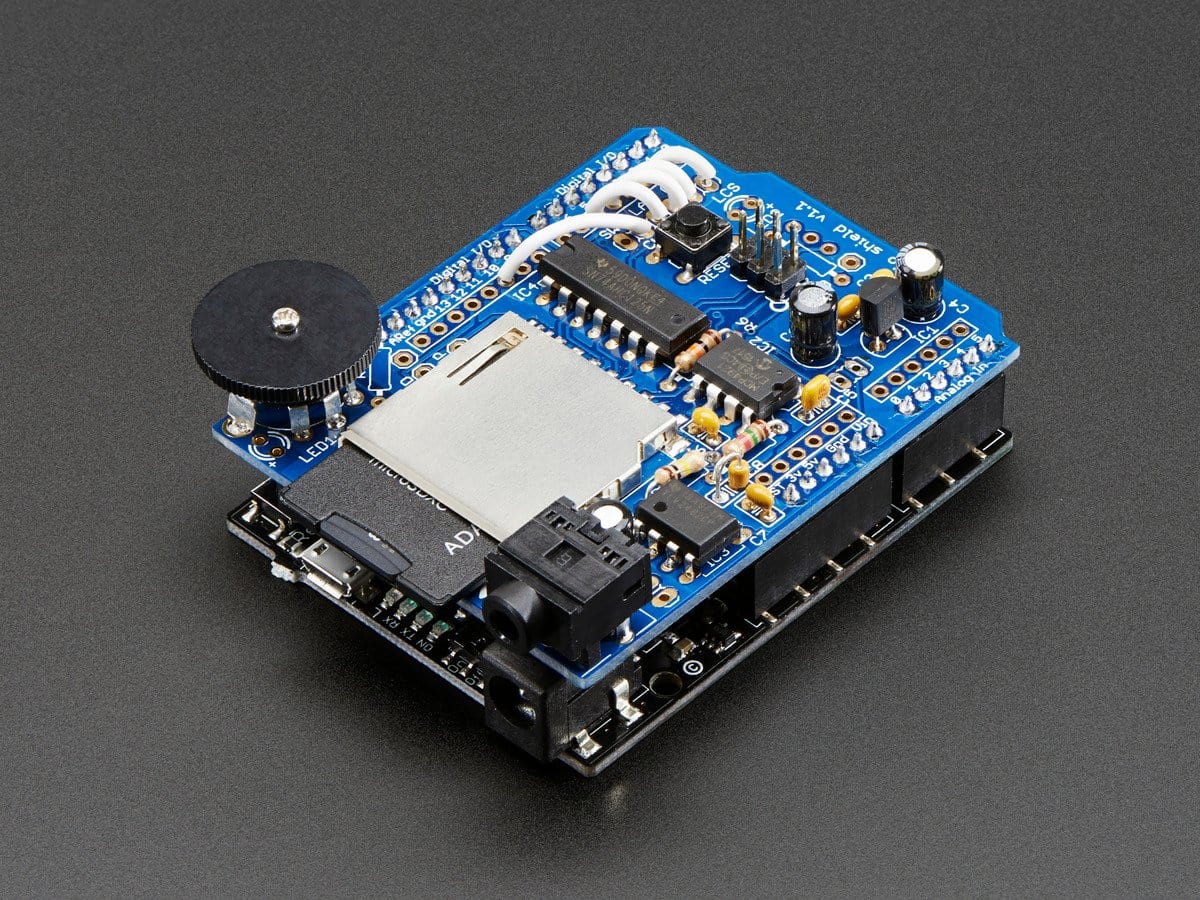

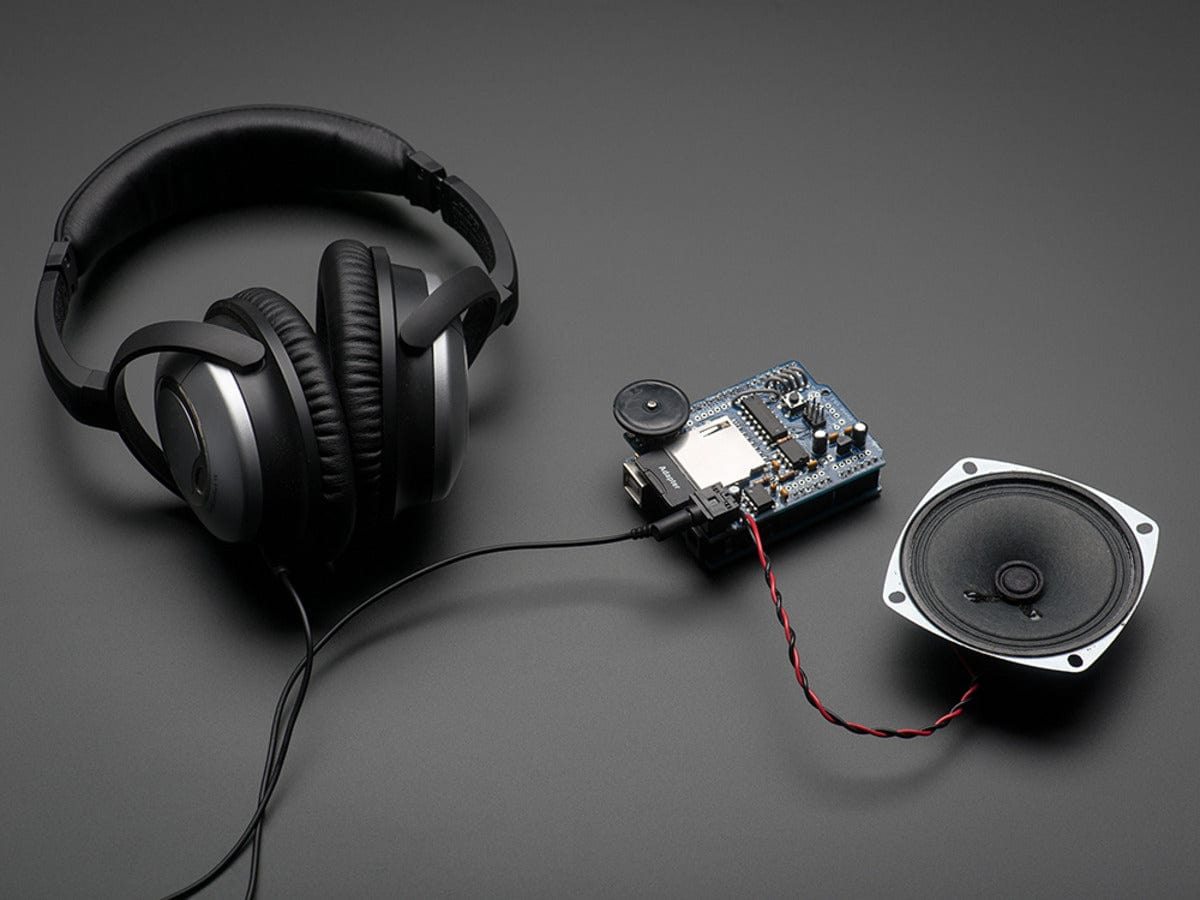

The two pins are ~10mm apart. Works great with the Adafruit Wave shield or class D amplifier board (just be careful not to overdrive it).

Specifications
