Breakout Card Kit Pluggable-Prototype-Breadboard SM/TH for Raspberry Pi

SequentSKU: 105526
Price:
Sale price £23.40
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 5
Sale priceFrom £57.60 incl. VAT excl. VAT
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

This Breakout Card Kit for Raspberry Pi is a pluggable prototype breadboard designed for both surface mount (SM) and through-hole (TH) projects. The kit includes a main card that connects all Raspberry Pi GPIO pins to robust pluggable terminal blocks. The GPIO pins are initially linked to a 2 x 20-hole array, then rerouted to three 2 x 12-pin headers for easy external or add-on card connections. Each GPIO pin is clearly labelled for easier identification. The main board also features a 12 x 22 hole array for through-hole projects, with a top VCC bus bar and a bottom ground bus, both configurable via a 3-pin jumper.

The kit also comes with two add-on cards for advanced projects.

  • The first add-on card caters to various surface mount ICs with pitches of 0.635mm, 0.5mm, and 1.27mm, along with slots for SOT23-5 and SOT23-3 footprints. Its design mirrors the main board, including a selectable VCC bus and an expansive 2.54mm pitch-hole grid.
  • The second add-on card is tailored for 0.65mm pitch circuits and features breakout areas for LQFP32 and LQFP48 microprocessor footprints. Each add-on card connects easily to the main board using three 2 x 12 female headers, providing easy integration for diverse electronic projects.

Note: Raspberry Pi is NOT included

Features

  • Breakout Card Kit Pluggable-Prototype-Breadboard SM/TH for Raspberry Pi
  • Routes all 40 I/O and power pins to pluggable terminal blocks
  • Main card with prototype area for Through Hole projects
  • Two add-on cards with prototype areas for Surface Mount projects
  • 3.5mm Pitch Heavy Duty Pluggable Terminal Block Connectors
  • All connector plugs included
  • Wire range: 24 - 14 AWG
  • Brass standoffs, screws and nuts included

What's on Board - Main Board

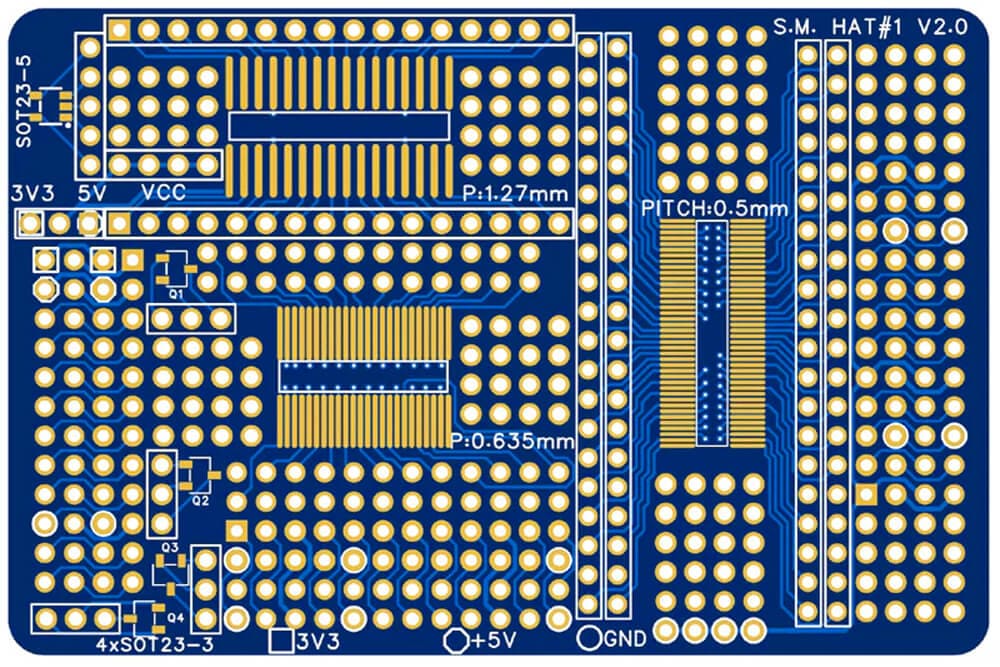

Add-on Card #1

Add on Card #2

Package Contents

  • 3x Breakout Breadboard Prototype Cards
  • Board Mounted Connectors
  • Connector Plugs
  • Mounting Hardware
