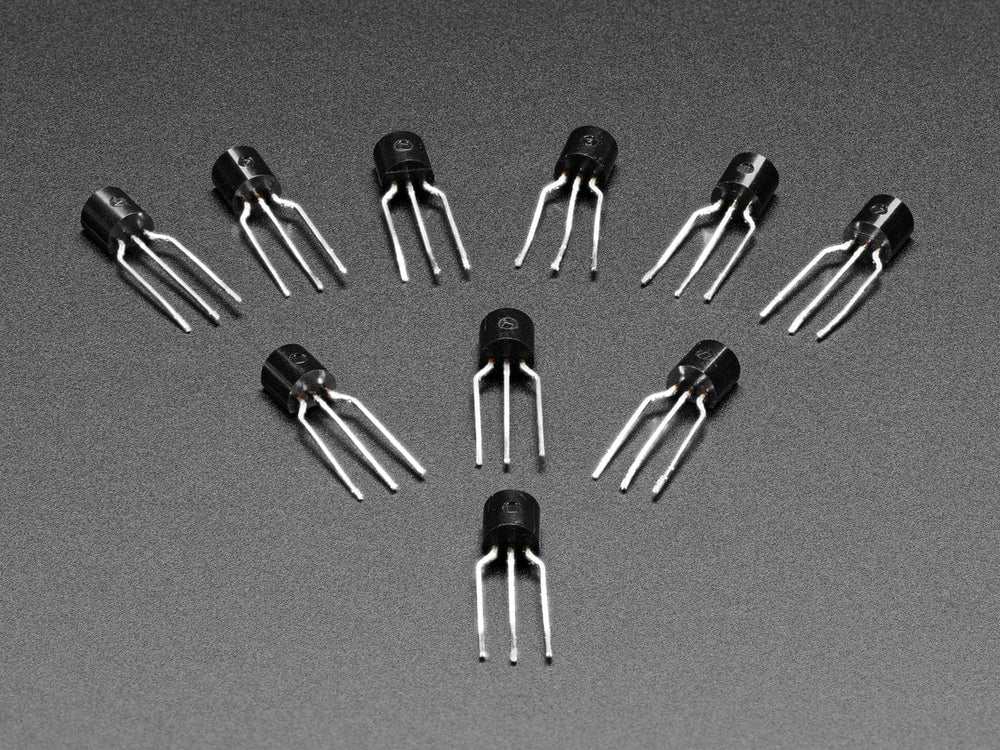

Bipolar Transistor Kit - 5 x PN2222 NPN and 5 x PN2907 PNP

Transistors are powerful little electronic switches, and we really like these NPN and PNP transistors whenever we need to control medium-power electronics, such as small motors, solenoids, or IR LEDs. We find them so handy we threw together a mix-and-match bag of PN2222 and PN2907! You get 5 x NPN and 5 x PNP, very handy for your class B amplifier, high or low side control, LED strips, what-have-you.

Each transistor is a general purpose amplifier with a standard EBC pinout.

• PN2222 (same pinout as the 2N3904) can switch up to 40V at peak currents of 1A (not continuously, just peak!), with a DC gain of about 100.

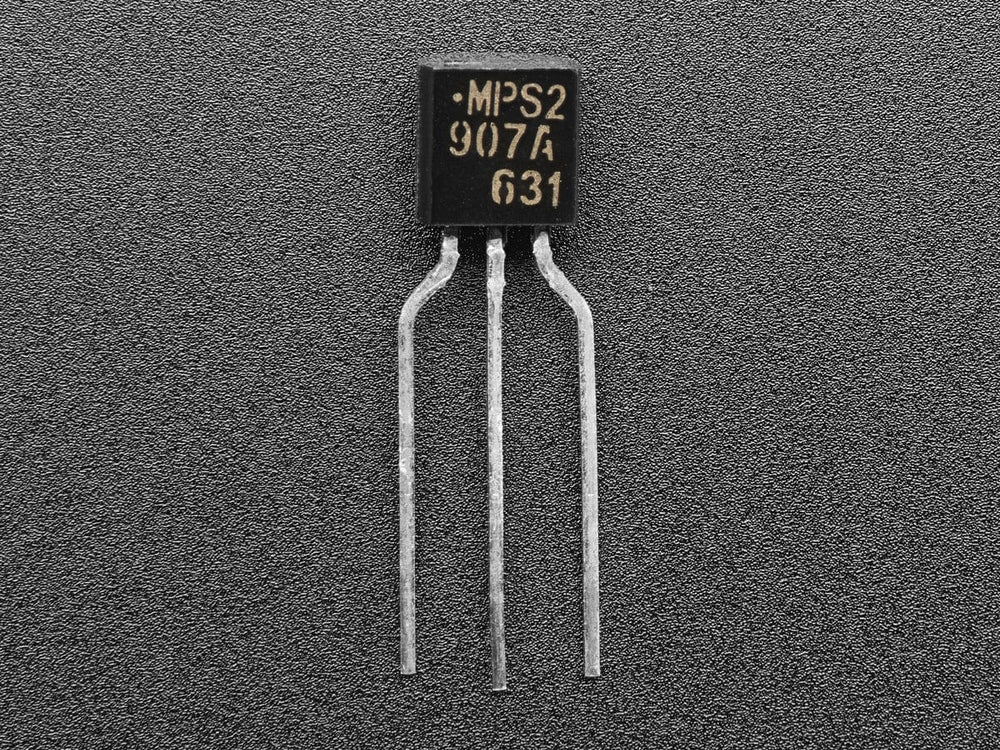

• PN2907 can switch up to 60V at peak currents of 600 mA (again, not continuously, just peak!), with a DC gain of about 100.

They're basically your garden-variety bi-polar transistors, and do the job with class!

Technical Details
