ArduinoSKU: ASX00012
£42.50
incl. VAT
excl. VAT
Only 4 units left

Awesome Extras

Arduino MKR Zero - The Pi HutArduino MKR Zero - The Pi Hut
ArduinoArduino MKR Zero
£30 incl. VAT excl. VAT
Thermocouple Type-K Glass Braid Insulated - The Pi HutThermocouple Type-K Glass Braid Insulated - The Pi Hut
The Pi HutThermocouple Type-K Glass Braid Insulated (K)
£9.60 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT

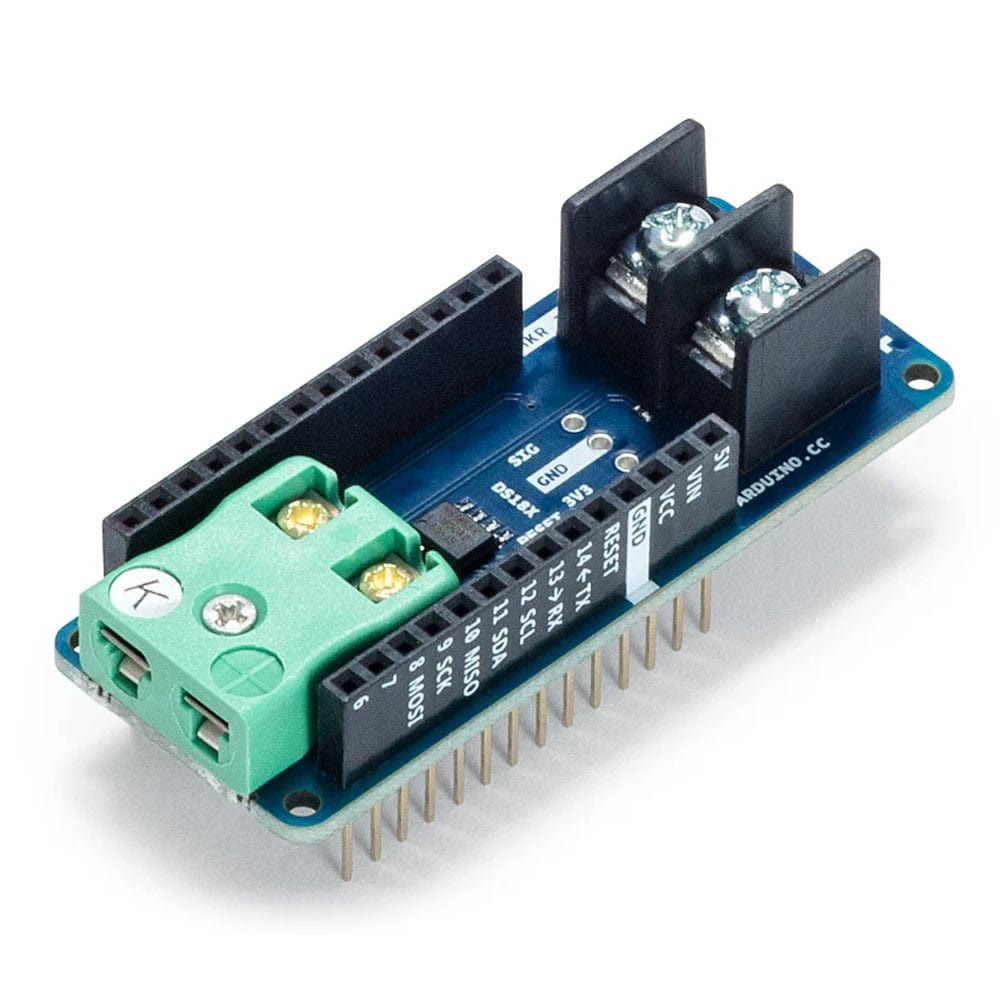

Your solution for precise and extended range temperature measurements - the MKR THERM Shield allows a board of the MKR family to acquire temperatures from a thermocouple of type K and a DS18Bxx digital one-wire sensor.

The Thermocouple is a kind of temperature sensor that offers high accuracy and a wide range of measured temperatures. Its analogue nature requires specific interfacing and this shield relies on the MAX31855 thermocouple digital interface.

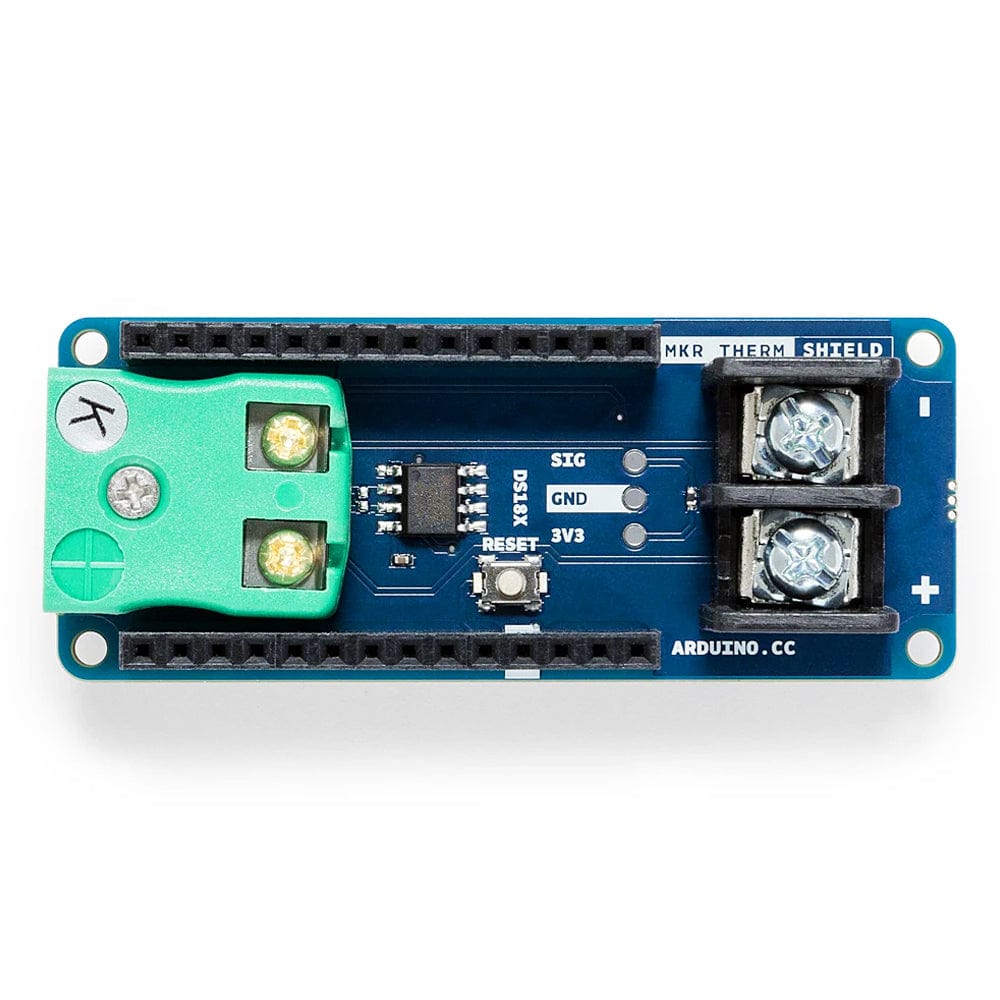

The two connectors of the MKR THERM Shield allow the usage of Type K thermocouples with or without a plug attached to the metal wires

The MKR THERM Shield has its own library to read the temperature measured by the thermocouple. You may find further details and a usage example in our Getting Started page.

Specifications

Connectors K TYPE
DALLAS DS18S20  (to solder)
Screw terminal block
Input Voltage 3.3V
Operating Voltage 3.3V
Operating Temperature -200°C + 700°C
Communication SPI/1Wire
IC MAX31855
Length 61 mm
Width 25 mm
Weight 32 gr.
