This tiny UVC driver-free USB Camera from Arducam features a high-quality Sony IMX291 1/2.8″ CMOS sensor with 80dB wide dynamic range and 95° pinhole M12 lens, capturing 1080p 30FPS video with excellent low-light performance!

The Arducam invisiCAM measures just 19.5x15x17.3mm with a 1m cable, and includes a pinhole M12 lens with a 95° diagonal angle. It boasts the smallest camera board and M12 lens, housed in a CNC metal casing to aid heat dissipation.

The camera is UVC driver-free, supporting Raspberry Pi as well as Windows XP/7/8/10, Linux, and Mac OS. Just plug it into your device via USB Type-C or the included Type-C to USB-A adapter - no additional drivers are needed.

Features

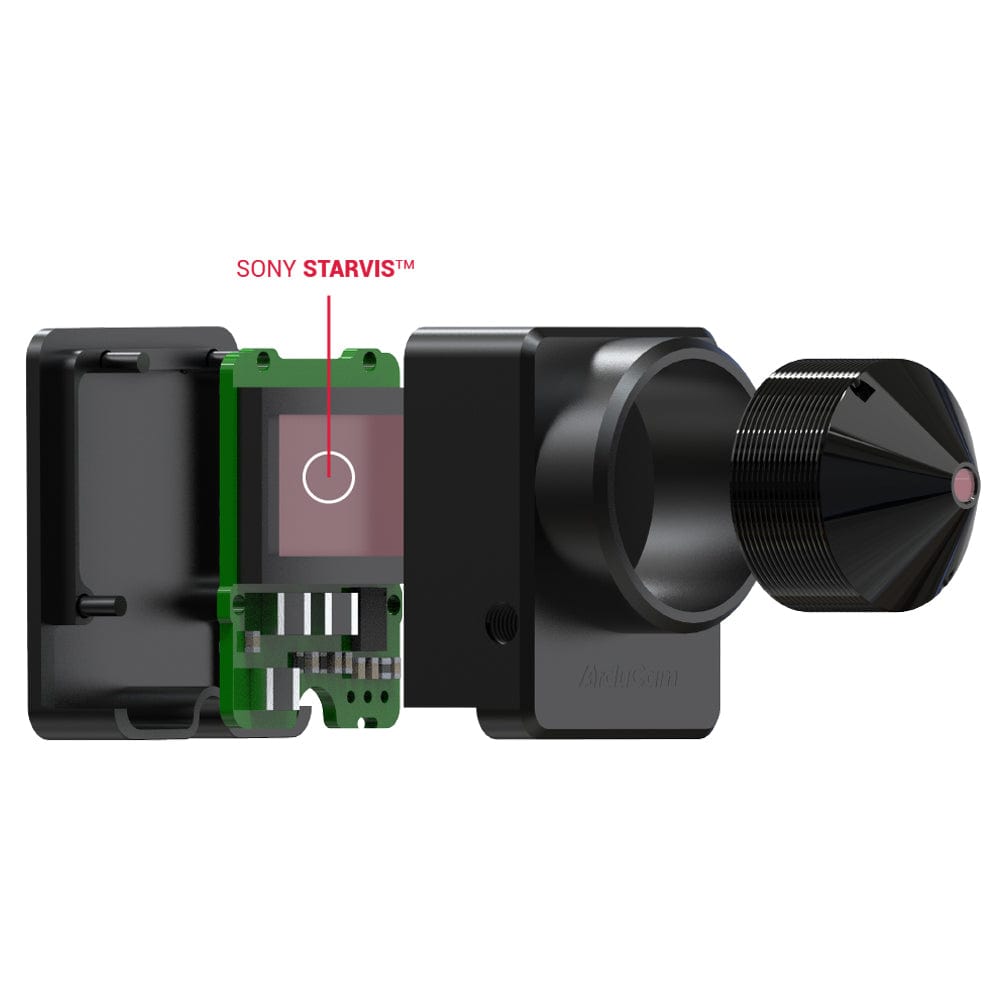

High-Quality Imaging: Equipped with a Sony STARVIS 2MP 1/2.8″ colour CMOS sensor with an 80dB wide dynamic range, and a conical lens providing a 95° diagonal angle for fluent 1080P30 video recording.
Enhanced Low Light Performance: Designed to excel in low light conditions, capturing detailed HD images even in minimal lighting.
Compact and Portable: Measuring just 19.5 x 15 x 17.3 mm

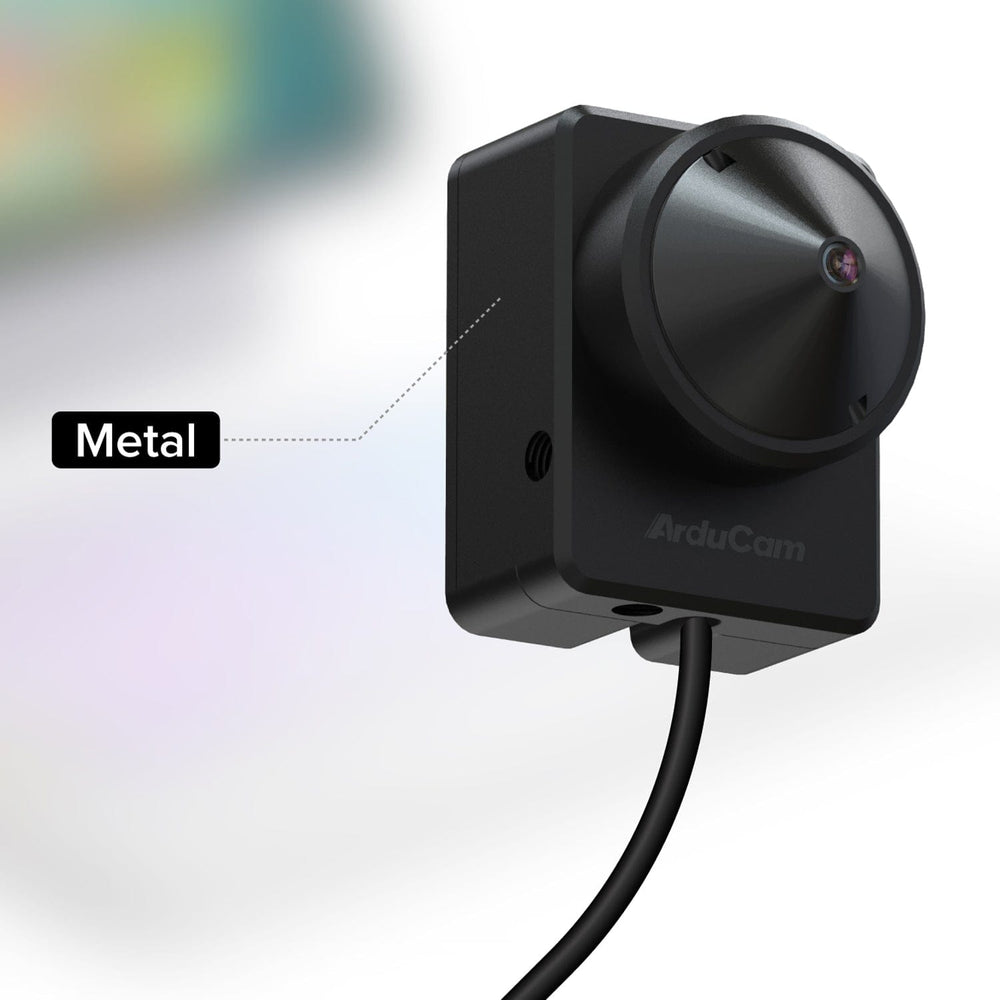

Miniature Design: Features the smallest camera board and M12 lens in a unique CNC metal heat dissipation housing. Includes a Type-C connector and a Type-C to USB-A port adapter.
Plug & Play: UVC drive-free compatibility supports Windows XP/7/8/10, Linux, and Mac OS. It can easily be connected to your PC, laptop, or Raspberry Pi via USB with no additional drivers needed.

Specifications

Image Sensor
Still Resolution	2 Megapixels
Colour Filter Type	Colour
Shutter Type	Rolling
Optical Size	1/2.8″
Output Format	MJPG/YUY2/H.264
Pixel Size	2.9μm x 2.9μm
Sensor Active Area	1937(H) x 1097(V)
Frame Rate (USB 2.0)	MJPG: 30fps@1920×1080, 1280×720, 800×600, 640×480, 320×240;
	YUY2: 30fps@640×480, 320×240; 10fps@1280×720,800×600; 5fps@1920×1080;
	H.264: 30fps@1920×1080, 1280×720, 800×600, 640×480, 320×240;
Lens
Focus Type	Manual Focus

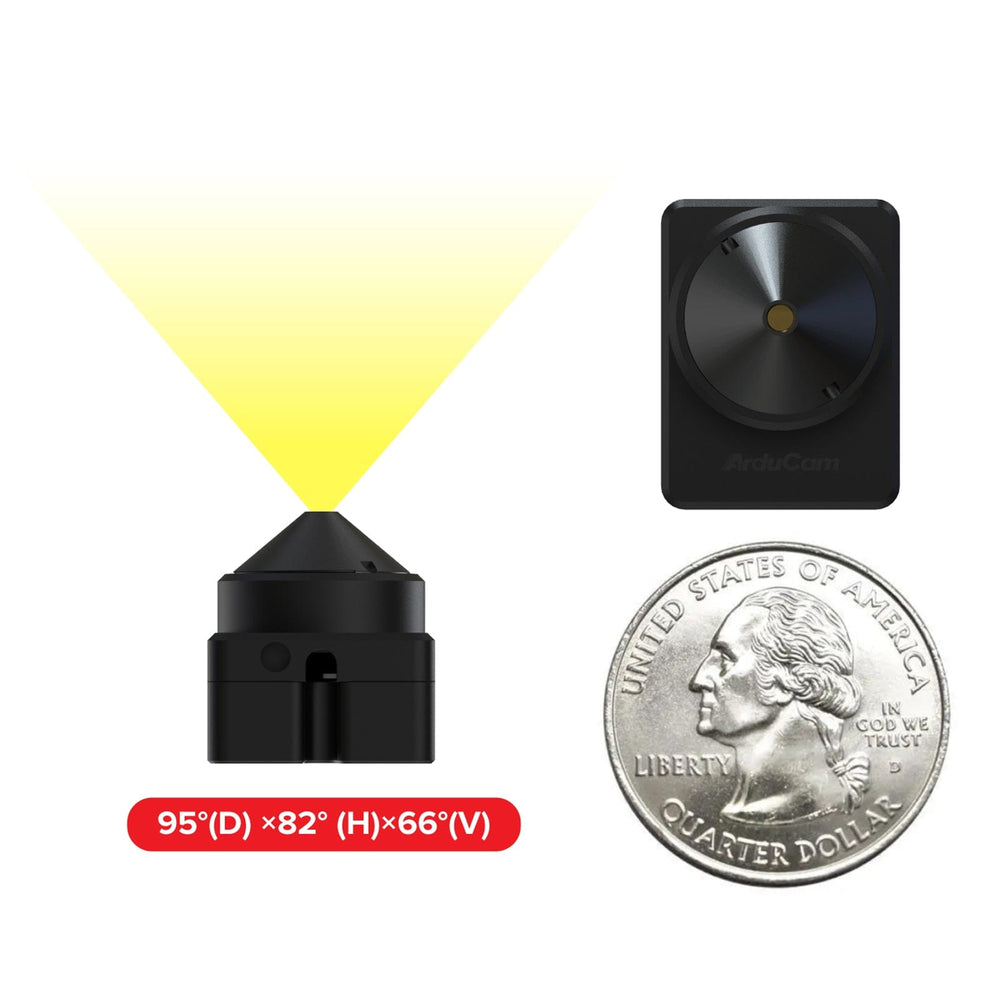

FOV	95°(D) ×82° (H)×66°(V)
Lens Mount	M12 Lens
F.NO	F2.5
E.F.L	3.7mm
TV Distortion	<-13%
IR Sensitivity	Integral IR-cut Filter, visible light only
Default Focus Range	1m-∞
USB Interface
Interface	USB 2.0 Device
Connector	USB Type-C
UVC Compliant	No additional drivers required
Electrical and Mechanical
Operating Voltage	5 V +/- 5%
Operating Temp.	32°F-158°F (0°C to 70°C)
Power Requirements	Max: 1.1W

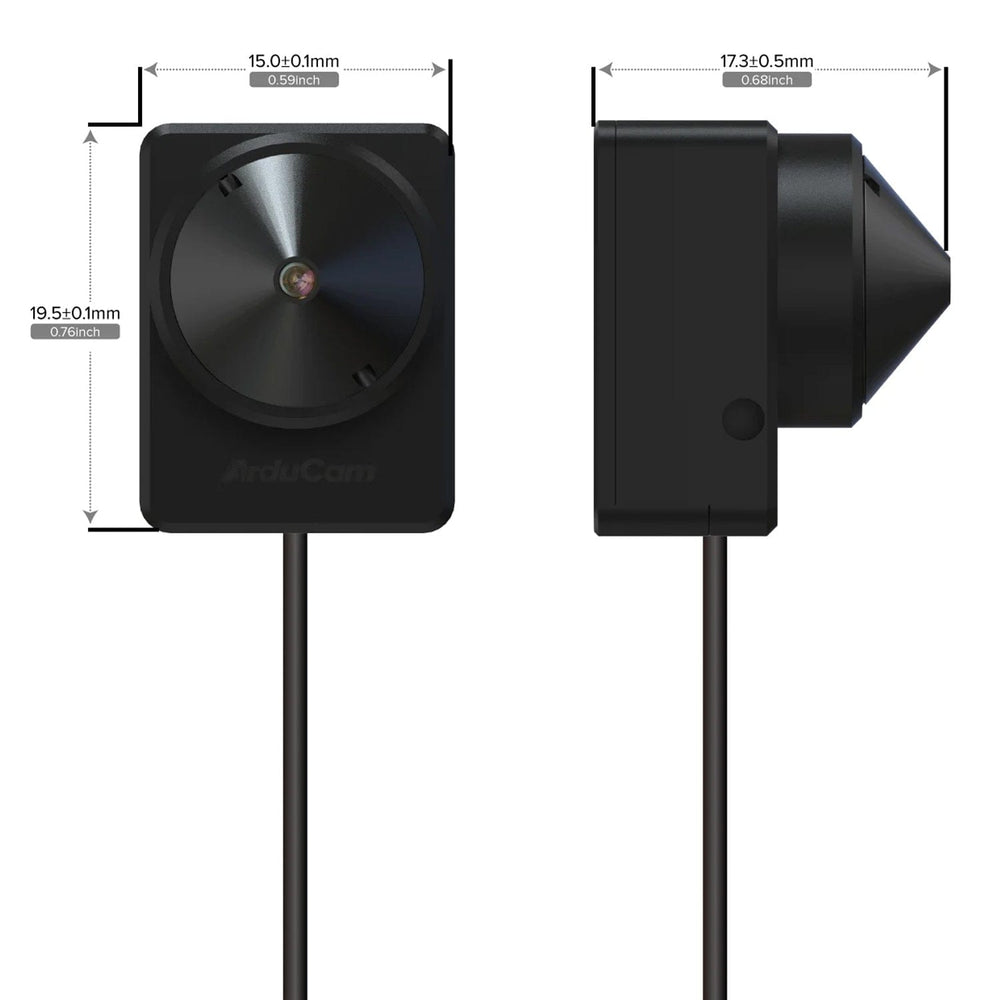

Overall Size	19.5×15×17.3 mm
Functionality and Compatibility
Supported OS	Windows, Linux, Android and MAC OS
Recommend Sample Application	Amcap for Windows
UVC Controls	Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto)

Resources

Package Contents

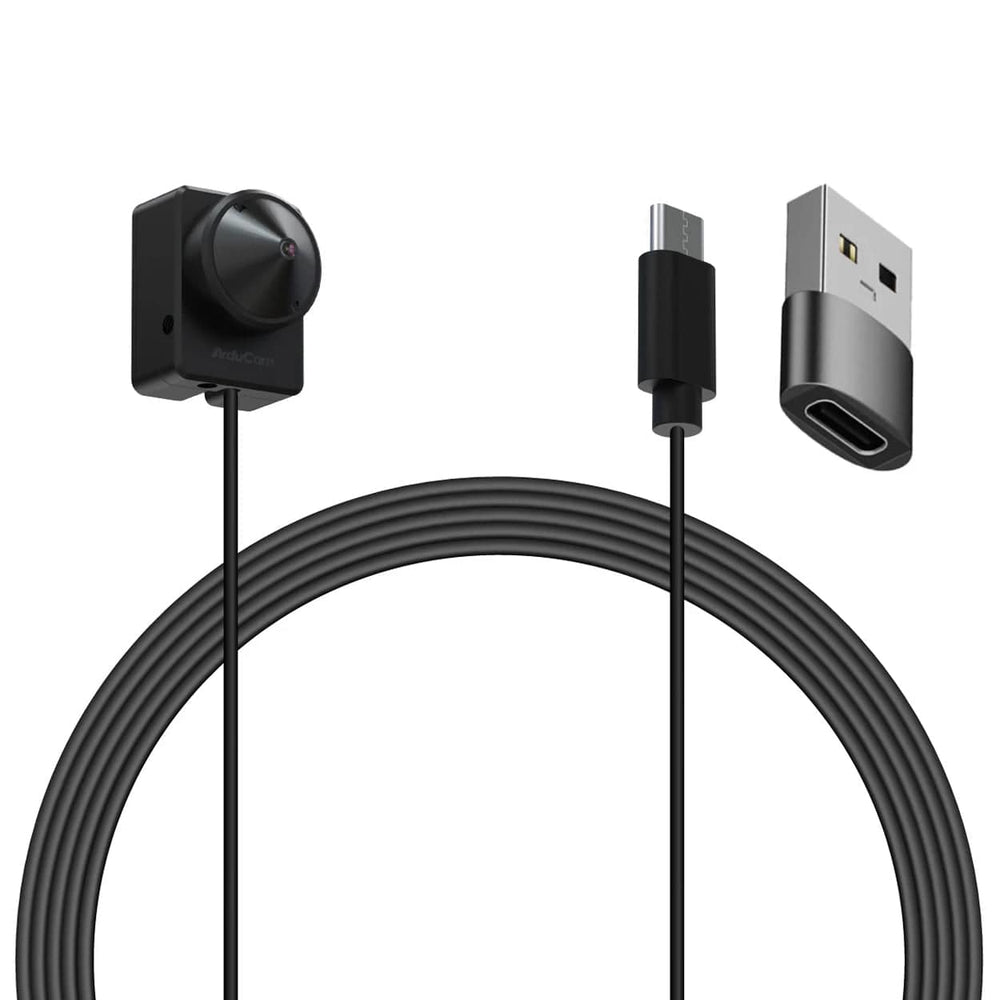

1 x Arducam 2MP Camera Module with USB Type-C Cable (1m)
1 x USB Type-C to USB A adapter
