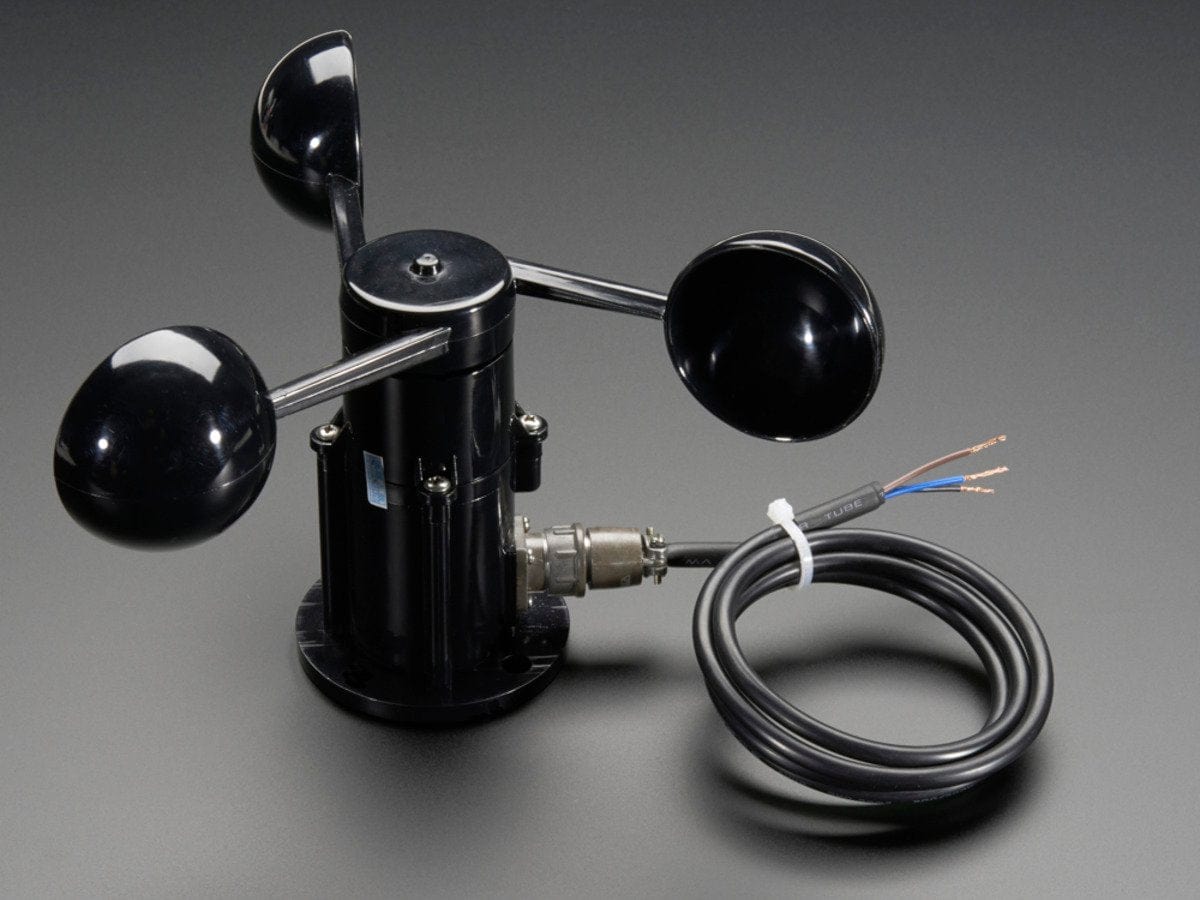

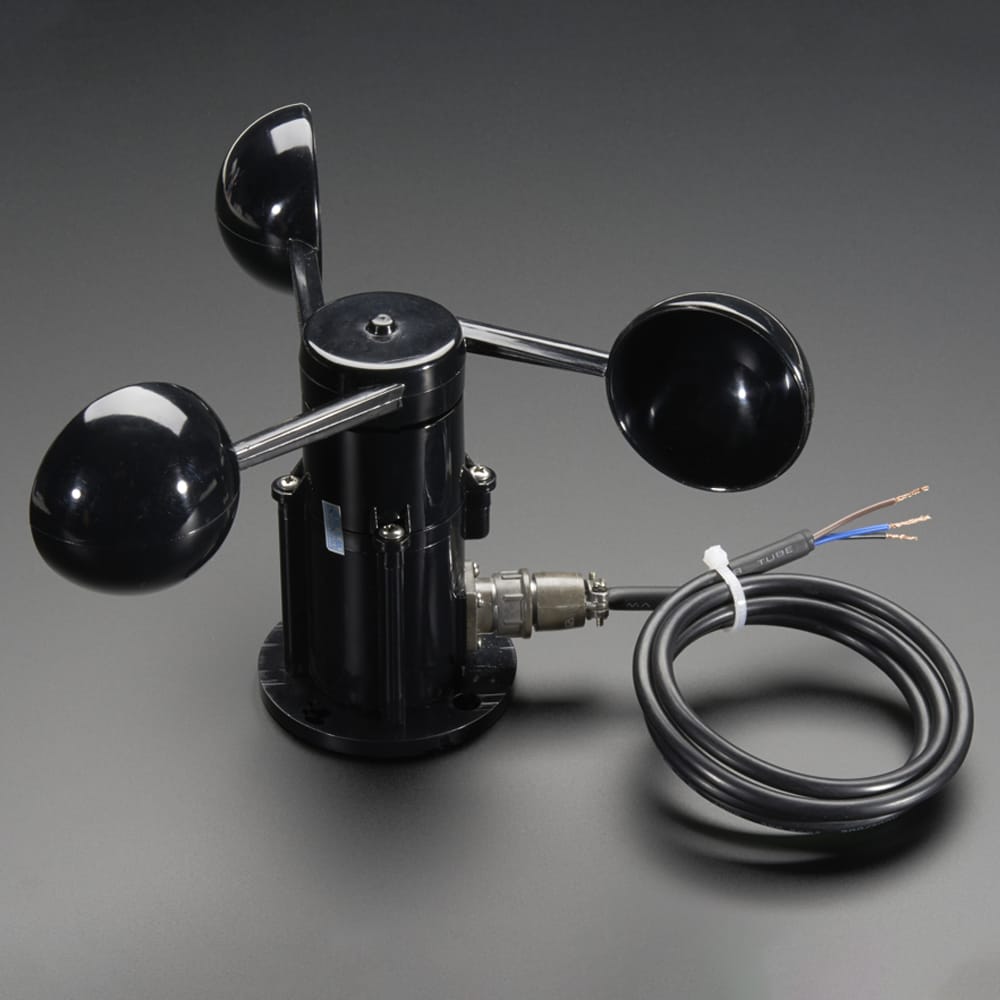

This Anemometer Wind Speed Sensor provides a simple and reliable way to measure wind speed, making it ideal for weather stations, environmental monitoring, and outdoor sensing projects.
An anemometer is a device used for measuring wind speed, and is a common weather station instrument. This well made anemometer is designed to sit outside and measure wind speed with ease.
To use, connect the black wire to power and signal ground, the brown wire to 7-24VDC (we used 9V with success) and measure the analogue voltage on the blue wire. The voltage will range from 0.4V (0 m/s wind) up to 2.0V (for 32.4m/s wind speed). That's it! The sensor is rugged, and easy to mount. The cable can easily disconnect with a few twists and has a weatherproof connector.
Please note that this anemometer is not IP rated, so it is not designed to withstand water ingress without additional gasketing or protection.
Features
Measures wind speed accurately for weather station applications
Operating voltage: 7-24VDC (tested at 9V)
Voltage output: 0.4V (0 m/s) to 2.0V (32.4 m/s)
Rugged construction designed for outdoor use

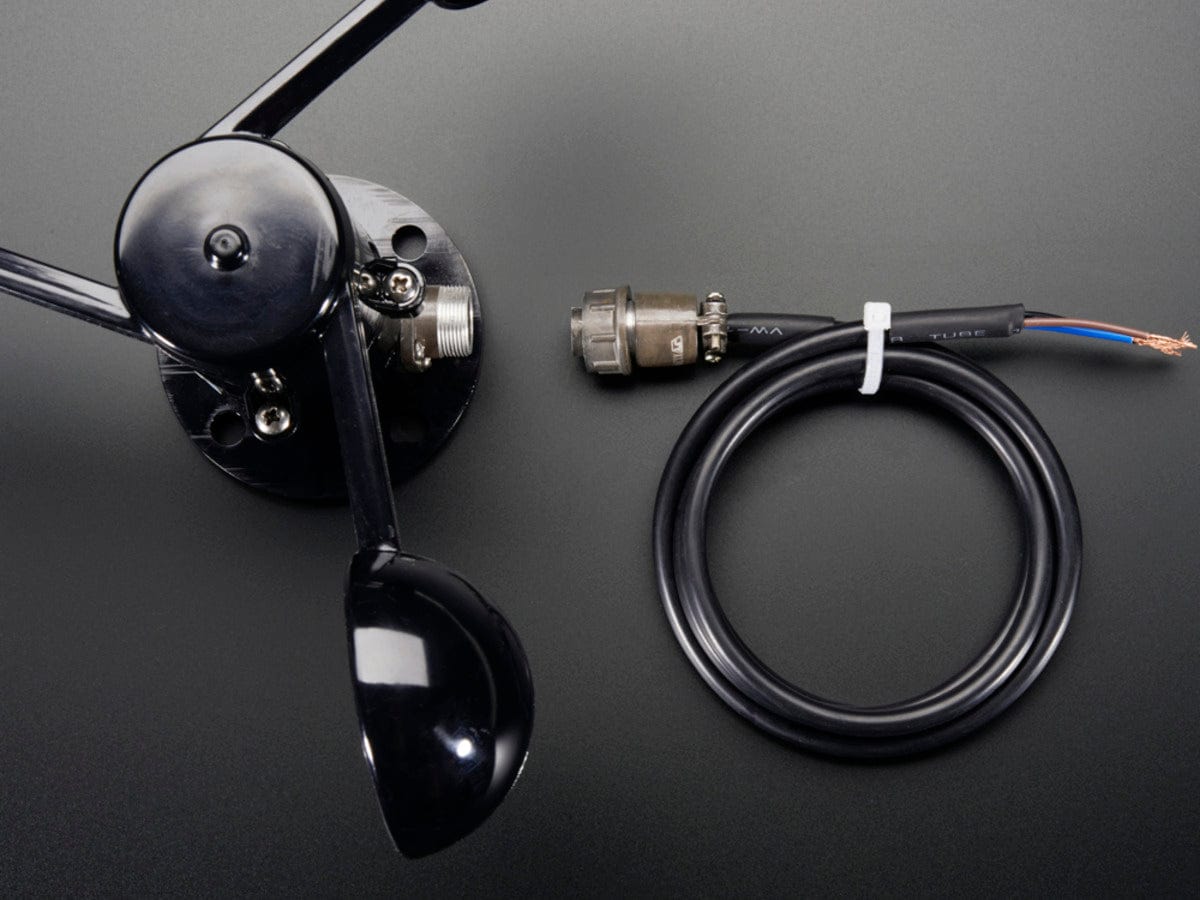

Easy-mount design with quick-disconnect cable
Weatherproof connector
Black wire for ground, brown wire for power, blue wire for signal
Not IP rated; requires additional gasketing for water protection
Specifications
Dimensions
Height (base to centre): 105mm
Centre out to Cup: 102mm
Arm Length: 70mm
Weight: 111.8g
Wire Dimensions
Wire Length: 99cm
Plug Length: 30mm
Diameter (thickness): 4.8mm
Specifications
Output: 0.4V to 2V
Testing Range: 0.5m/s to 50m/s
Start wind speed: 0.2 m/s
Resolution: 0.1m/s
Accuracy: Worst case 1 meter/s
Max Wind Speed: 70m/s

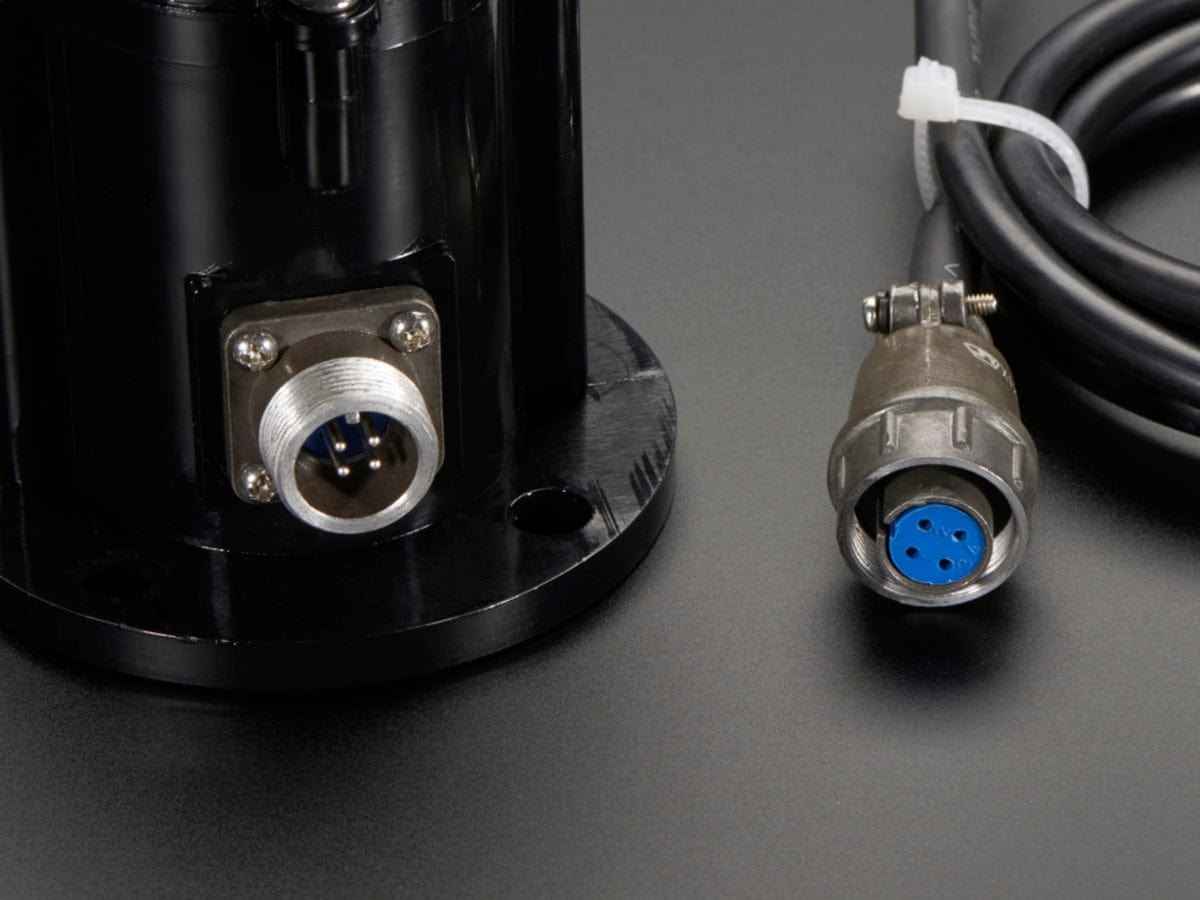

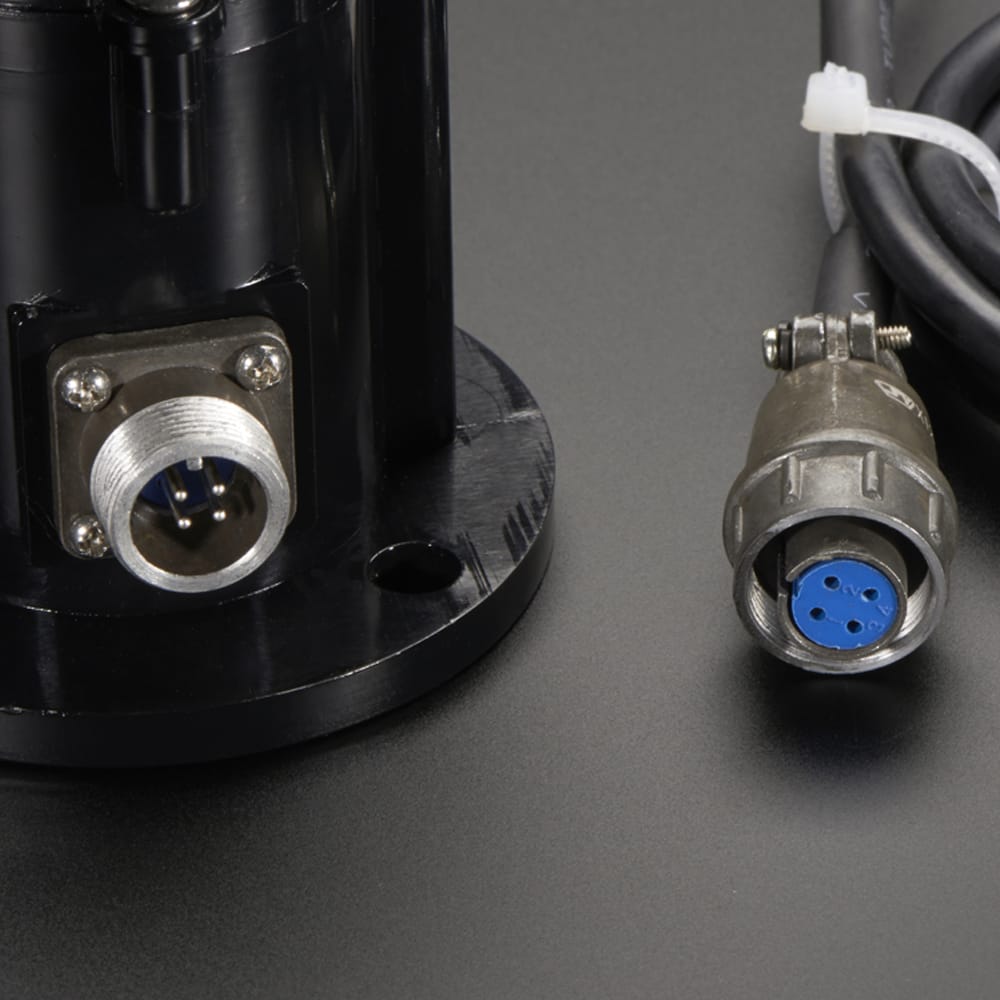

Connector details: Pin 1 - Power (brown wire), Pin 2 - Ground (black wire), Pin 3 - Signal (blue wire), Pin 4 not connected
