This Metal Gear Feedback Micro Servo combines durable metal gears with position feedback output, making it a great choice for robotics and motion-control projects that need accurate servo position monitoring.

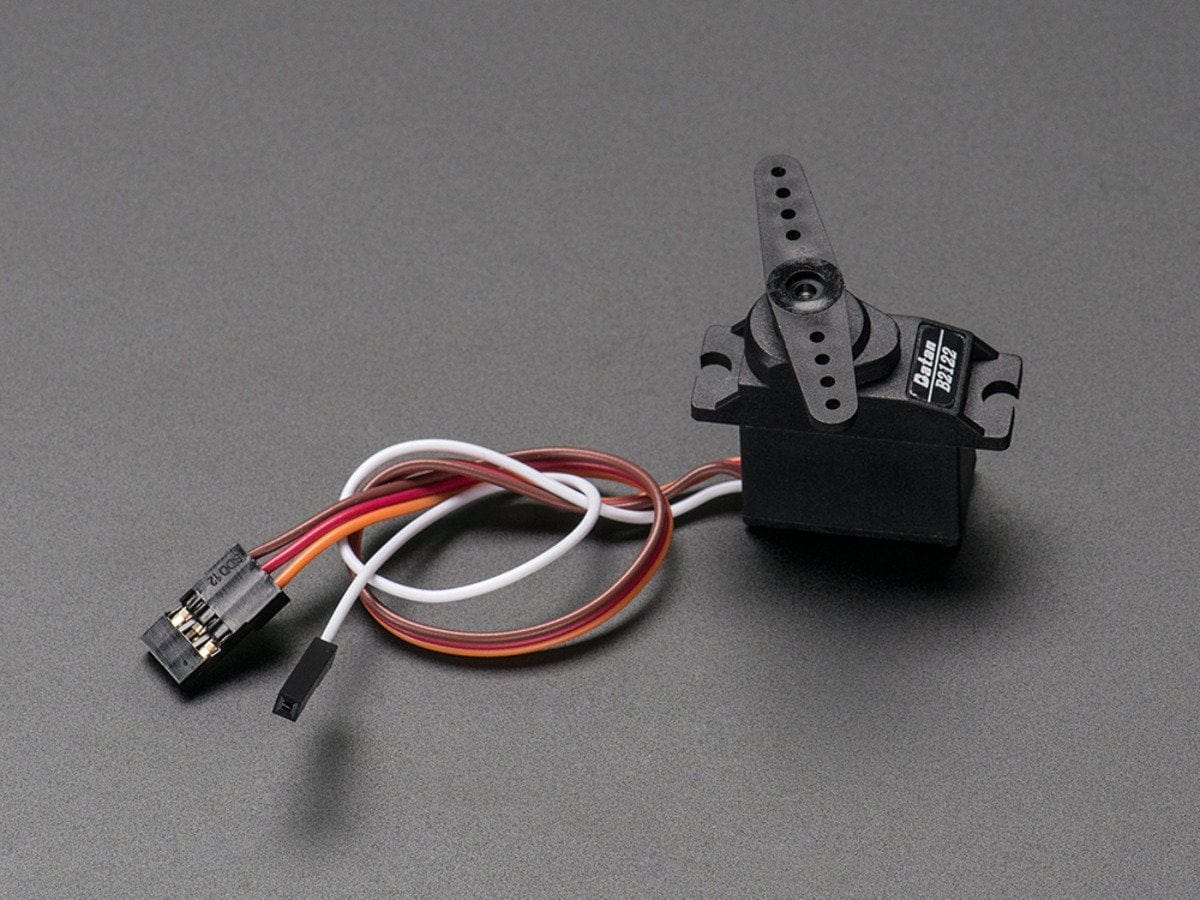

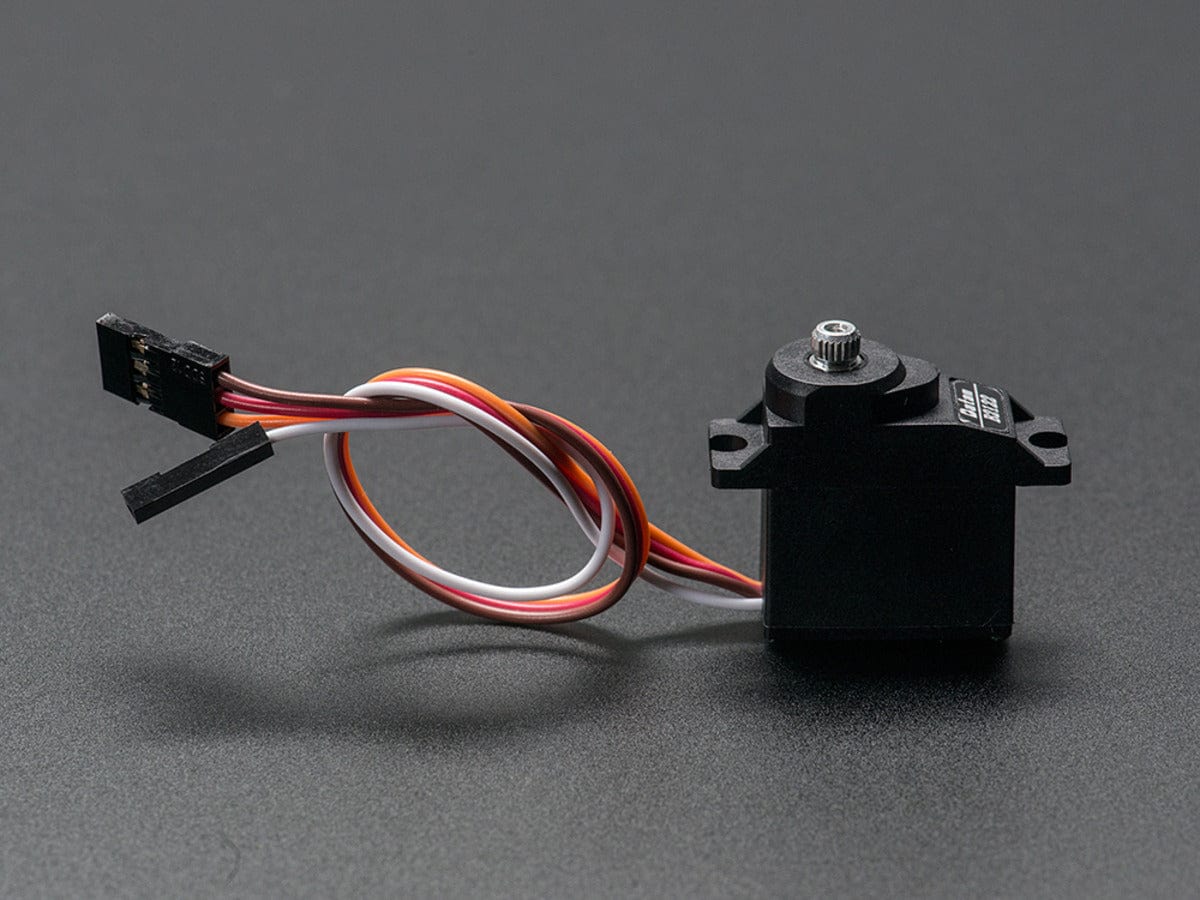

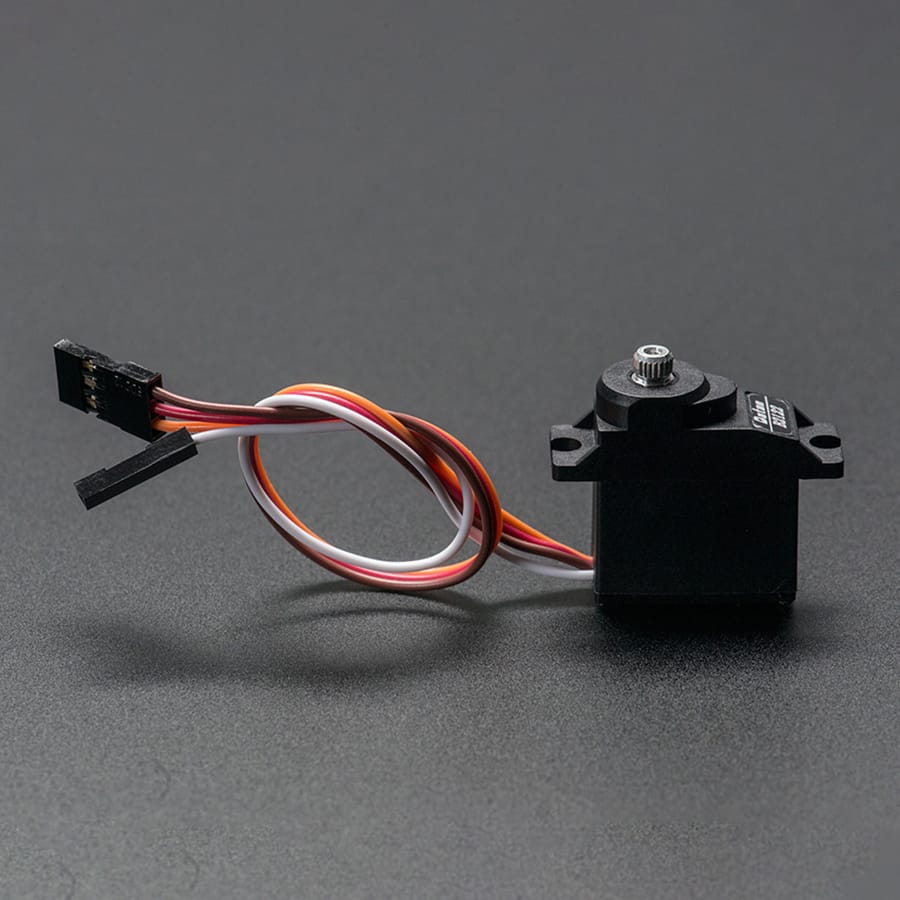

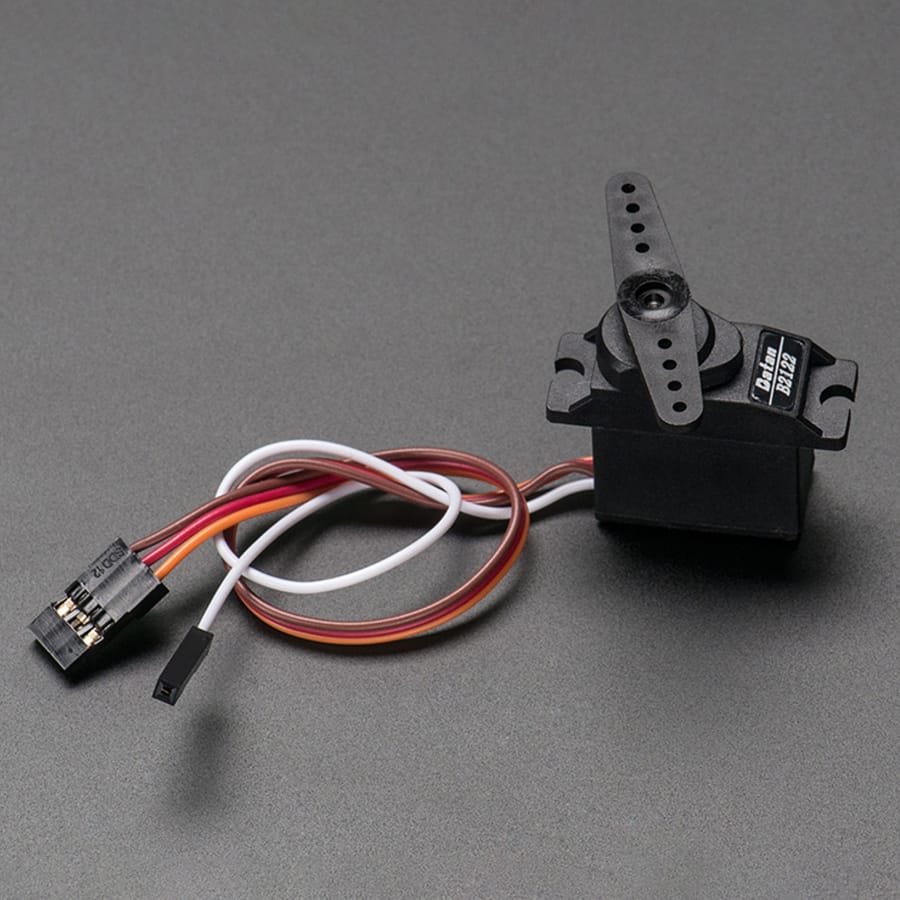

It looks like a micro servo, it acts like a micro servo, but it's more than just a micro servo! We got a factory to custom-make these quality metal-geared 'micro' sized hobby servos with a twist - the feedback (potentiometer wiper) line is brought out to a fourth white wire. You can read this wire with an analogue input such as those on an Arduino, to get the servo's position. That information can be used in robotics to improve stability or even allow 'recording' of servo motion.
Note that the default servo pulse widths (usually 1ms to 2ms) may not give you a full 180 degrees of motion. In that case, check if you can set your servo controller to custom pulse lengths and try 0.75ms to 2.25ms. You can try shorter/longer pulses but be aware that if you go too far you could break your servo!

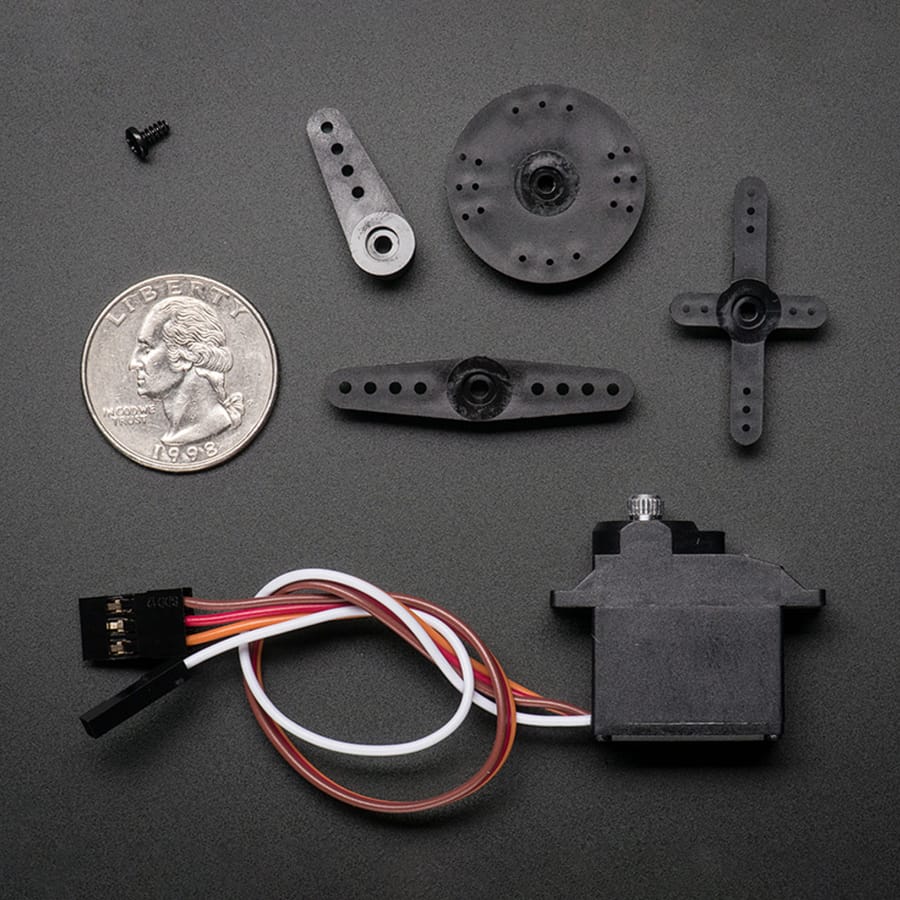

Check out the example Arduino sketch which demonstrates how to record motion data to the EEPROM and then play it back when a button is pressed. Comes with a range of horns as seen above.
Features
Metal-geared micro servo with position feedback
Fourth white wire outputs potentiometer feedback for position monitoring
Compatible with Arduino and other microcontrollers via analogue input
Enables servo position recording and playback functionality
Supports custom pulse widths from 0.75ms to 2.25ms for extended range
Improves robotics stability through real-time position sensing
Includes example Arduino sketch for EEPROM motion recording

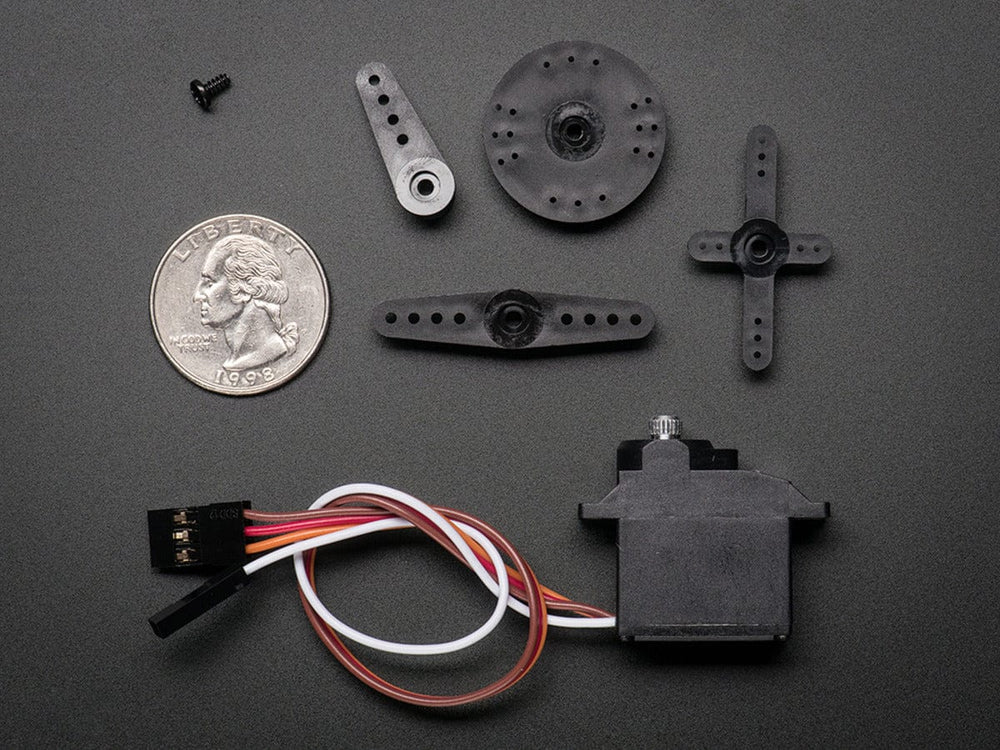

Supplied with selection of servo horns
Standard 3-wire servo control with additional feedback output
Specifications
Dimensions: 11.58mm / 0.45" x 22.75mm / 0.89" x 29.19mm / 1.14"
Max Dimensions: 11.58mm / 0.45" x 32.74mm / 1.28" x 31.19mm / 1.22"
Wire length (at least): 131.67mm / 5.18" long
Torque: 25 oz*in / 1.8 kg*cm @6V
Speed: 0.1 sec/60° @6V
Weight: 15.81 grams
Dual ball bearing

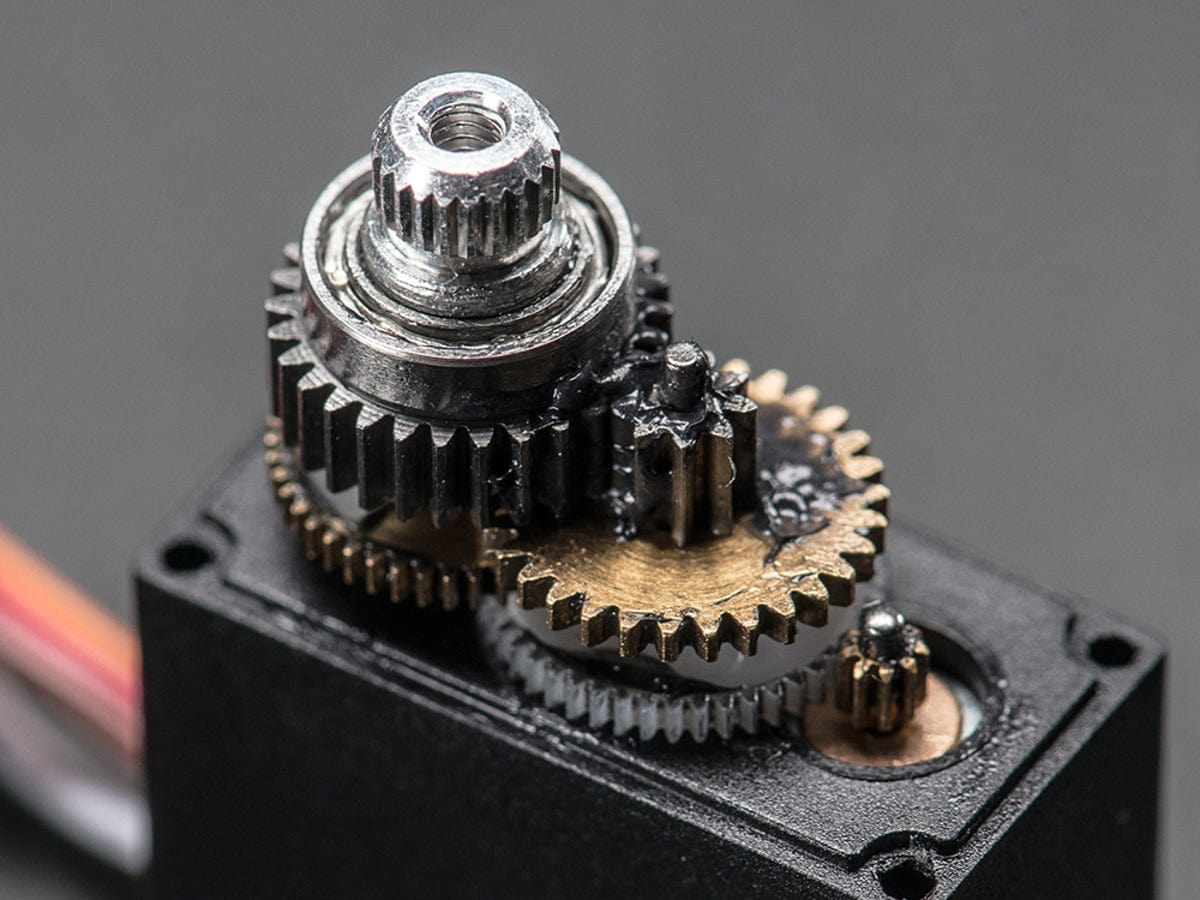

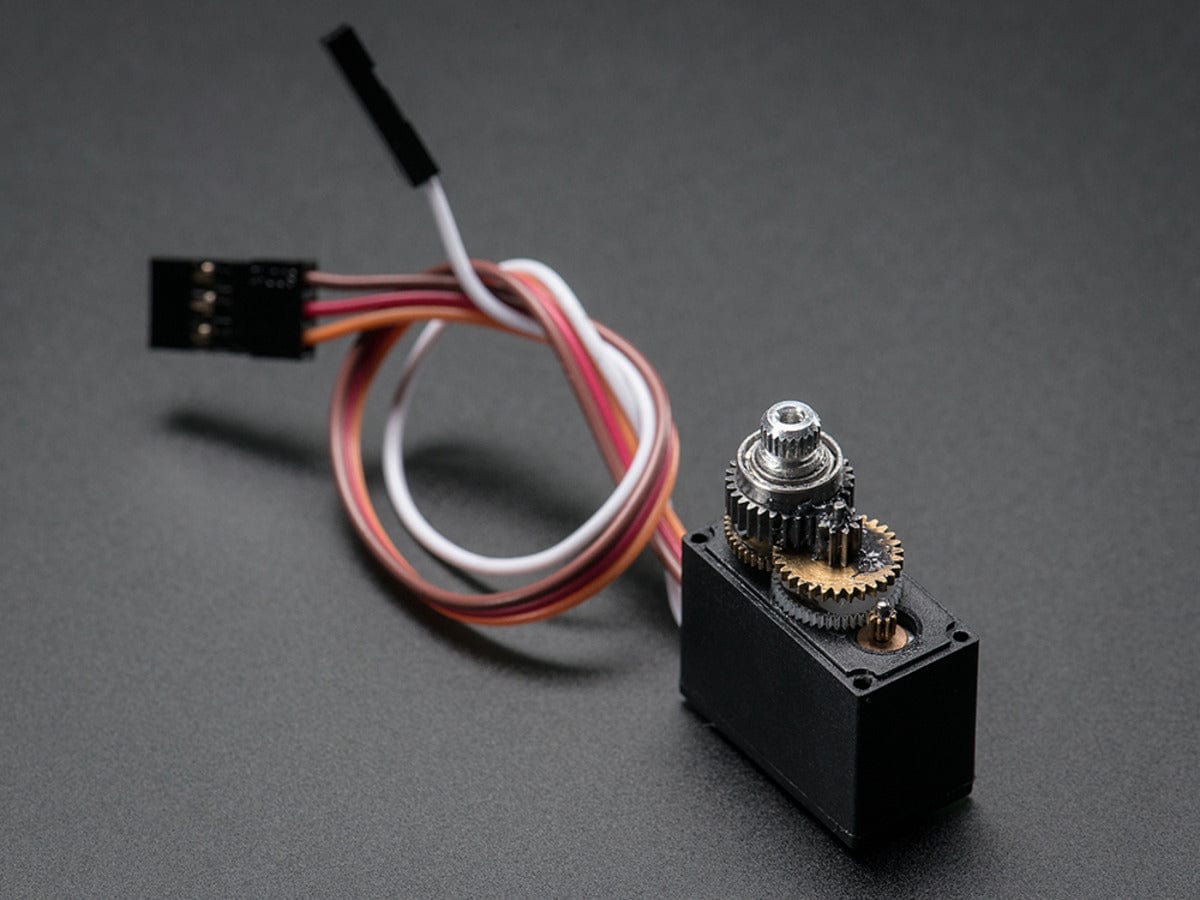

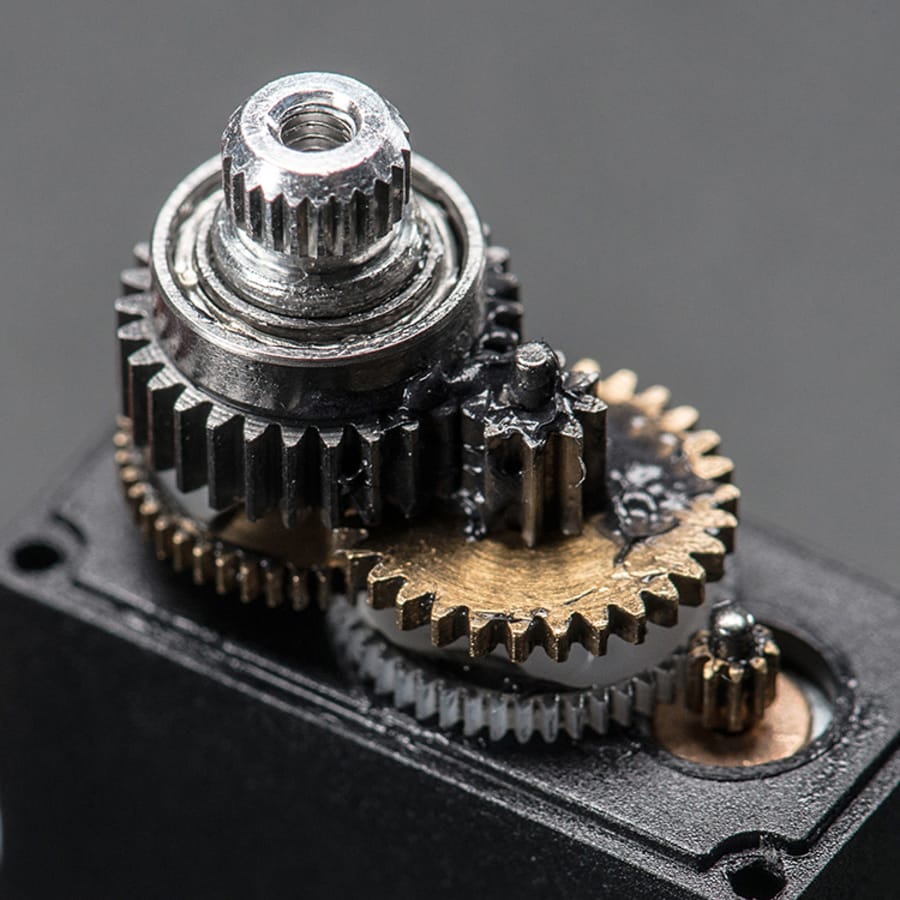

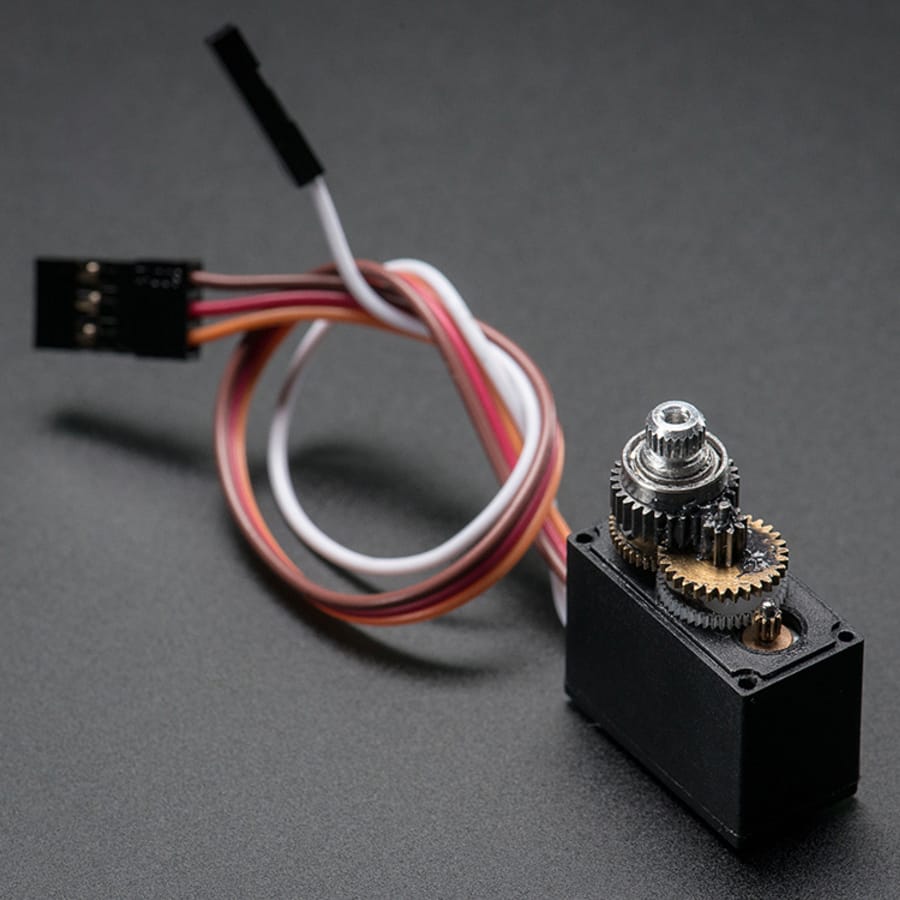

Metal gearbox
Approx. 120 degrees of rotation (500 to 2500 microseconds)
