The MAX31856 Thermocouple Amplifier Breakout measures temperatures from -210°C to +1800°C, supporting eight thermocouple types with SPI connectivity, cold-junction compensation and fault detection. Thermocouple not included.
Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference, as well as calculations to handle any non-linearities. For a long time we've suggested the MAX31855K breakout, which works great but is only for K-type thermocouples. Now Adafruit are happy to offer a great new thermocouple amplifier/converter that can handle just about any type of thermocouple, and even has the ability to give you notification when the temperature goes out of range, or a fault occurs. Very fancy!
This converter communicates over 4-wire SPI and can interface with any K, J, N, R, S, T, E, or B type thermocouple.

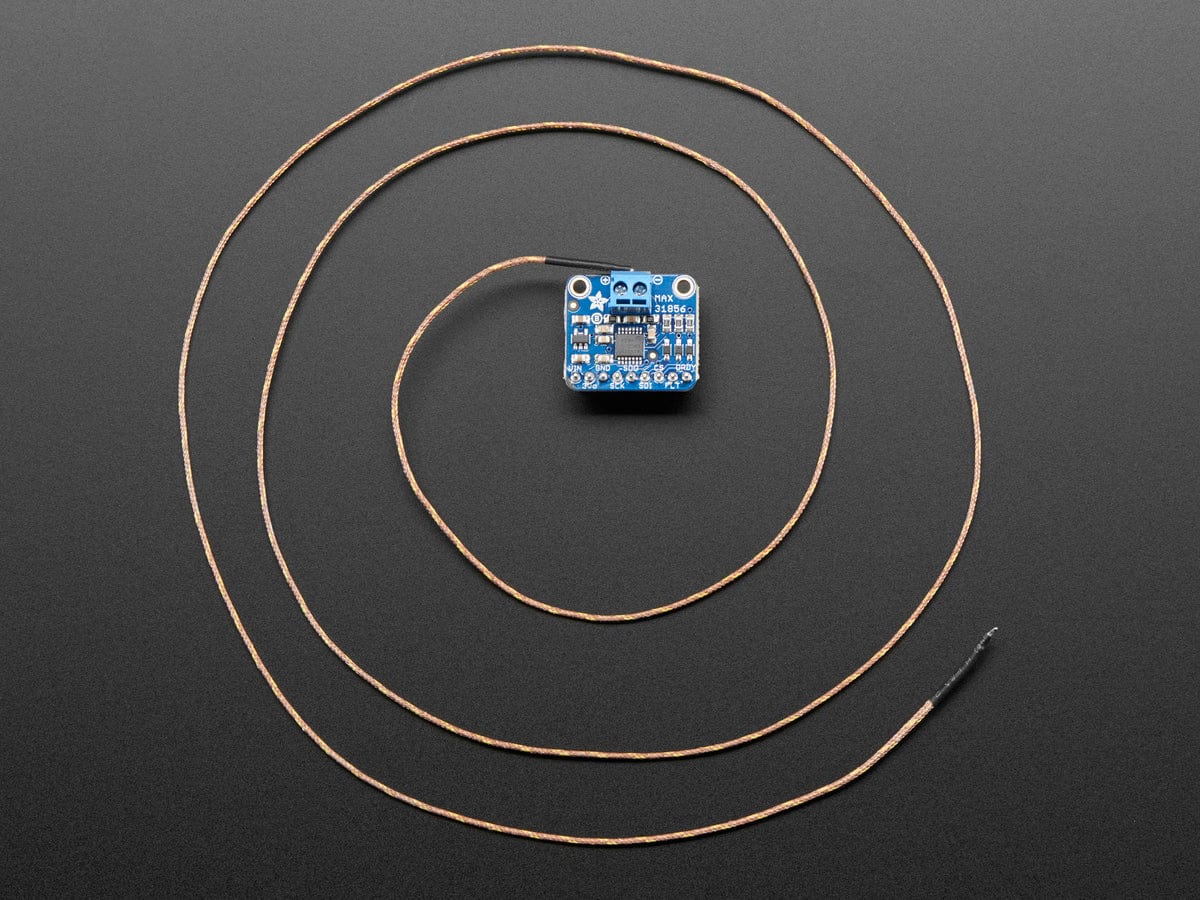

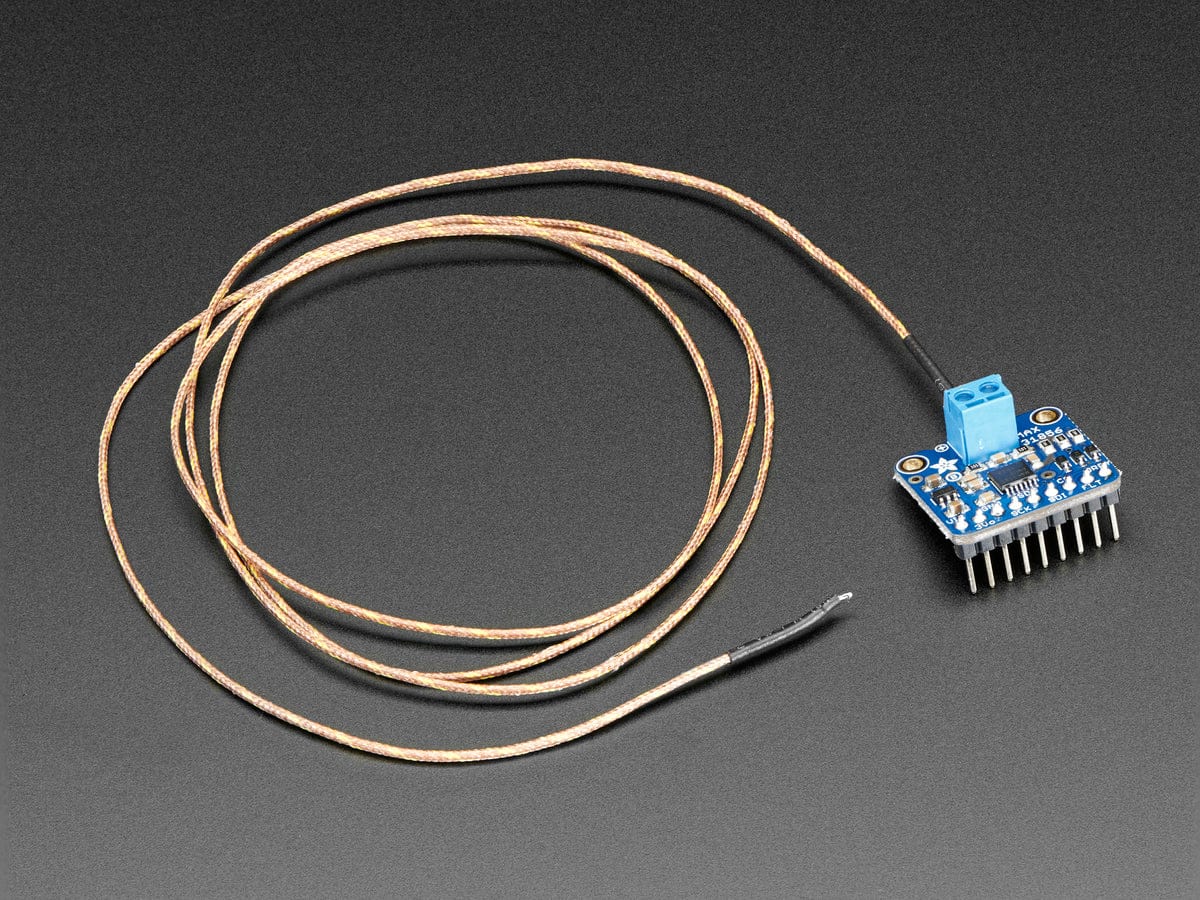

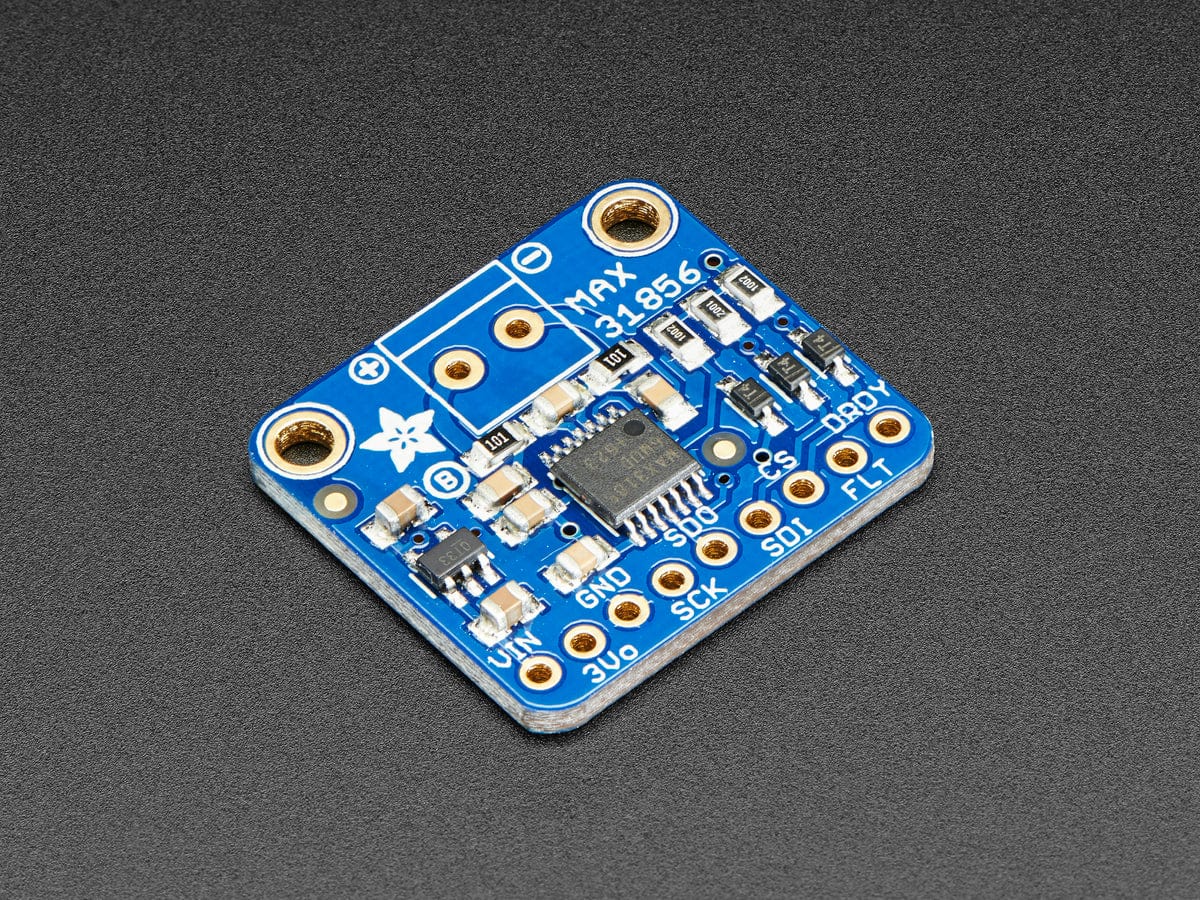

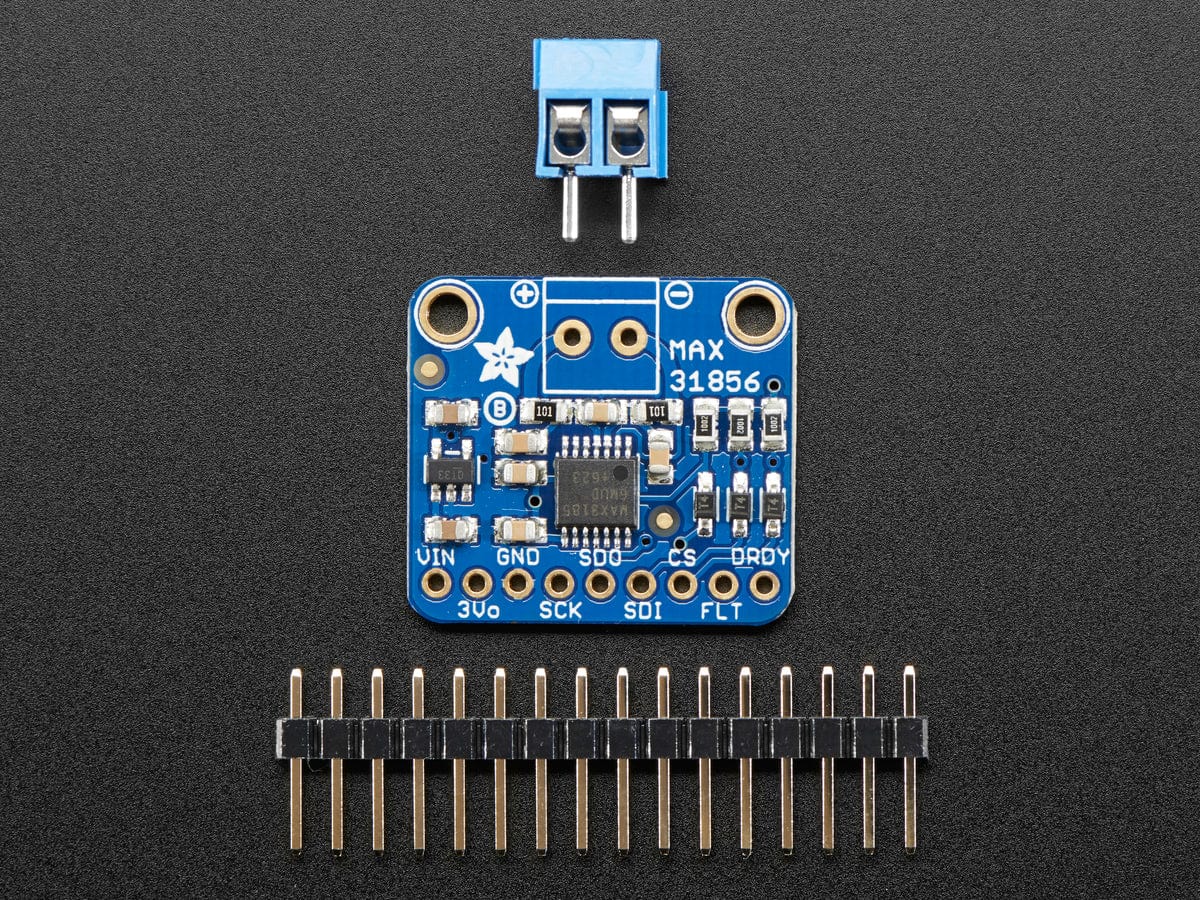

This breakout does everything for you, and can be easily interfaced with any microcontroller, even one without an analogue input. This breakout board has the chip itself, a 3.3V regulator and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard). We even added inline resistors and a filter capacitor on-board for better stability, as recommended by Maxim. Goes great with the 1m K-type thermocouple or any other thermocouple, really!
Please note: this does not include a thermocouple! Also, the terminal blocks included with your product may be any colour.
Features
Works with any K, J, N, R, S, T, E, or B type thermocouple
-210°C to +1800°C output in 0.0078125° resolution - note that many thermocouples have about ±2°C to ±6°C accuracy or worse depending on the temperature and type, so the resolution will be a lot better than the accuracy!
Internal temperature reading
3.3 to 5v power supply and logic level compliant!
SPI data requires any 4 digital I/O pins
Specifications

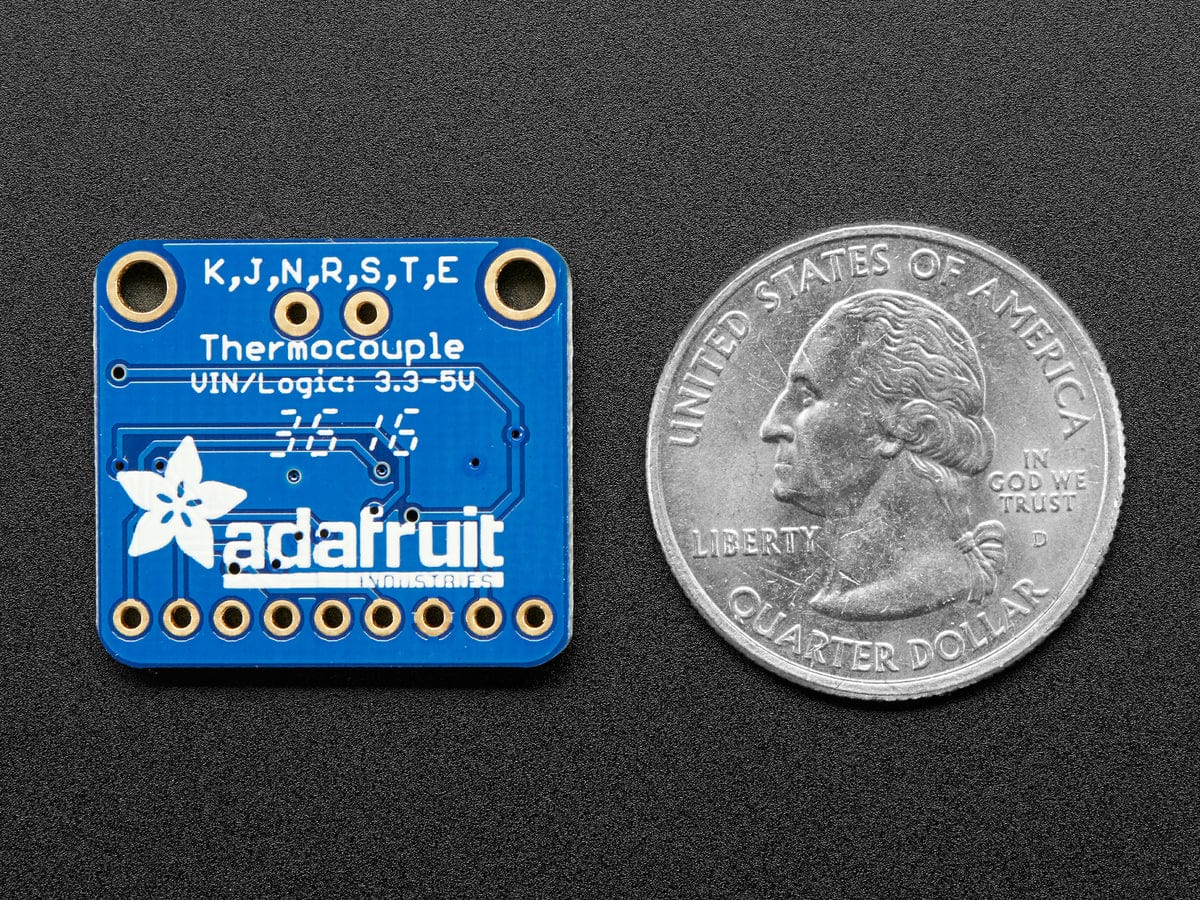

Dimensions: 25.0mm x 22.0mm x 3.0mm
Weight: 3.5g
Revision History
As of Dec 12, 2023 - We've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen and now comes with the terminal block soldered on.
