SMT Breakout PCB for SOIC-8, MSOP-8 or TSSOP-8 - 6 Pack

Name: SMT Breakout PCB for SOIC-8, MSOP-8 or TSSOP-8 - 6 Pack
Brand: Adafruit
SKU: ADA1212
Price: 2.8 GBP
Availability: InStock
Rating: 5.00 (4 reviews)

AdafruitSKU: ADA1212

£2.80

incl. VAT

excl. VAT

In stock

Awesome Extras

Half-Size Breadboard - White by The Pi Hut - The Pi Hut

The Pi Hut Half-Size Breadboard - White

£3 incl. VAT excl. VAT

Break-away 0.1" 36-pin male headers (10-pack) by The Pi Hut - The Pi Hut

The Pi Hut Break-away 0.1" 36-pin male headers (10-pack)

£3.50 incl. VAT excl. VAT

Antex Lead Free Solder - 4m Tube by Antex - The Pi Hut

Antex Antex Lead Free Solder - 4m Tube

£4.40 incl. VAT excl. VAT

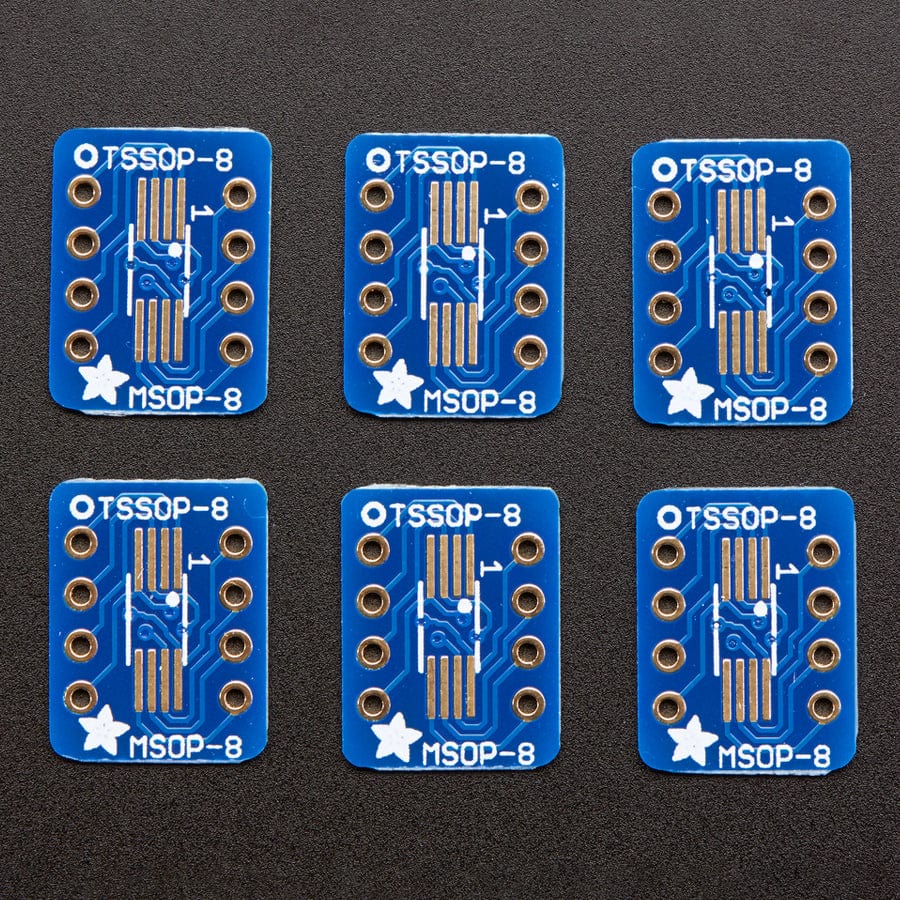

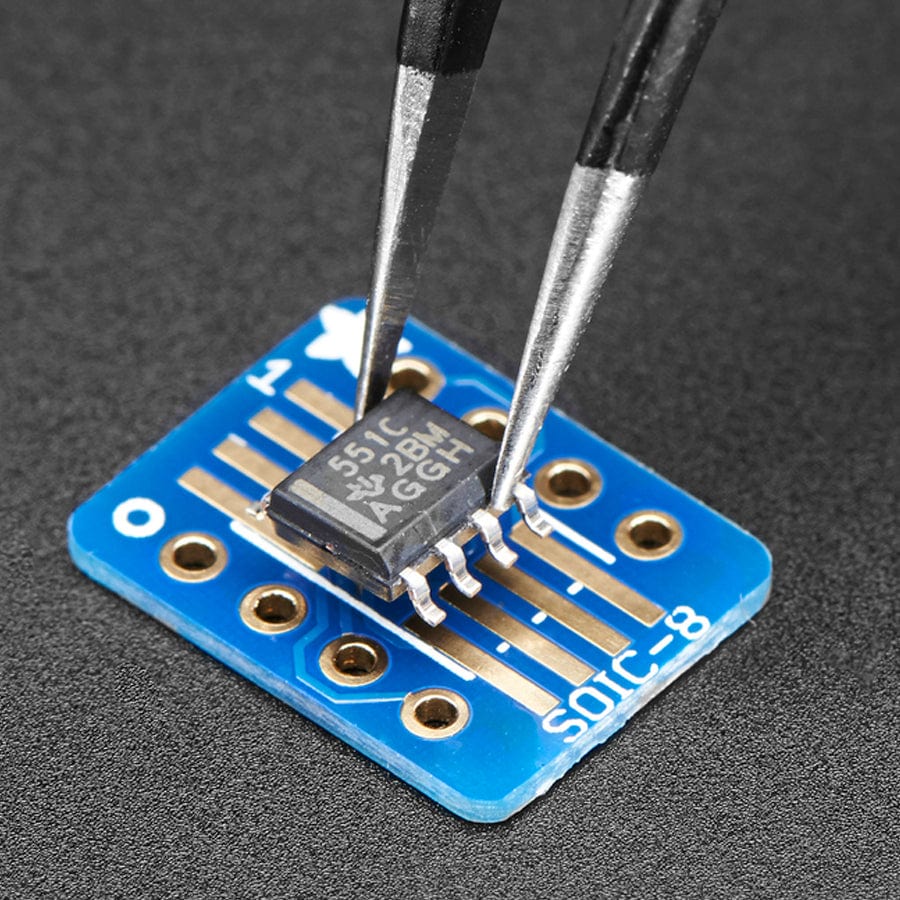

Beguiled by a fancy new chip that is only available in a SOIC or MSOP/(T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has an 8-TSSOP/8-MSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 8-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

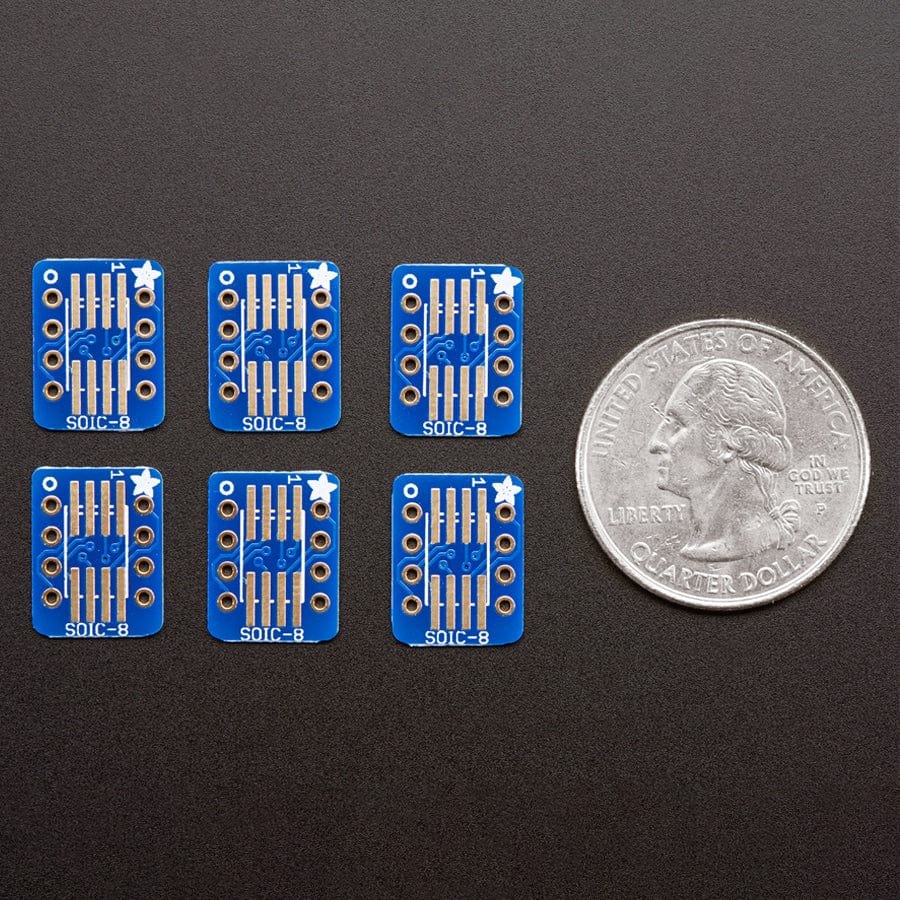

Each item comes with six PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. We made these on half-thickness PCBs, with 0.3" spacing between the two rows.

Chip is NOT included

Note: The board does not include headers, but we sell them in the shop!

Resources

Overview and Tutorial
