SMT Breakout PCB for SOIC-20 or TSSOP-20 - 3 Pack

AdafruitSKU: ADA1206
Price:
Sale price £4.50
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Awesome Extras

Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT
Break-away 0.1" 36-pin male headers (Black 10-pack) - The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack) - The Pi Hut
Half-Size Breadboard - WhiteHalf-Size Breadboard - White
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT

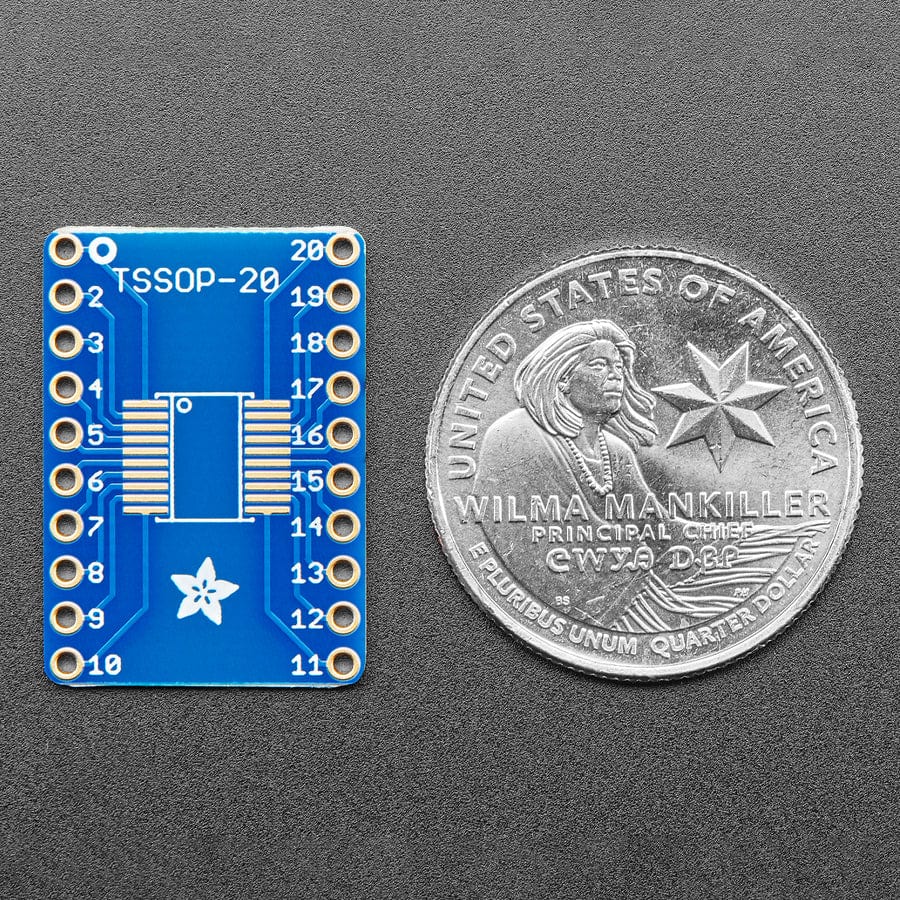

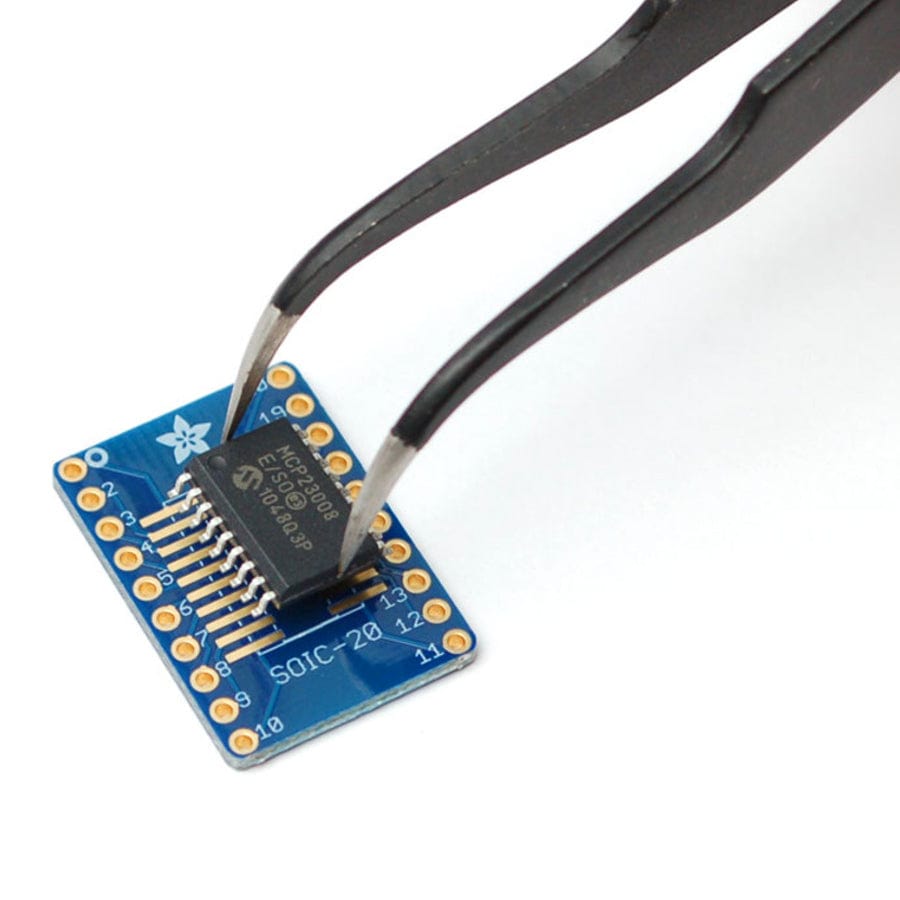

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 20-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 20-SOIC. Solder your chip to either side, and you're ready to rock on any solderless breadboard.

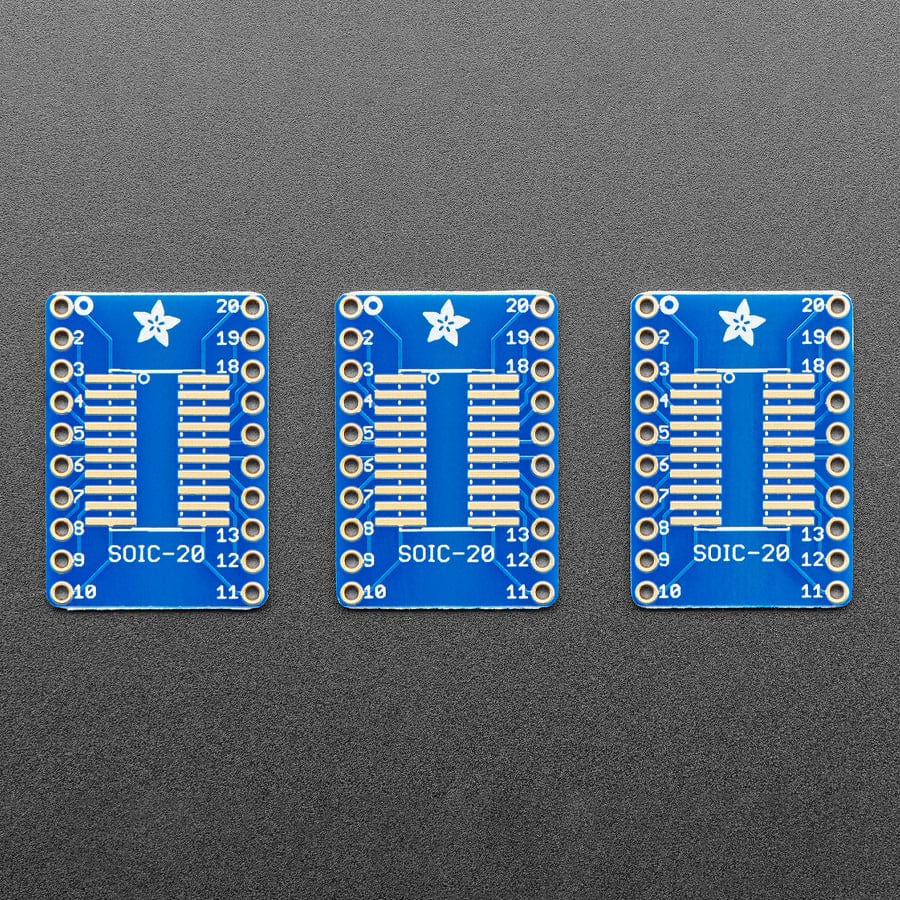

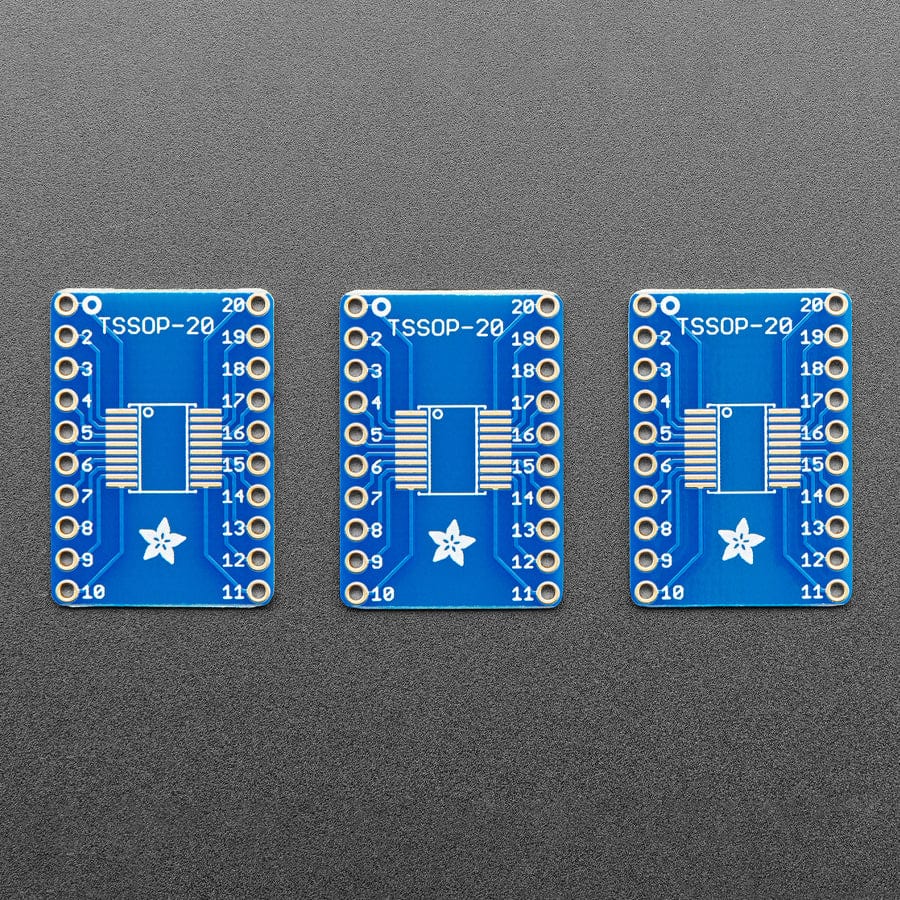

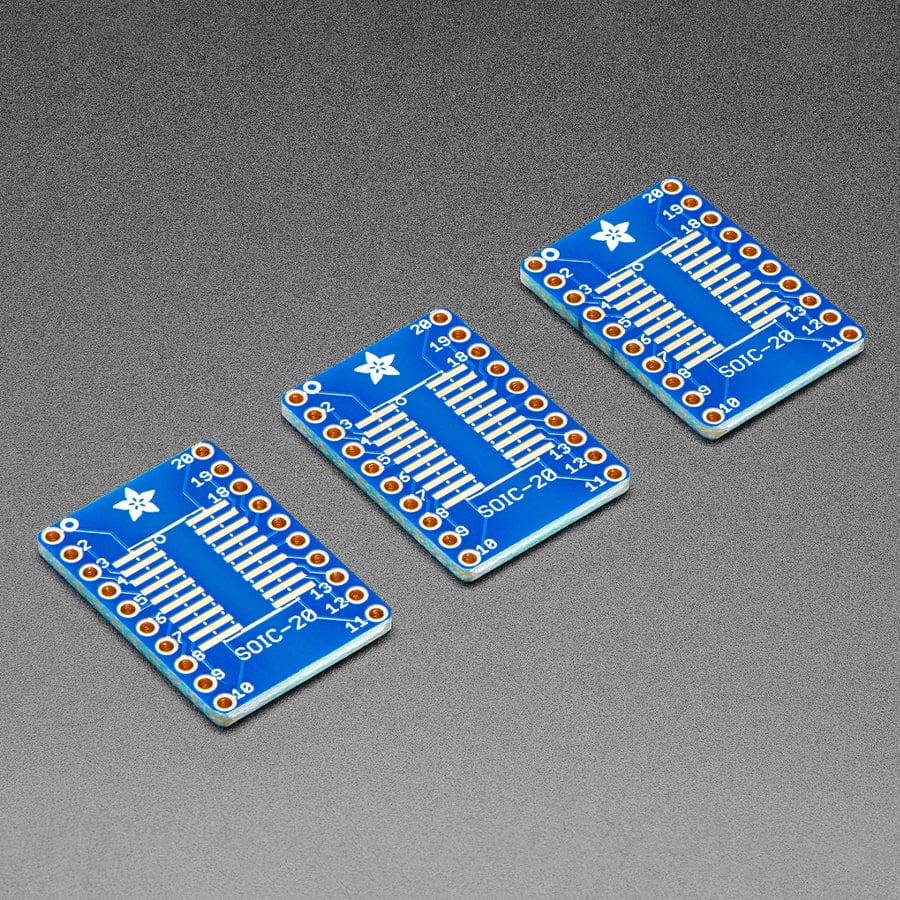

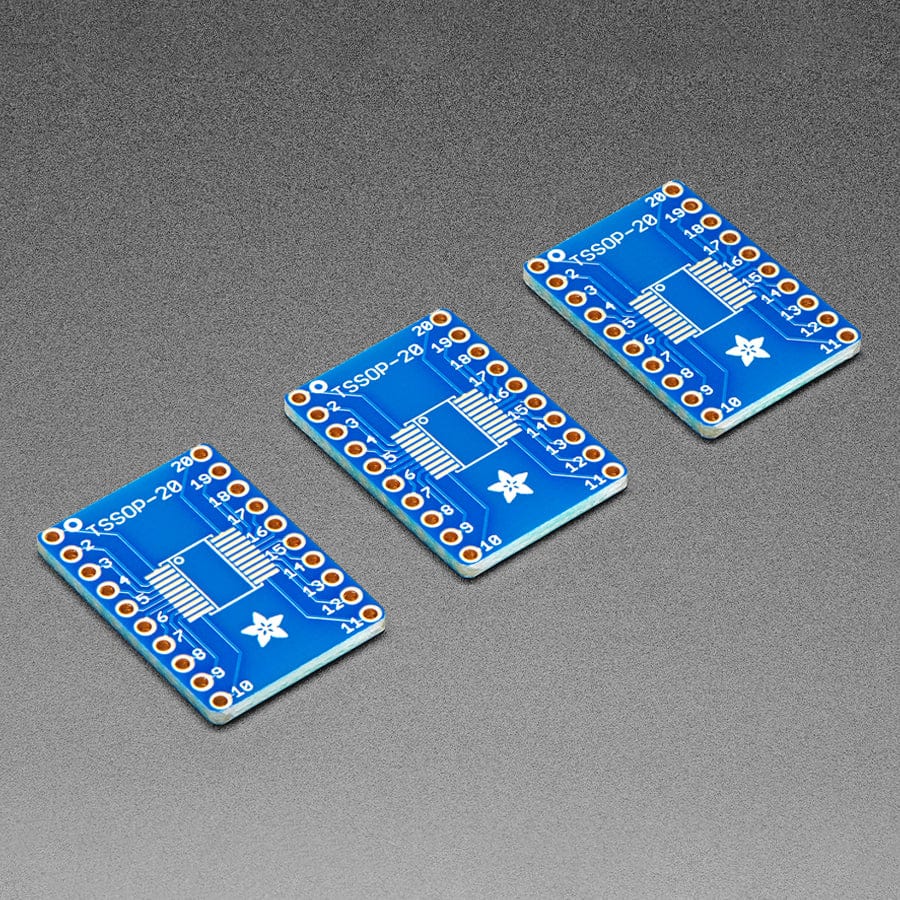

Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can of course use a smaller chip, but the pin numbering won't be right, so use care.

Chip is NOT included

Note: The board does not include headers, so why don't you pick some up?

Specifications

  • 17.79mm wide x 25.63mm long x 1.62mm high
