SMT Breakout PCB for SOIC-12 or TSSOP-12 - 6 Pack!

AdafruitSKU: ADA1211
Price:
Sale price £4.80
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

Half-Size Breadboard - WhiteHalf-Size Breadboard - White
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT
Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT
Break-away 0.1" 36-pin male headers (Black 10-pack) - The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack) - The Pi Hut

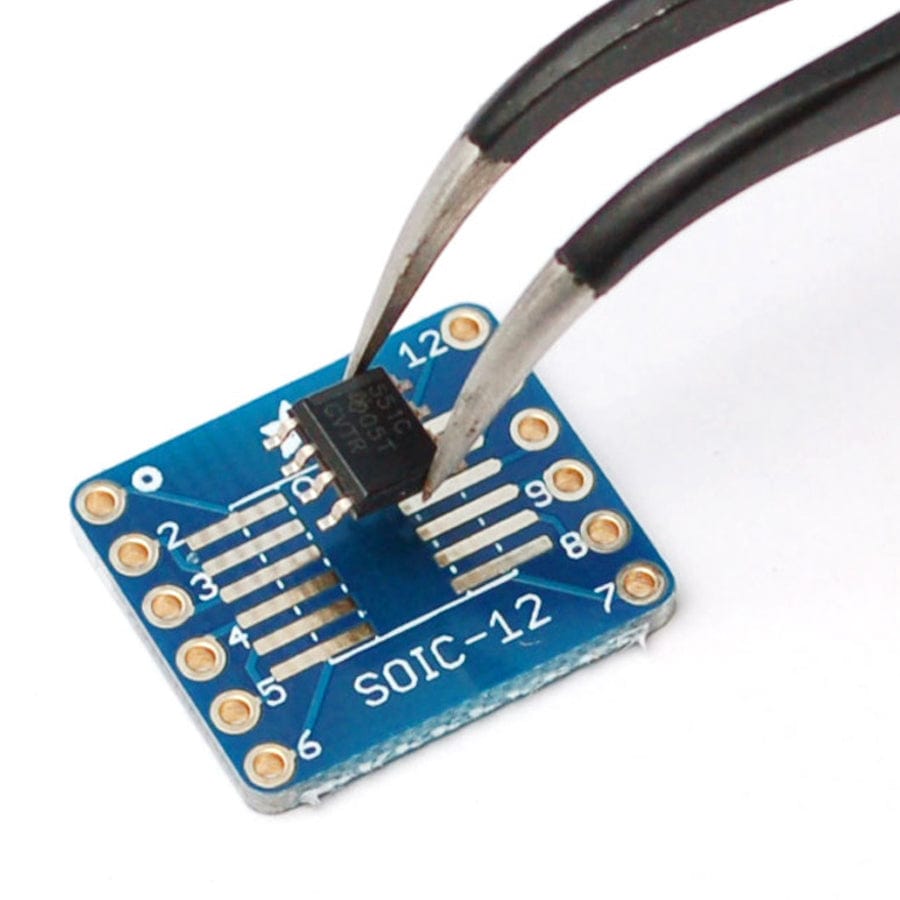

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 12-TSSOP pin out with traces going to two rows of 0.1" spaced holes; the other has 12-SOIC. Solder your chip to either side, and you're ready to rock on any solderless breadboard.

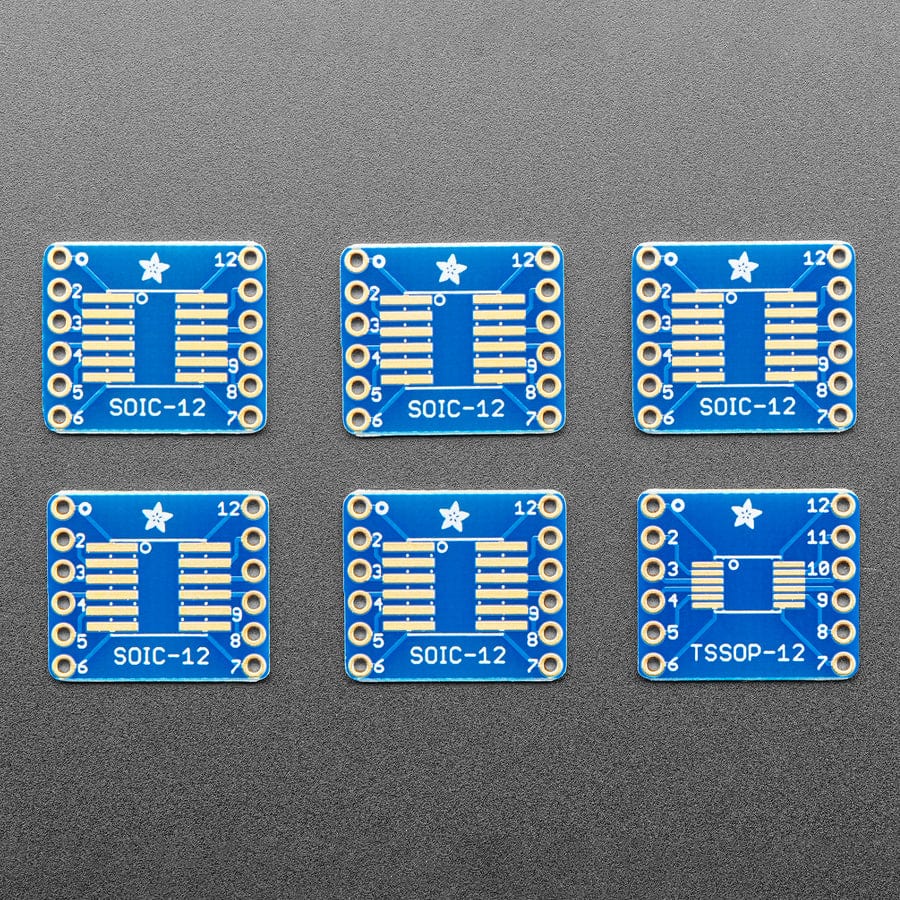

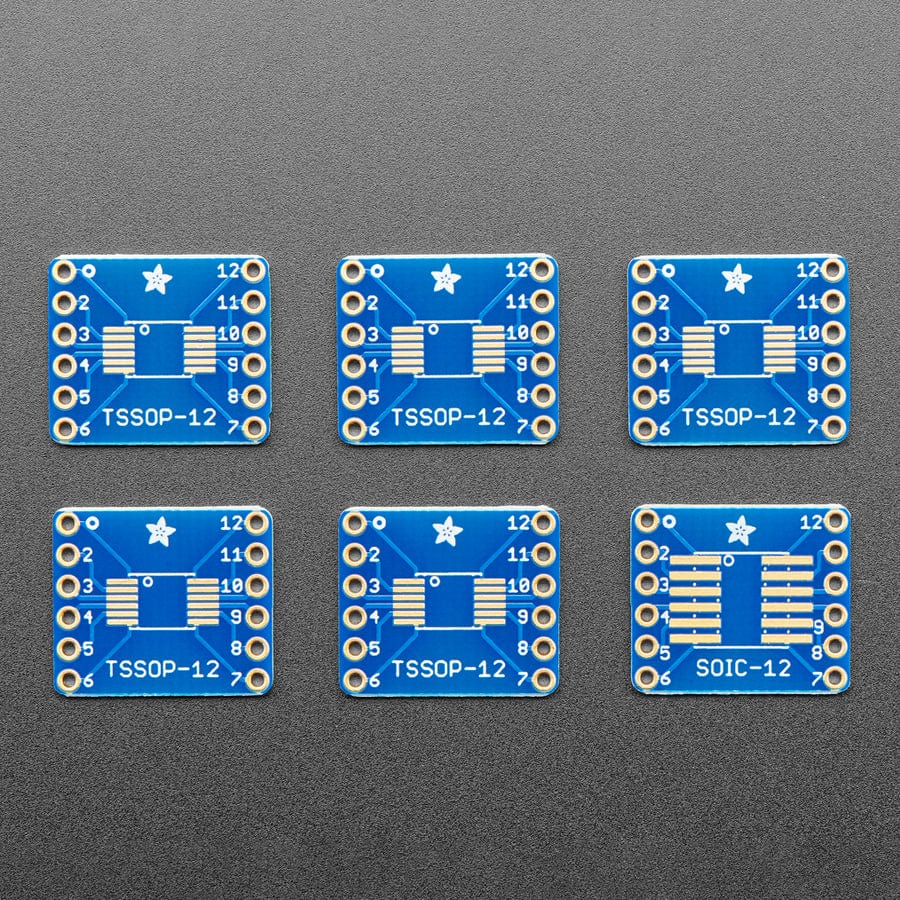

Each item comes with six PCBs, each PCB is identical and can support either a SOIC (narrow, medium, or wide variety) or TSSOP—standard thickness PCBs, with 0.6" spacing between the two rows. You can, of course, use a smaller chip, but the pin numbering won't be right so use care.

Chip is NOT included

Note: It does not include headers, so why don't you pick some up?
